ATH M33 + A24

ATH M33 + A24

ATH M31

ATH M31

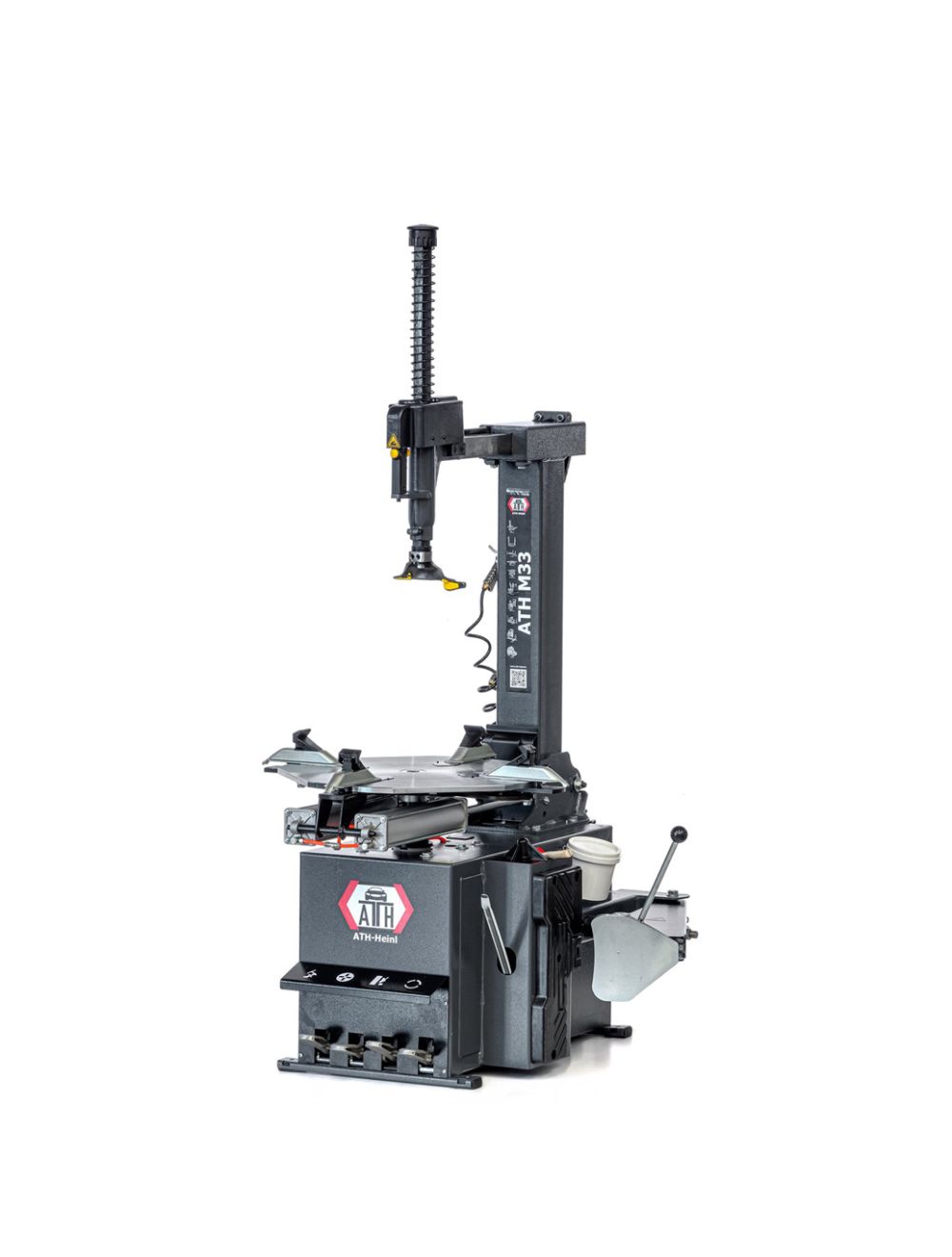

ATH M33

€1,475.00 plus assembly and freight
€1,755.25
Availability: In stock
item number
151048
  • Tire changer with pneumatic rear swivel
  • Requires little space
  • Large clamping range outside up to 22 „
  • Pneumatic mounting head clamping
  • Self-centering, pre-settable 4-jaw system with two double-acting aluminium clamping cylinders
  • Lateral extractor with double-acting aluminium cylinder
  • With hand tire inflator, tire lever and maintenance unit
  • Ideally suited for car tires, with optional accessories also for motorcycle bikes
More Information
Clamping range inner / outer 15 – 24 " / 12 – 22 "
Rim width 4 – 14 "
Max. wheel diameter 1.000 mm
Compressed air connection 10 bar
Bead breaking range 85 – 330 mm
Bead breaker force 24,8 kN
Mounting speeds 7 U/min
Driving power 0,75 kW
Power supply voltage 230V / C16A
Noise level 70 dB(A)
