ATH M33 + A24
€2,245.00
plus assembly and freight
€2,671.55
Availability:
In stock
item number
151049

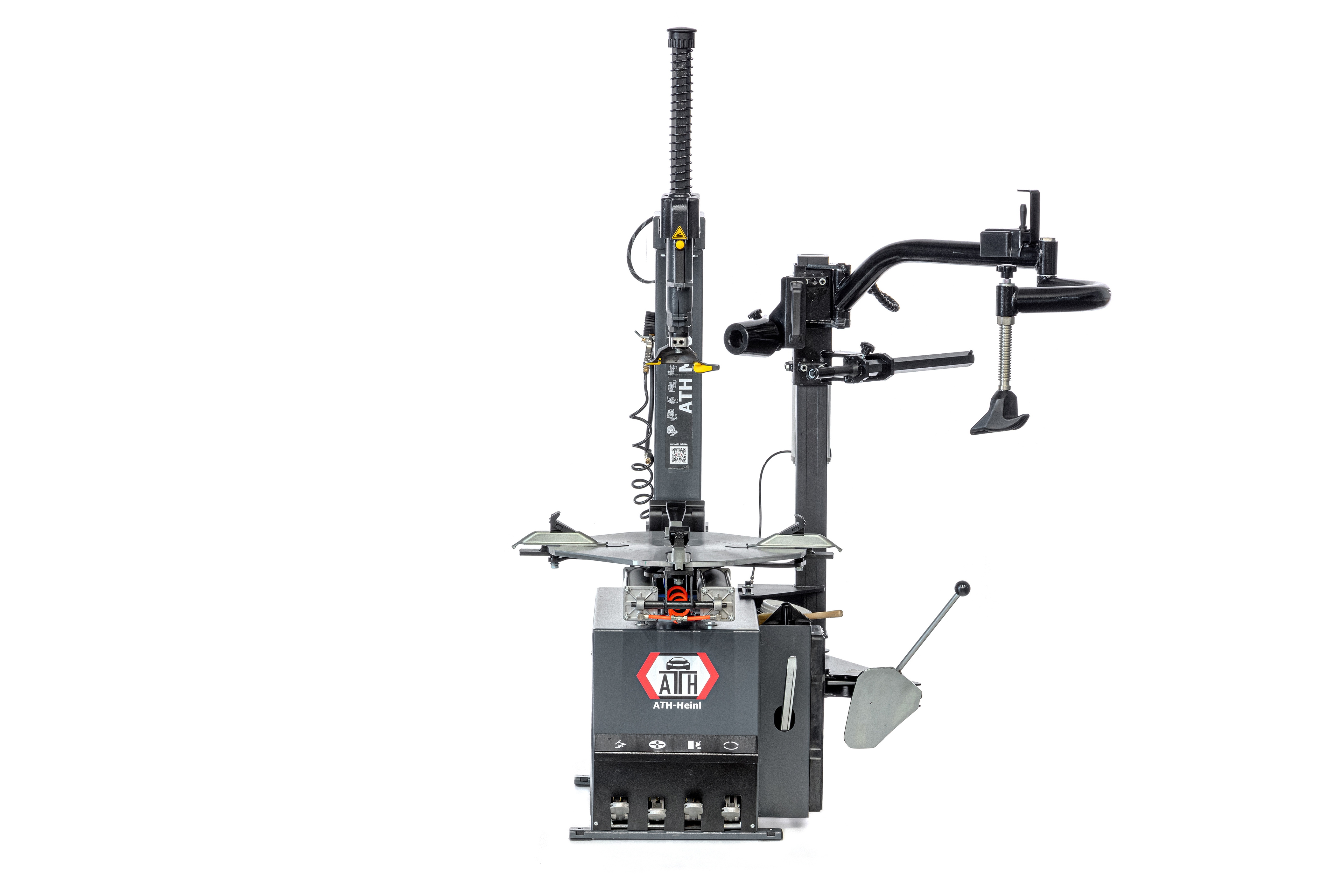

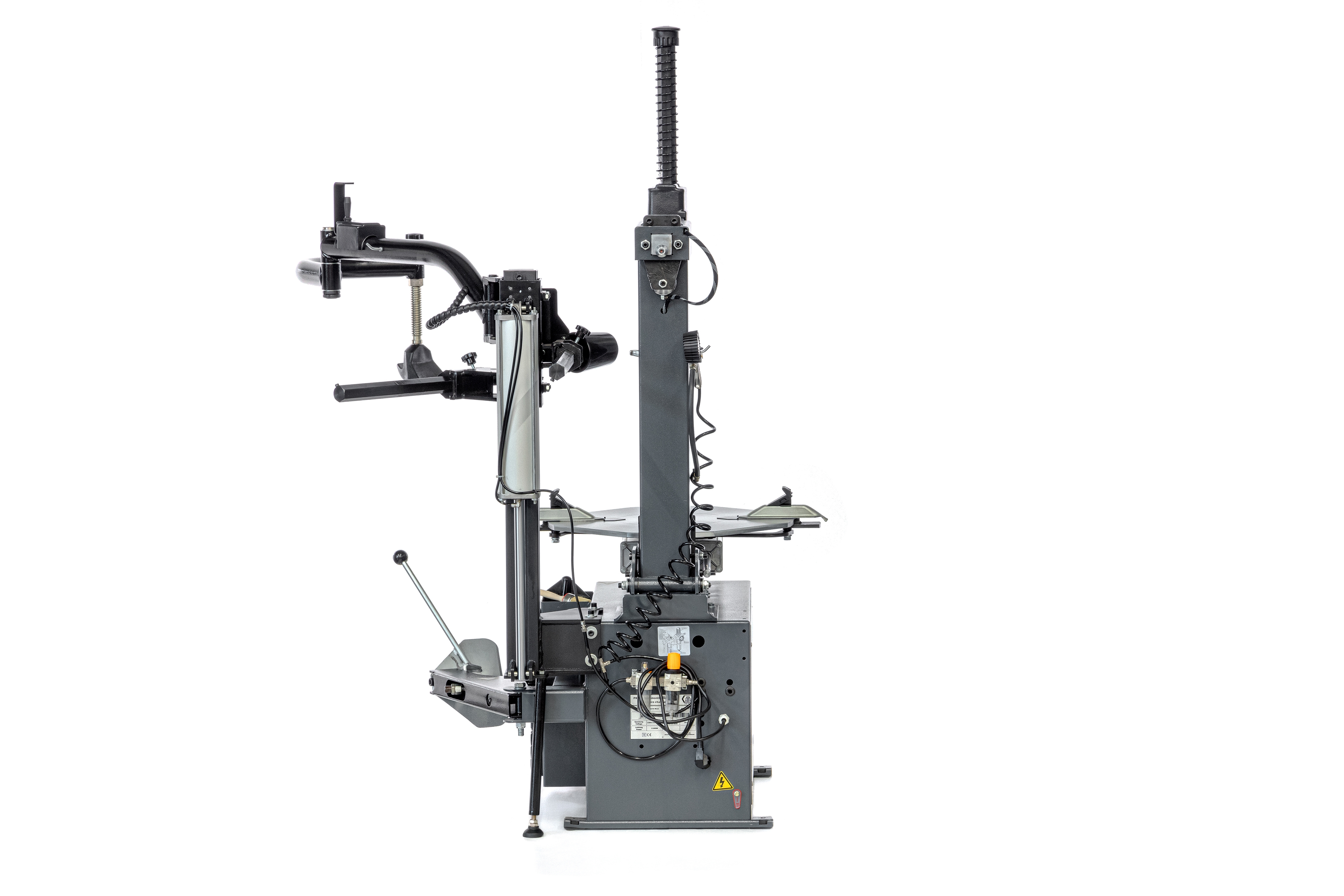

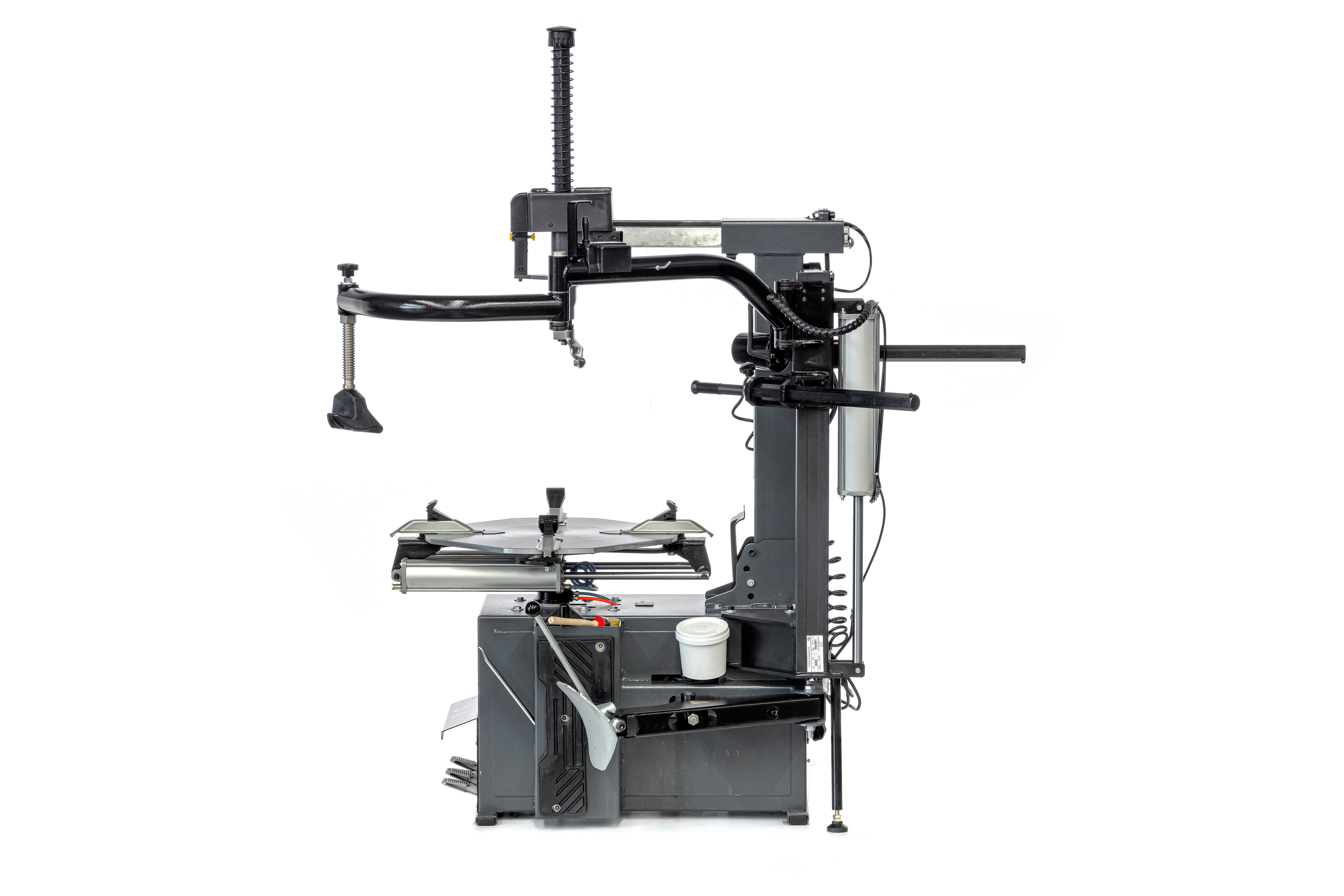

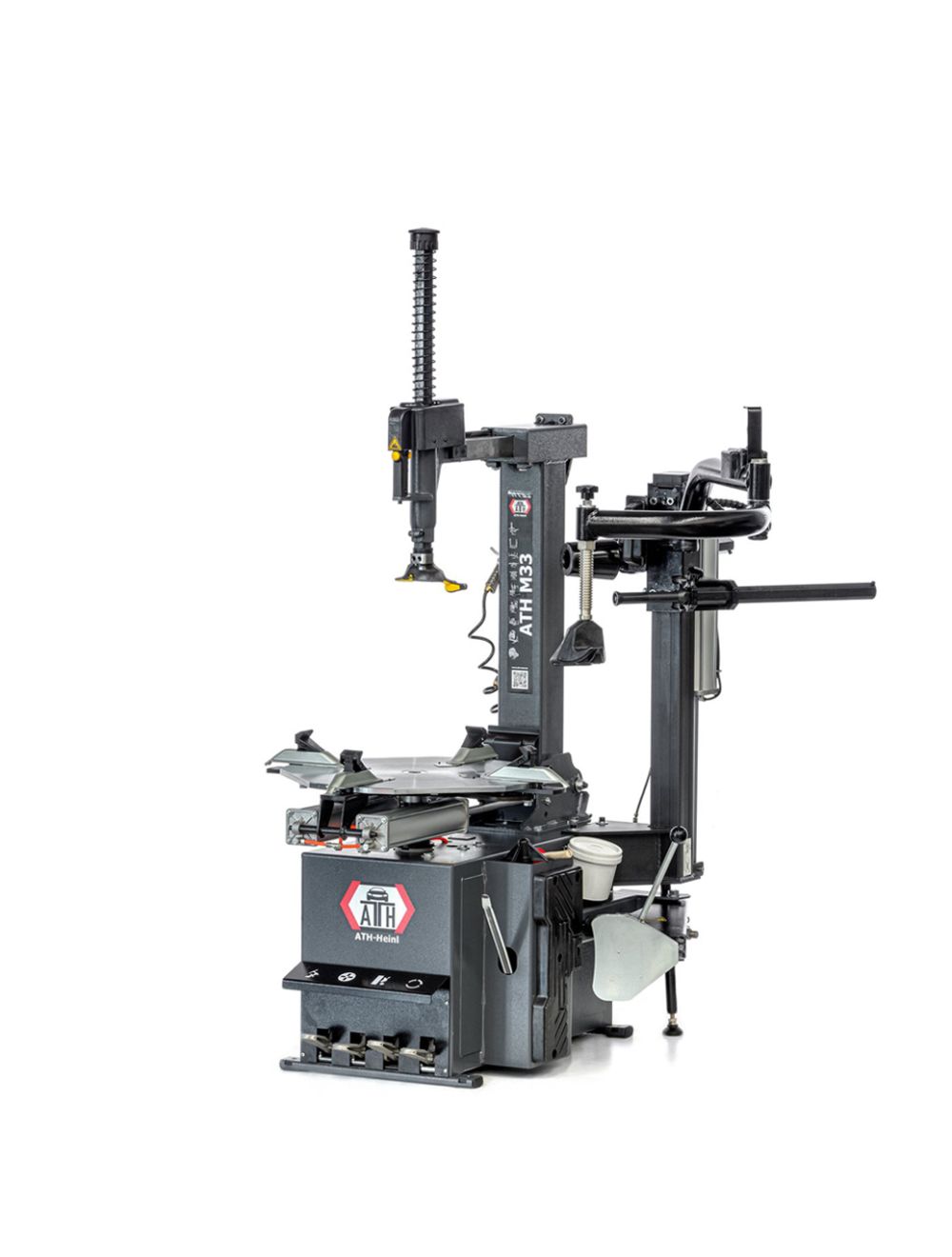

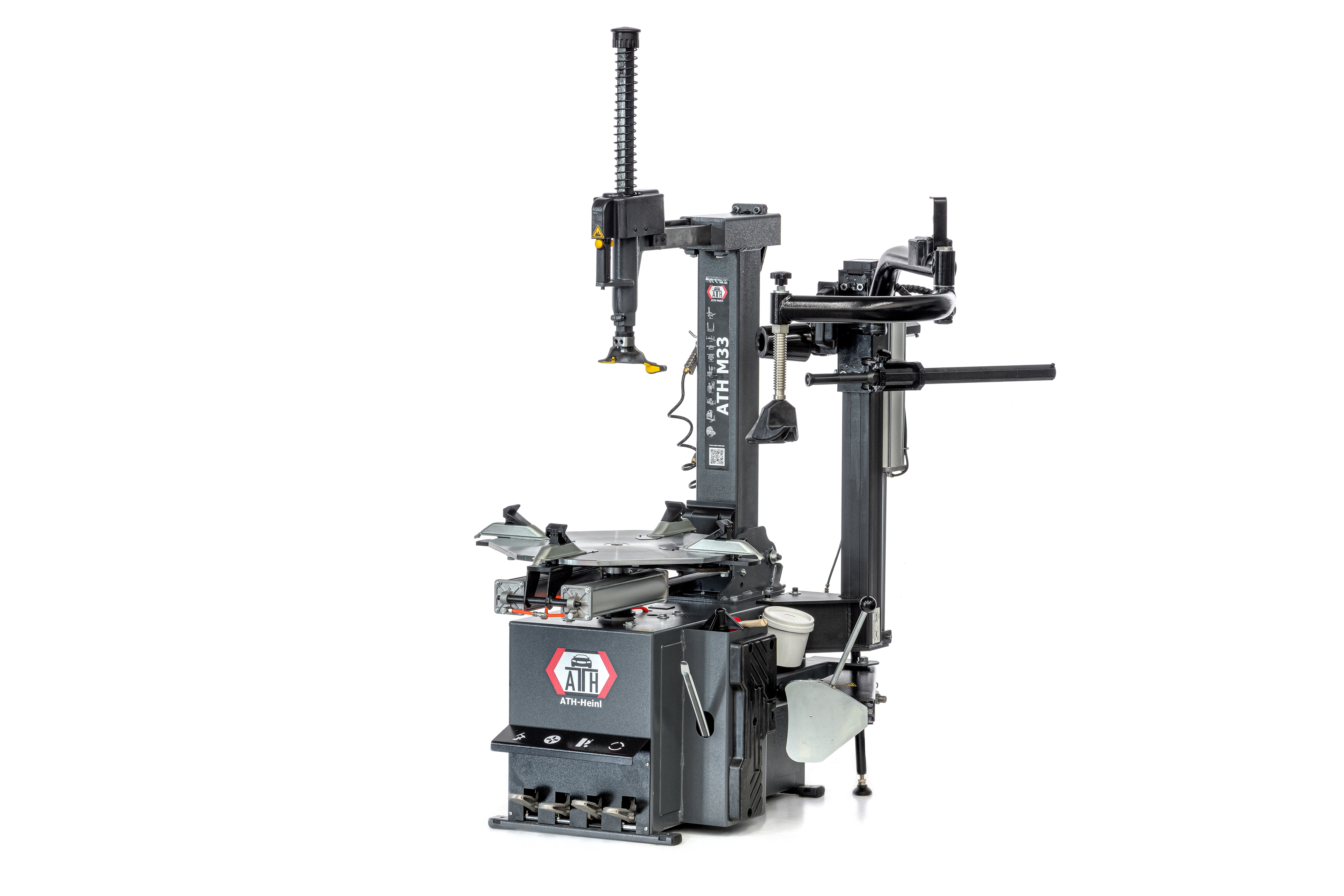

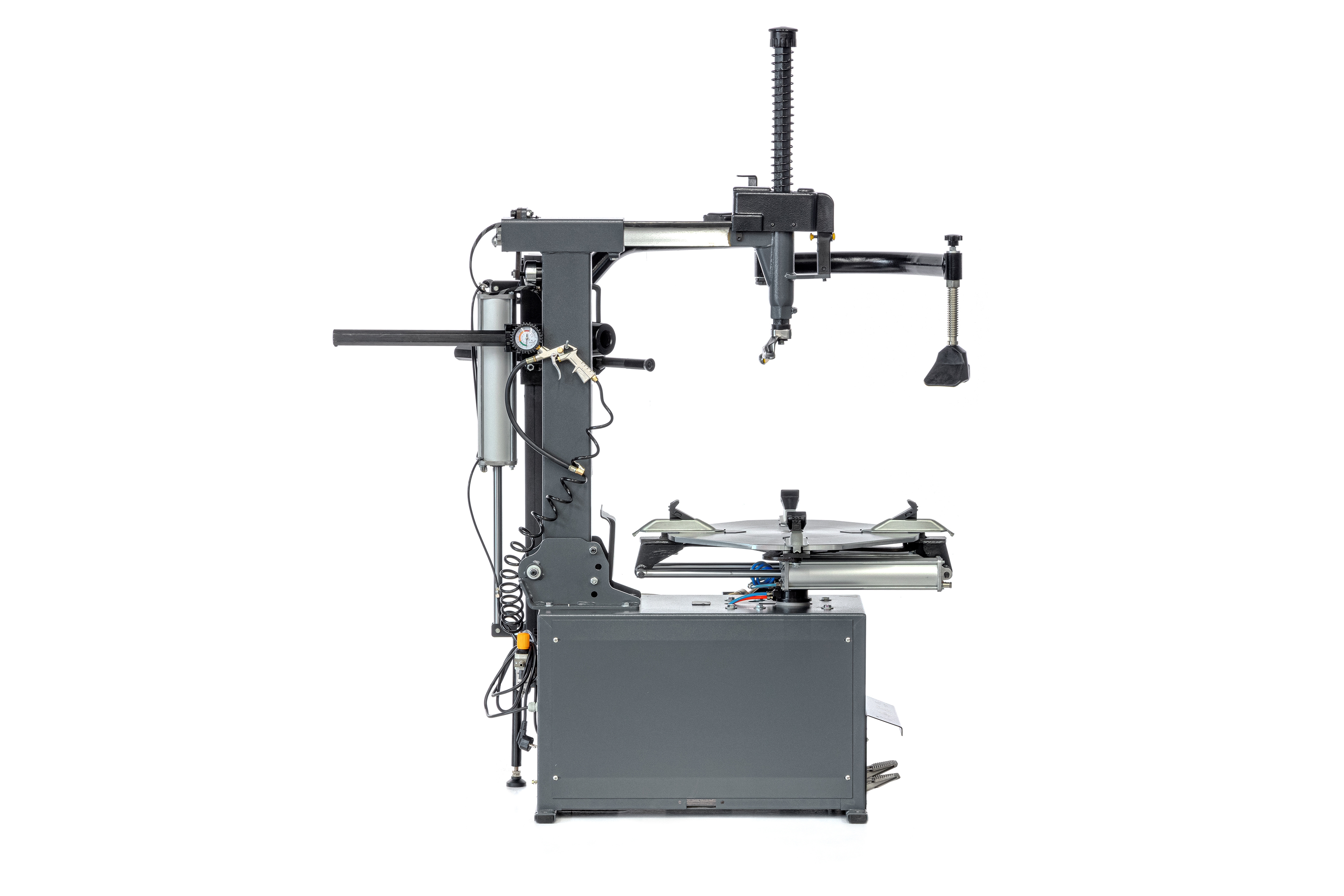

- Tire changer with pneumatic rear swivel and pneumatic auxiliary assembly arm (right)
- Requires little space
- Large clamping range outside up to 22 „
- Pneumatic mounting head clamping
- Self-centering, pre-settable 4-jaw system with two double-acting aluminium clamping cylinders
- Lateral extractor with double-acting aluminum cylinder
- With hand tire inflator, tire lever and maintenance unit
- Ideally suited for car tires, with optional accessories also for motorcycle bikes
| Clamping range inner / outer | 15 – 24 " / 12 – 22 " |
|---|---|
| Rim width | 4 – 14 " |
| Max. wheel diameter | 1.000 mm |
| Compressed air connection | 10 bar |
| Bead breaking range | 85 – 330 mm |
| Bead breaker force | 24,8 kN |
| Mounting speeds | 7 U/min |
| Driving power | 0,75 kW |
| Power supply voltage | 230V / C16A |
| Noise level | 70 dB(A) |
