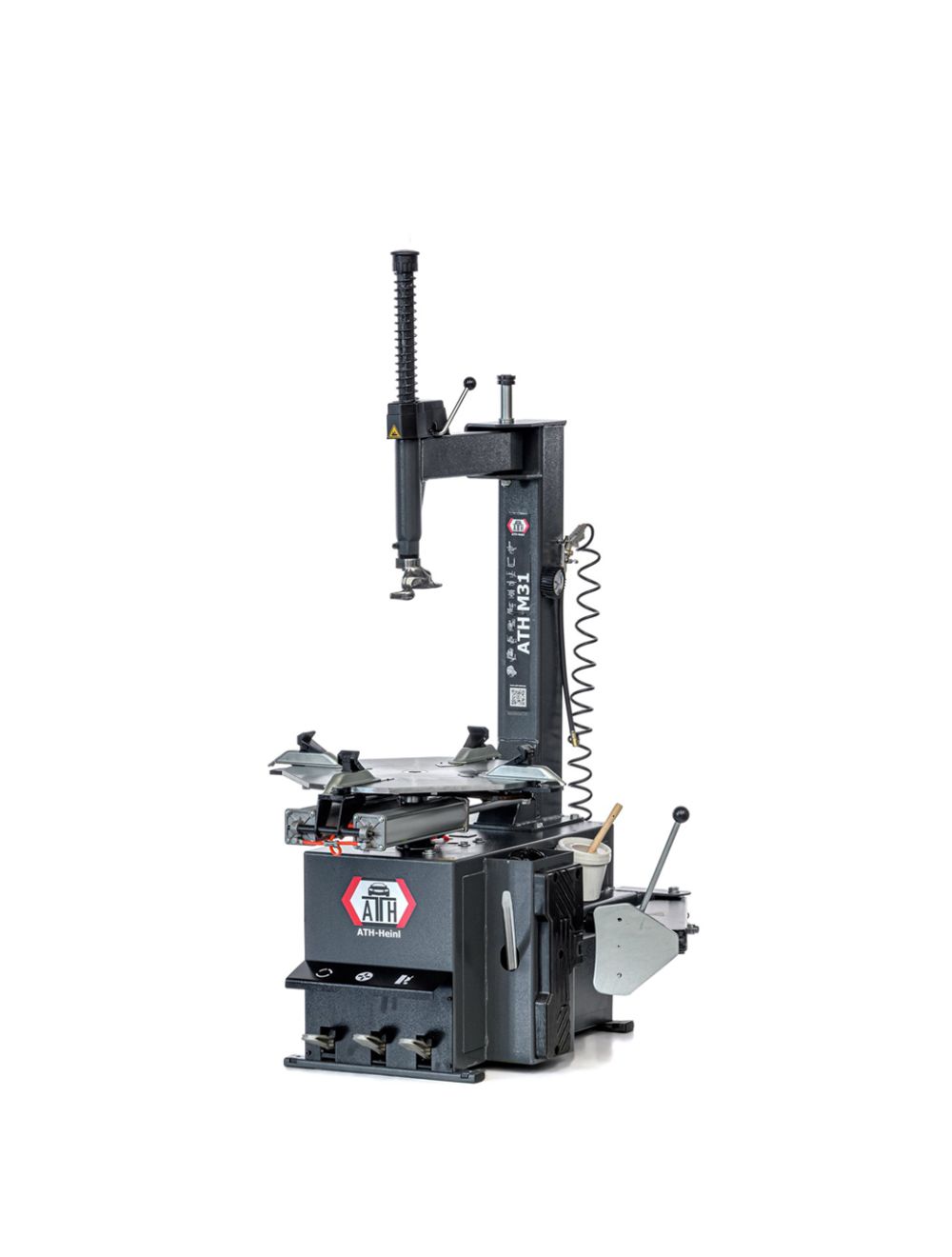

ATH M31
€1,256.30
plus assembly and freight
€1,495.00
Availability:
In stock
item number
151047
- Tire changer with 90 ° side swivel
- Outside clamping range up to 20 „
- Mechanical mounting head tensioner
- Self-centering, pre-settable 4-jaw system with two double-acting aluminium clamping cylinders
- Lateral extractor with double-acting aluminium cylinder
- Extendable valve block with aluminium valves and ergonomically arranged foot pedal control
- With hand tire inflator, tire lever and maintenance unit
- Ideally suited for car tires, with optional accessories also for motorcycle bikes
| Clamping range inner / outer | 13 – 22 " / 10 – 20 " |
|---|---|
| Rim width | 4 – 12 " |
| Max. wheel diameter | 950 mm |
| Compressed air connection | 10 bar |
| Bead breaking range | 75 – 305 mm |
| Bead breaker force | 2.150 kg |
| Mounting speeds | 7 U/min |
| Driving power | 0,75 kW |
| Power supply voltage | 230V / C16A |
| Noise level | 70 dB(A) |
