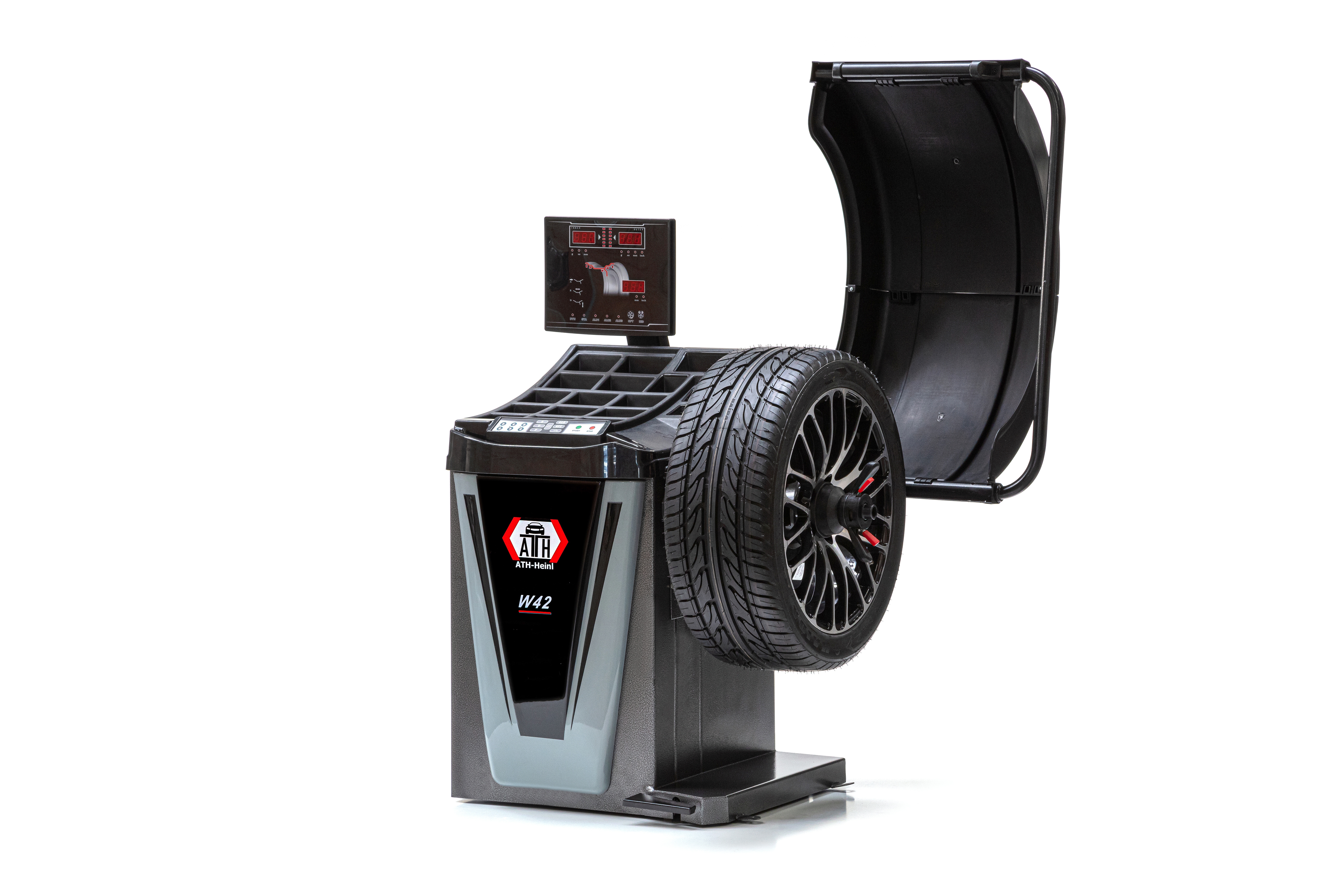

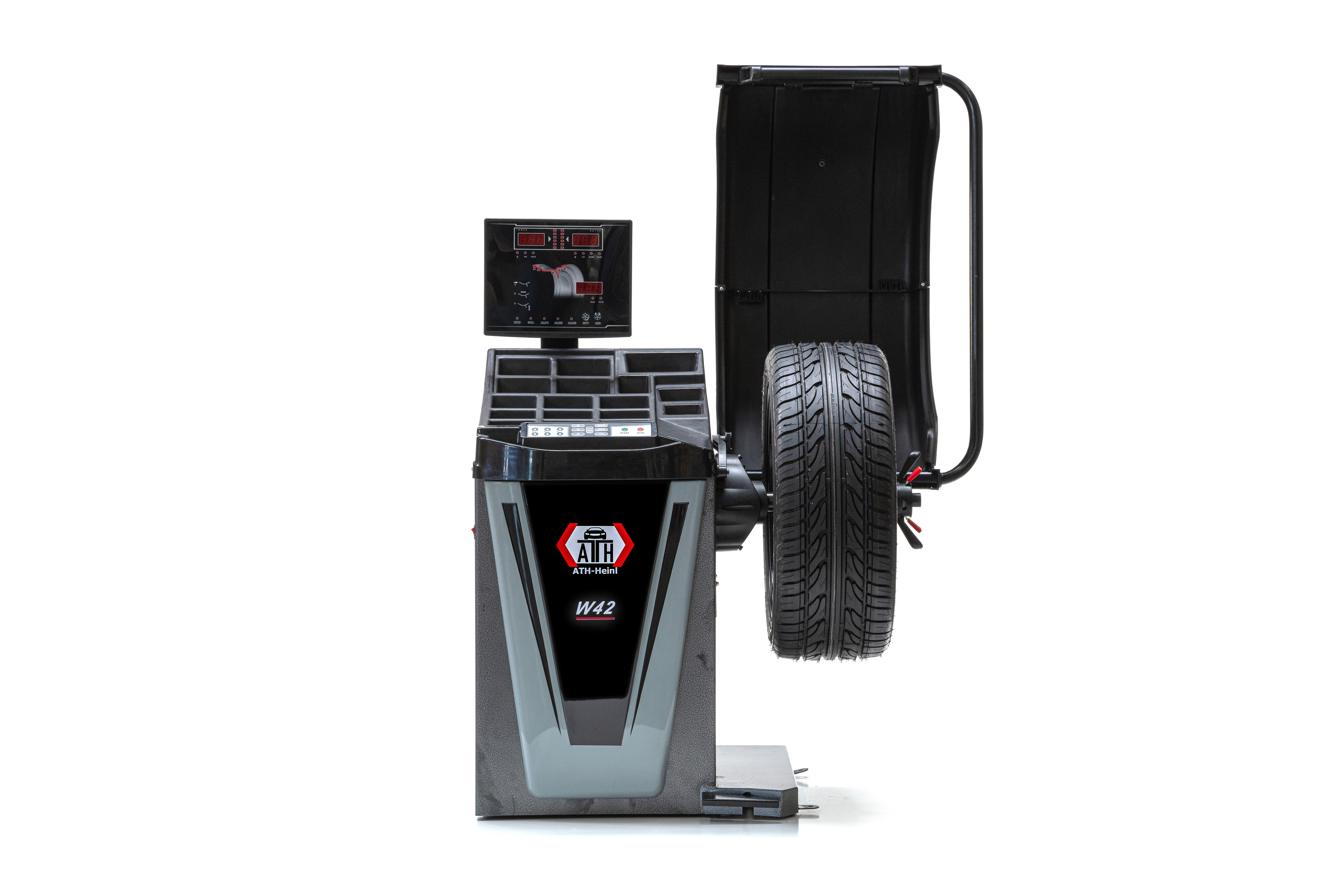

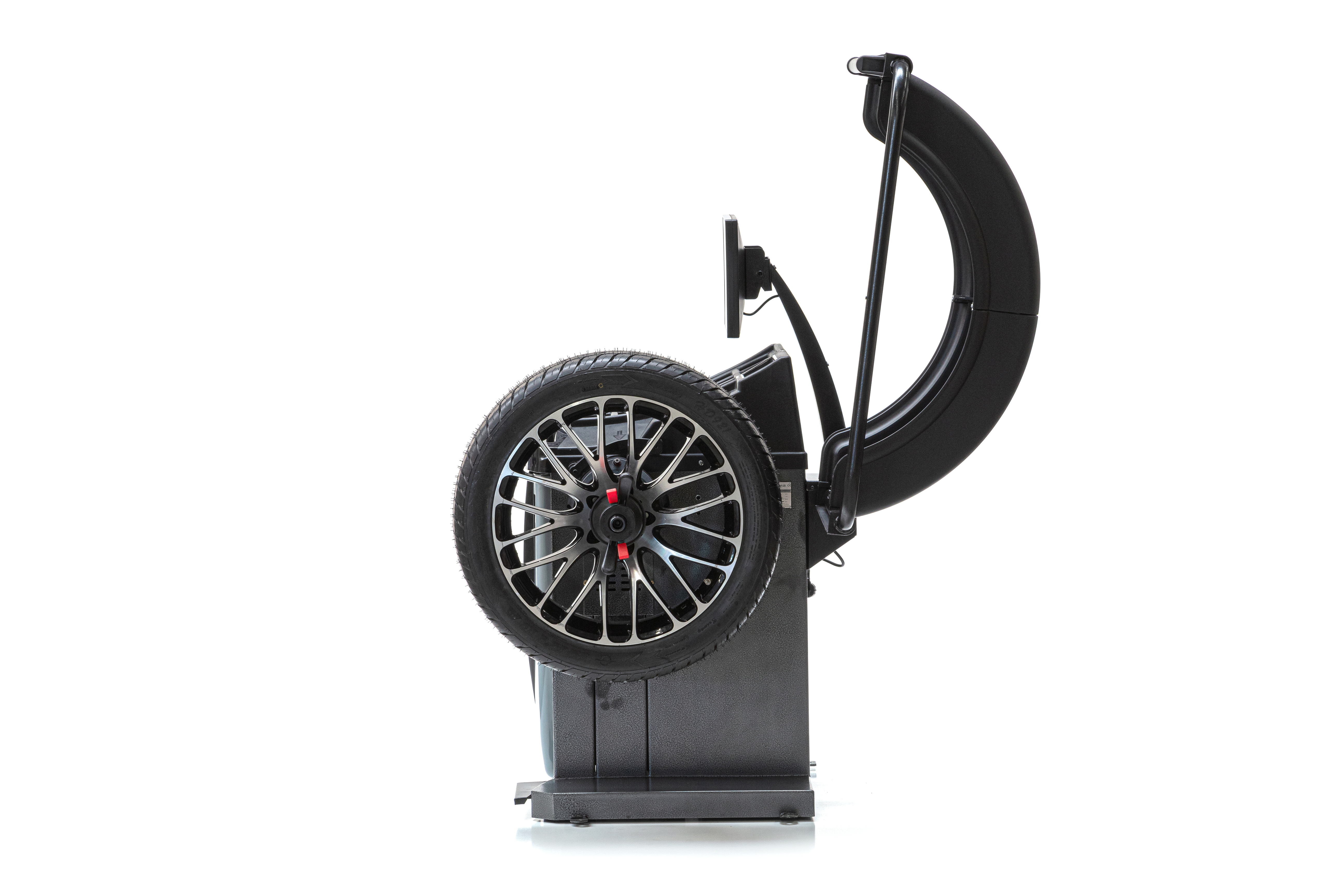

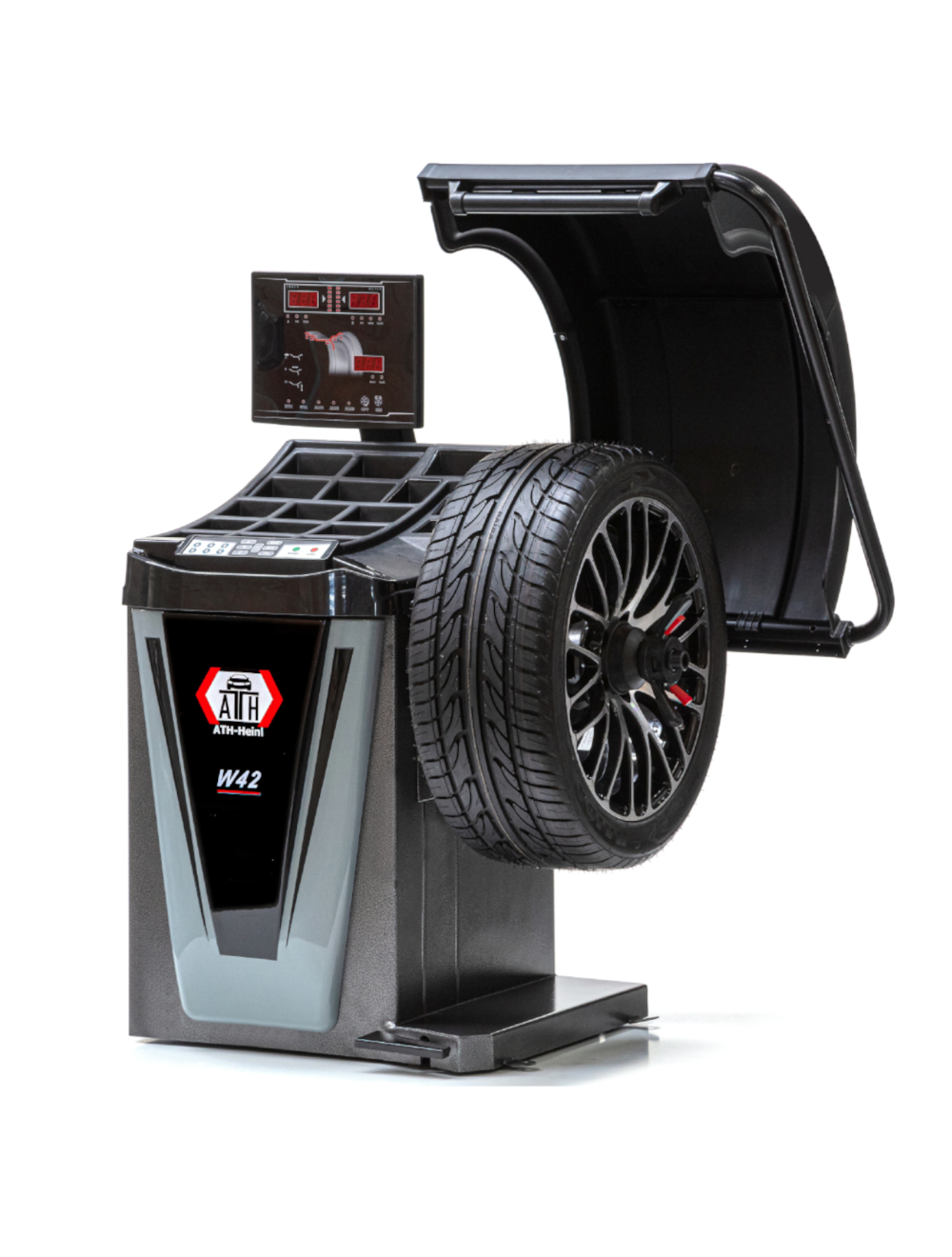

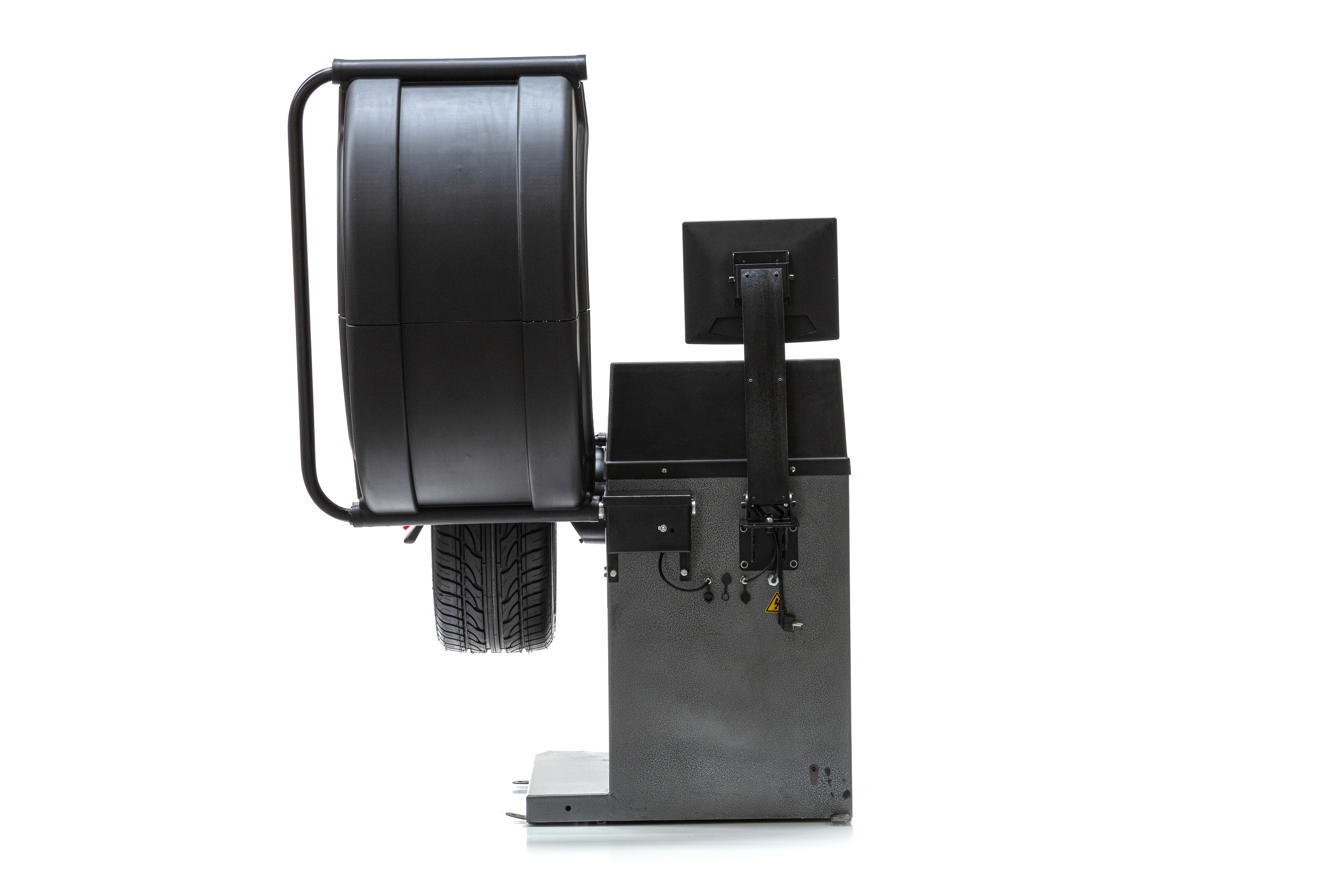

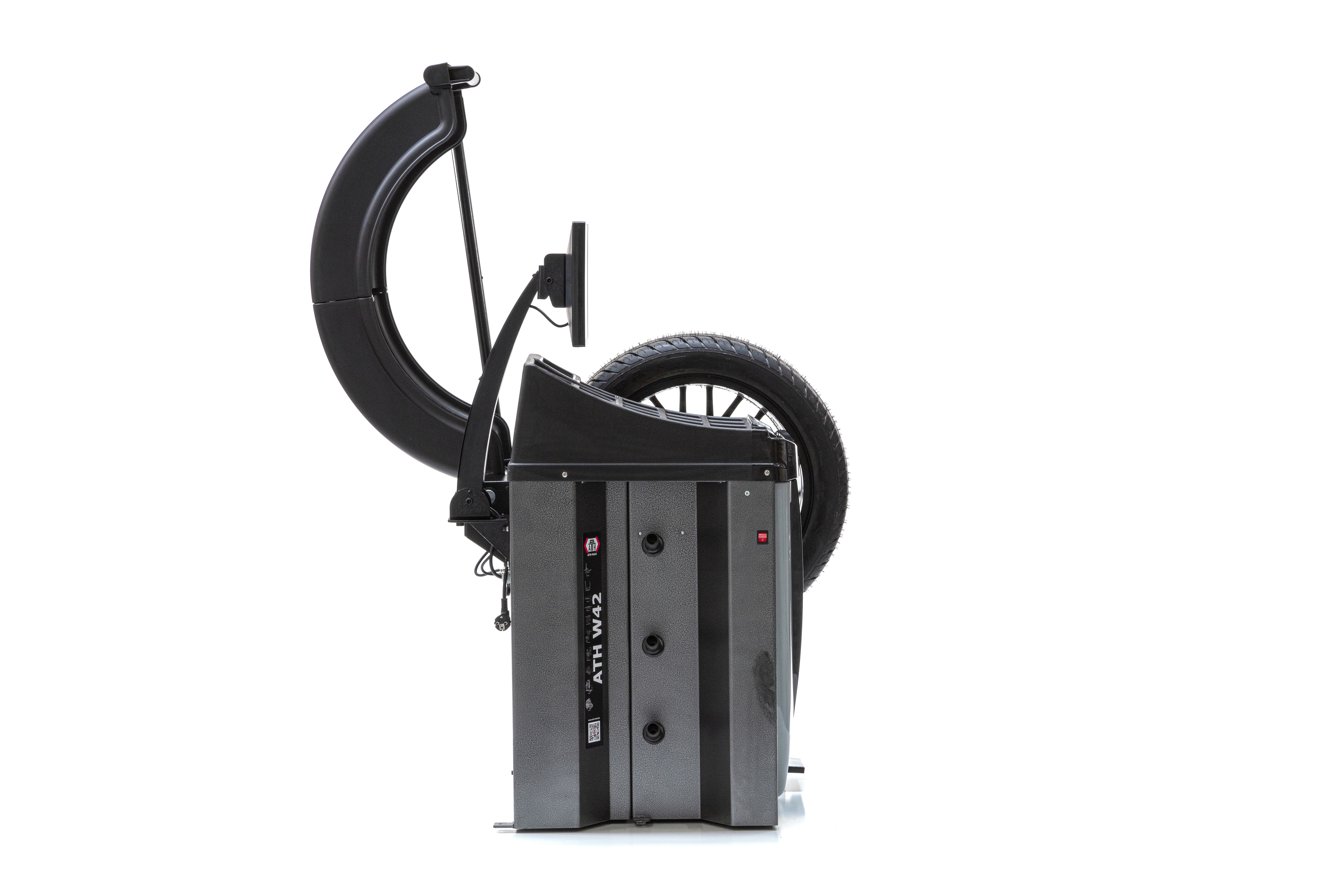

ATH W42 LED 2D
€2,096.64
plus assembly and freight
€2,495.00
Availability:
In stock
item number
150031
- Automatic distance and rim diameter measurement, manual input of rim width (2D function)
- Operation via ergonomically arranged front control panel, large shelf with numerous compartments
- Digital and optical position display of the weights via LED monitor and duo laser (LPS) 12/6 o‘clock
- Static / dynamic, ALU programs, ALU weight optimization and back spoke placement
- Quick-release nut clamping with 40 mm shaft diameter, easy attachment of the weights via pedal-operated parking brake and measuring tool, integrated interior wheel lighting
- Wheel protection with automatic start-stop function
- Precise work thanks to the latest microprocessor control
- Ideally suited for car wheels, with optional accessories also for motorcycle and light truck wheels
| Center hole diameter rim | 45 – 130 mm |
|---|---|
| Measurement tolerance | ± 1 g |
| Measuring time | 7 s |
| Measuring speed | 180 U/min |
| Rim width | 1,5 – 20 " |
| Rim diameter | 12 – 24 " |
| Max. wheel diameter | 900 mm |
| Wheel weight max. | 65 kg |
| Driving power | 0,25 kW |
| Power supply voltage | 230V / C16A |
Product Catalog
We can also advise you by phone +49 (0) 9666 18801-00
Download Product-flyer
