ATH W82 Touch 3D

ATH W82 Touch 3D

ATH W42 LED 2D

ATH W42 LED 2D

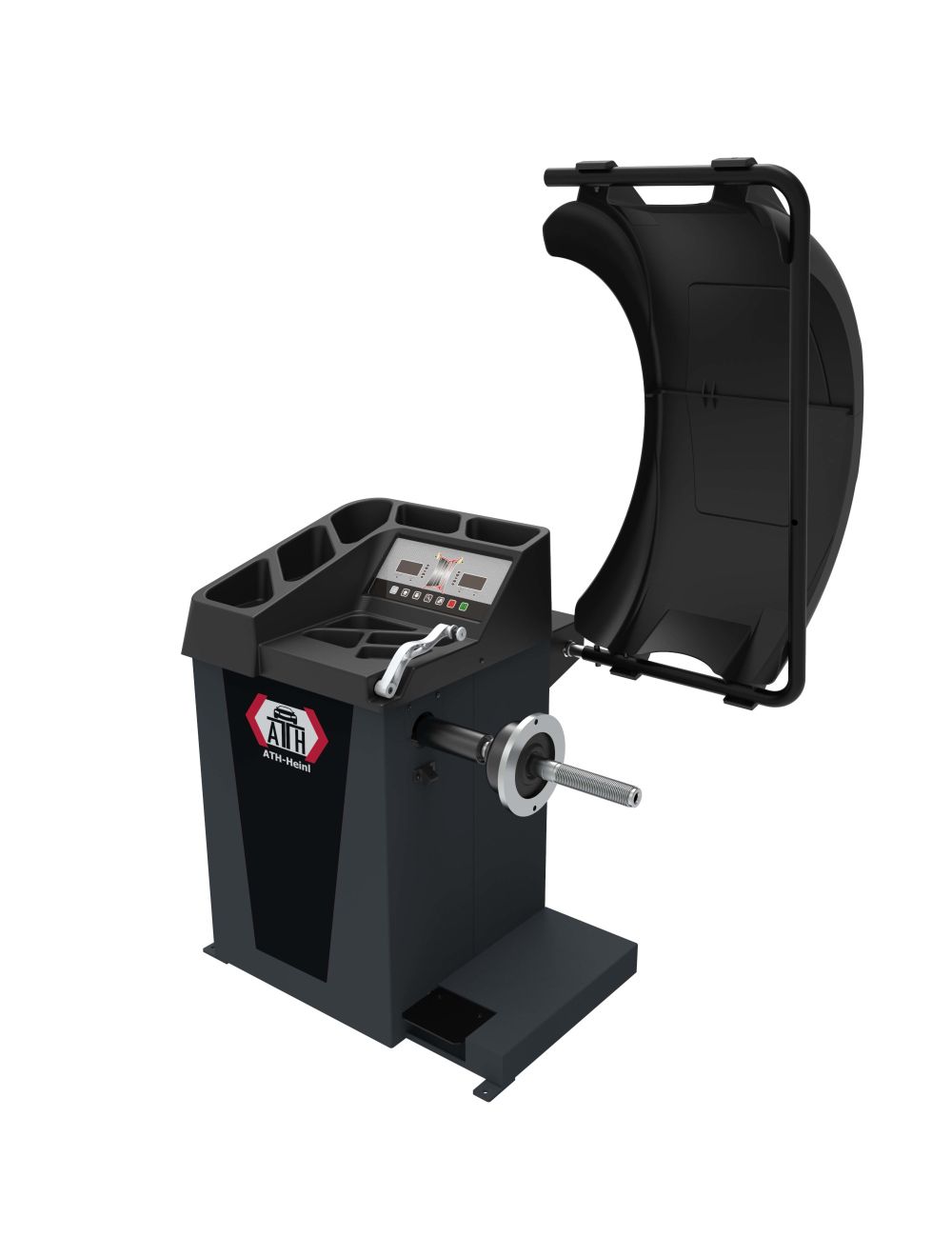

ATH W24 LED 2D

€1,592.44 plus assembly and freight
€1,895.00
Availability: In stock
item number
150051
Share on
  • Microprocessor-controlled balancing machine for car wheels with integrated calibration routine
  • 2D function: automatic distance and wheel diameter measurement (manual input of the wheel width)
  • Weight position display via the digital LED display
  • Program selection between static and dynamic balancing, as well as various ALU programs, ALU weight optimization and rear spoke placement
  • Pedal-operated parking brake for easy attachment of the weights
  • Integrated laser at 6 o'clock for precise positioning
  • Measuring arm made of aluminium with a special adhesive weight holder
  • Ideally suited for car wheels, with optional accessories also for motorcycle and light truck wheels
More Information
Center hole diameter rim 45 – 130 mm
Measurement tolerance ± 1 g
Measuring time 8 s
Measuring speed 200 U/min
Rim width 1,5 – 20 "
Rim diameter 10 – 24 "
Max. wheel diameter 900 mm
Wheel weight max. 65 kg
Driving power 0,20 kW
Power supply voltage 230V / C16A
Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.

Product Catalog

Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.

We can also advise you by phone +49 (0) 9666 18801-00

Download Product-flyer Download Product-flyer
