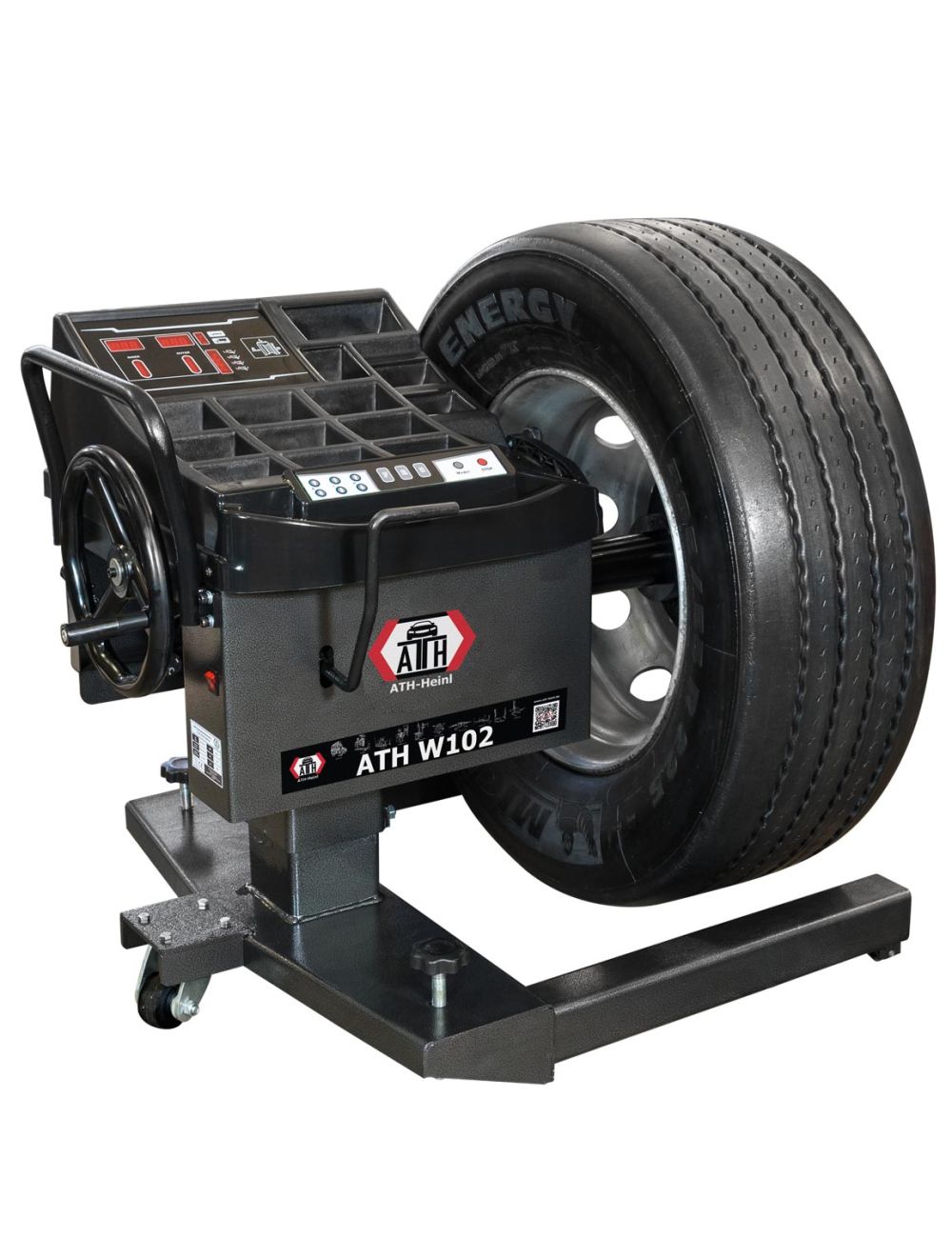

ATH W102
€2,096.64
plus assembly and freight
€2,495.00
Availability:
In stock
item number
721602
- Manual input of distance, rim diameter and rim width
- Operation via ergonomically arranged front control panel, large shelf with numerous compartments
- Digital position display of the weights via LED monitor
- Manual drive with hand brake and five balancing programs (static / dynamic / ALU programs in truck or car mode)
- No additional wheel lift required, as the complete balancing unit with the clamped wheel can be raised
- Ideally suited for truck, bus, van and car wheels
| Center hole diameter rim | 45 – 225 mm 270 – 281 mm |
|---|---|
| Measuring tolerance car | truck | ± 10 g | ± 50 g |
| Shaft diameter | 40 mm |
| Rim width | 4 – 15 " |
| Rim diameter | 12 – 24 " |
| Max. wheel diameter | 1.200 mm |
| Wheel weight max. | 200 kg |
| Power supply voltage | 230V / C16A |
| Weight net | gross | 185kg | 221 kg |
