ATH W102

ATH W102

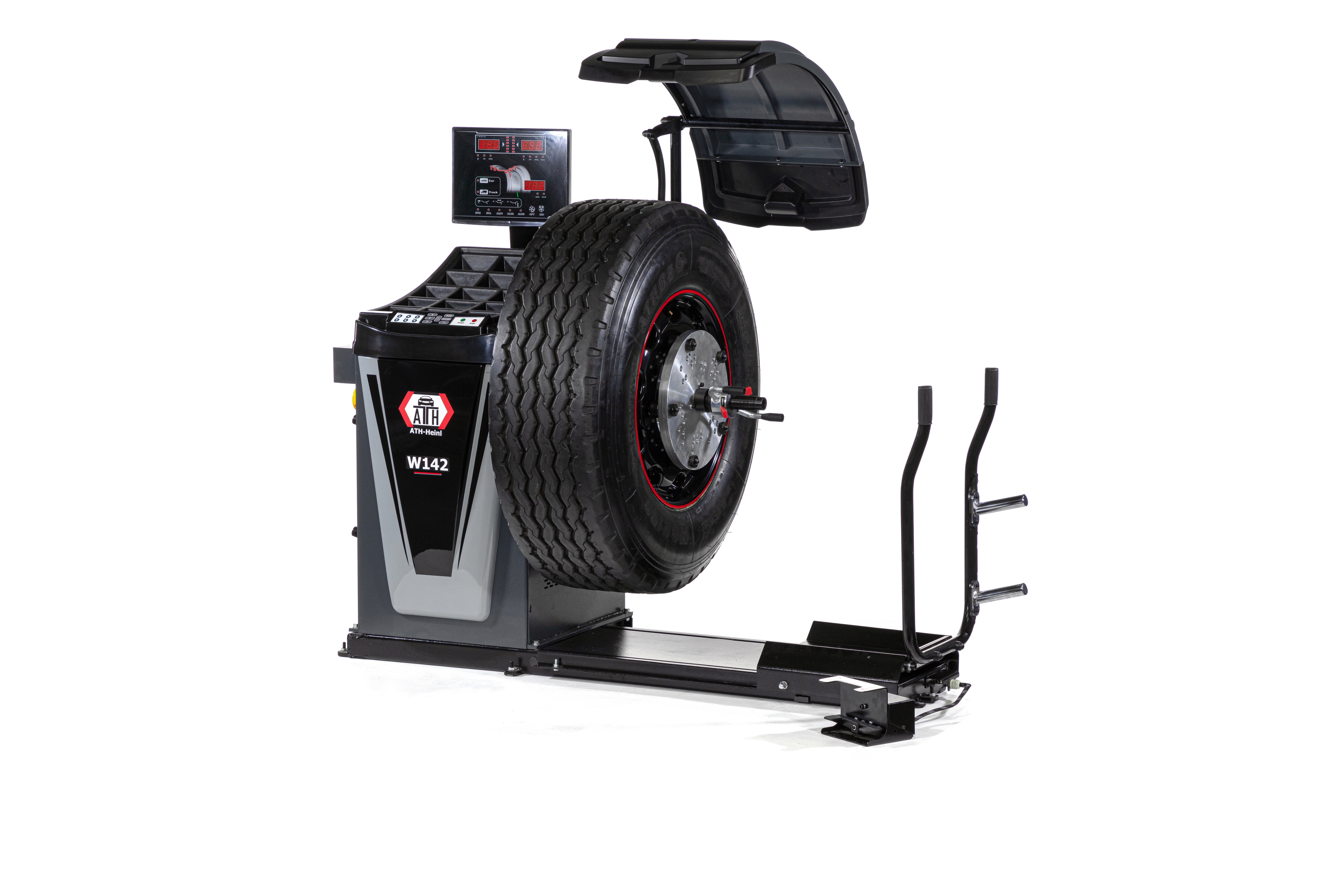

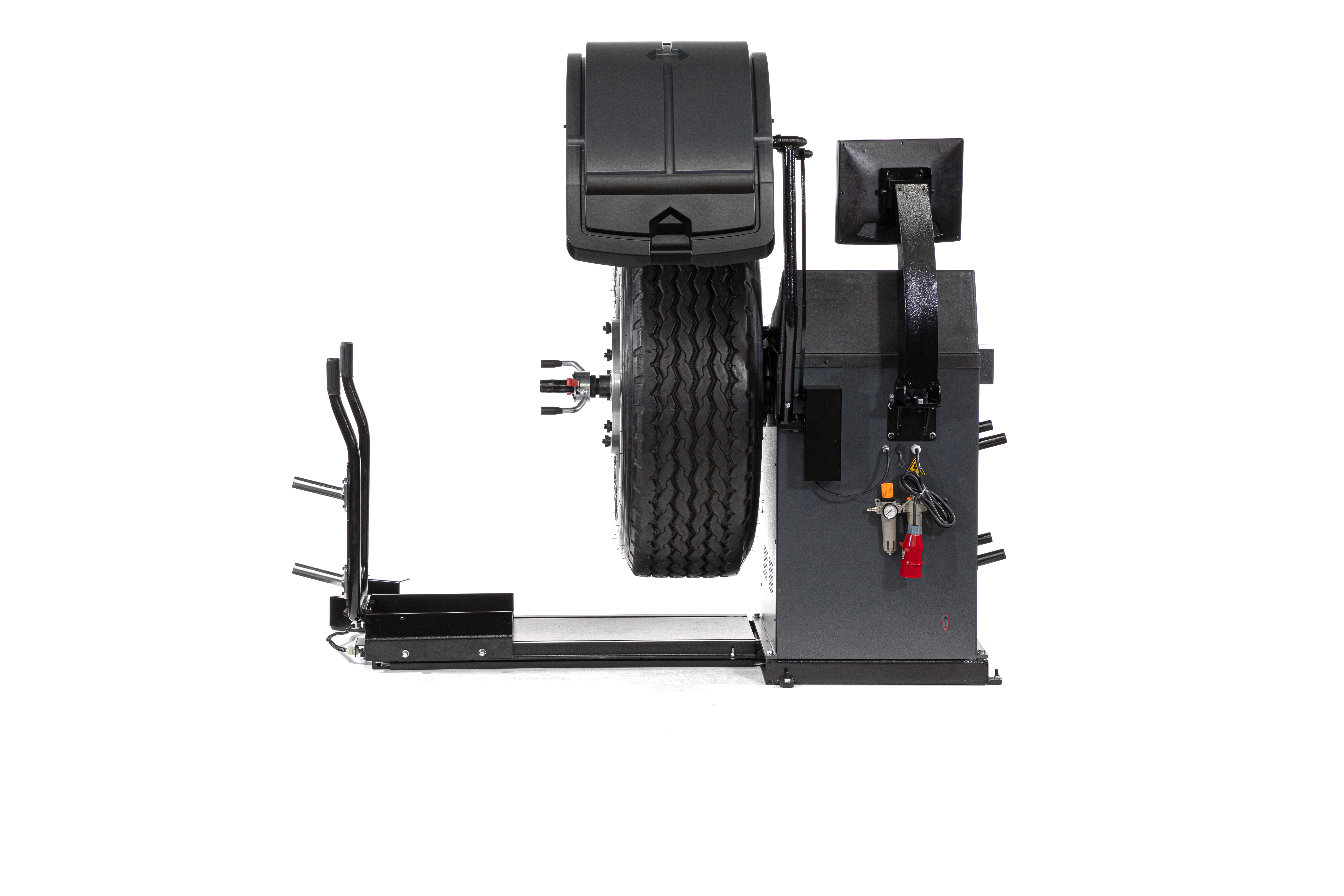

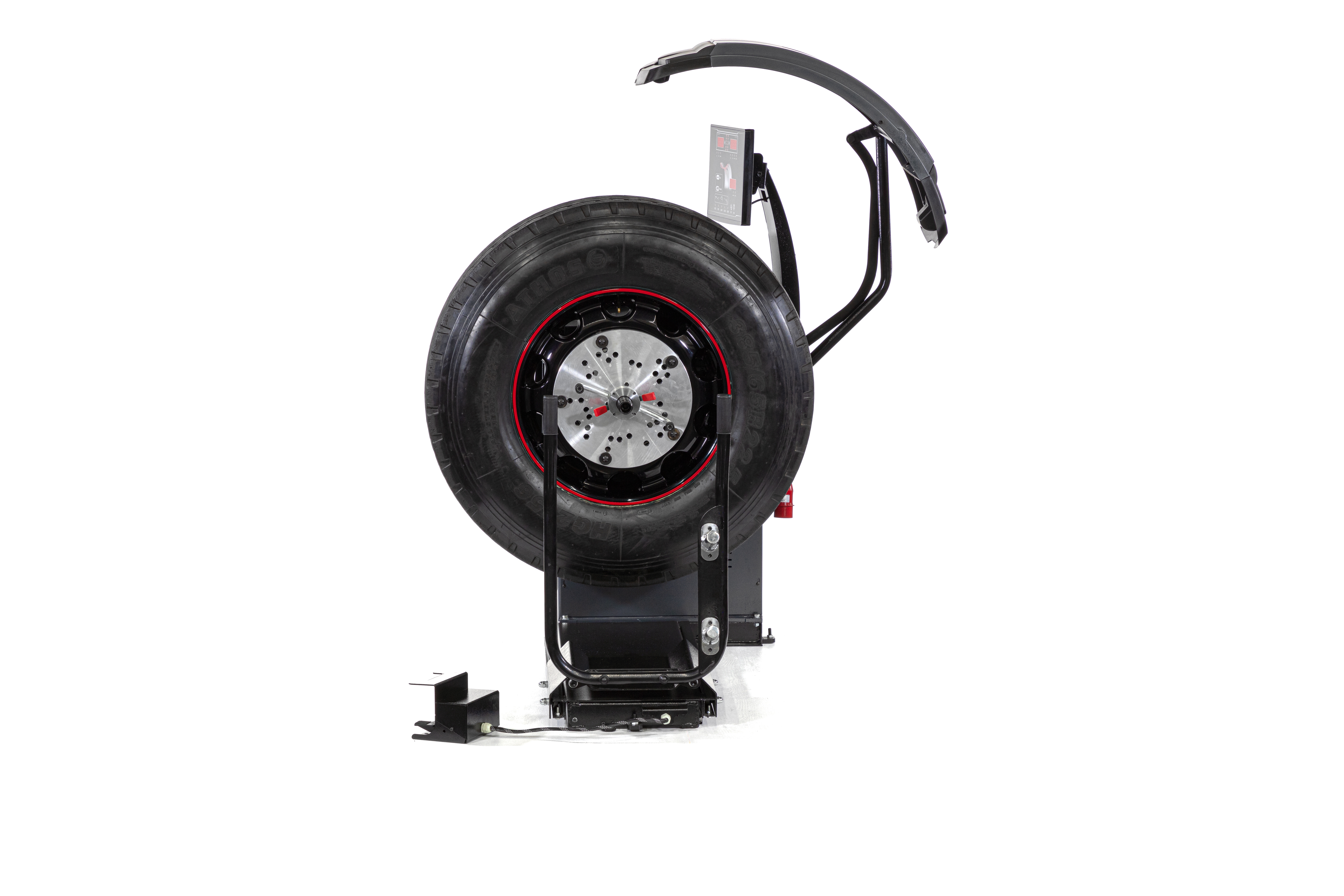

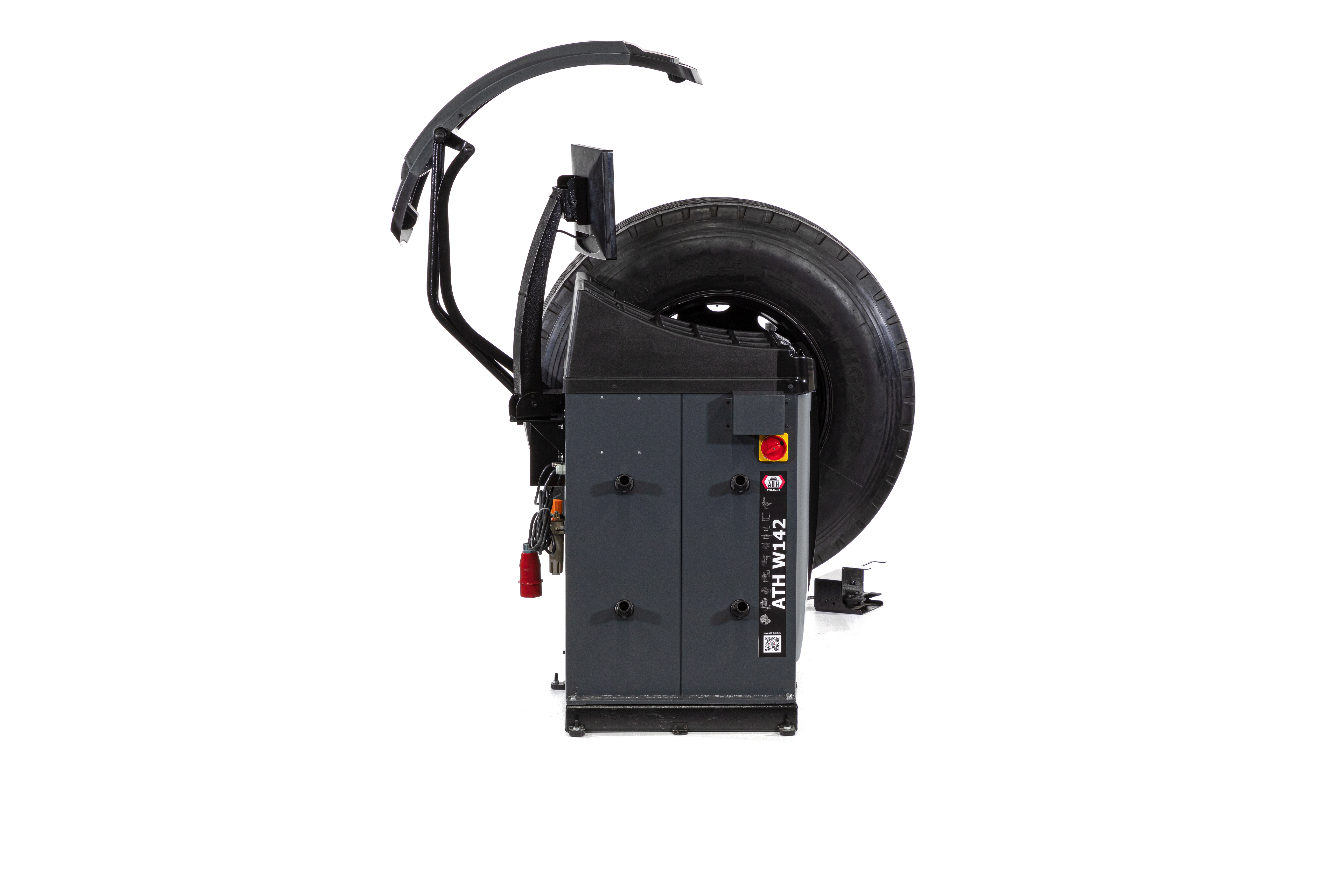

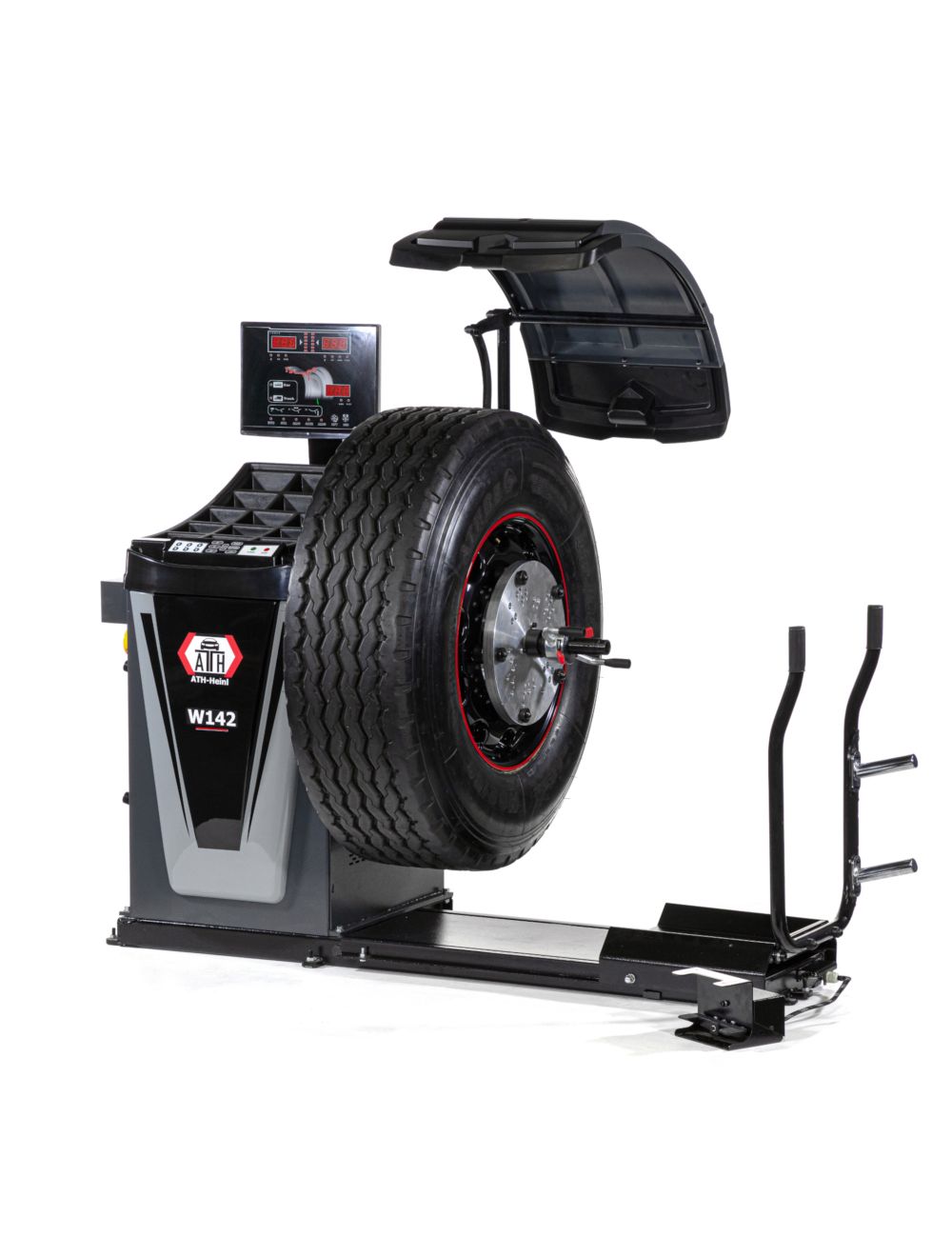

ATH W142

€4,197.48 plus assembly and freight
€4,995.00
Availability: Out of stock
item number
721603
Share on

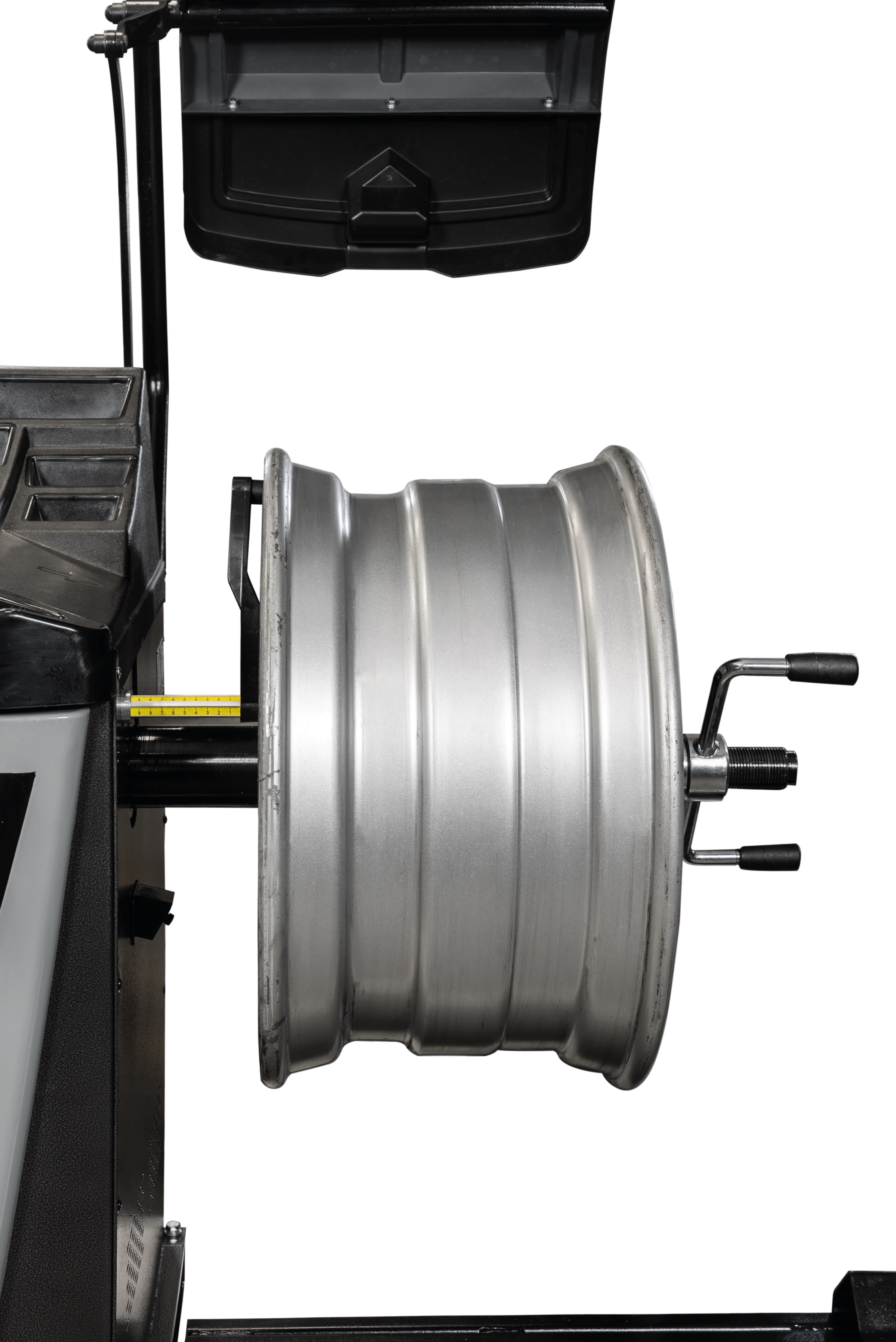

  • Automatic distance and rim diameter measurement, manual input of rim width (2D function)
  • Operation via ergonomically arranged front control panel, large shelf with numerous compartments

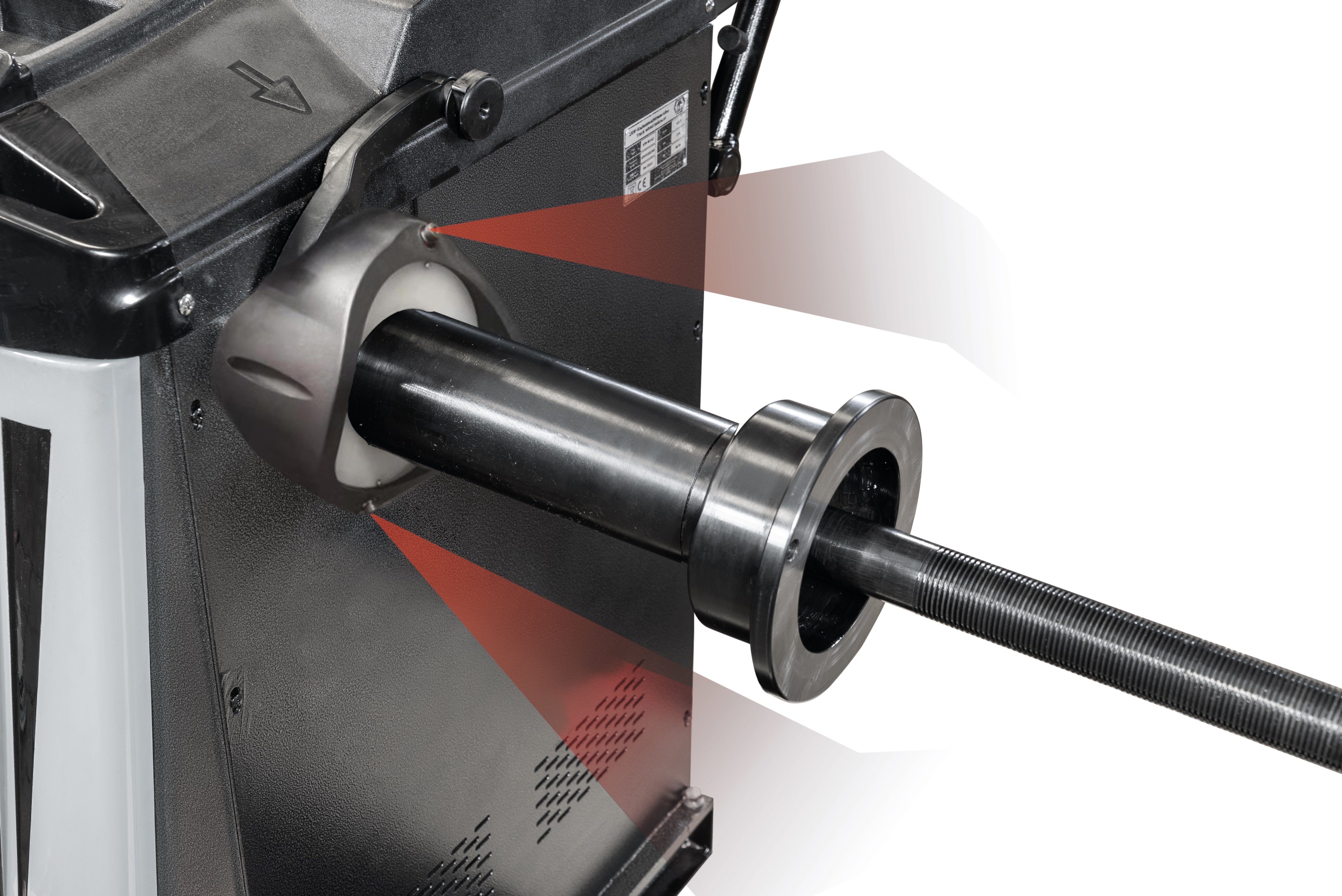

  • Digital and optical position display of the weights via LED monitor and duo laser (LPS) 12/6 o‘clock
  • Automatic sequence with pneumatic wheel braking and selection between eleven balancing programs (static / dynamic / ALU programs in truck or car mode) and back spoke placement
  • Electric drive with pneumatic wheel lift, easy attachment of the adhesive weights over measuring tool or laser position (6 o‘clock), pneumatic parking brake
  • Wheel protection with automatic start-stop function
  • Ideally suited for truck, bus, van and car wheels
More Information
Center hole diameter rim 45 – 290 mm
Measuring tolerance car | truck ± 1 g | ± 10 g
Measuring time car | truck 13 s | 25 s
Measuring speed 180 U/min
Rim width 5 – 20 "
Rim diameter car | truck 10 – 24 " | 15,5 – 30 "
Max. wheel diameter 1.200 mm
Wheel weight max. 160 kg
Driving power 0,55 kW
Power supply voltage 3x 400V / C16A
Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.

Product Catalog

Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.
Due to data compliance rules, we require your consent for marketing cookies to display this content.

We can also advise you by phone +49 (0) 9666 18801-00

Download Product-flyer Download Product-flyer
