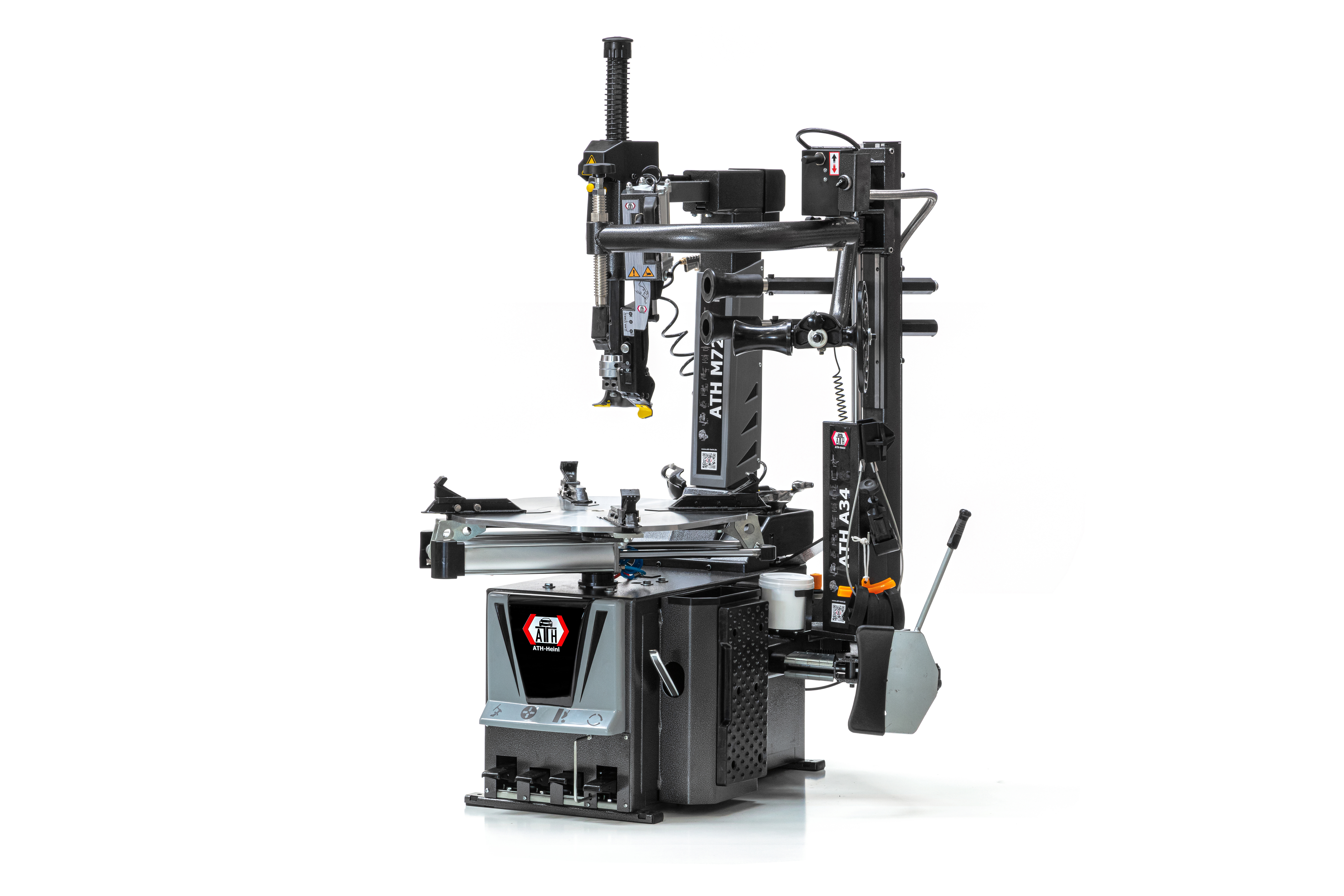

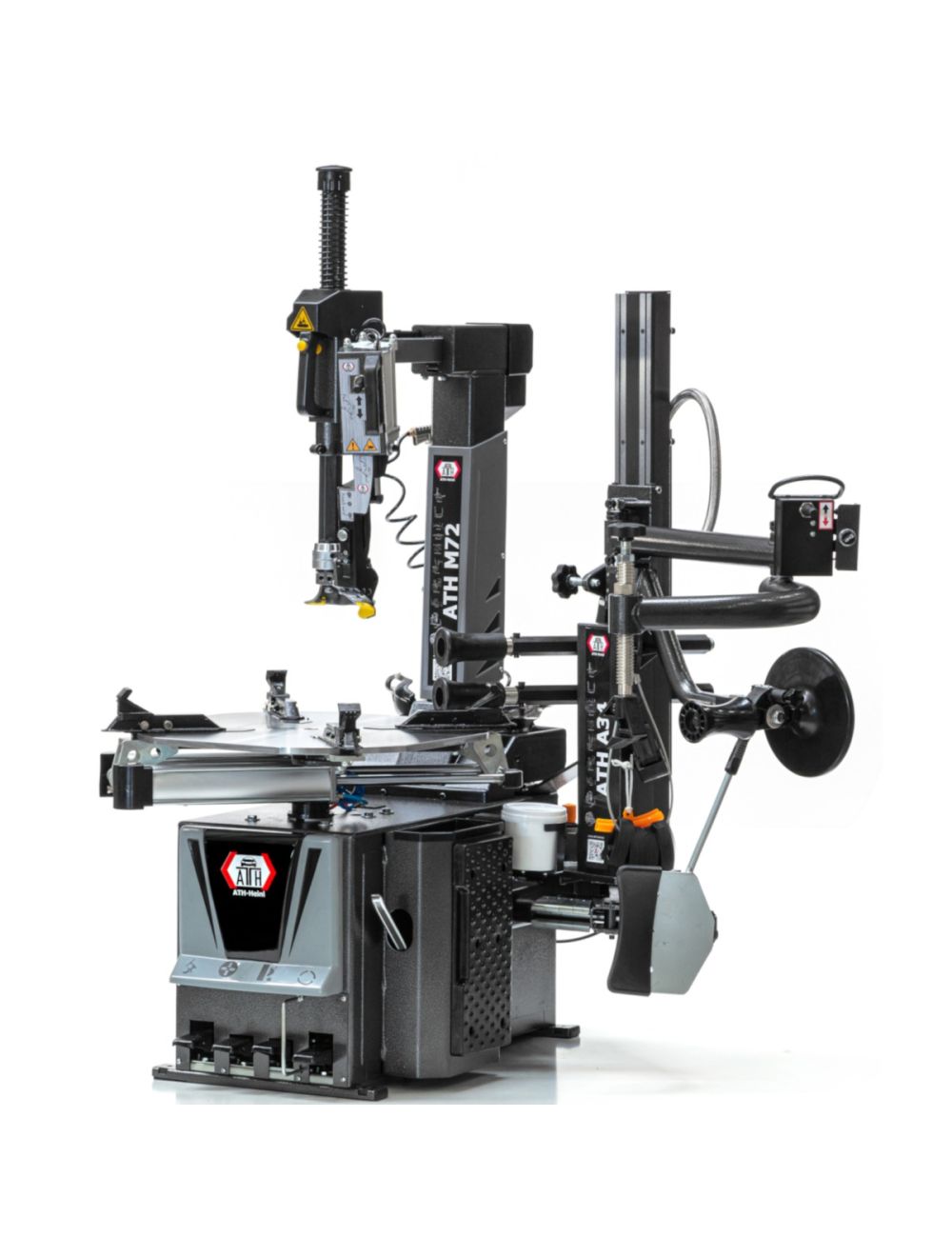

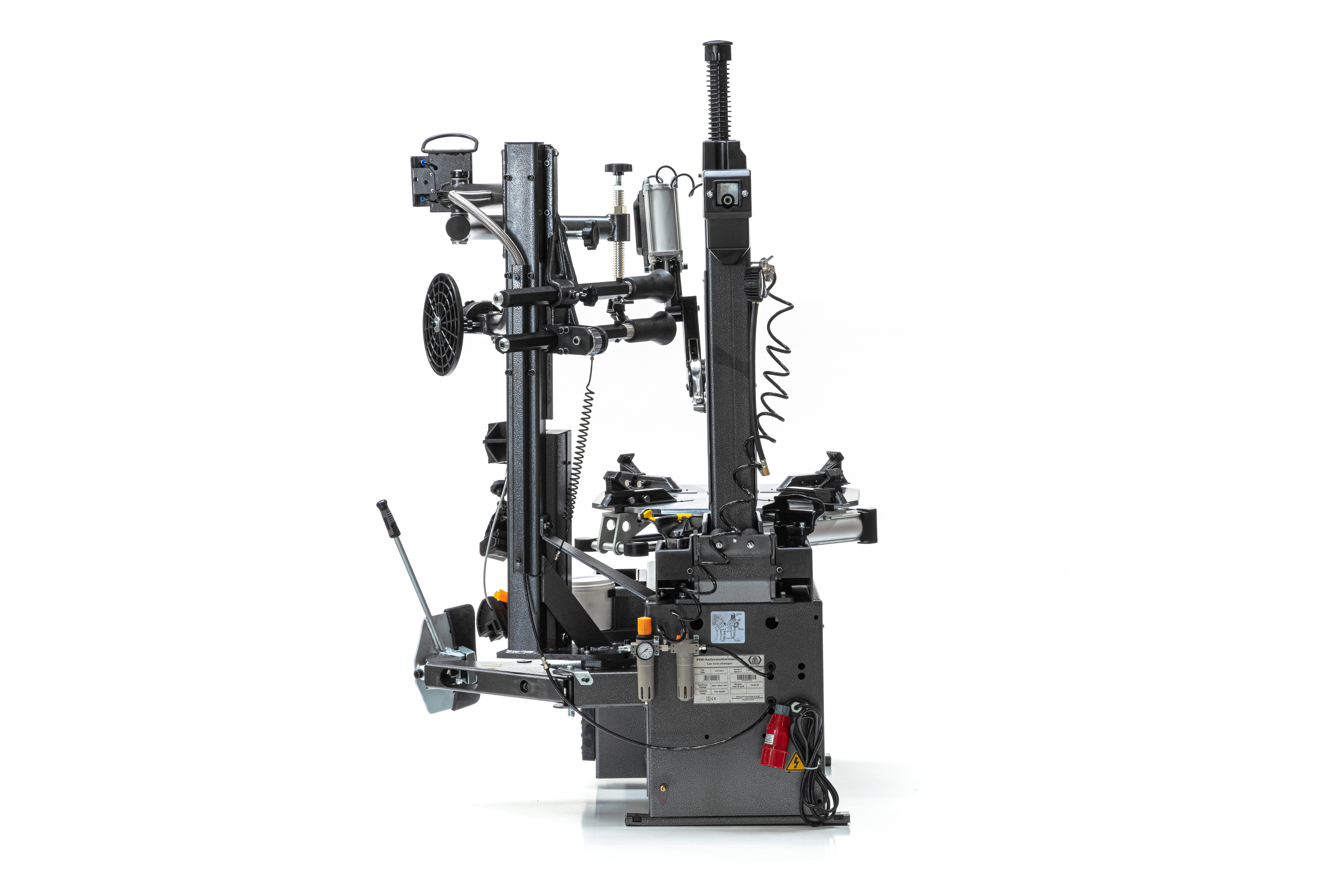

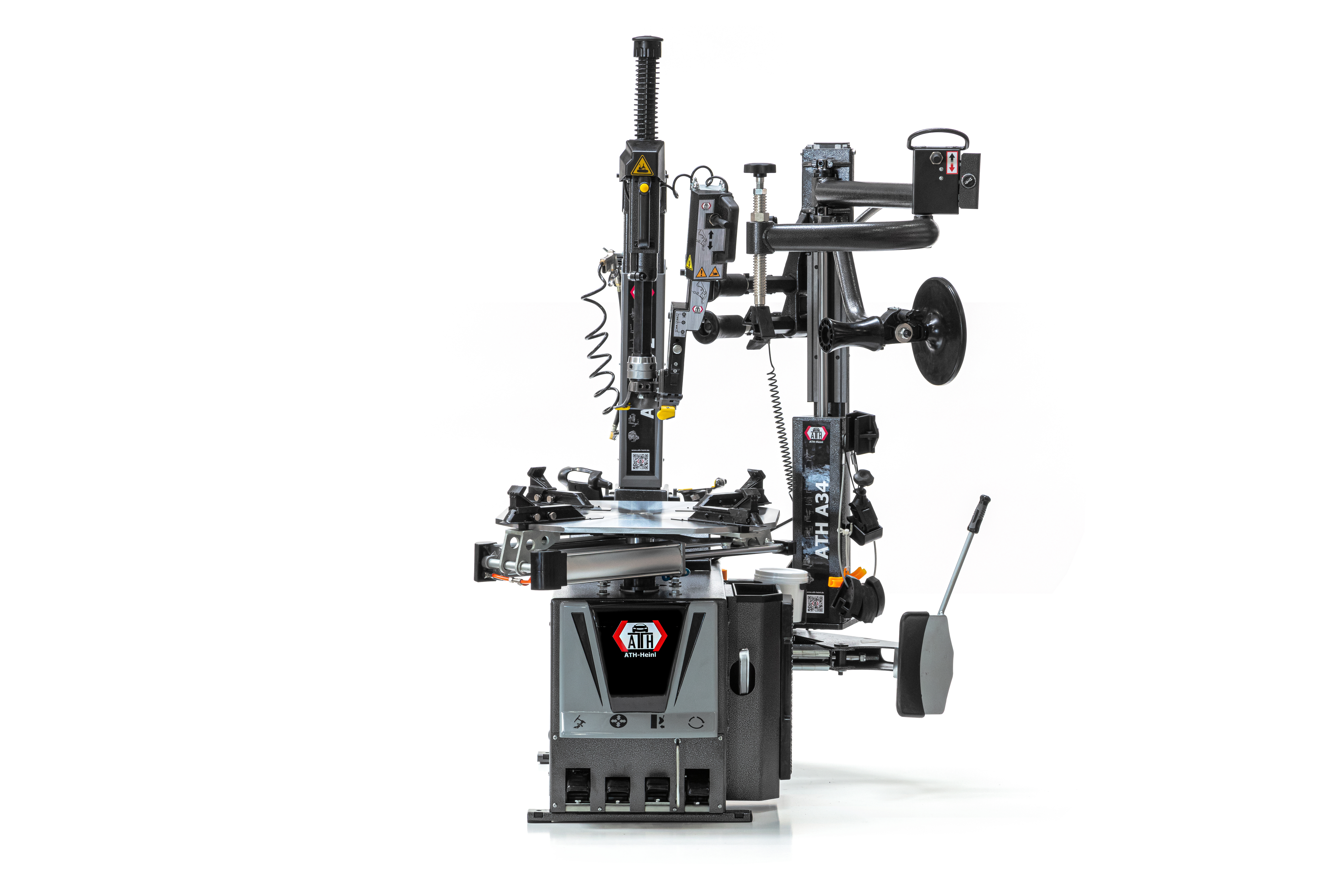

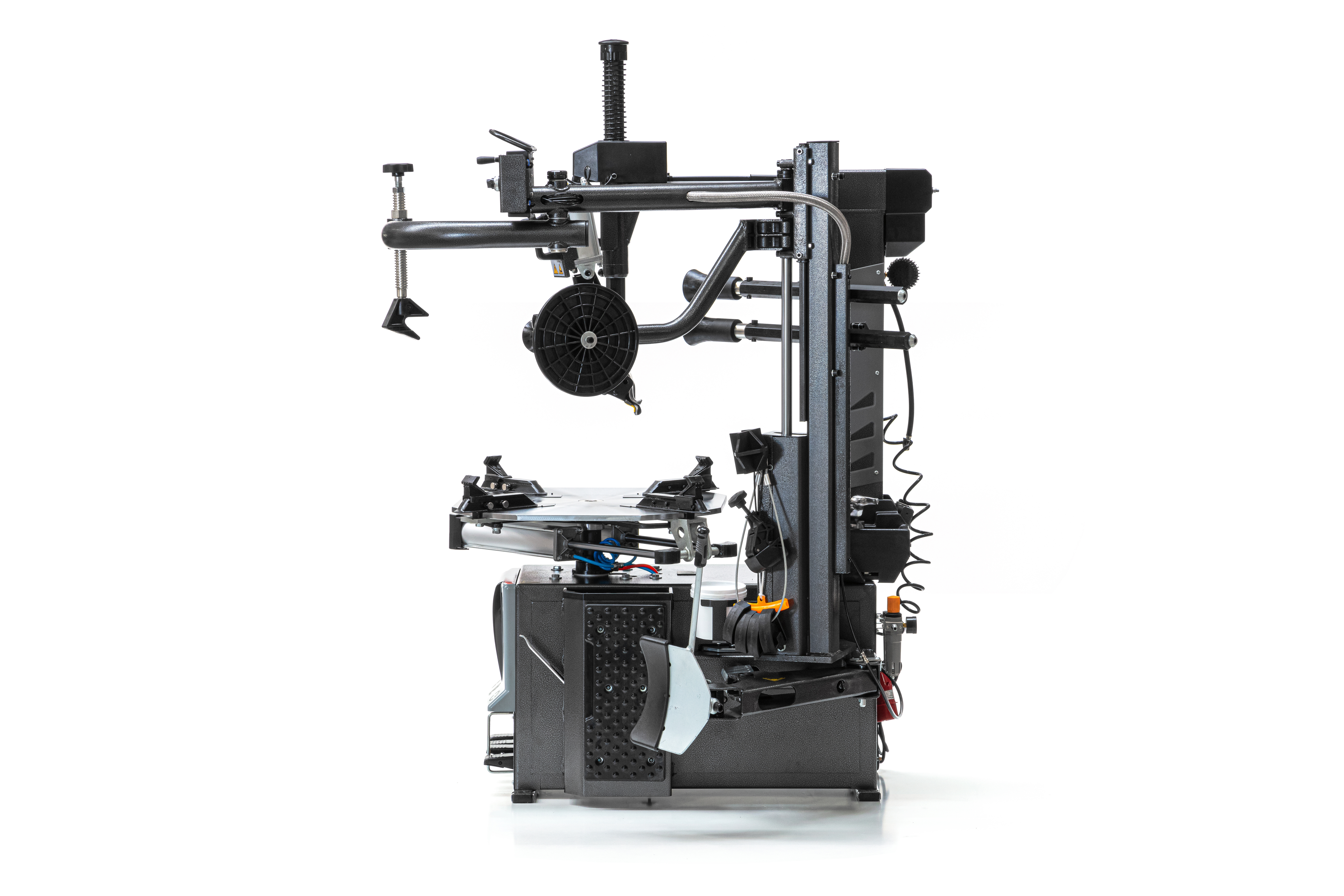

ATH M72Z PLUS
ATH M72 + A34

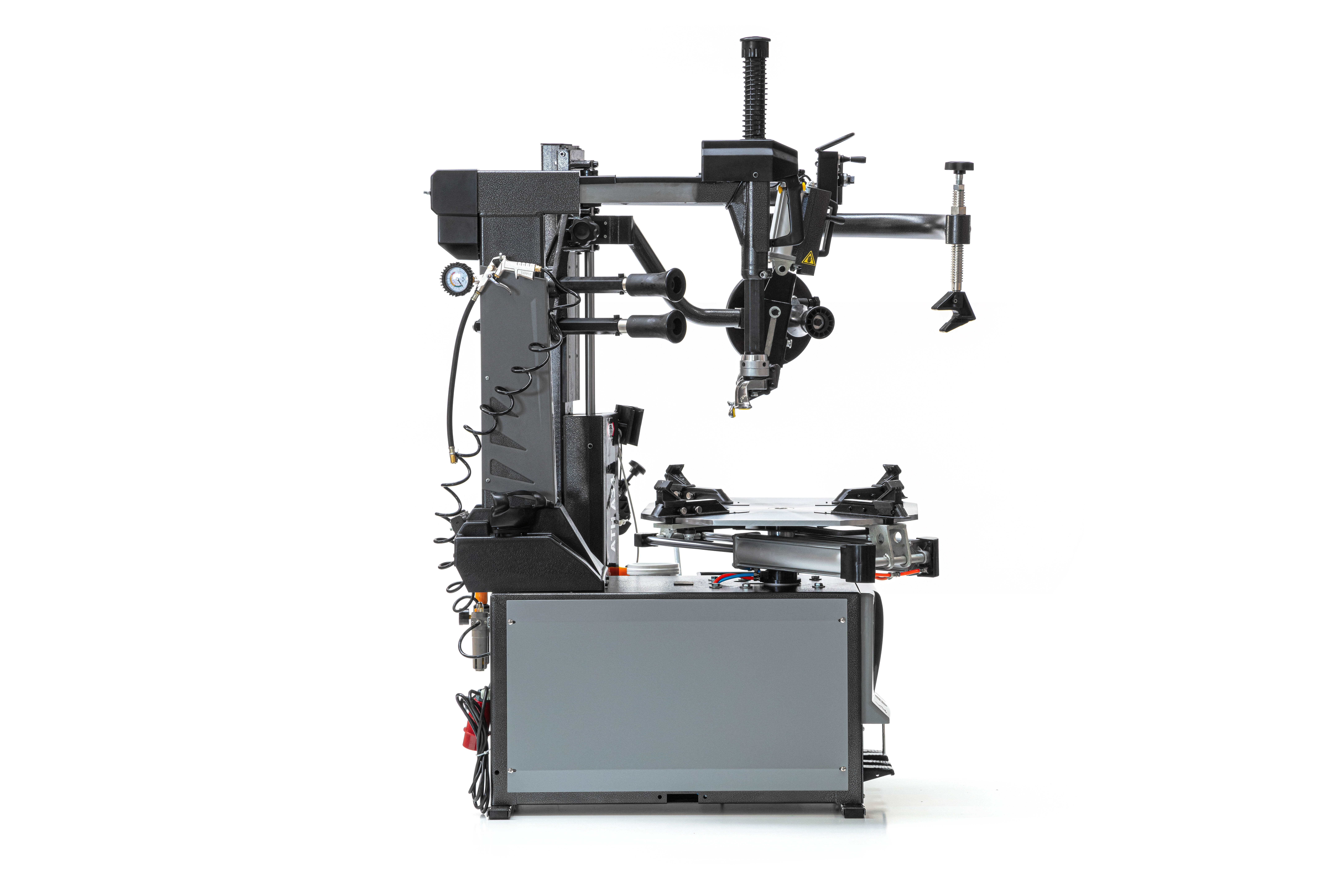

ATH M72 + A34 Plus WDK
€4,449.58
plus assembly and freight
€5,295.00

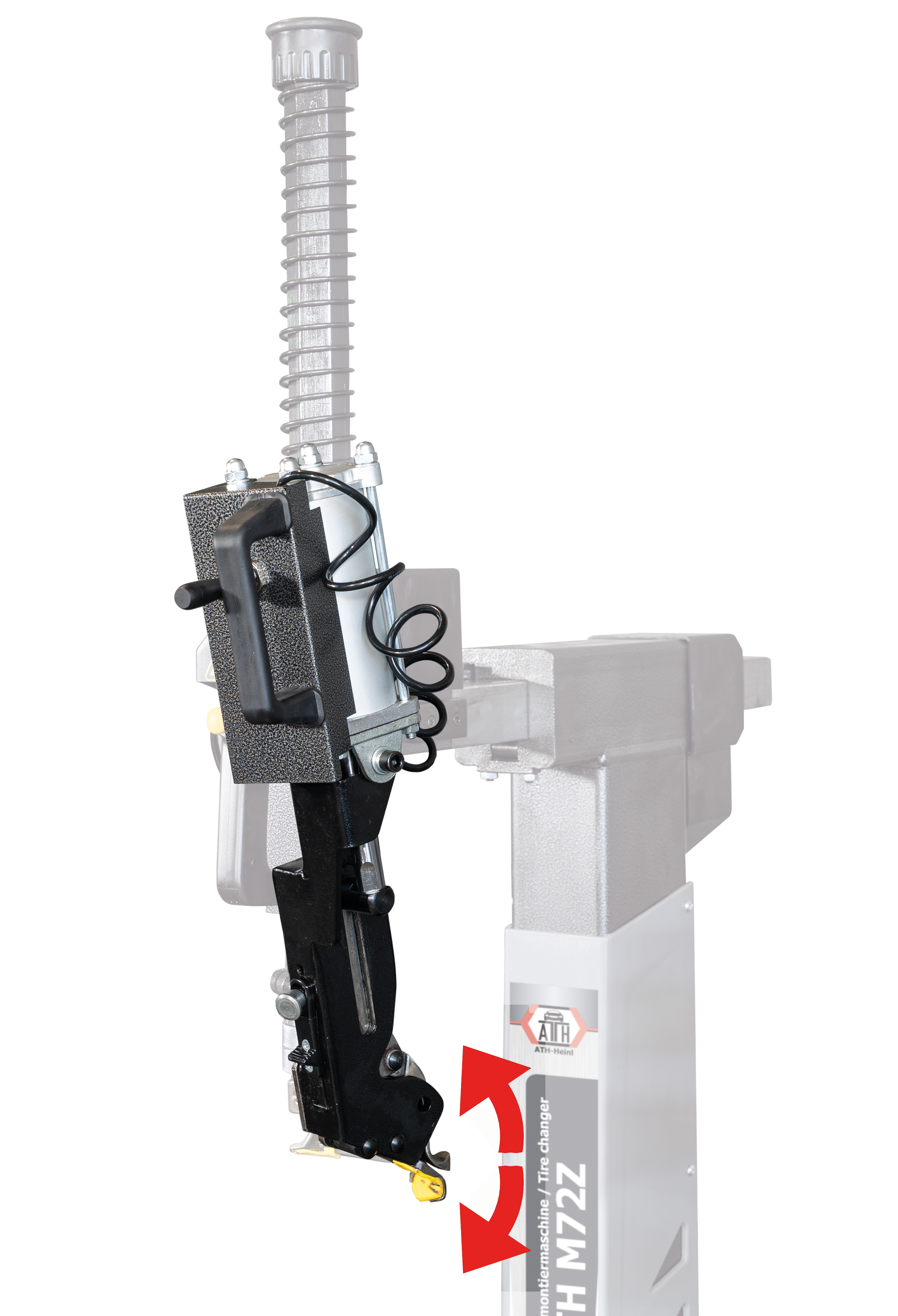

- Rear swivel with pneumatic mounting head clamping including automatic vertical and horizontal Rim removal
- Control via ergonomically arranged foot pedals
- Including pneumatic controlled auxiliary assembly arm for effortless and damage-free assembly of low-profile, UHP and run-flat tires
- Self-centering, pre-adjustable 4-jaw system, 3-fold quick adjustment
- Lateral extractor with double-acting aluminium cylinder and anti-jamming system

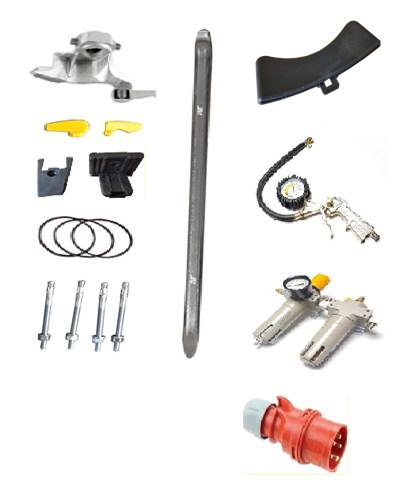

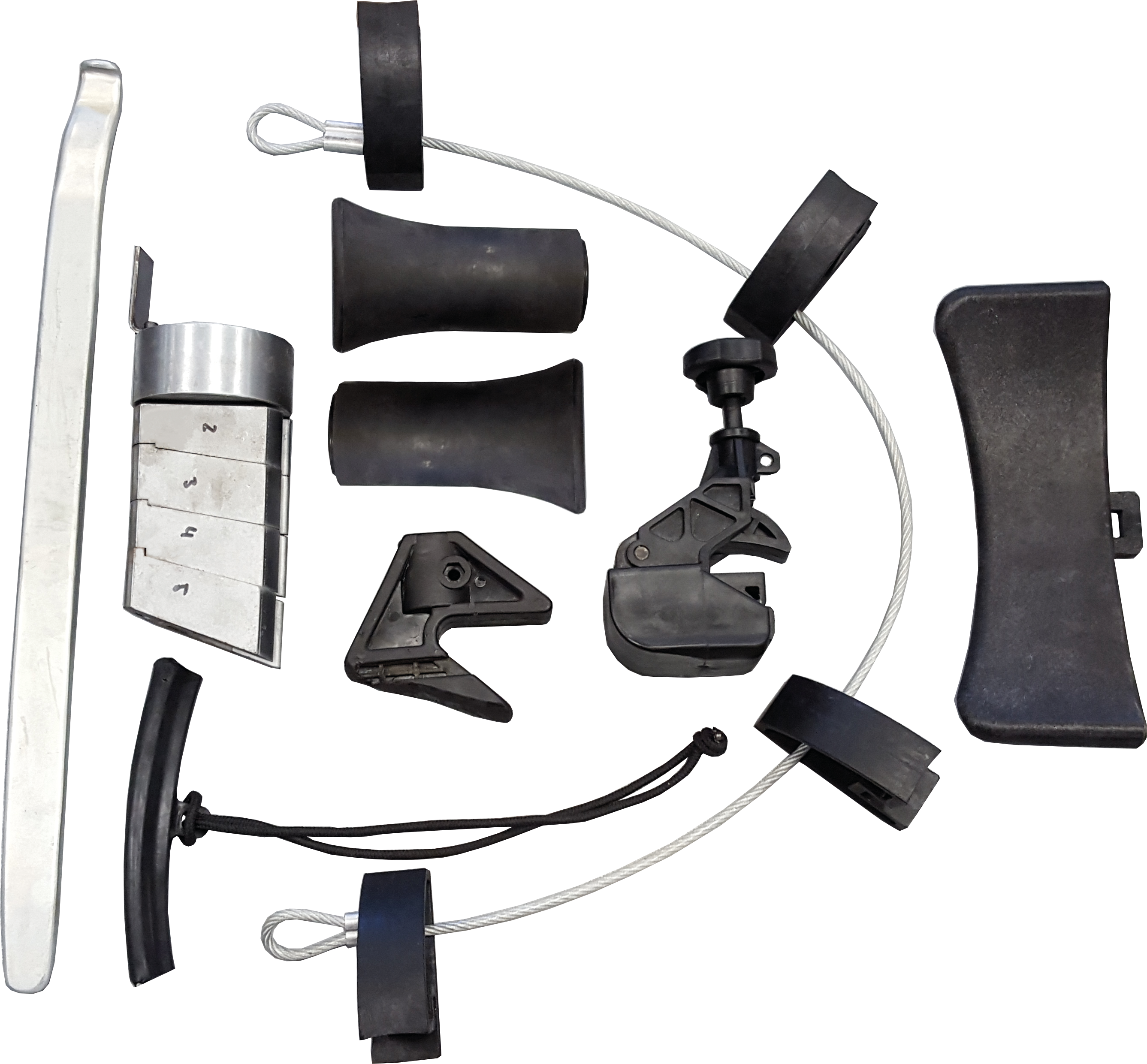

- Including quick-release tool, pneumatic assembly finger and WDK kit
- Ideally suited for car tires, with optional accessories also for motorcycle bikes
More Information
Clamping range inner / outer |
11 – 30 " / 9 – 26 " |
Rim width |
4 – 13 " |
Max. wheel diameter |
1.050 mm |
Compressed air connection |
10 bar |
Bead breaking range |
83 – 350 mm |
Bead breaker force |
2.500 kg |
Mounting speeds |
6 and 12 U/min |
Driving power |
0,75 / 0,90 kW |
Power supply voltage |
3x 400V / C16A |
Noise level |
70 dB(A) |
