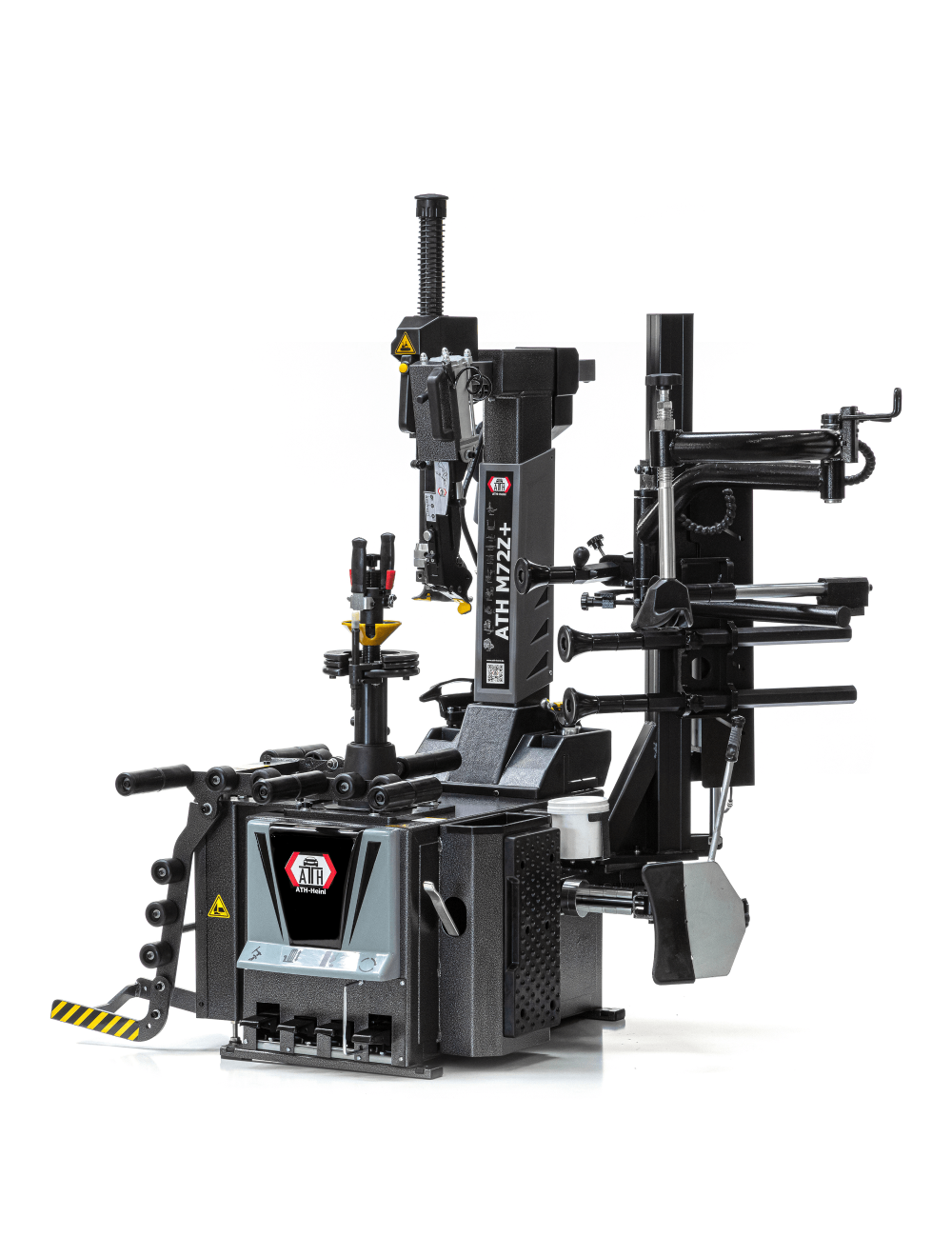

ATH M72Z PLUS

ATH M72 + A34 Plus WDK

ATH M72 + A34 Plus WDK

Be the first to review this product

€5,457.98 plus assembly and freight

€6,495.00

Availability: In stock

item number

151038.30

Download Product-flyer

Download Product-flyer

Share on

Product information

Operating instructions

Rear swivel with pneumatic mounting head clamping including automatic vertical and horizontal rim removal
Control via ergonomically arranged foot pedals
Including pneumatic controlled auxiliary assembly arm for effortless and damage-free assembly of low-profile, UHP and run-flat tires
Height-adjustable center hole mounting with use of a clamping flange and quick-release nut
Lateral extractor with double-acting aluminium cylinder and anti-jamming system
Including wheel lift, quick release tool, pneumatic assembly tool and WDK kit

Due to data compliance rules, we require your consent for marketing cookies to display this content.

More Information
Rim diameter max.	12 - 26 "
Rim width	4 – 13 "
Max. wheel diameter	1.050 mm
Compressed air connection	10 bar
Bead breaking range	83 – 350 mm
Bead breaker force	2.500 kg
Mounting speeds	6 and 12 U/min
Driving power	0,75 / 0,90 kW
Power supply voltage	3x 400V / C16A
Noise level	70 dB(A)
