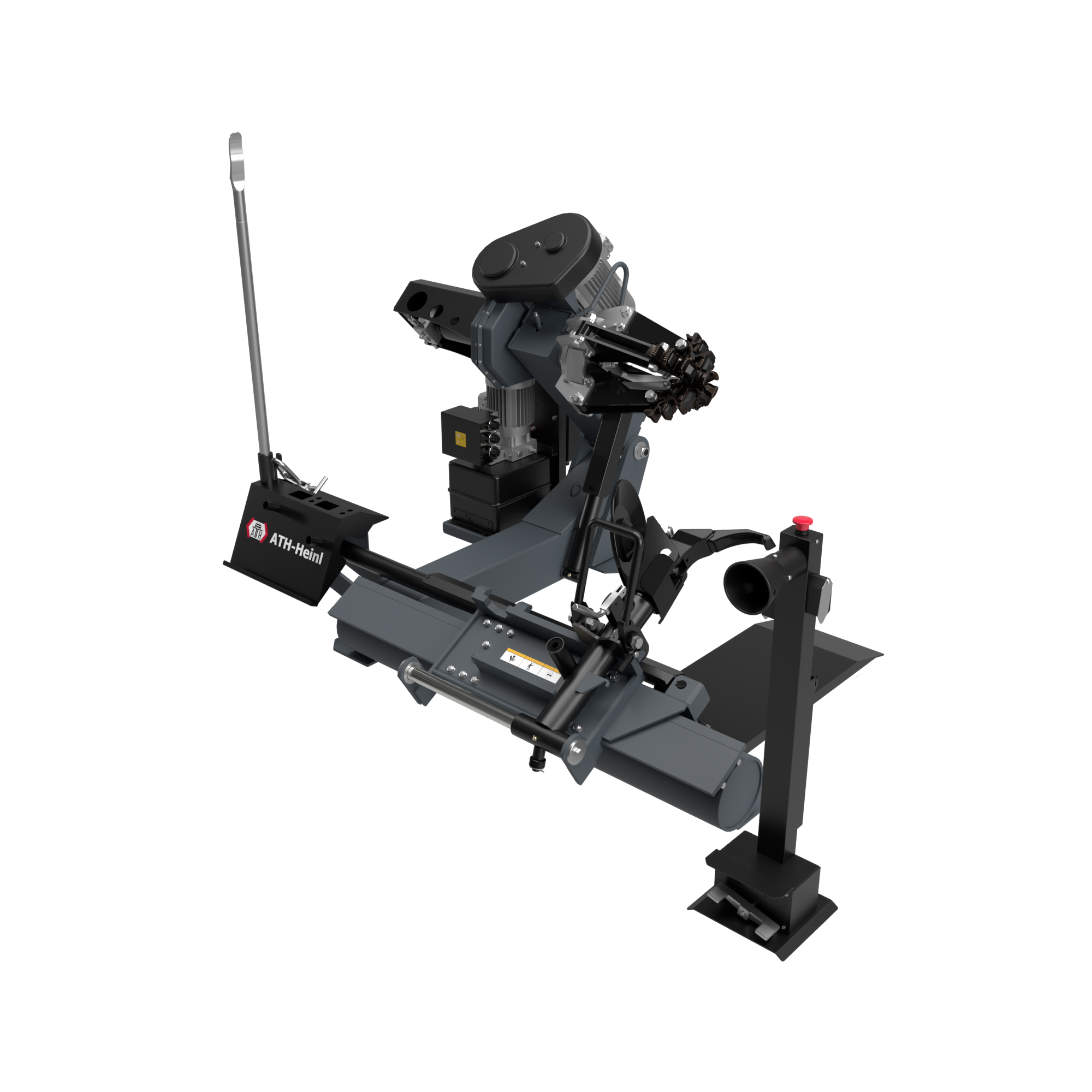

ATH 7228
€6,298.32
plus assembly and freight
€7,495.00
Availability:
In stock
item number
721437
- Electro-hydraulic lifting, lowering and clamping drive with four clamping claws; electric rotation drive movement, hydraulic longitudinal movement of the slide
- Mounting arm can be moved manually, and can be rotated and folded out manually
- Two working speeds (4 and 8 rpm)
- Wheels diameter up to 1.600 mm
- Movable control unit equipped with joystick and foot pedal
- Ideally suited for truck and bus wheels up to 28", with optional accessories also for aluminium rims
| Rim diameter max. | 120 – 725 mm |
|---|---|
| Rim diameter max. | 14 - 28 " |
| Max. wheel diameter | 1.600 mm |
| Max. Wheel width | 850 mm |
| Wheel weight max. | 500 kg |
| Bead breaker force | 3.000 kg |
| Mounting speeds | 4 & 8 U/min |
| Driving power | 2,6 / 3,2 kW |
| Power supply voltage | 3x 400V / C16A |
| Noise level | 55 – 80 dB(A) |
