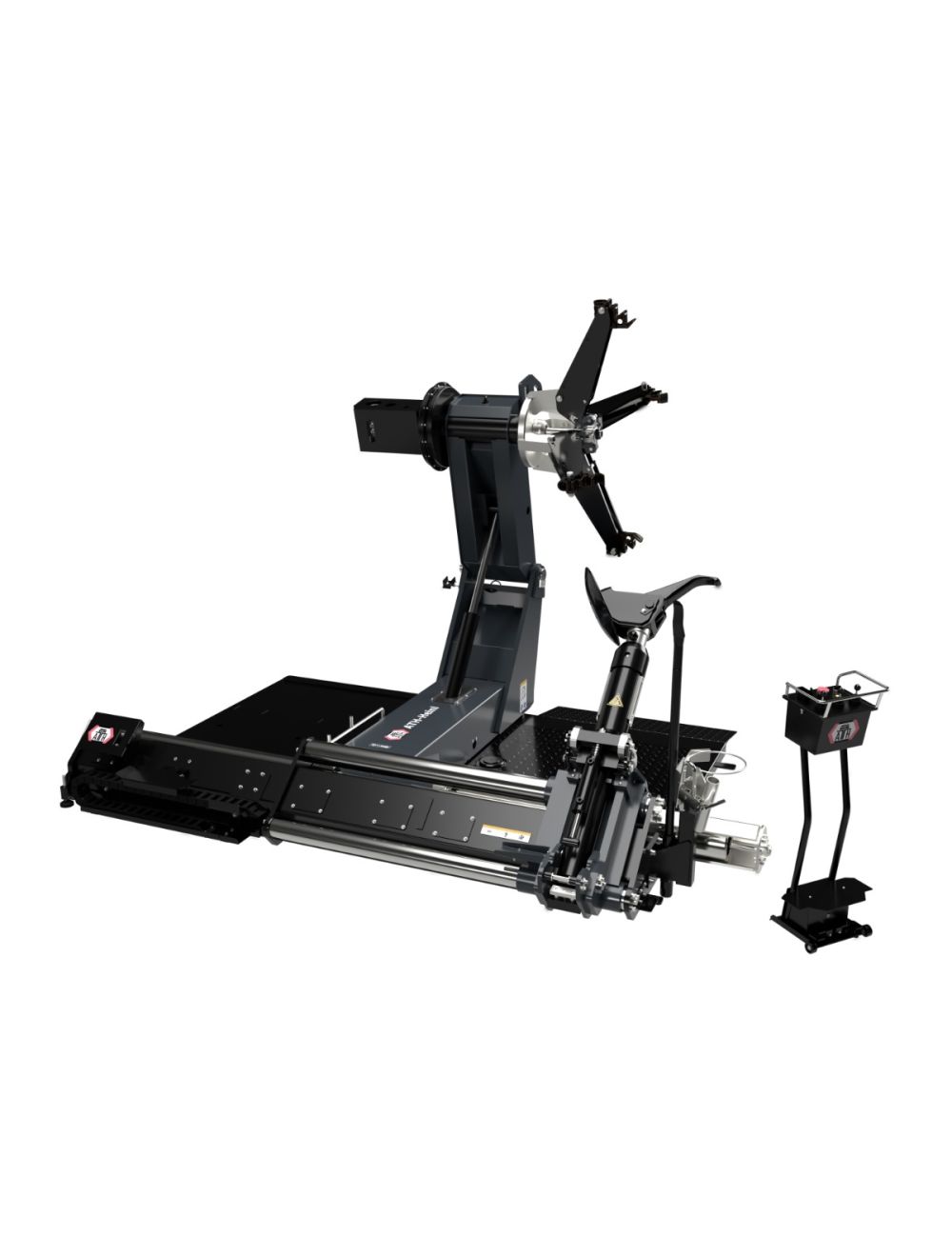

ATH 7260
€18,483.19
plus assembly and freight
€21,995.00
Availability:
In stock
item number
721439
- Fully automatic wireless control / operation, via mobile standalone wireless control unit, battery operated
- Electro-hydraulic drive with 2 movement speeds & 3 assembly speeds (4, 6 & 10 rpm)
- Wheel / tyre disassembly & assembly combinations up to 60", 3.100 kg weight, 3.100 mm diameter & width up to 1.810 mm
- Self-centering, multifunctional holder with pre-adjustable & expandable 4-clamping jaw system
- Movable wireless control unit equipped with joysticks and foot pedals
- Ideally suited for agricultural, forestry, construction, truck and commercial vehicle tires (with optional accessory also for aluminium rims)
| Rim diameter max. | 110 – 1.270 mm |
|---|---|
| Clamping range extended | 110 – 1.530 mm |
| Rim diameter max. | 60" |
| Max. wheel diameter | 3.100 mm |
| Max. Wheel width | 1.810 mm |
| Wheel weight max. | 3.100 kg |
| Bead breaker force | 8.000 kg |
| Mounting speeds | 4 - 6 - 10 U/min |
| Driving power | 4,8 / 5,6 kW |
| Power supply voltage | 3x 400V / C32A |
| Noise level | 70 dB(A) |
