ATH Comfort Lift 2.50X
ATH Comfort Lift 2.50
ATH Four Lift 55

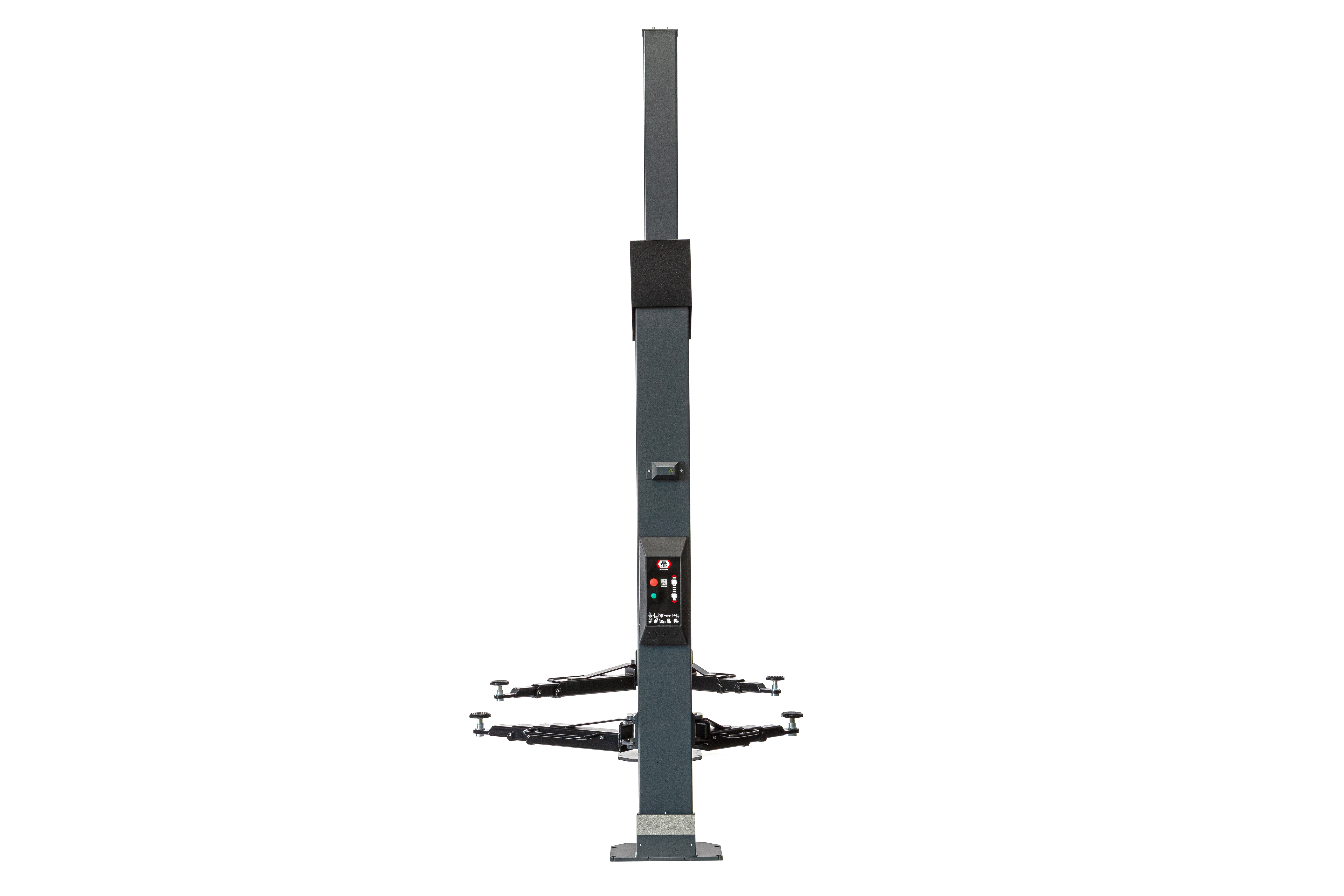

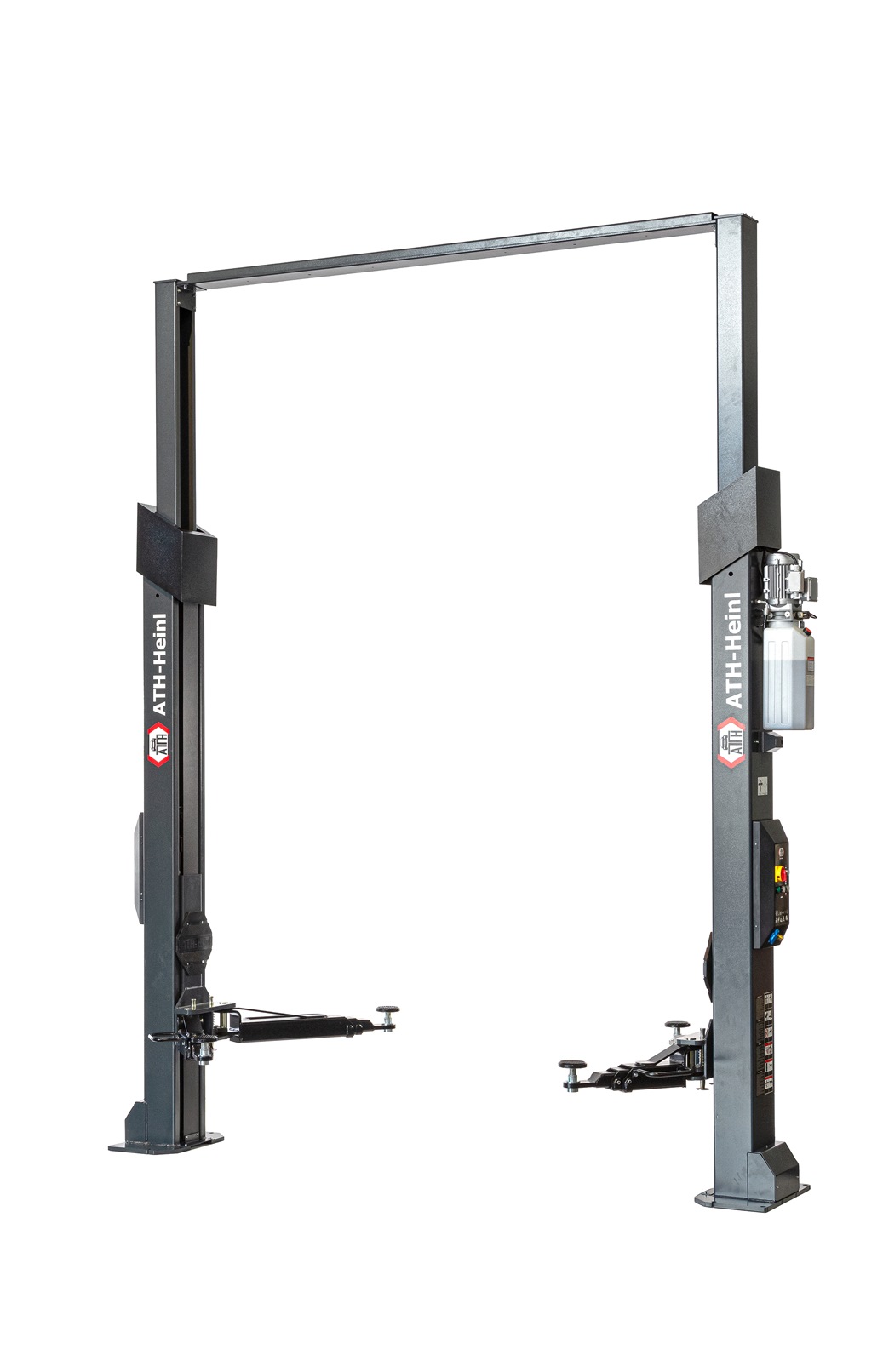

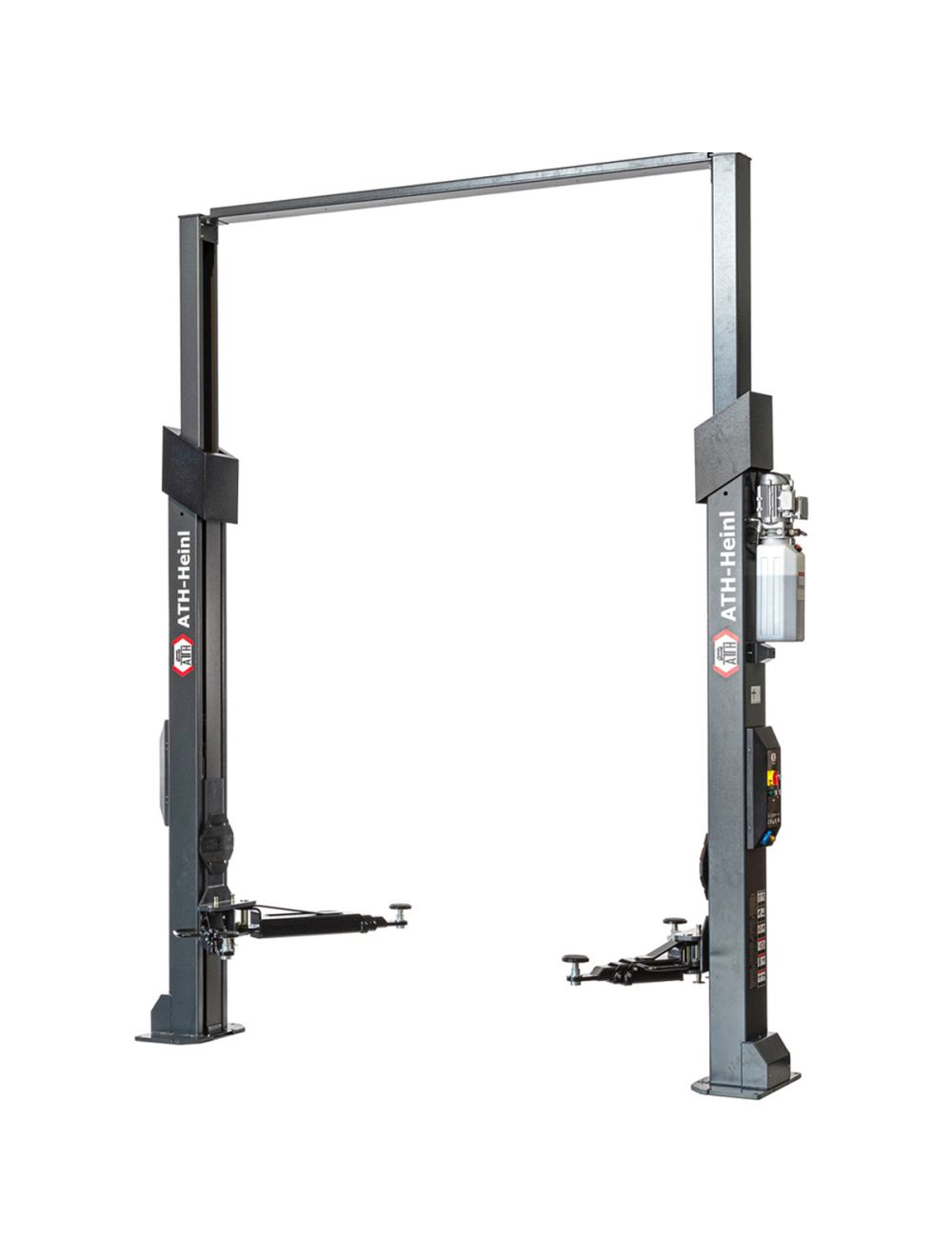

ATH Comfort Lift 2.50X
- Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function

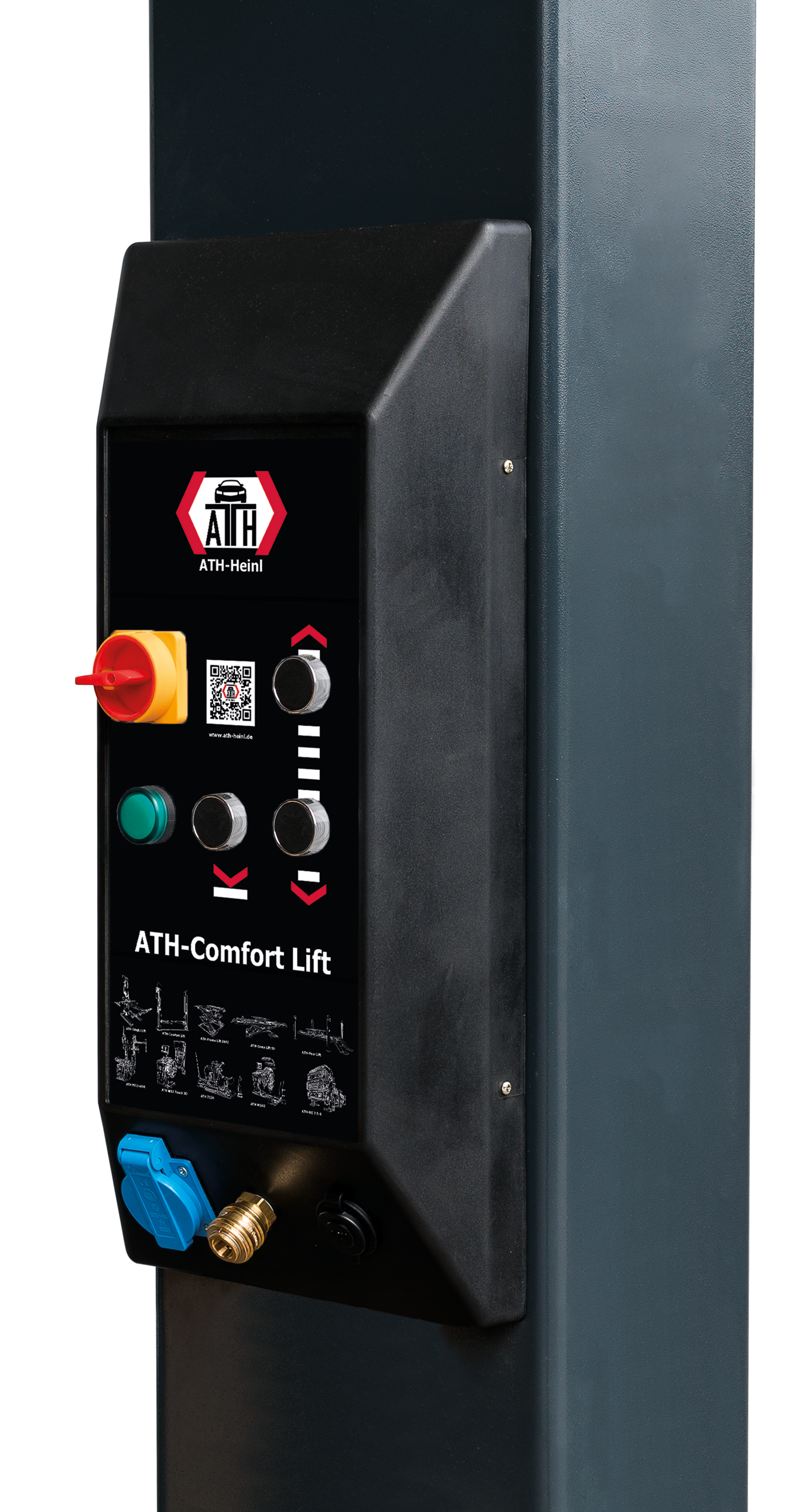

- Two control units for flexible use on both columns
- Energy set (230V / compressed air / 12V) on the main page
- Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism

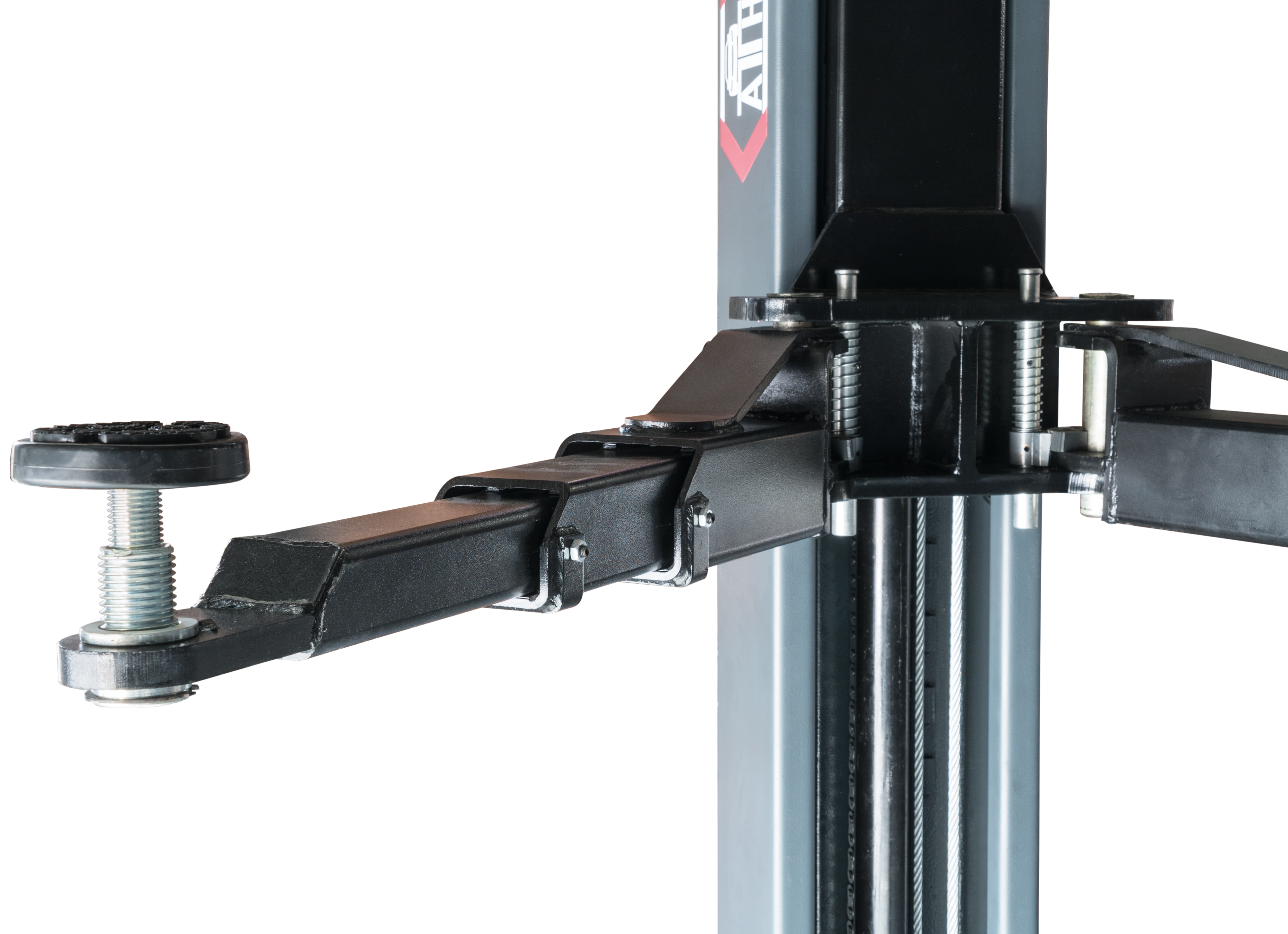

- Multifunctional mounting via 3-part support arms and double telescopic support plates
- Cross member on top with hydraulic hose and synchronized cables
More Information
Rated load capacity |
5 t |
Lifting height max. |
2.000 mm |
Drive-through width |
3.030 mm |
Overall width |
4.050 mm |
Overall height |
5.060 mm |
Support arms parts |
3 |
Driving power |
3 kW |
Lifting/Lowering time |
ca. 40 s |
Power supply voltage |
3x 400V / C16A |
Concrete strength |
min. C25/30 4.500 x 2.000 x 220 mm |
