ATH Comfort Lift 2.50X
ATH Four Lift 55A

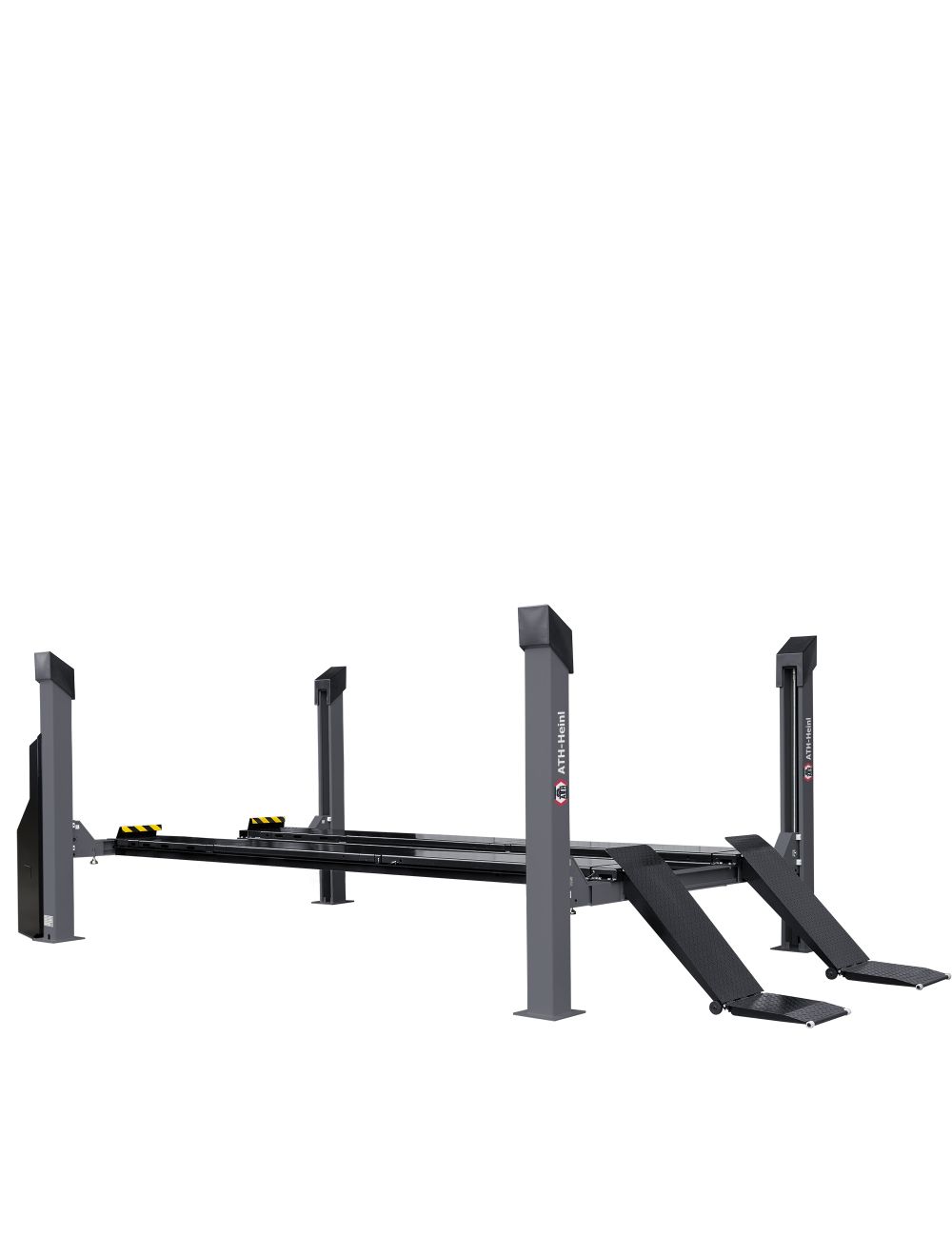

ATH Four Lift 55
4-post lift for passenger cars and vehicles with long wheelbase, capacity 5500 kg
- High-precision manufacturing by laser cutting and robotic welding
- Robust and less sensitive hydraulic drive, almost maintenance-free

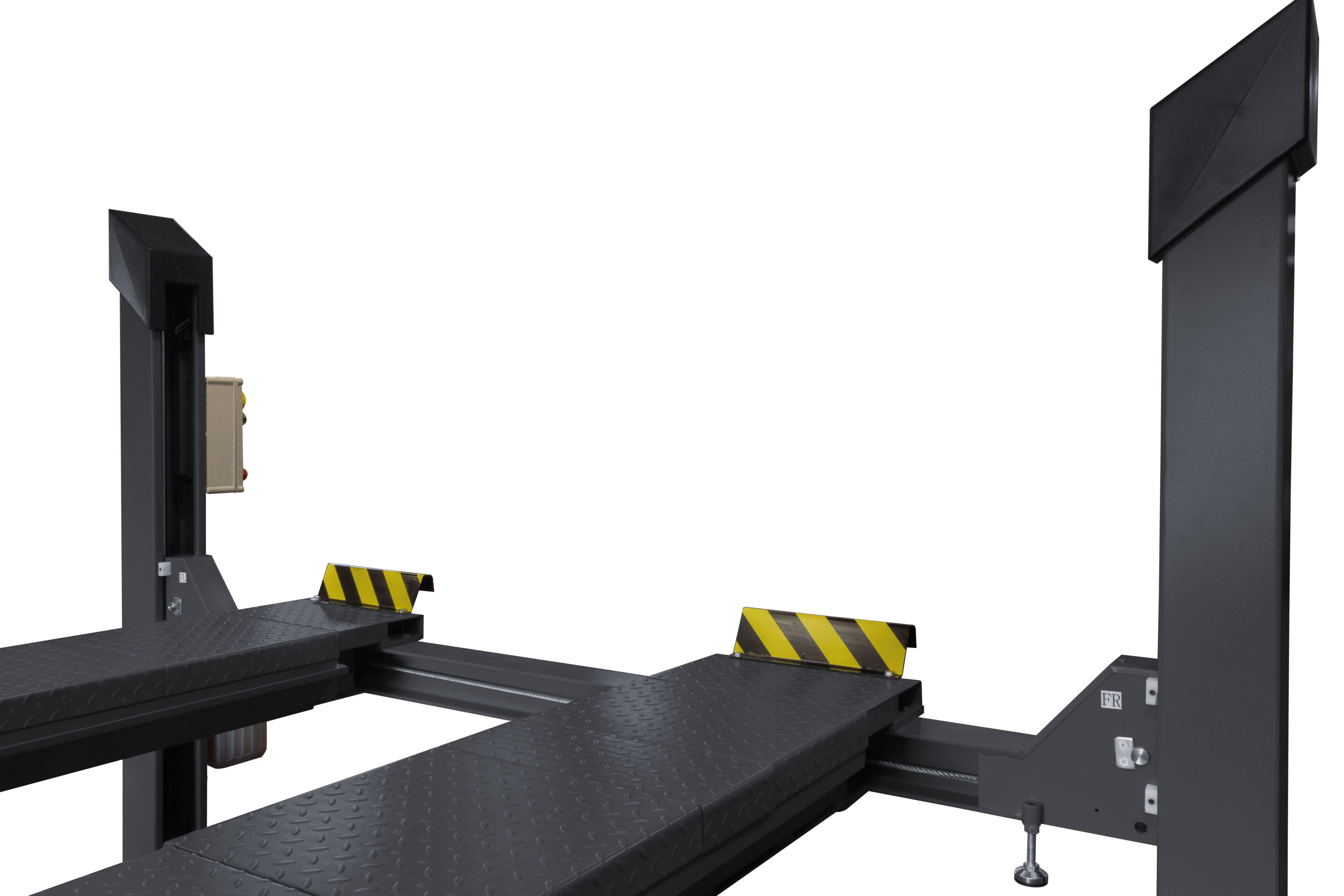

- For passenger cars and vehicles with long wheelbase; platform length 5,50 m, one platform is continuously adjustable
- Can be used universally with flat platforms and rails for an optional rolling jack
- Perfect lift for headlamp beam setting due to the notch system for adjusting the platforms
- Only drive-on and repair, no lifting arms
- 2-piece drive-on ramps hinged, perfect for lowered vehicles
- Lifting and lowering with push button control
- Pneumatic unlocking of notches, slack rope protection, emergency lowering system for lowering in case of power failure, CE stop and signal sound
- Perfect lift for automotive repairs and headlamp beam setting
More Information
Color |
anthracite-grey / black |
Rated load capacity |
5,5 t |
Lifting height max. |
1.840 mm |
Drive-on-height |
196 mm |
Total platform length |
5.190 mm |
Total platform width |
490 mm |
Driving power |
2,2 kW |
Lifting/Lowering time |
ca. 45 s |
Power supply voltage |
3x 400V / C16A |
Concrete strength |
min. C20/25 7.400 x 3.900 x 200 mm |
