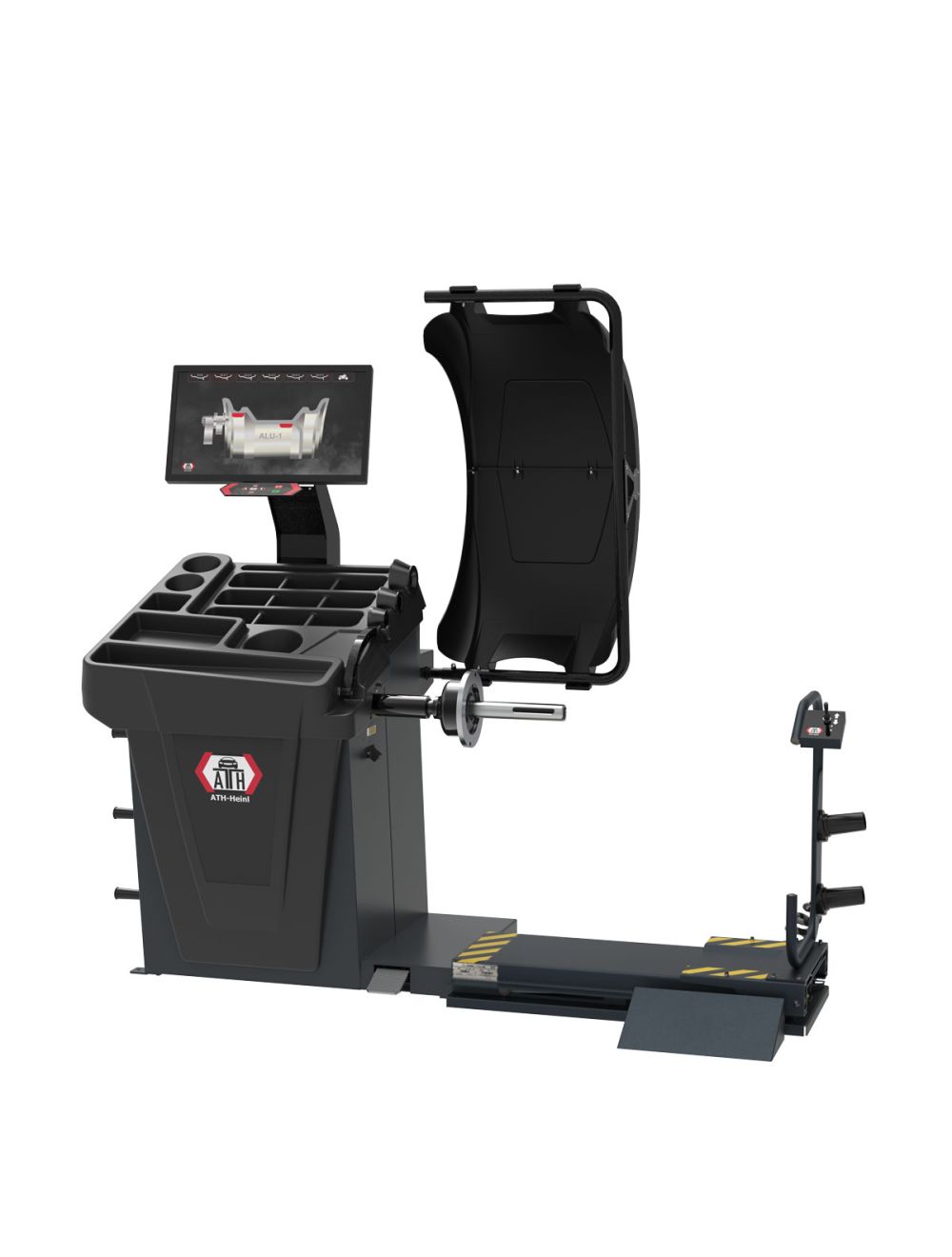

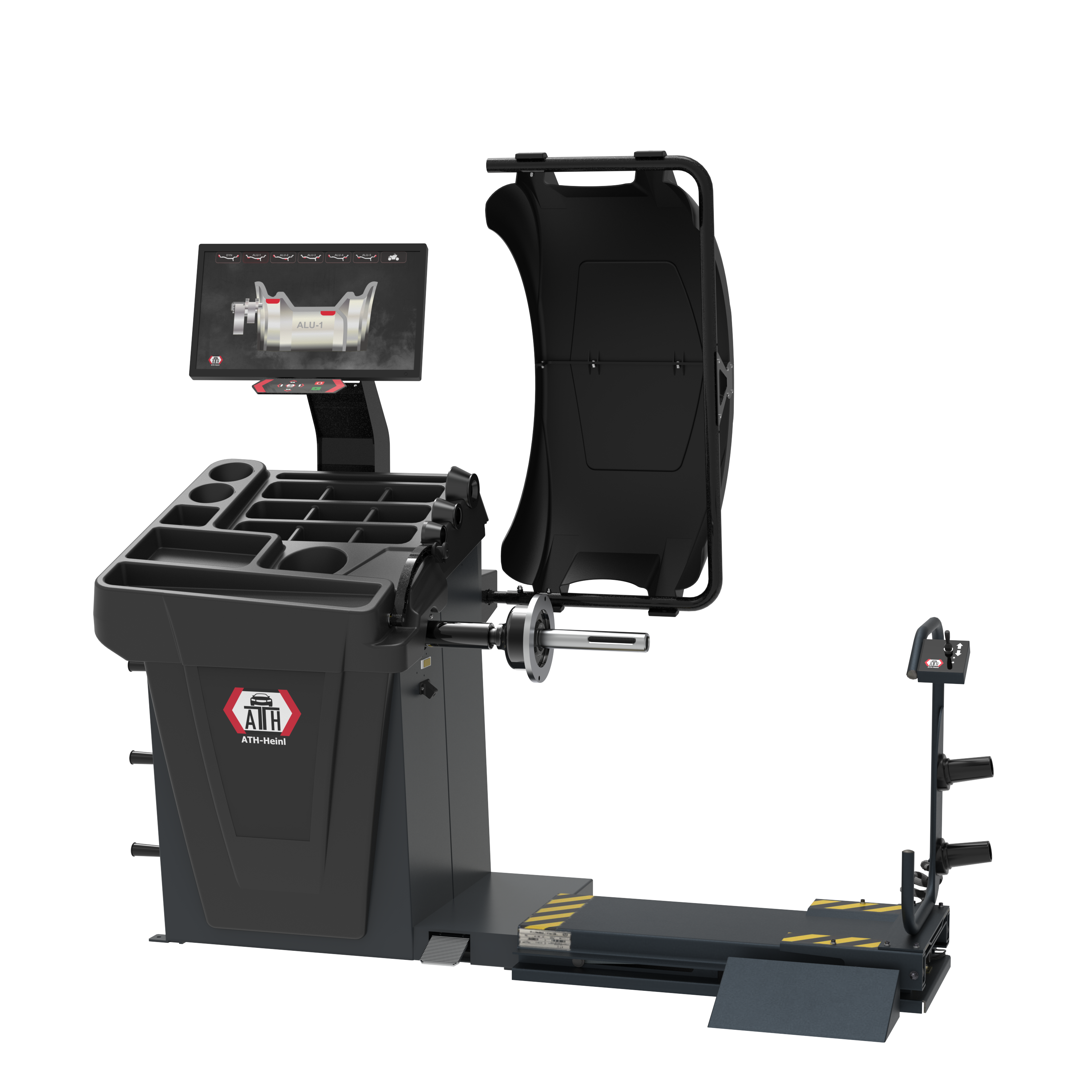

ATH W64 P Plus

Product Innovation Q4 / 25
€5,037.82 plus assembly and freight
€5,995.01
Availability: In stock
item number
150064
Share on
  • Static program: Enables balancing in static mode for precise weight distribution
  • Dynamic program: Enables optimal balancing at different speeds
  • Optimization program: Program for fine-tuning and optimizing the balancing process
  • Aluminum balancing programs: Four special programs for aluminum rims to improve balancing quality
  • Rear spoke weight positioning: Enables the exact distribution of weights behind the spokes
  • Sonar technology: Contactless scanning of the rim width
  • Extended clamping shaft: Additional clamping shaft for the use of additional clamping devices
  • Automatic positioning: Automatically positions the wheel for attaching the weights
  • Tool holder: Practical storage of tools directly on the wheel guard
  • Optional motorcycle function: Additional function for balancing motorcycle wheels
  • including wheel jack ATH RRH1107
More Information
Center hole diameter rim 45 – 130 mm
Measuring time car | truck 8 s
Measurement tolerance +/- 1g
Measuring speed 200 U/min
Rim width 1,5" - 20"
Rim diameter 10“ – 24“
Max. wheel diameter 900 mm
Wheel weight max. 65 kg
Compressed air connection 8 bar
Monitor 22“ LED
Driving power 0,20 kW
Power supply voltage 230V / C16A
