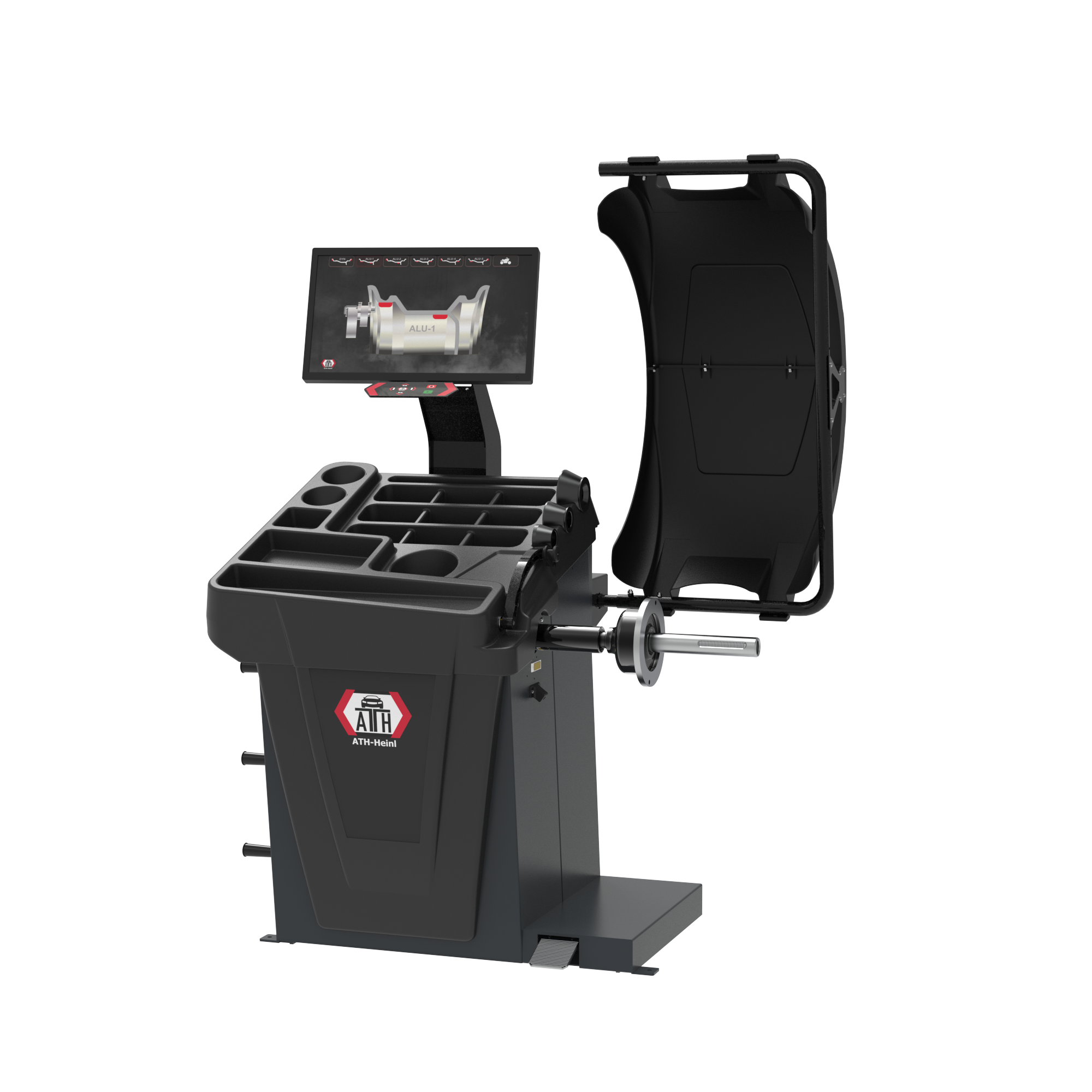

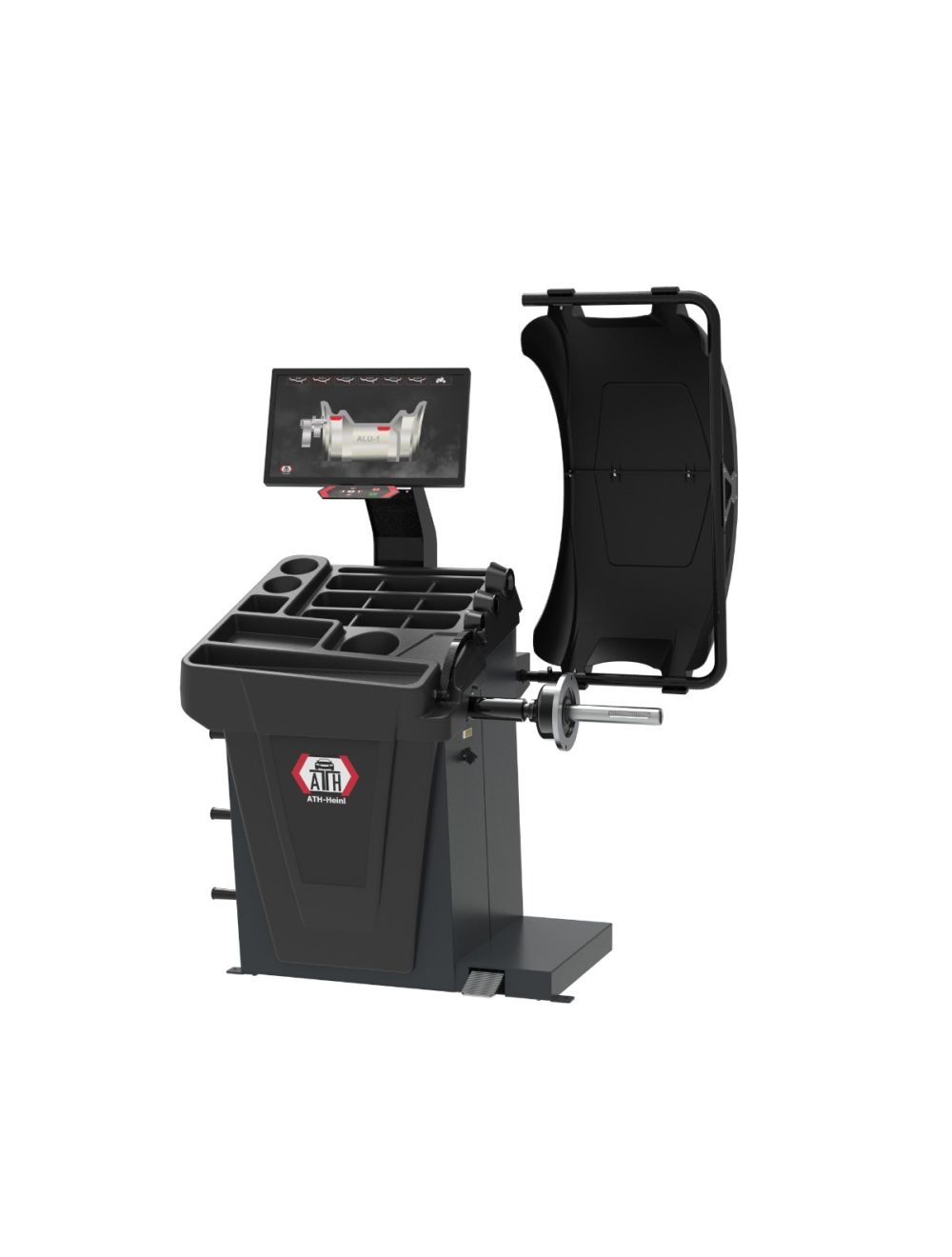

ATH W64 P Plus
ATH W64
ATH W64 P
€3,357.14
plus assembly and freight
€3,995.00
- Pneumatic shaft: 40 mm clamping shaft for quick and secure wheel clamping
- Sonar technology: Non-contact rim width detection
- Automatic positioning: Automatically positions the wheel for weight attachment
- Extended clamping shaft: Additional clamping shaft for use with other clamping devices
- Laser indicator: Enables precise placement of the clamping weights at the 6 o'clock position
- Static/Dynamic program: Enables optimal balancing at different speeds
- Alu balancing programs: Special programs for aluminum rims to improve balancing quality
- Split rear spoke weight positioning: Enables precise weight distribution behind the spokes
- Optimization program: Program for fine-tuning and optimizing the balancing process
- Optional motorcycle function: Additional function for balancing motorcycle wheels
More Information
| Center hole diameter rim |
45 – 130 mm |
| Measuring time car | truck |
8 s |
| Measurement tolerance |
+/- 1g |
| Measuring speed |
200 U/min |
| Rim width |
1,5" - 20" |
| Rim diameter |
10“ – 24“ |
| Max. wheel diameter |
900 mm |
| Wheel weight max. |
65 kg |
| Compressed air connection |
6 bar |
| Monitor |
22“ LCD |
| Driving power |
0,20 kW |
| Power supply voltage |
230V / C16A |
