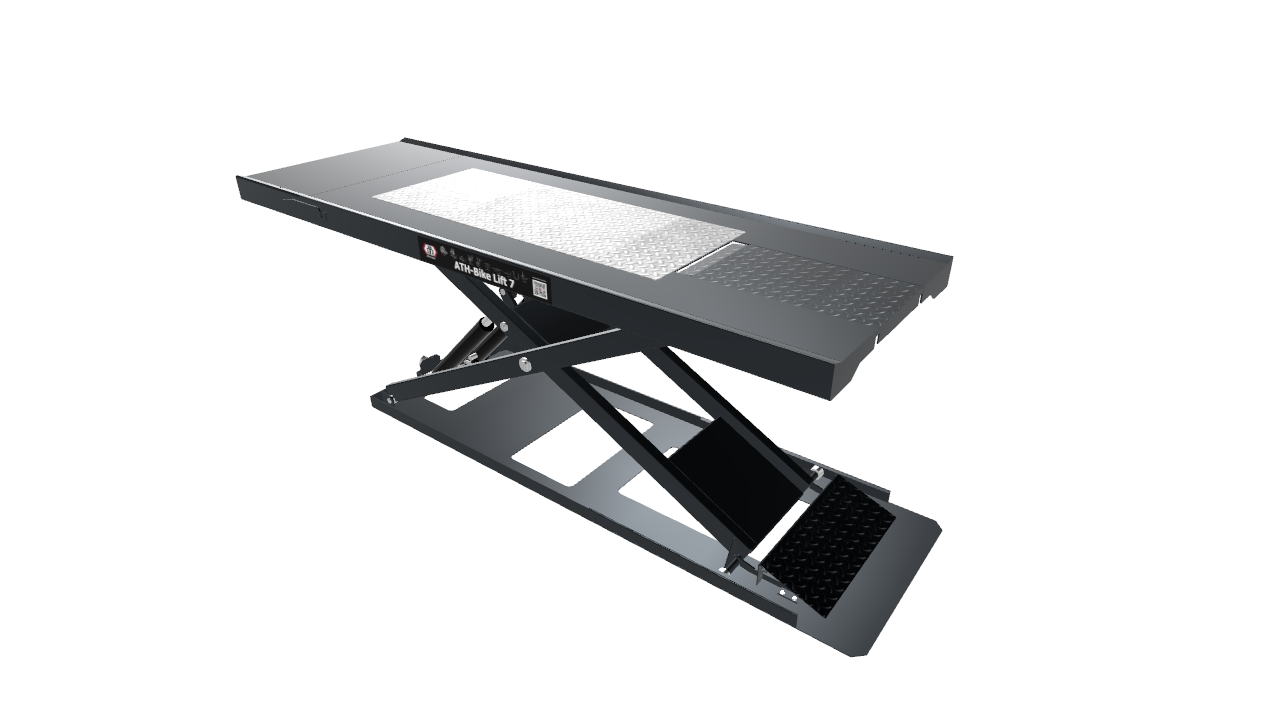

ATH Bike Lift 7
ohne Radhalter pneumatisch, ohne Quad Adapter Set
€2,012.61
plus assembly and freight
€2,395.01
Availability:
In stock
item number
670041
- High-quality and robust motorcycle lift with hydraulic drive, almost maintenance-free
- Powerful hydraulic unit (230V / C16A)
- Removable plate for free work on the rear and front tires
- Protective hose over the hydraulic lines
- Tripping hazards avoided with access ramp automatic retracting when lifting
- Fixed aluminium plate specially designed to hold mini motorcycle stands
- Emergency lowering system for lowering in the event of a power failure
- Optional mini motorcycle stand: Item no.: 670025
| Rated load capacity | 700 kg |
|---|---|
| Lifting height max. | 1.200 mm |
| Drive-on-height | 80 mm |
| Total platform length | 2.300 mm |
| Total platform width | 750 mm |
| Driving power | 1 kW |
| Lifting/Lowering time | ca. 15 s |
| Power supply voltage | 230V / C16A |
| Concrete strength | min. C20/25 2.500 x 1.000 x 100 mm |
