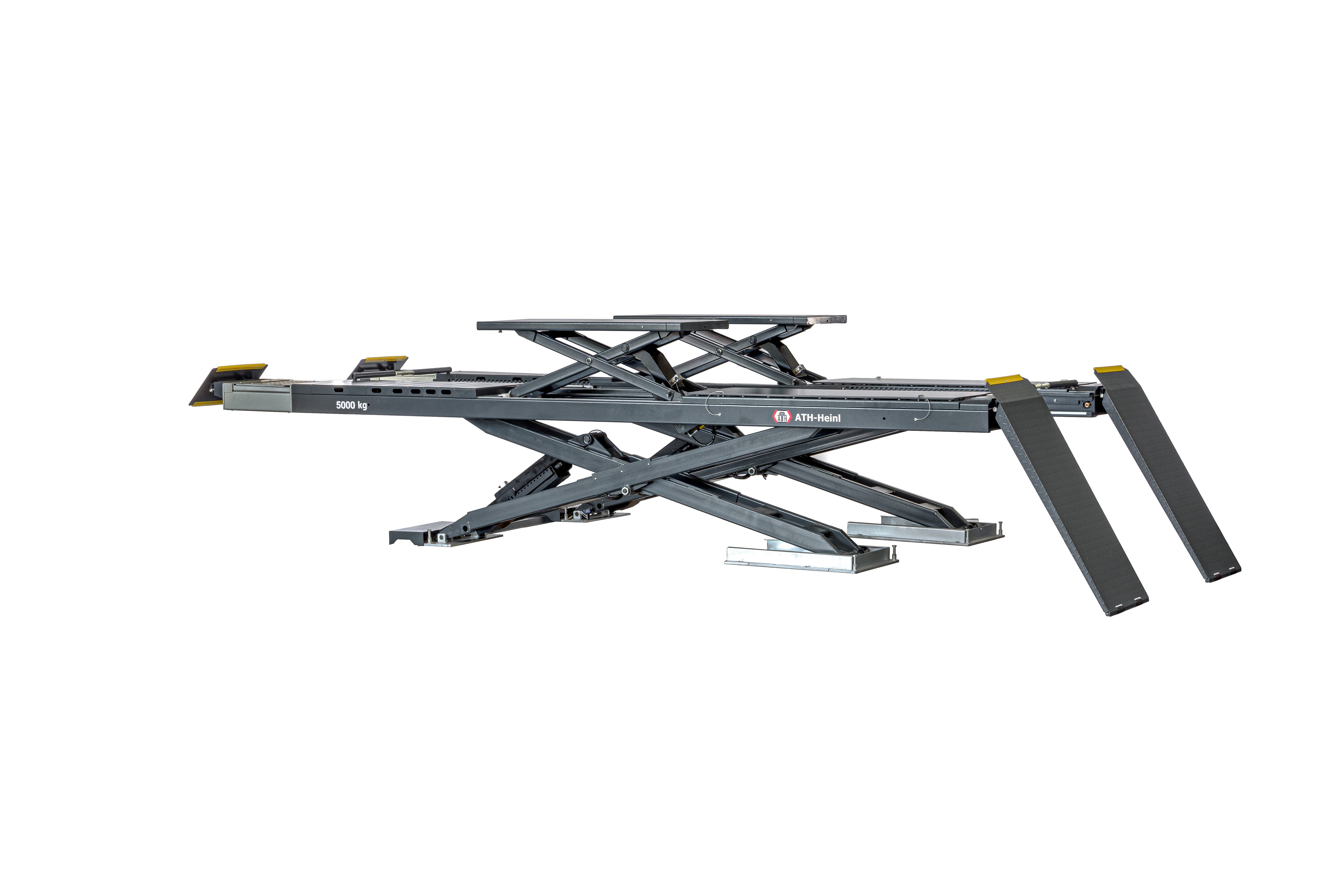

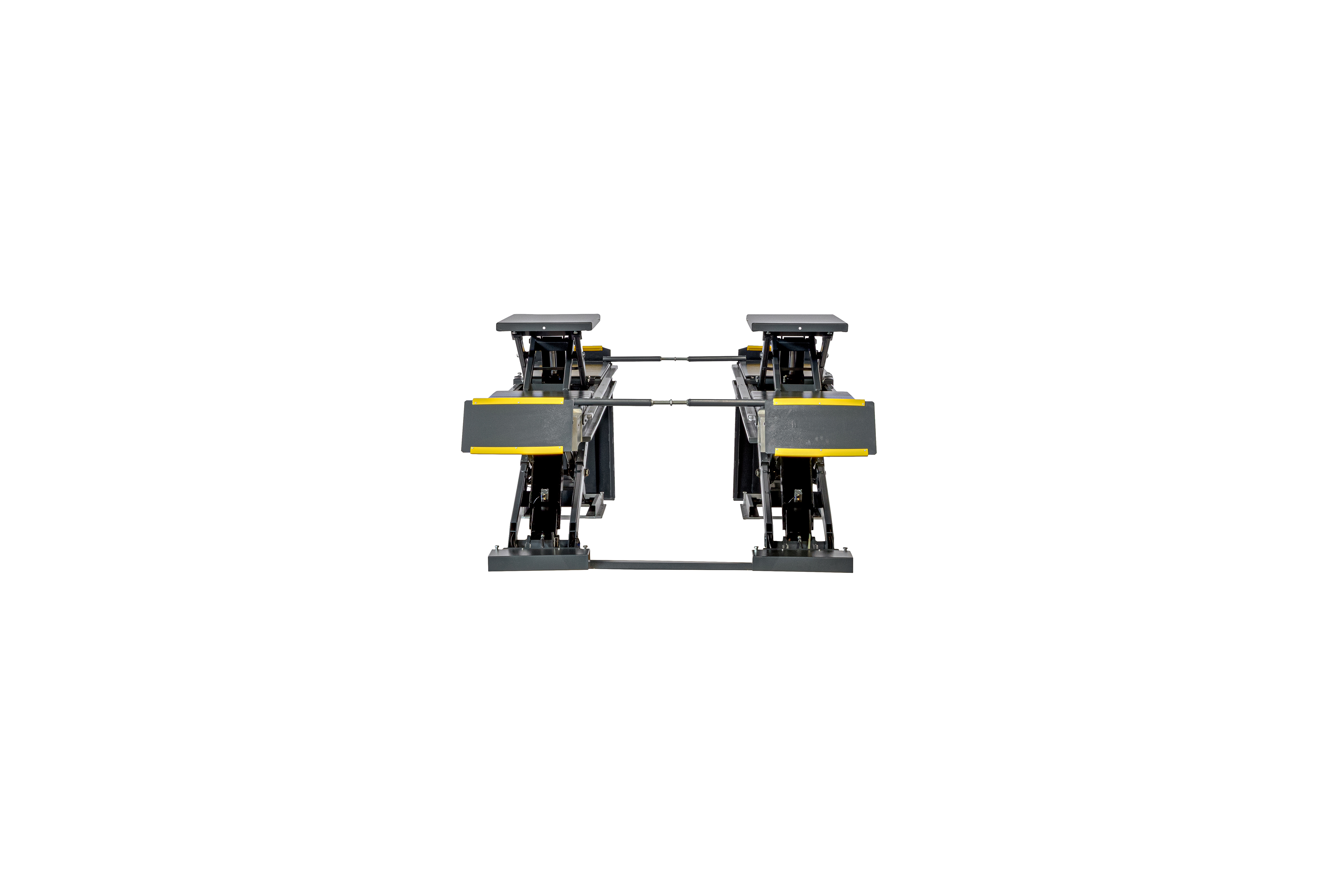

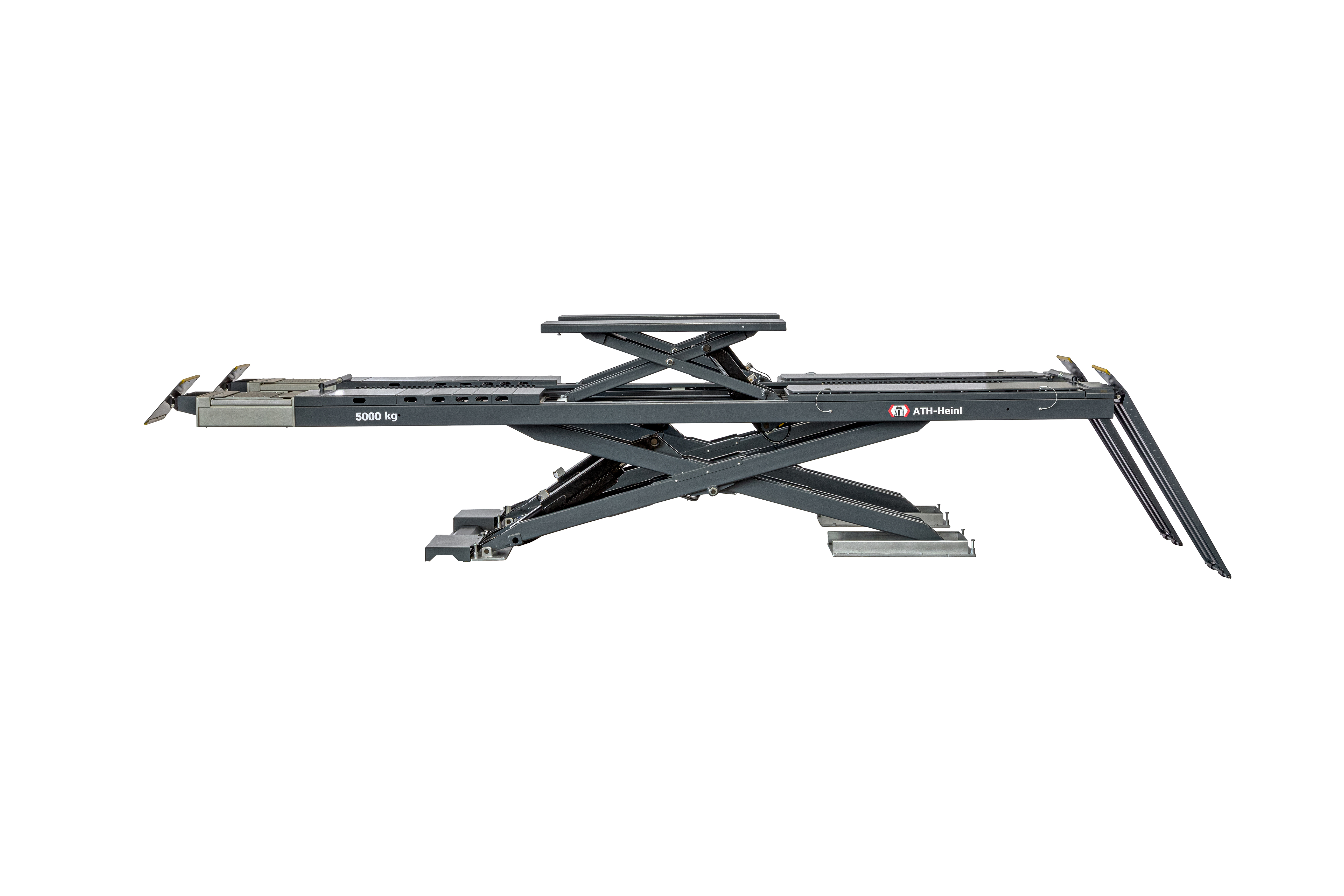

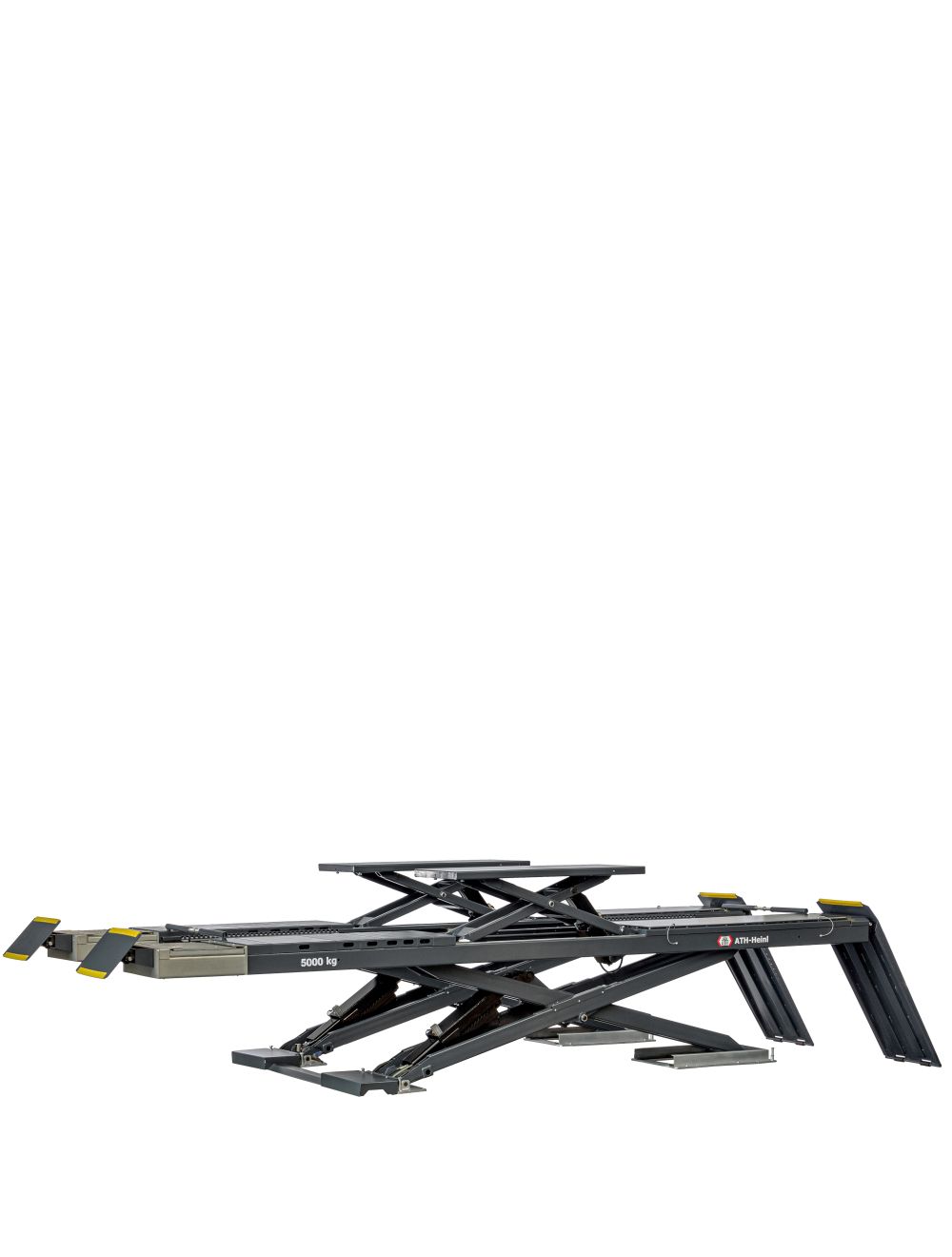

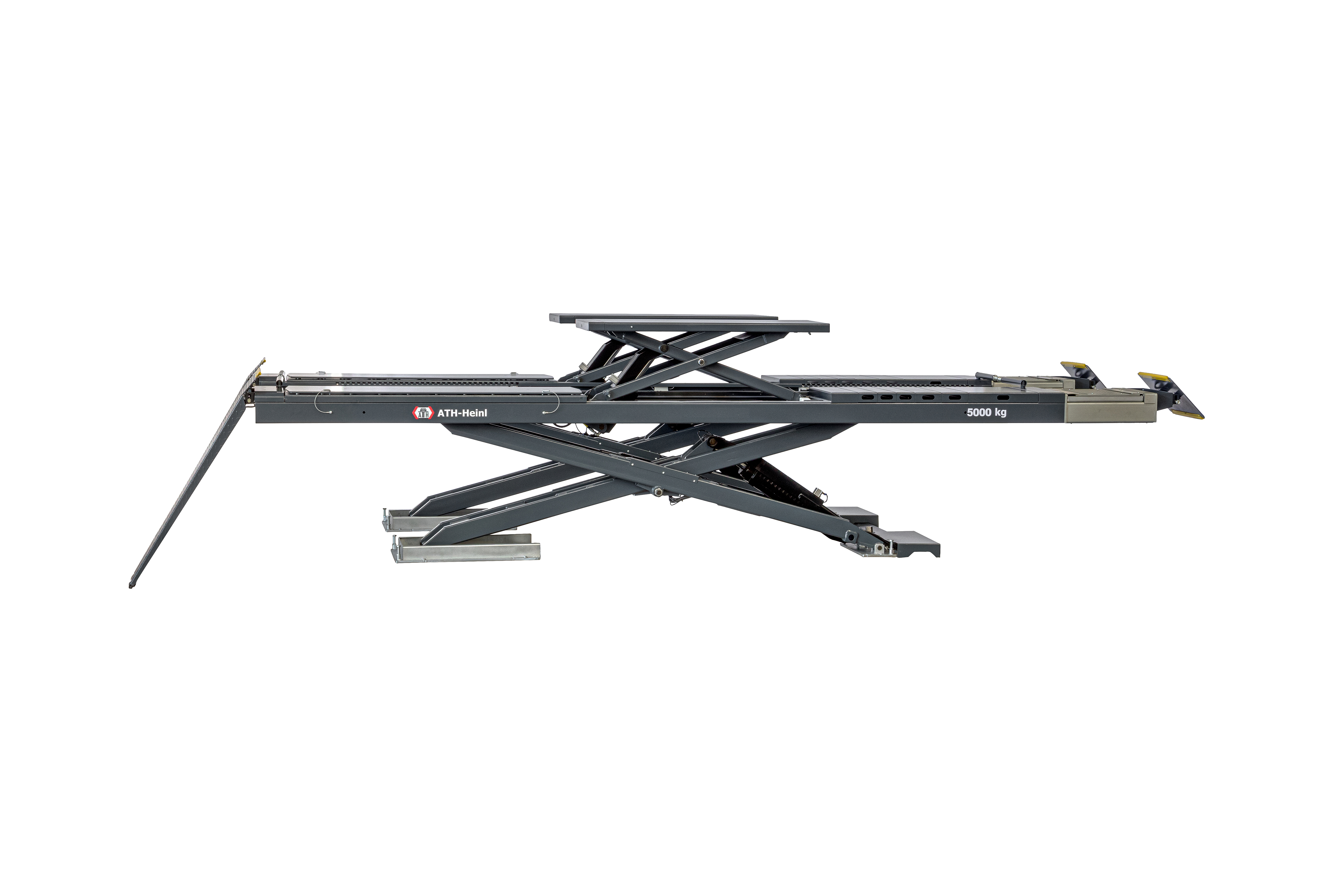

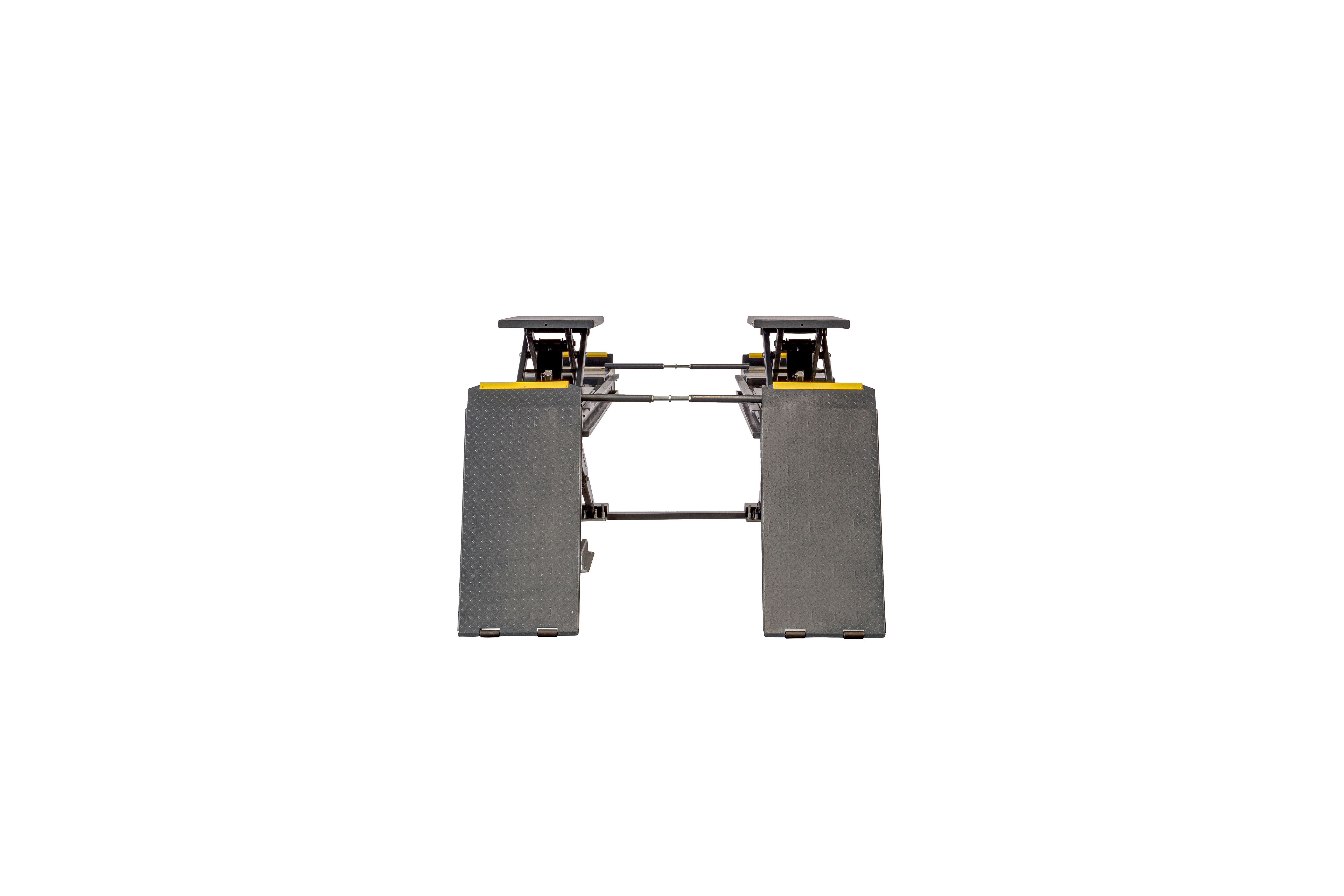

ATH Cross Lift 50 Plus OGA
€23,105.04
plus assembly and freight
€27,495.00
Availability:
In stock
item number
631024
- High quality and robust hydraulic drive platforms scissor lift who require minimal maintenance
- Powerful hydraulic unit with load-dependent lowering speed controller
- Suitable installation on-ground with inclusive Kit for surface mounting
- With recesses for turning plates in the front, pneumatically lockable sliding plates in the back, extension of the platforms incl. joint play tester, free-wheel lift (load capacity: 4 t, lifting height: 450 mm), rails for the optional rolling bridge jack, plug-in platforms-connections beams, incl. 24V LED lighting kit, metal protections covers
- Emergency lowering device for lowering in case of power failure, monitoring of safety synchronization by light barrier
- Ideally suited for inspection, wheel alignment, repairing jobs and testing stations for driver assistance systems
| Color | anthracite-grey / black |
|---|---|
| Rated load capacity | 5.000 kg |
| Lifting height max. | 2.160 mm |
| Drive-on-height | 295 mm |
| Total platform length | 5.600 mm |
| Total platform width | 600 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | ca. 70 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 6.100 x 3.000 x 200 mm |
