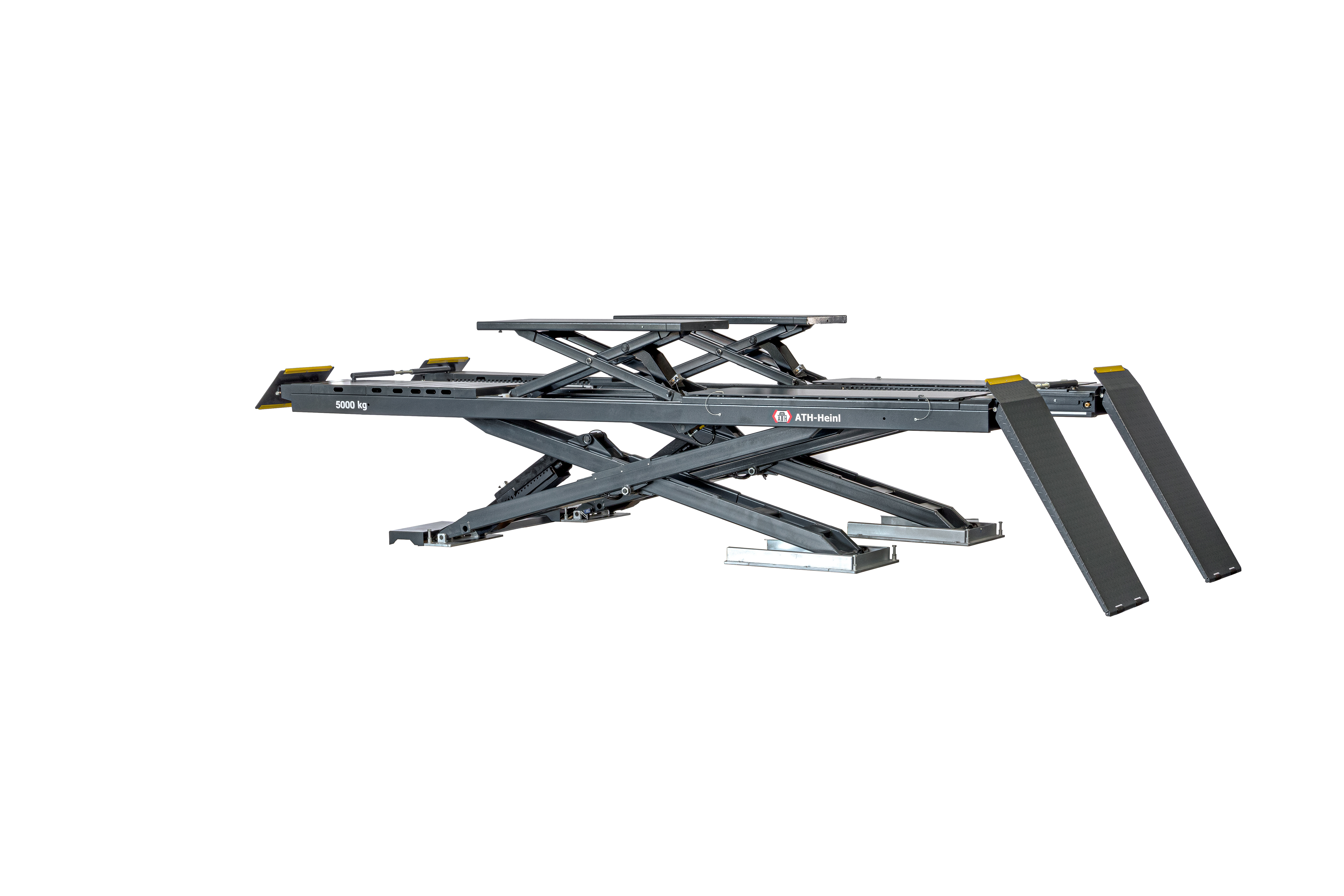

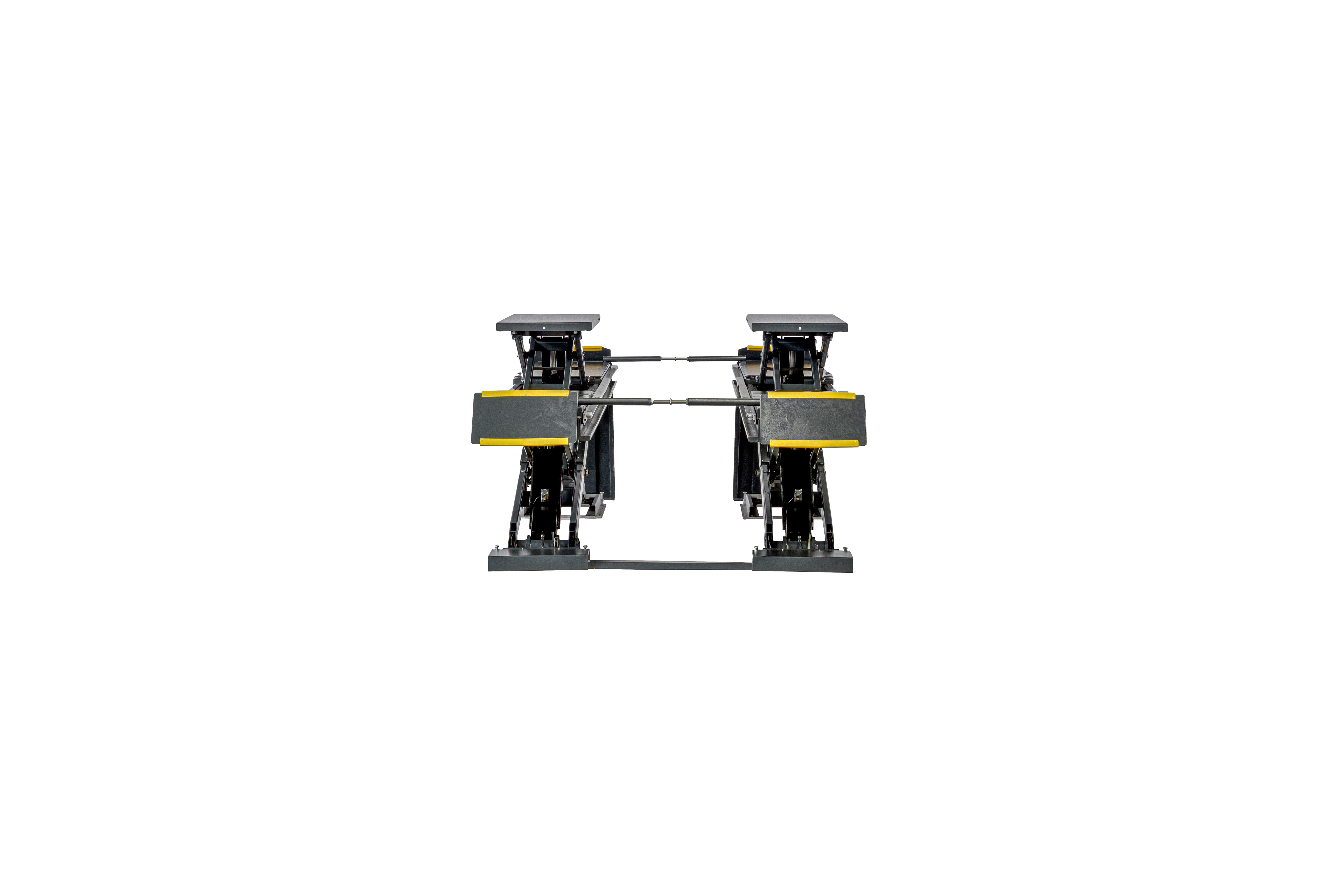

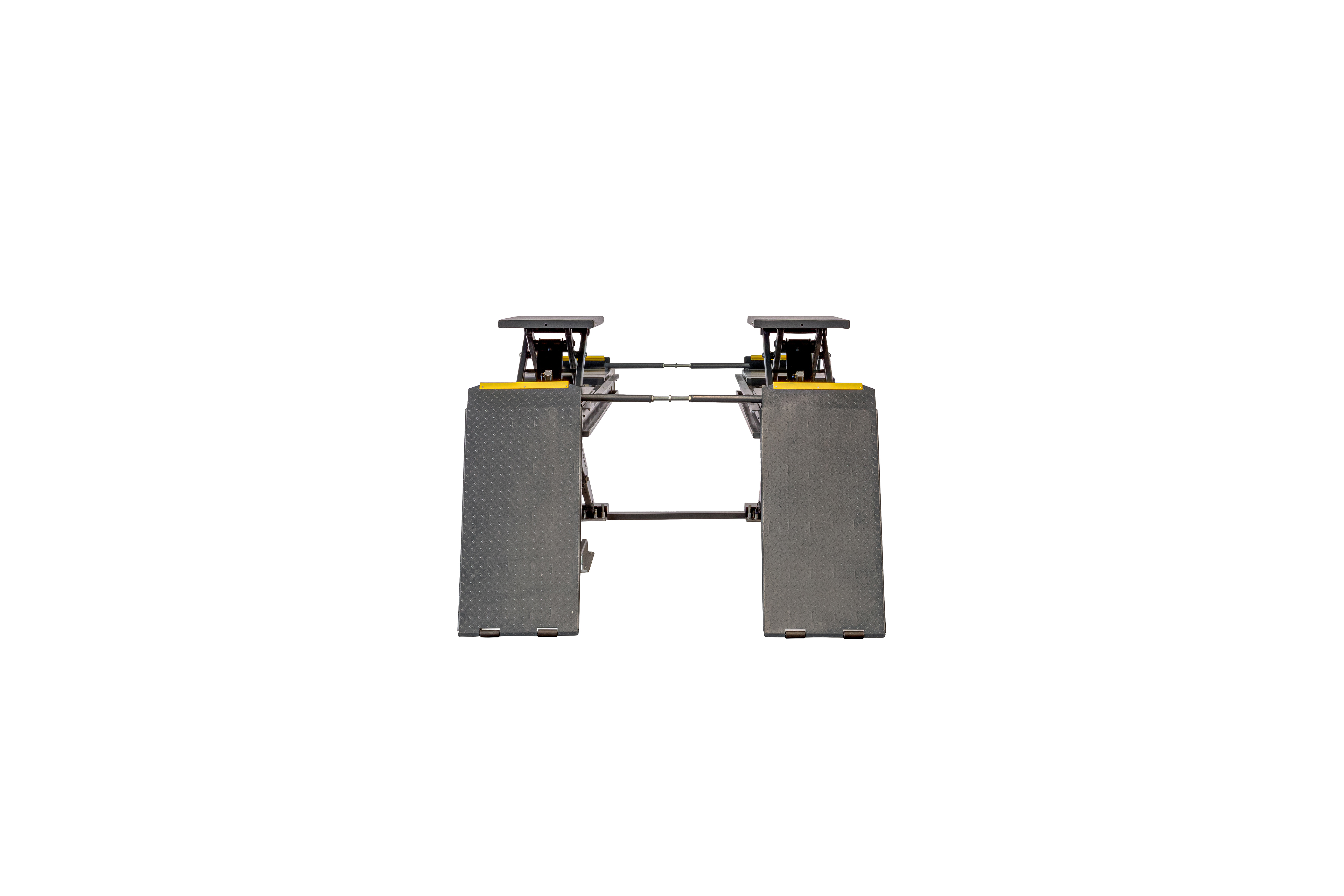

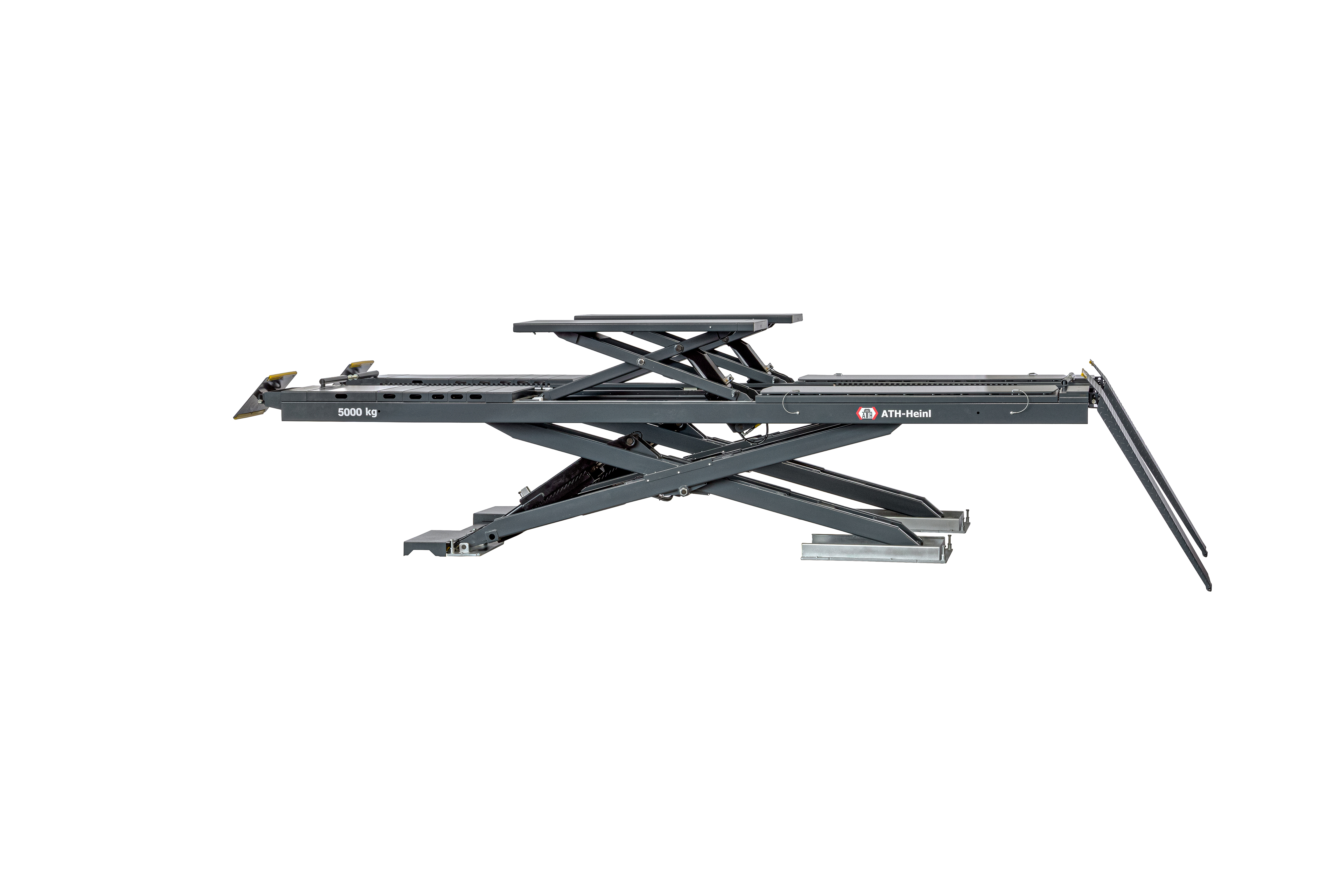

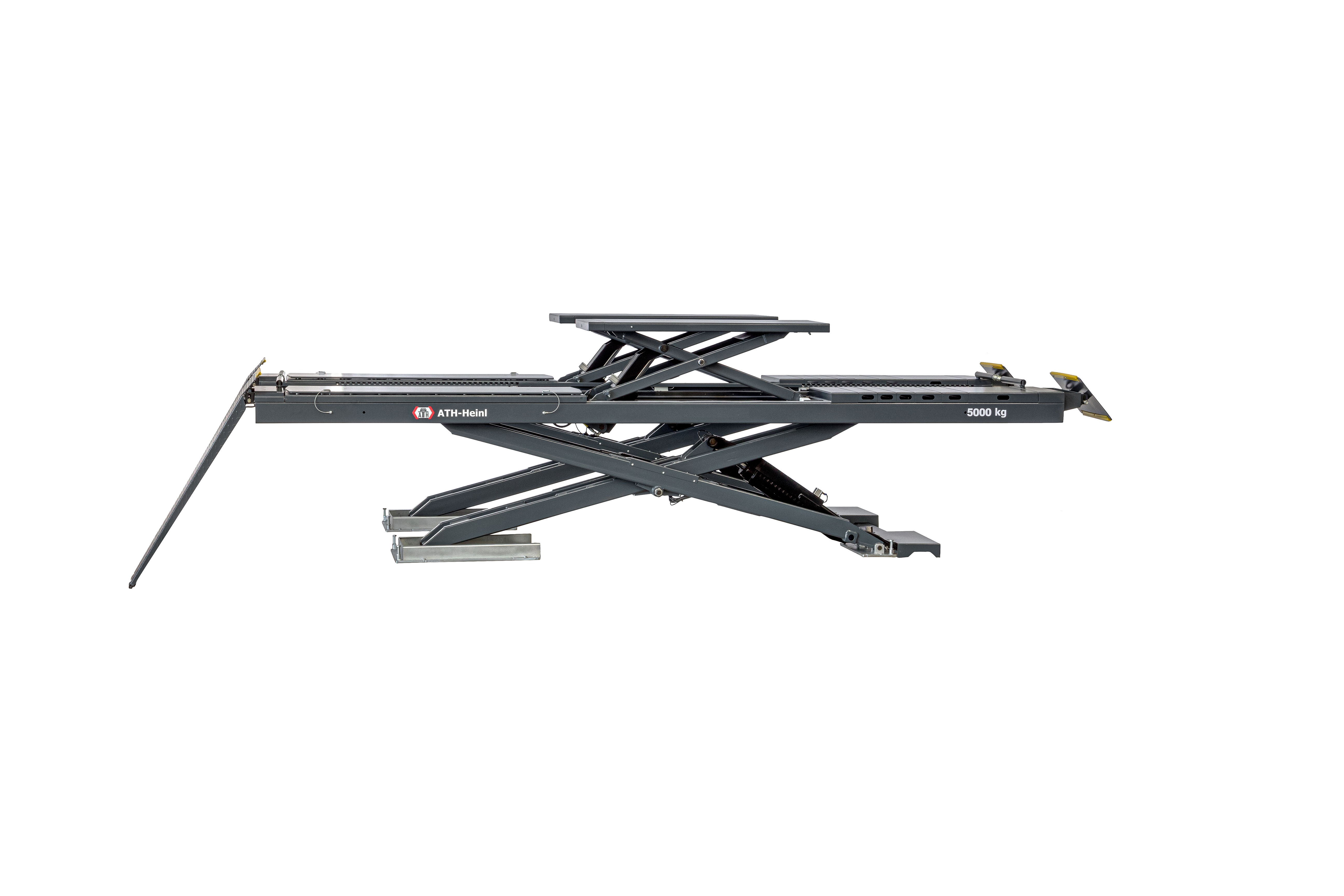

ATH Cross Lift 50 OGA
€16,298.32
plus assembly and freight
€19,395.00
Availability:
In stock
item number
631022
- High quality and robust hydraulic drive platforms scissor lift who require minimal maintenance
- Powerful hydraulic unit with load-dependent lowering speed controller
- Suitable installation on-ground with inclusive Kit for surface mounting
- With recesses for turning plates in the front and mechanically lockable sliding plates in the back, free-wheel lift (loading capacity: 4 t, lifting height: 450 mm), including rails for the optional rolling bridge jack, pluggable platforms-connections beams, incl. metal protections covers and switch for the optional 24V LED Lighting

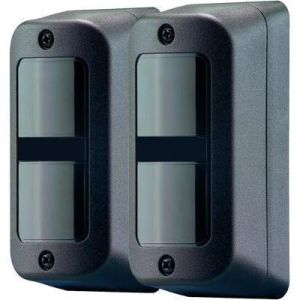

- Emergency lowering device for lowering in case of power failure, monitoring of safety synchronization by light barrier
- Ideally suited for inspection, wheel alignment, repairing jobs and testing stations for driver assistance systems

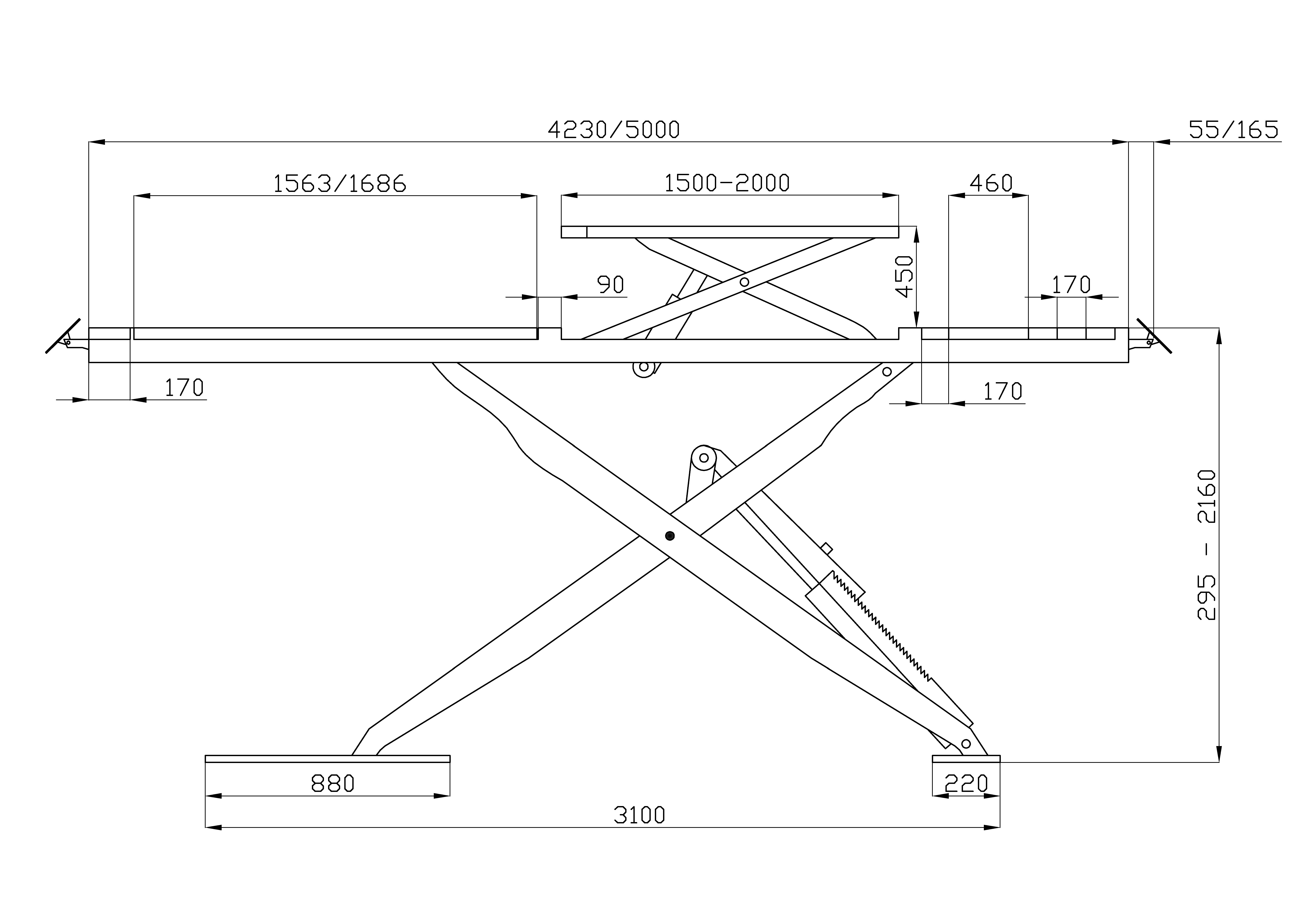

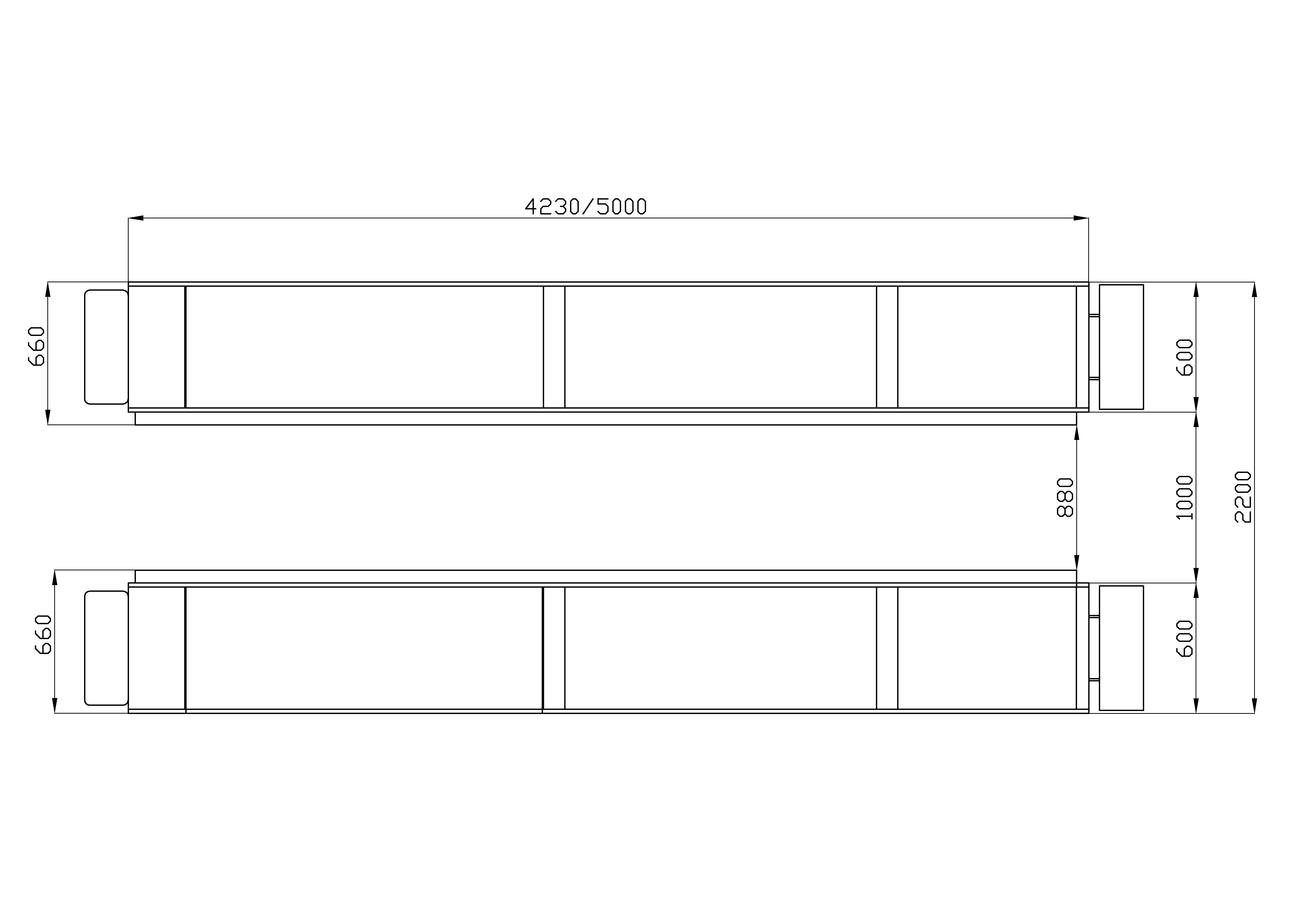

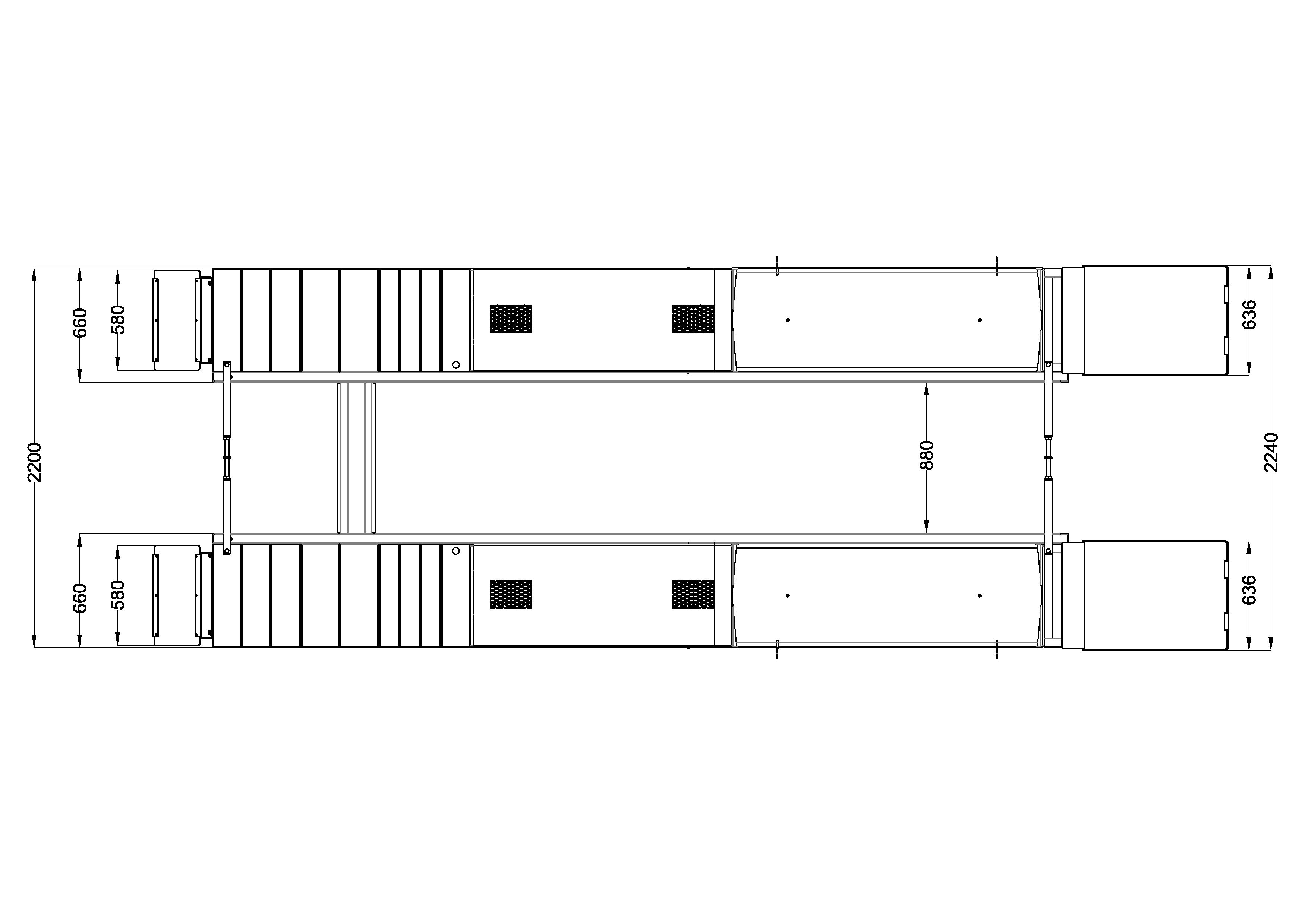

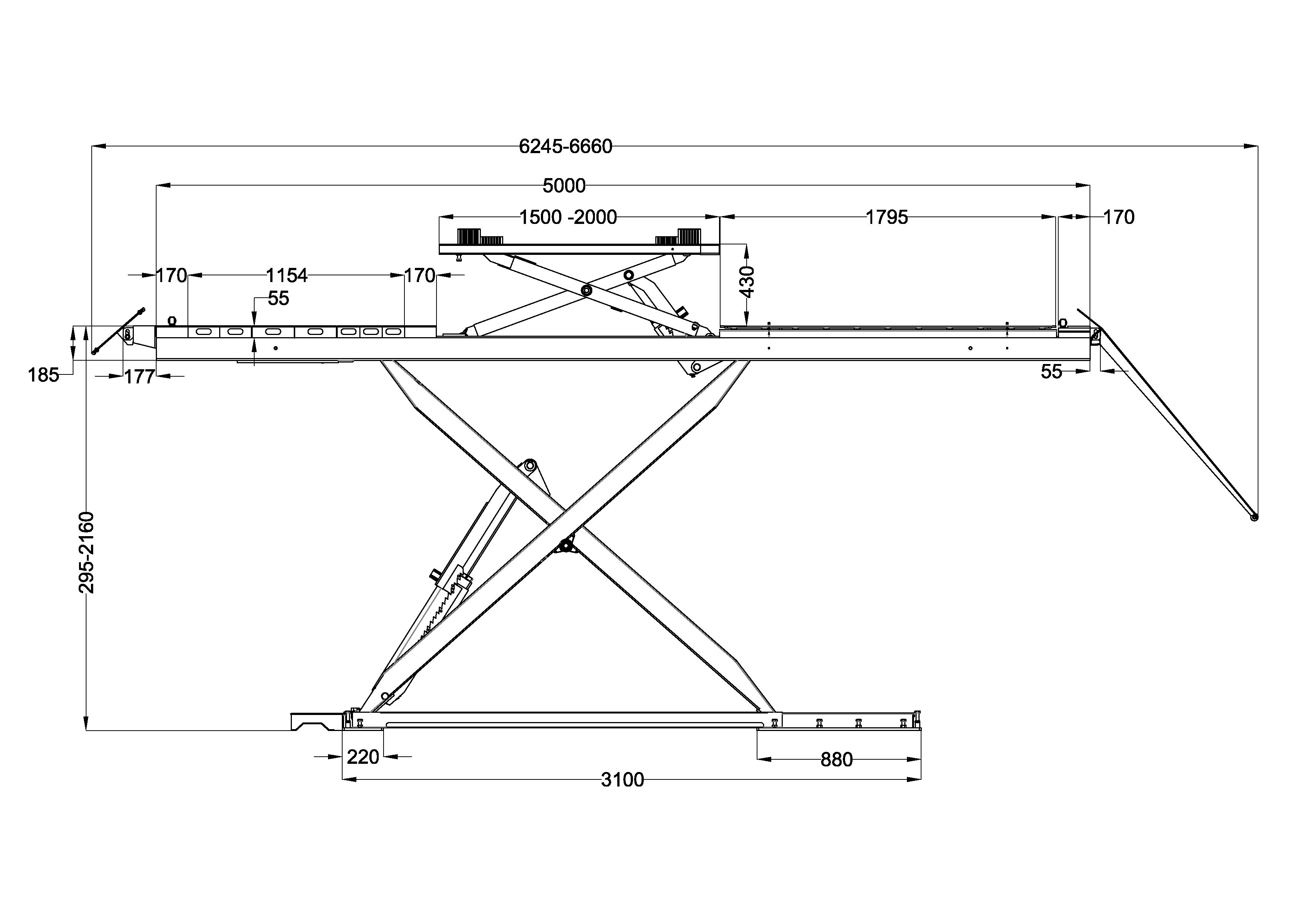

| Color | anthracite-grey / black |
|---|---|
| Rated load capacity | 5.000 kg |
| Lifting height max. | 2.160 mm |
| Drive-on-height | 295 mm |
| Total platform length | 5.000 mm |
| Total platform width | 600 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | ca. 70 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 5.500 x 3.000 x 200 mm |
Related Products

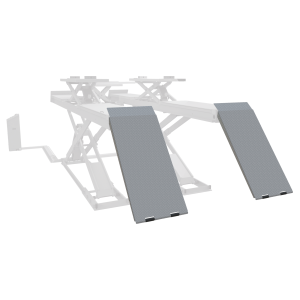

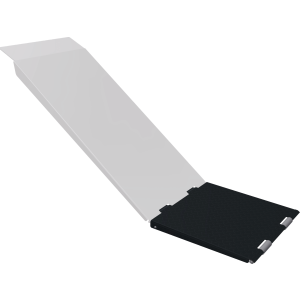

Überflur-KIT RAL7016 für Scherenhebebühne ATH SH5000H/HA/Cross Auffahrrampen & Abdeckbleche
