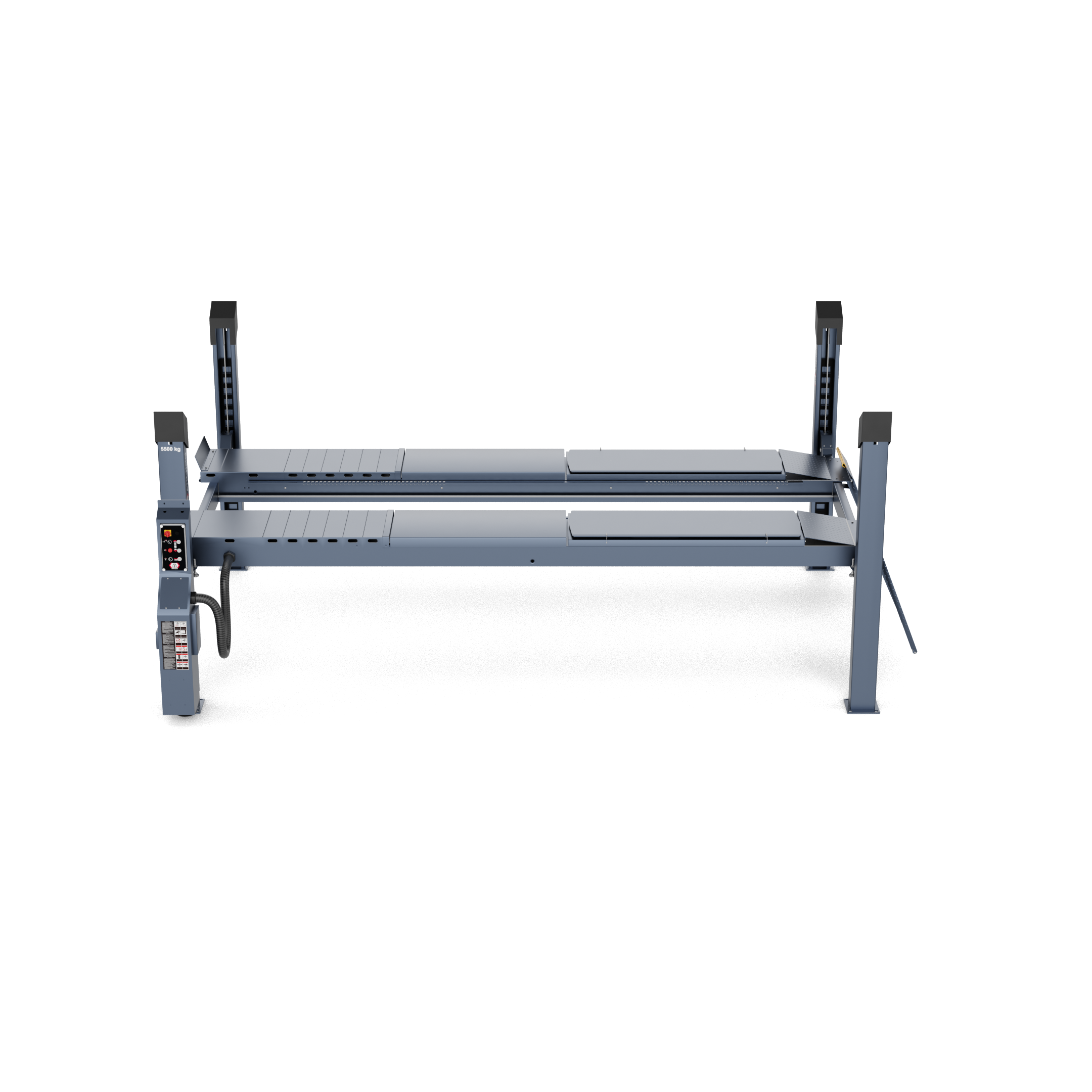

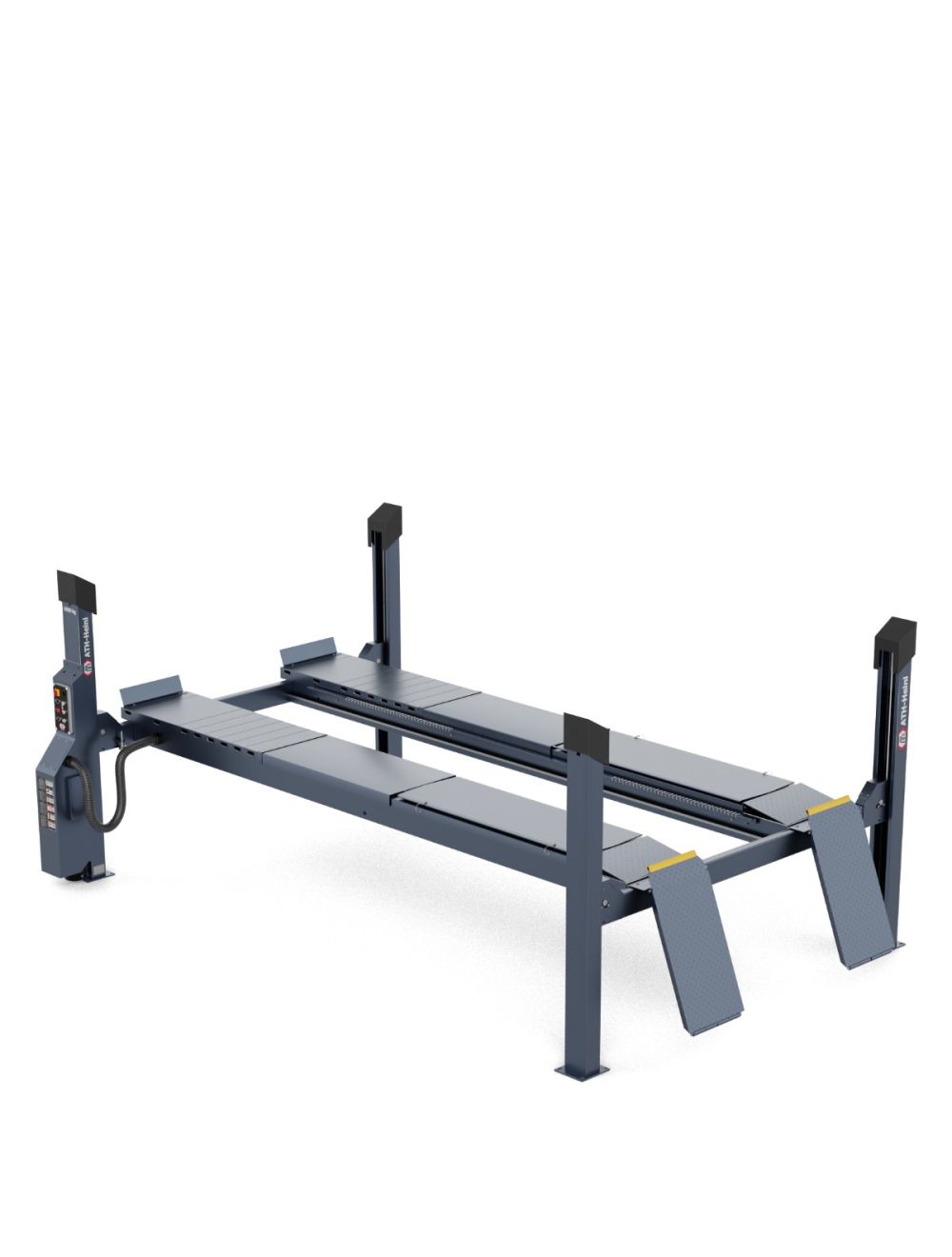

ATH Four Lift 55AP
€8,063.03
plus assembly and freight
€9,595.01
Availability:
In stock
item number
650024
- Electro-hydraulic 4-post lift with quick lift unit and load-dependent lowering function
- Central operating unit, including unit cover
- ATH Four Lift 55AP: Level running rail with integrated wheel alignment kit
- ATH Four Lift 55P: level running rail, optional wheel alignment kit
- Precisely levelable notch and rail system
- Safety Control: Electropneumatic safety locks that automatically unlock with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via continuously adjustable rails
- Perfect platform protection made of special polymer and double powder coating
| Color | anthracite-grey / black |
|---|---|
| Rated load capacity | 5.500 kg |
| Lifting height max. | 2.045 mm |
| Drive-on-height | 275 mm |
| Total platform length | 5.600 mm |
| Total platform width | 650 mm |
| Driving power | 4 kW |
| Lifting/Lowering time | ca. 45 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 7.400 x 3.900 x 200 mm |
Product Catalog
We can also advise you by phone +49 (0) 9666 18801-00
Download Product-flyer
