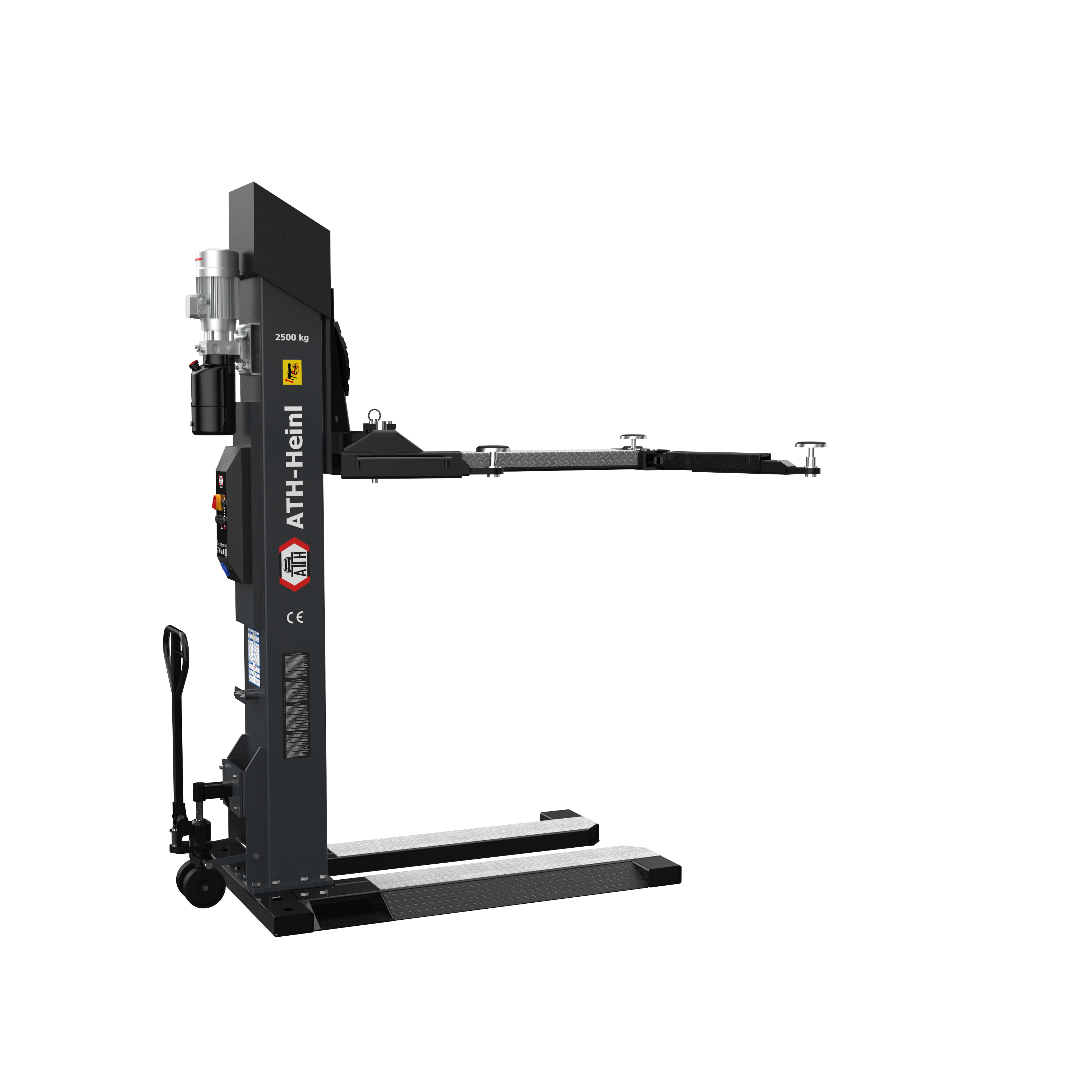

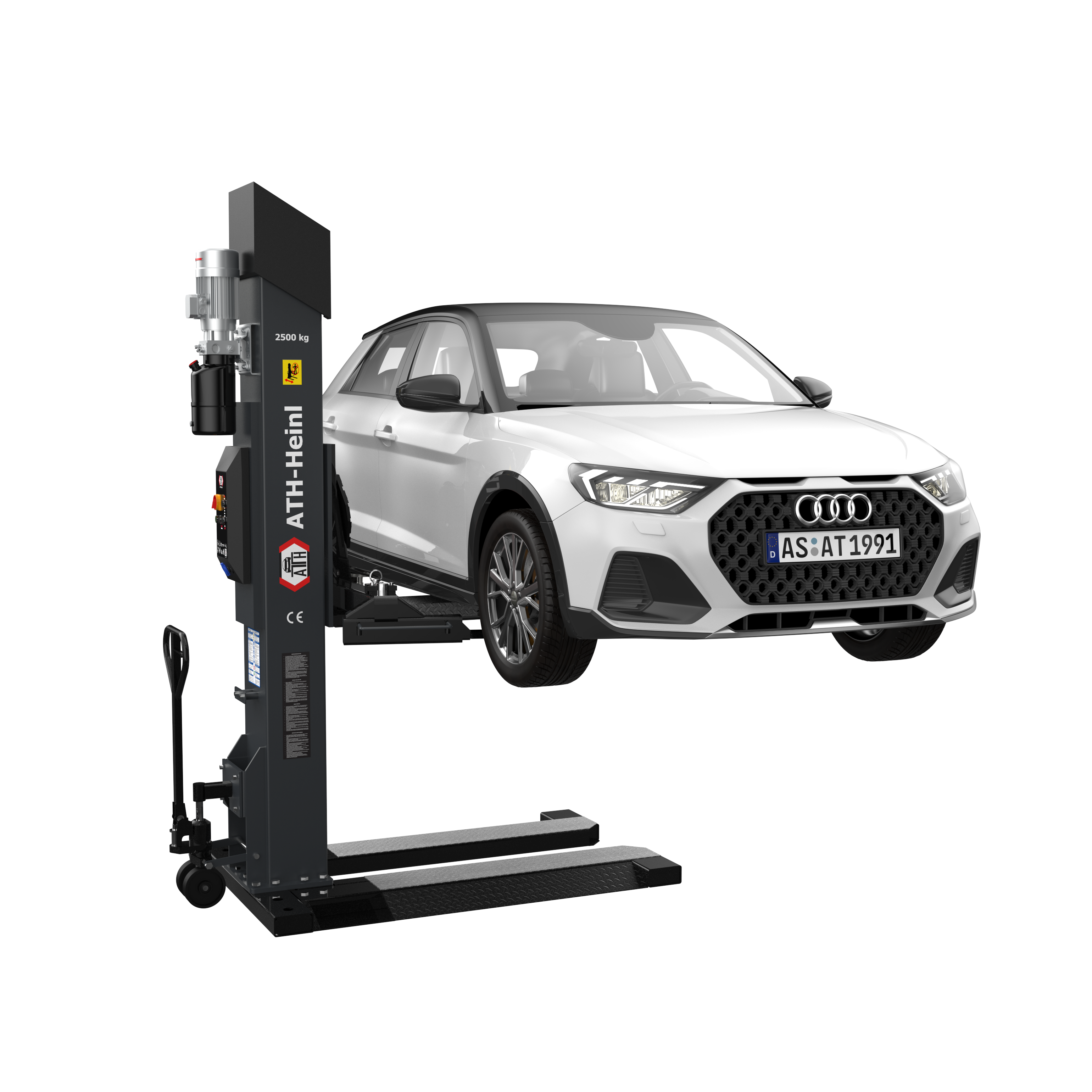

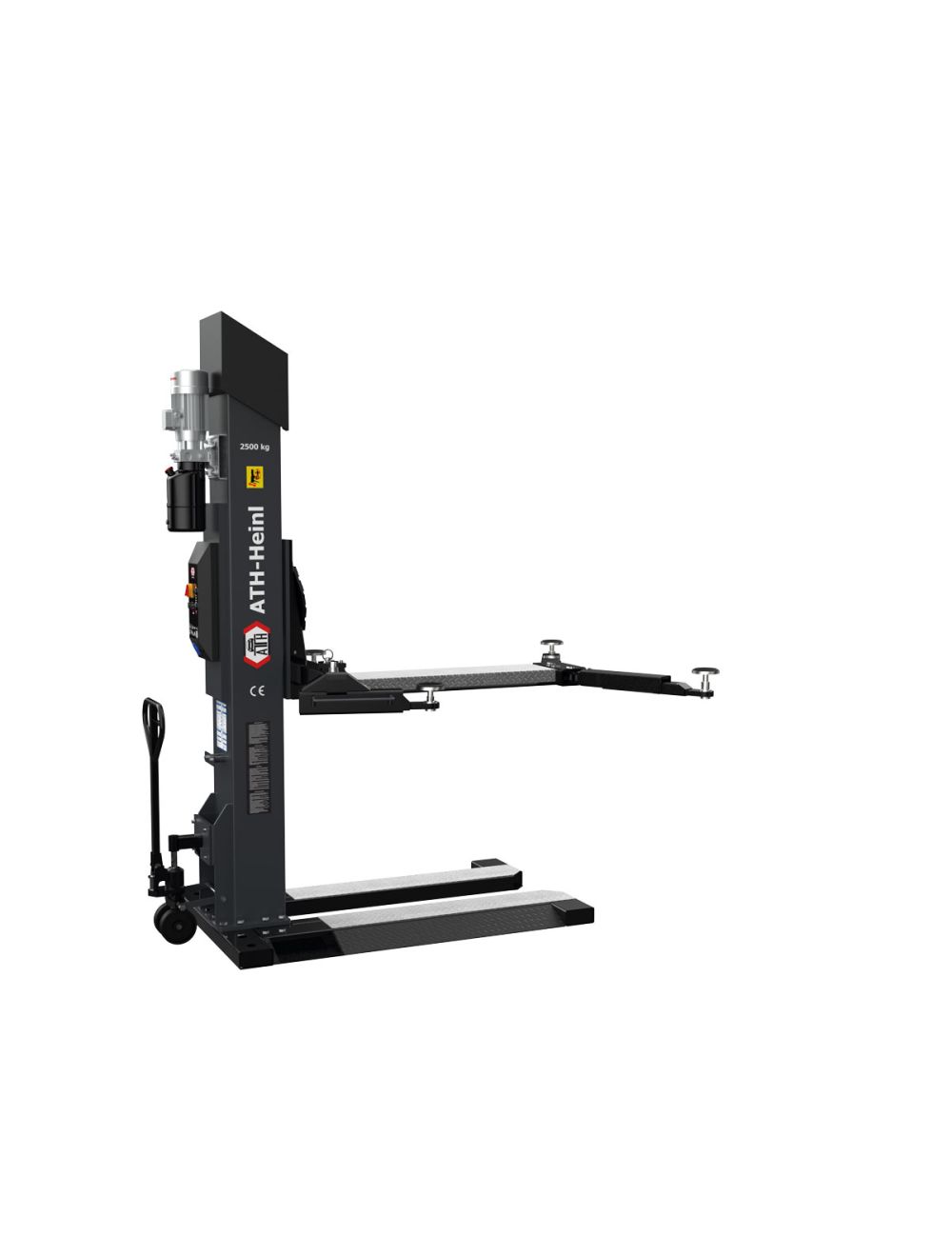

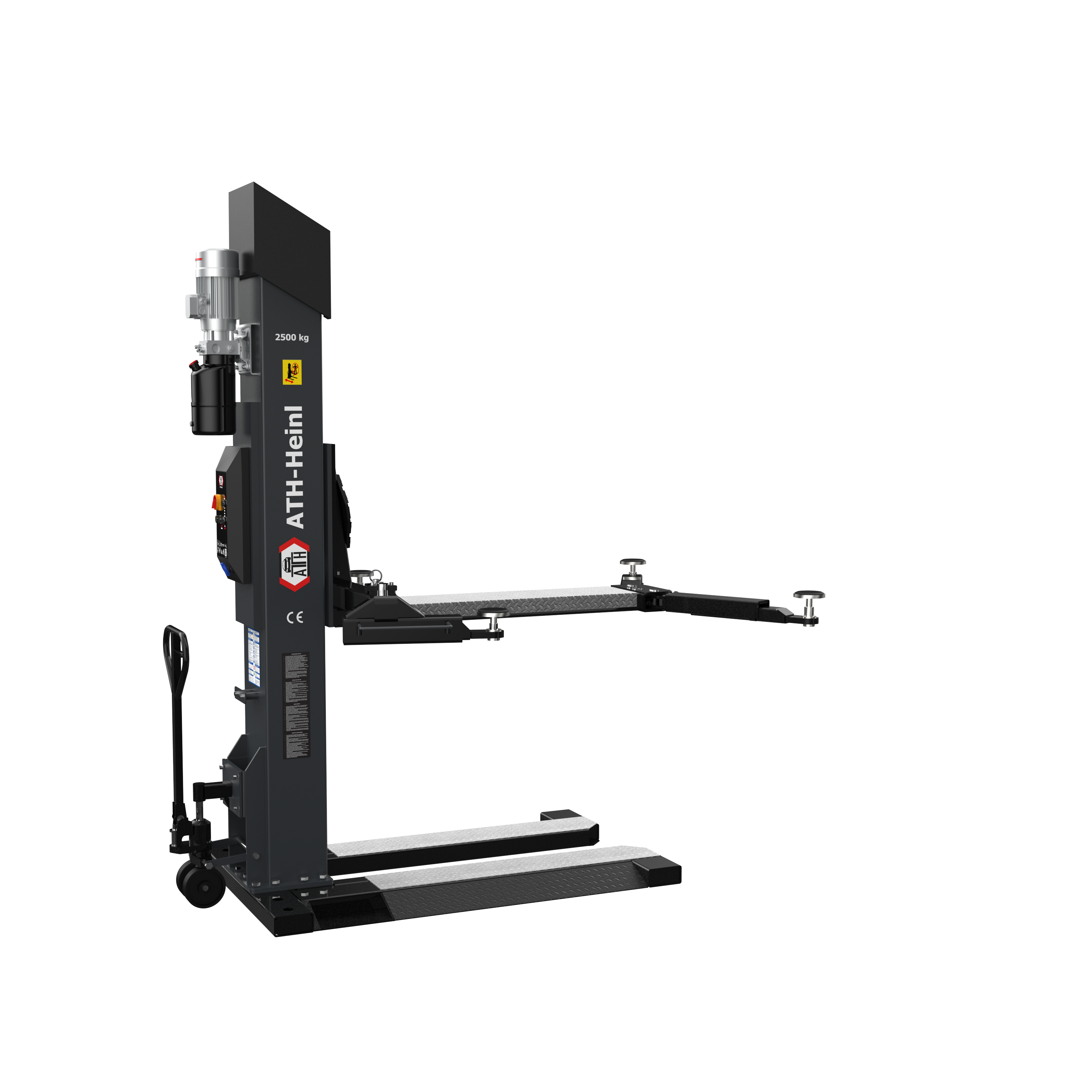

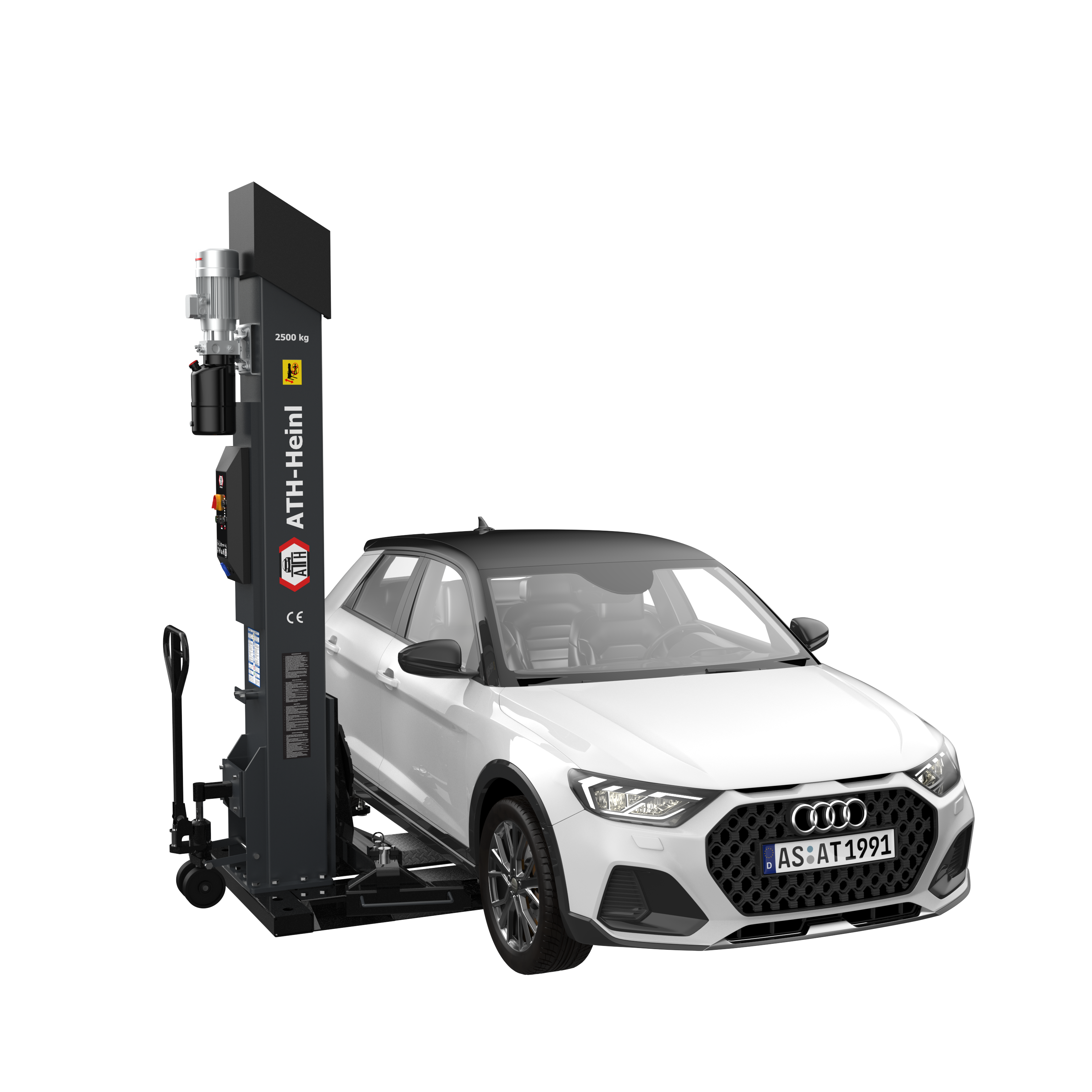

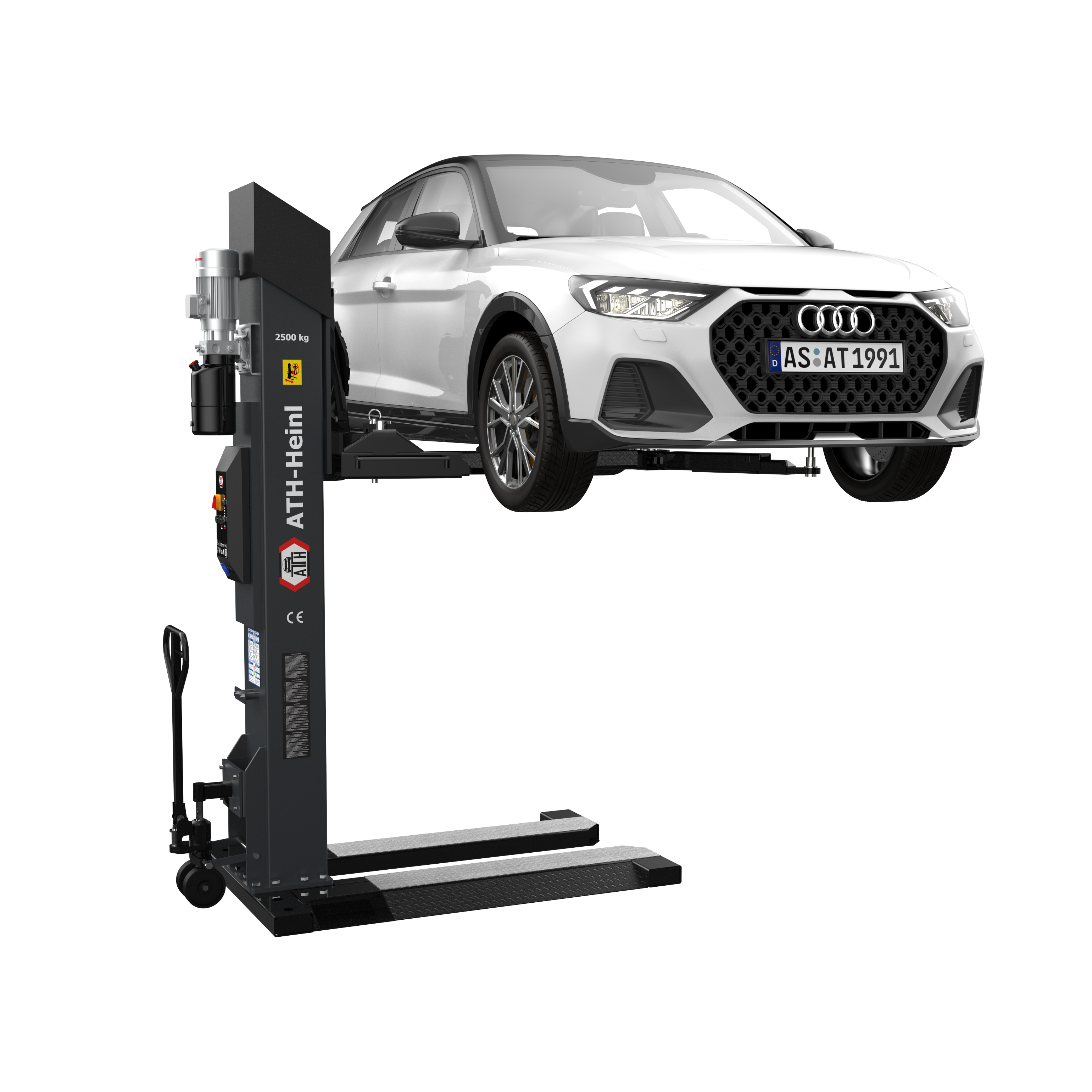

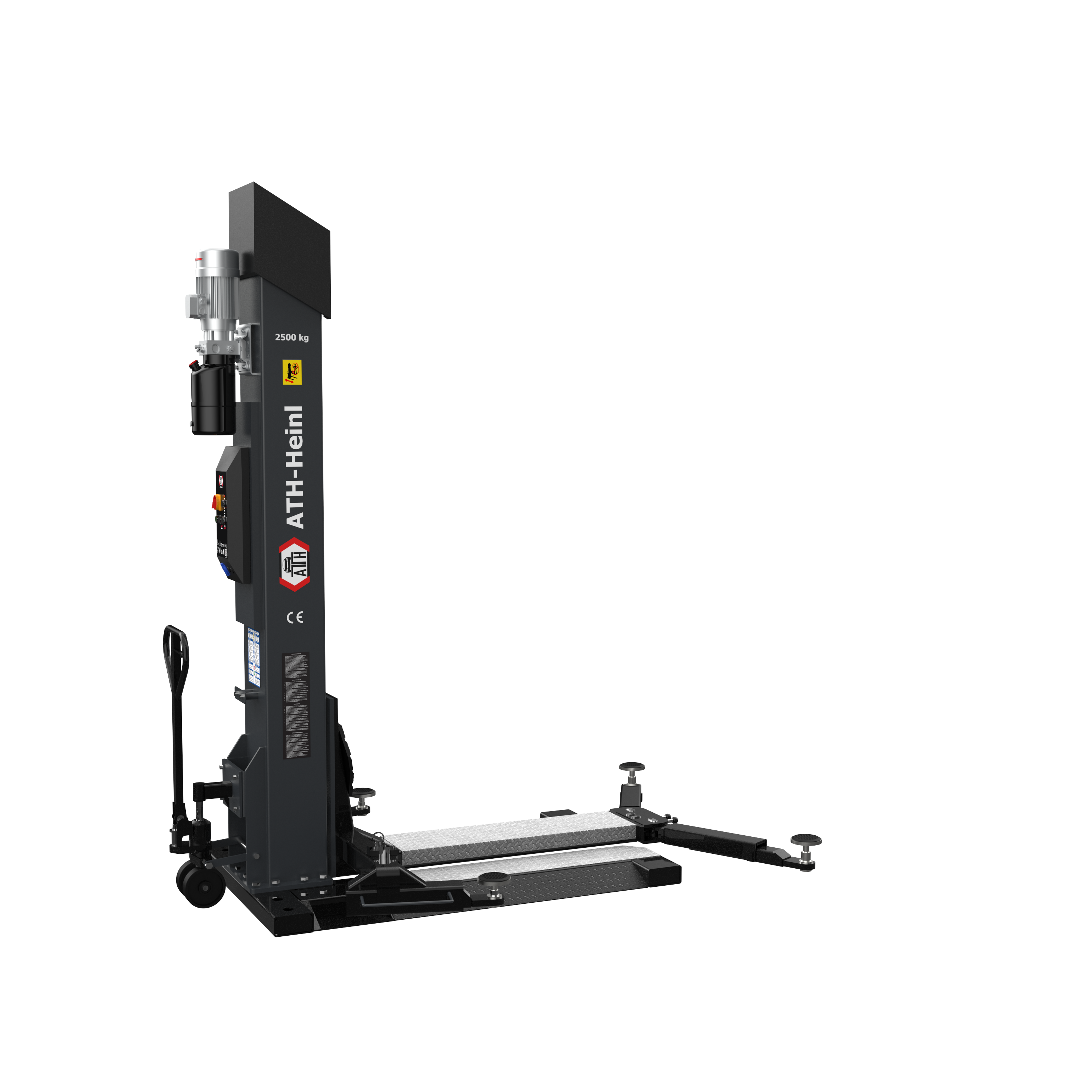

ATH Single Lift 25M
€5,878.15
plus assembly and freight
€6,995.00
Availability:
In stock
item number
612010
- Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function
- Central control unit with energy set (230V / 12V)
- Mobile & stationary use with the help of the high-quality wheels or attachment to the floor
- Safety Control: Electromagnetic safety catches that automatically unlock when lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via telescopic support arms and support plates
| Color | anthracite-grey |
|---|---|
| Rated load capacity | 2,5 t |
| Lifting height max. | 1.870 mm |
| Overall height | 2.910 mm |
| Overall width | 1.550 – 2.175 mm |
| Support arms parts | 2 |
| Driving power | 3 kW |
| Lifting/Lowering time | ca. 40 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 2.500 x 2.500 x 200 mm |
