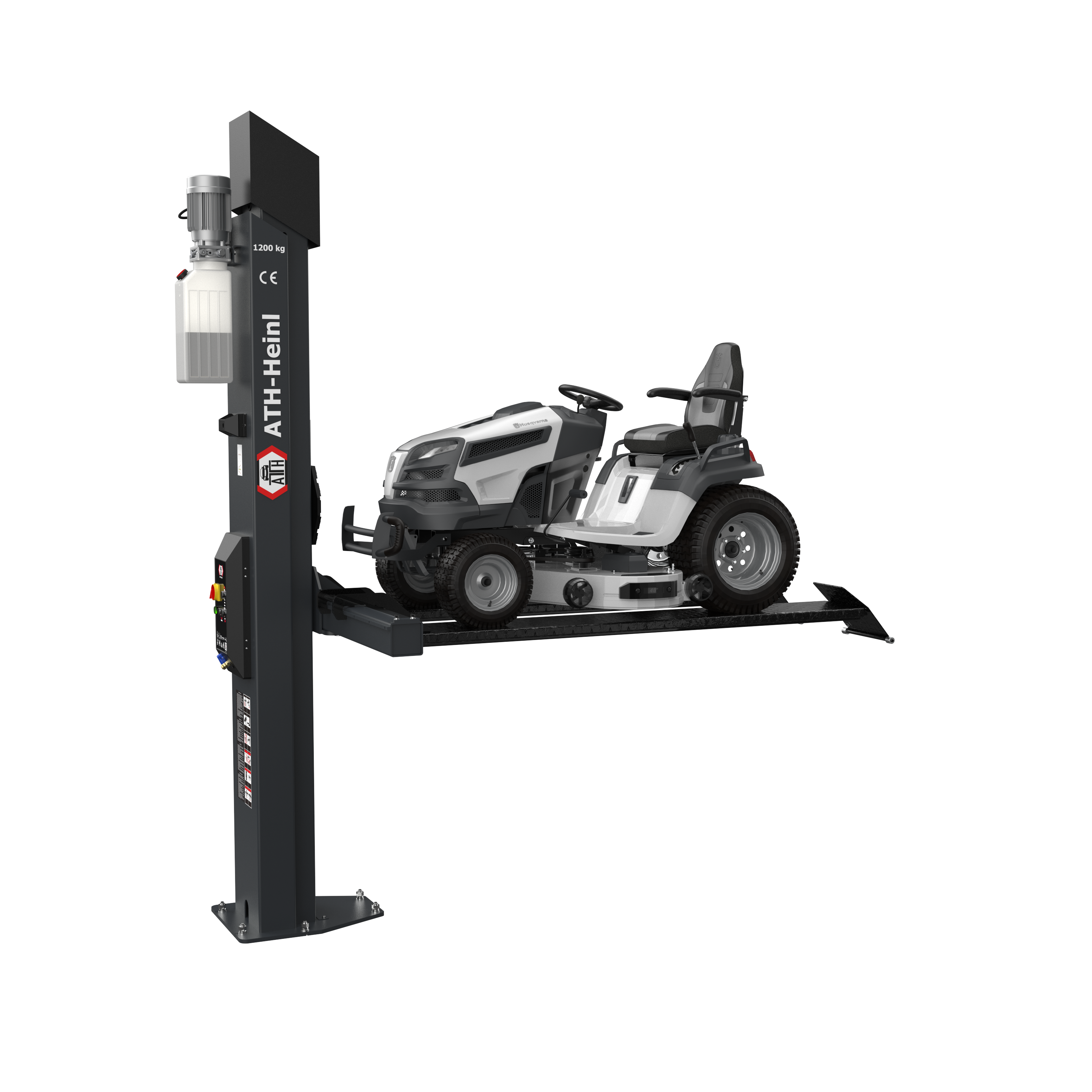

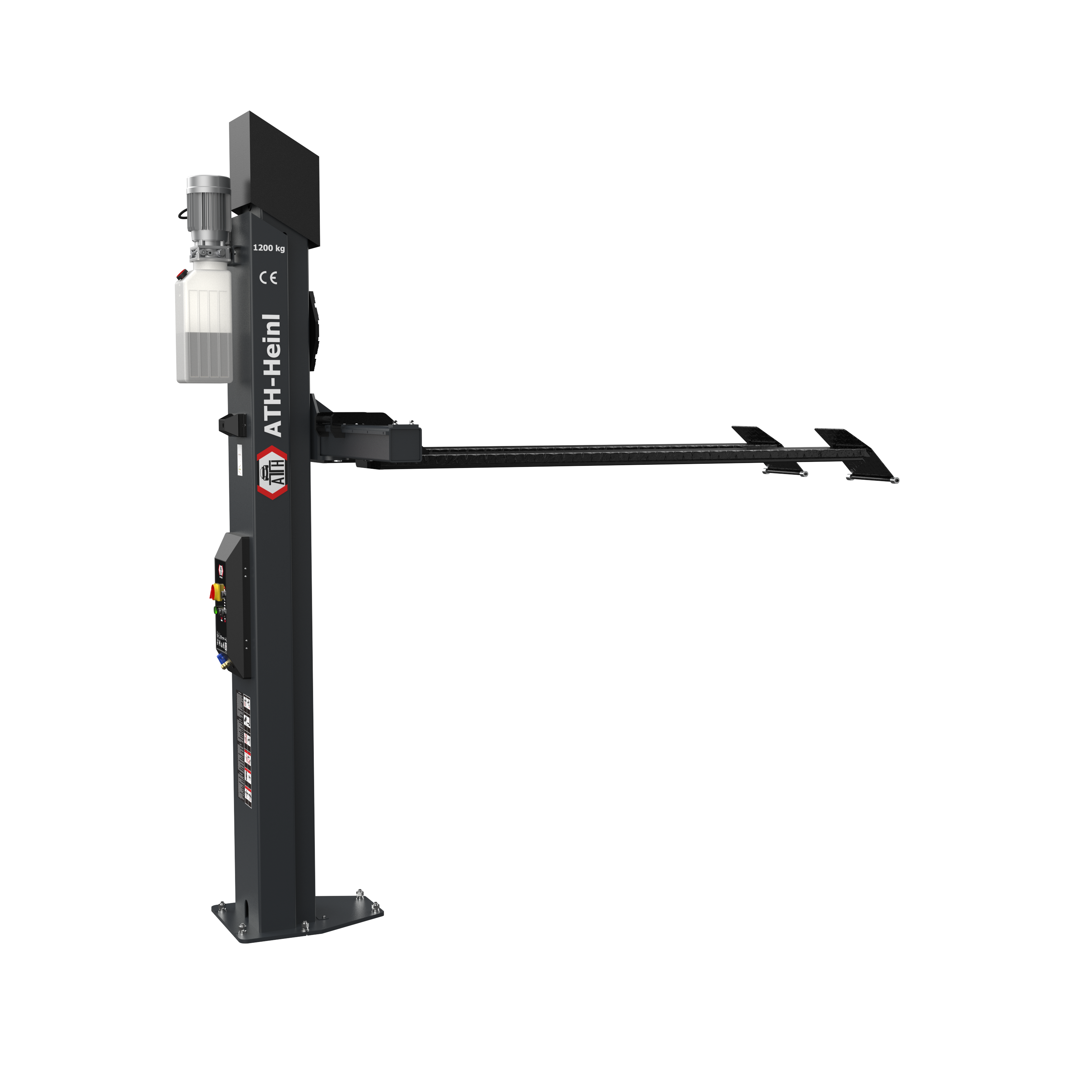

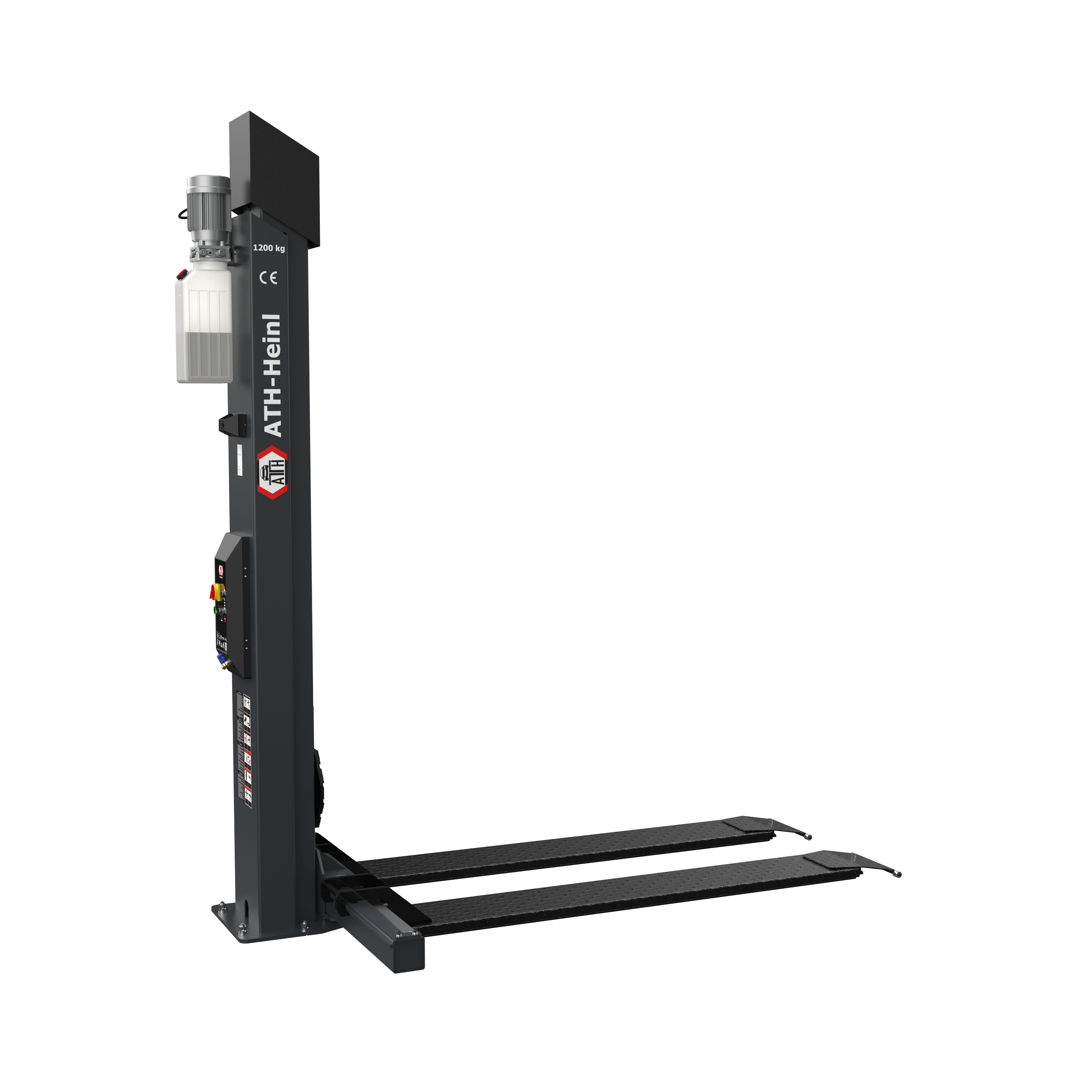

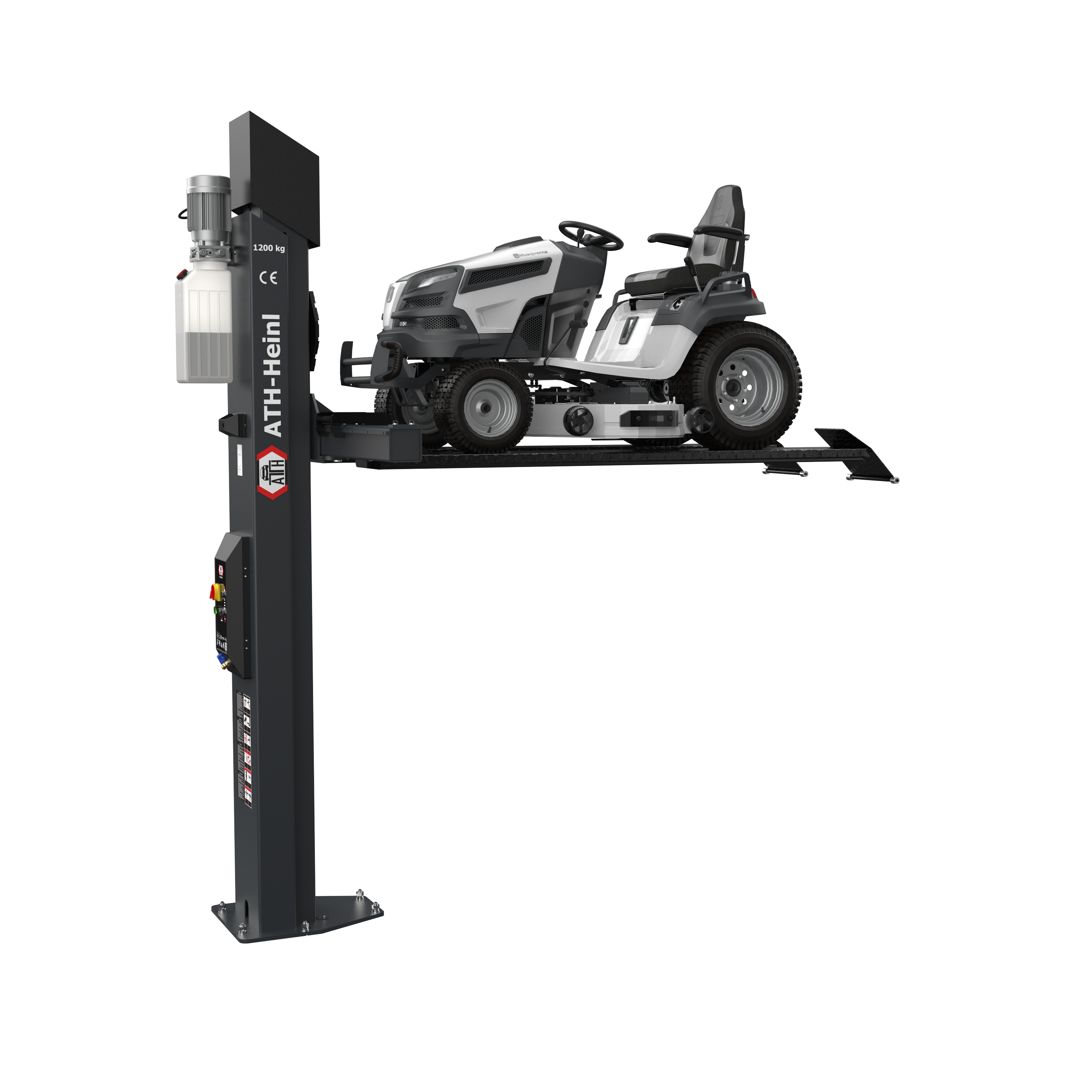

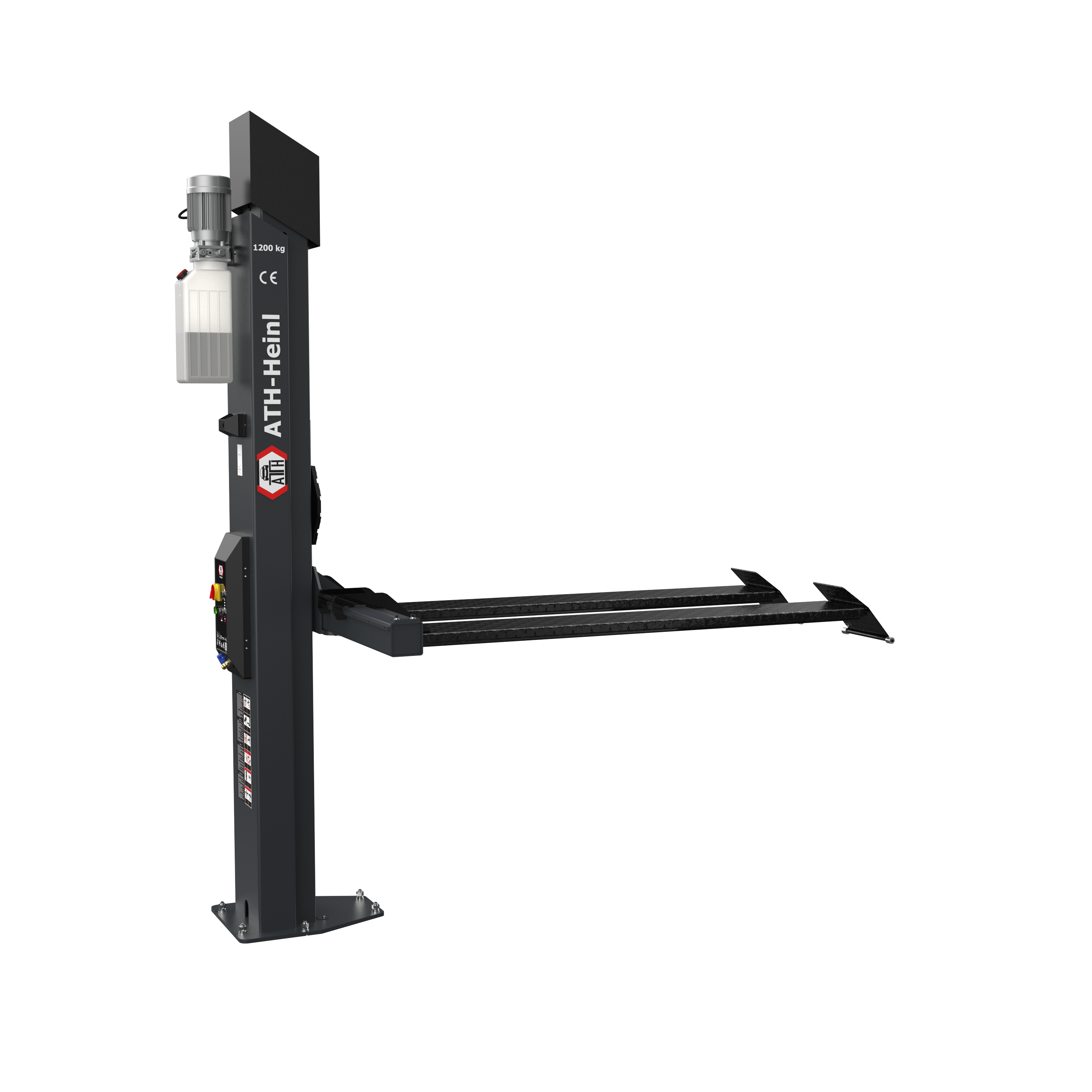

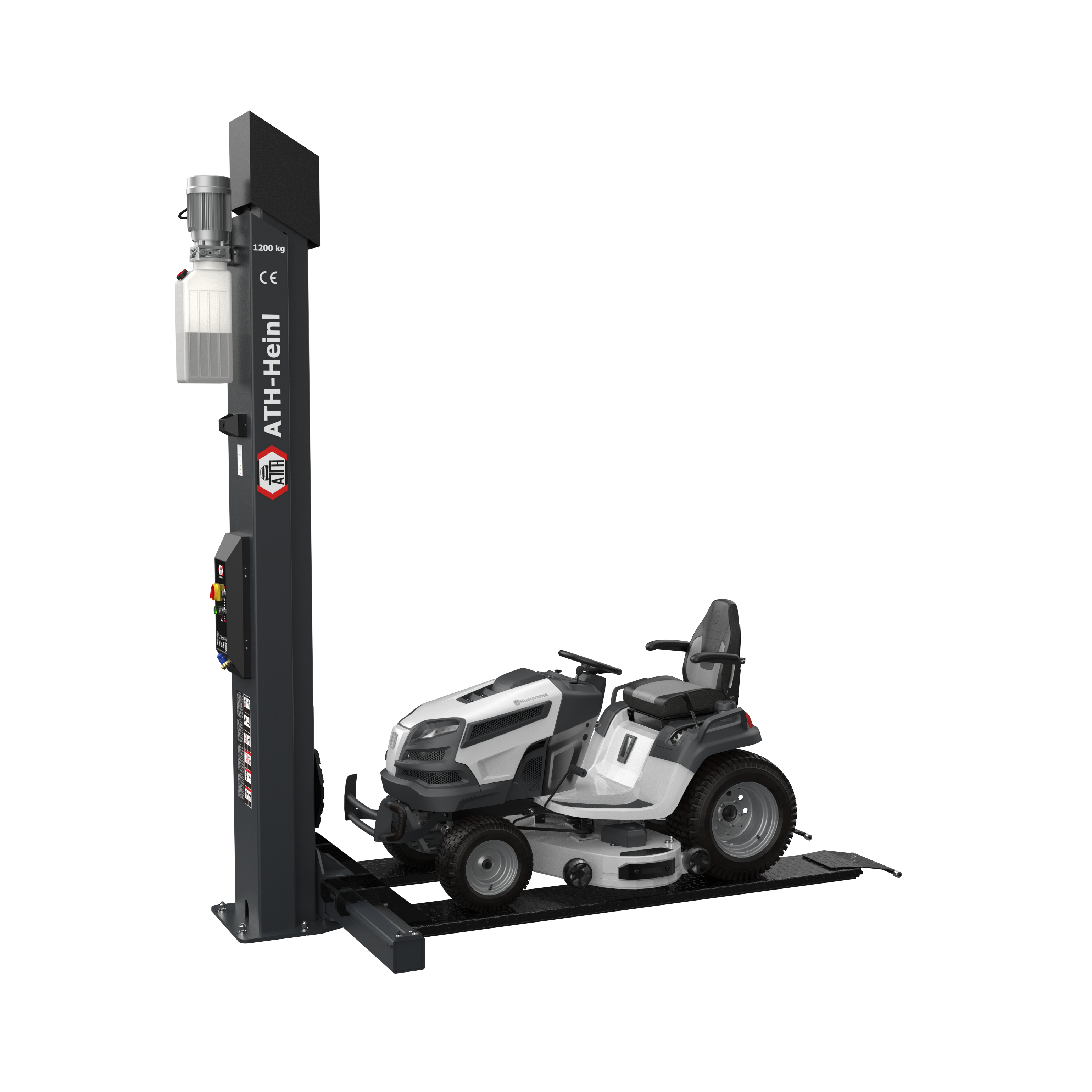

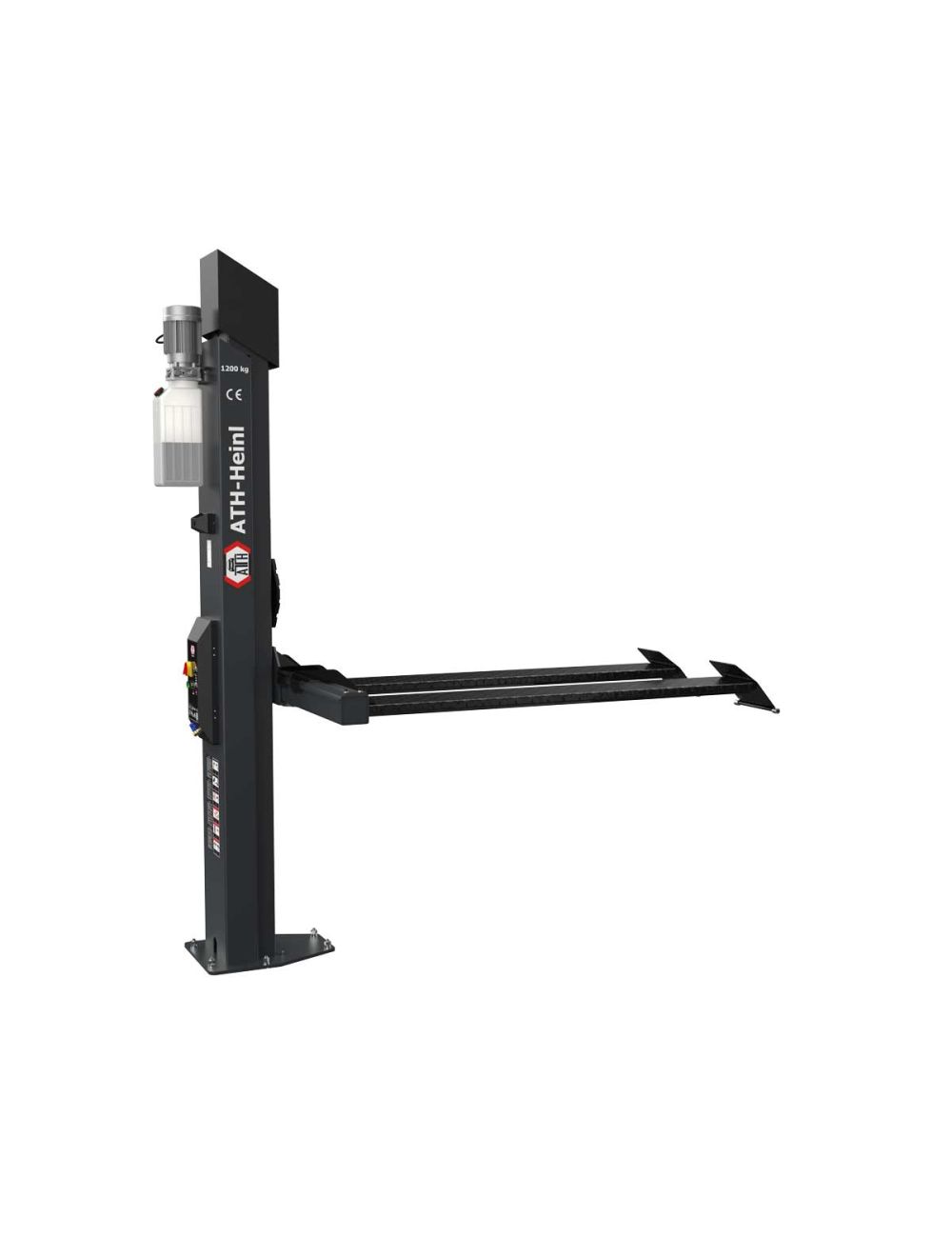

ATH Single Lift 12PL
€3,105.04
plus assembly and freight
€3,695.00
Availability:
In stock
item number
612016
- Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function
- Central control unit with energy set (230V / compressed air / 12V)
- Stationary use, with reinforced column and rail construction
- Safety Control: Electromagnetic release of the safety locks automatically with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via sliding, extra long rails and wheel forks (optional)
- Ideally suited for repairing quads, lawn mowers and small tractors
| Rated load capacity | 1.200 kg |
|---|---|
| Lifting height max. | 1.930 mm |
| Overall height | 3.138 mm |
| Overall width | 1.900 mm |
| Total length | 2.937 mm |
| Driving power | 3 kW |
| Lifting/Lowering time | ca. 20 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C25/30 2.500 x 200 x 200 mm |
