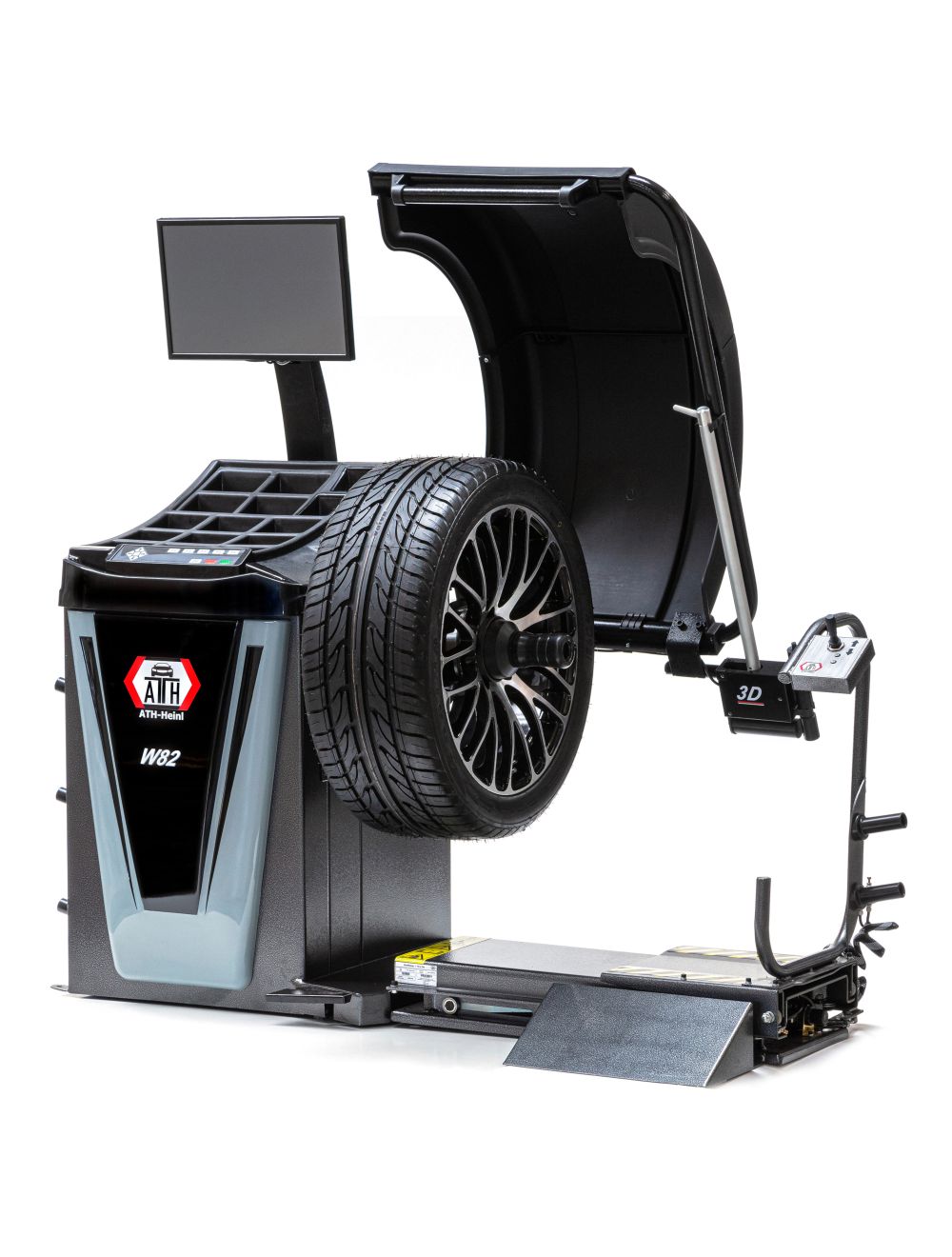

ATH W82 Touch 3D Plus
€4,264.71
plus assembly and freight
€5,075.00
Availability:
In stock
item number
150036
- Automatic distance, rim diameter and rim width (3D function) measurement
- Operation directly via 19 „touchscreen or ergonomically arranged front control panel
- Digital and optical position display of the weights via LCD touchscreen monitor and duo laser (LPS)
- Static / dynamic, ALU programs, ALU weight optimization and back spoke placement
- Pneumatic rim clamping with 40 mm shaft diameter („ATH-Quick-hold“), problem-free attachment of the weights via automatic, electronic parking brake („ATH-Easy-hold“), Measuring tool, integrated interior wheel lighting and incl. wheel lift
- Wheel protection with automatic start-stop function
- Ideally suited for car wheels, with optional accessories also for light truck wheels
| Center hole diameter rim | 45 – 130 mm |
|---|---|
| Measurement tolerance | ± 1 g |
| Measuring time | 7 s |
| Measuring speed | 180 U/min |
| Rim width | 1,5 – 20 " |
| Rim diameter | 12 – 24 " |
| Max. wheel diameter | 900 mm |
| Wheel weight max. | 65 kg |
| Driving power | 0,25 kW |
| Power supply voltage | 230V / C16A |
