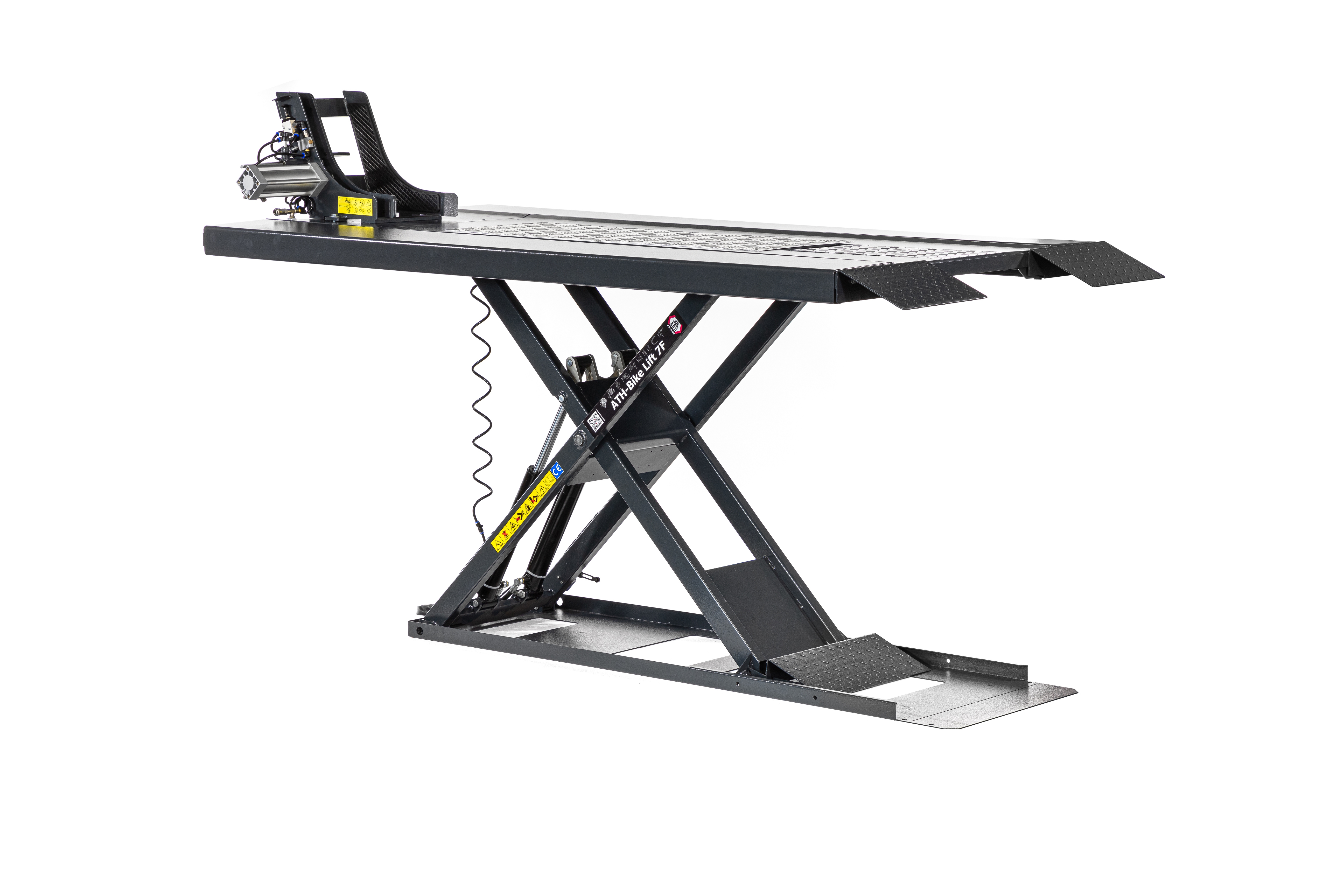

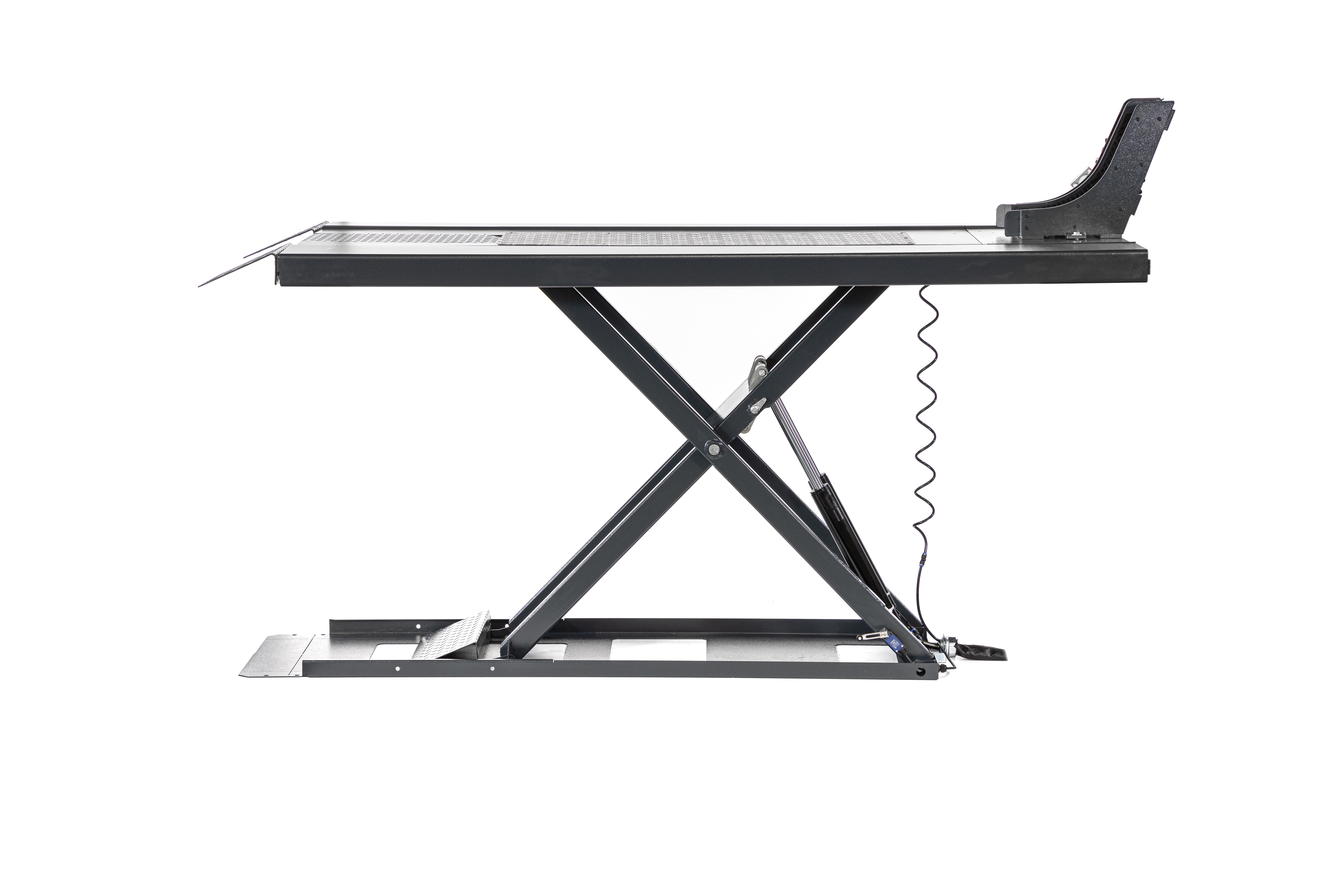

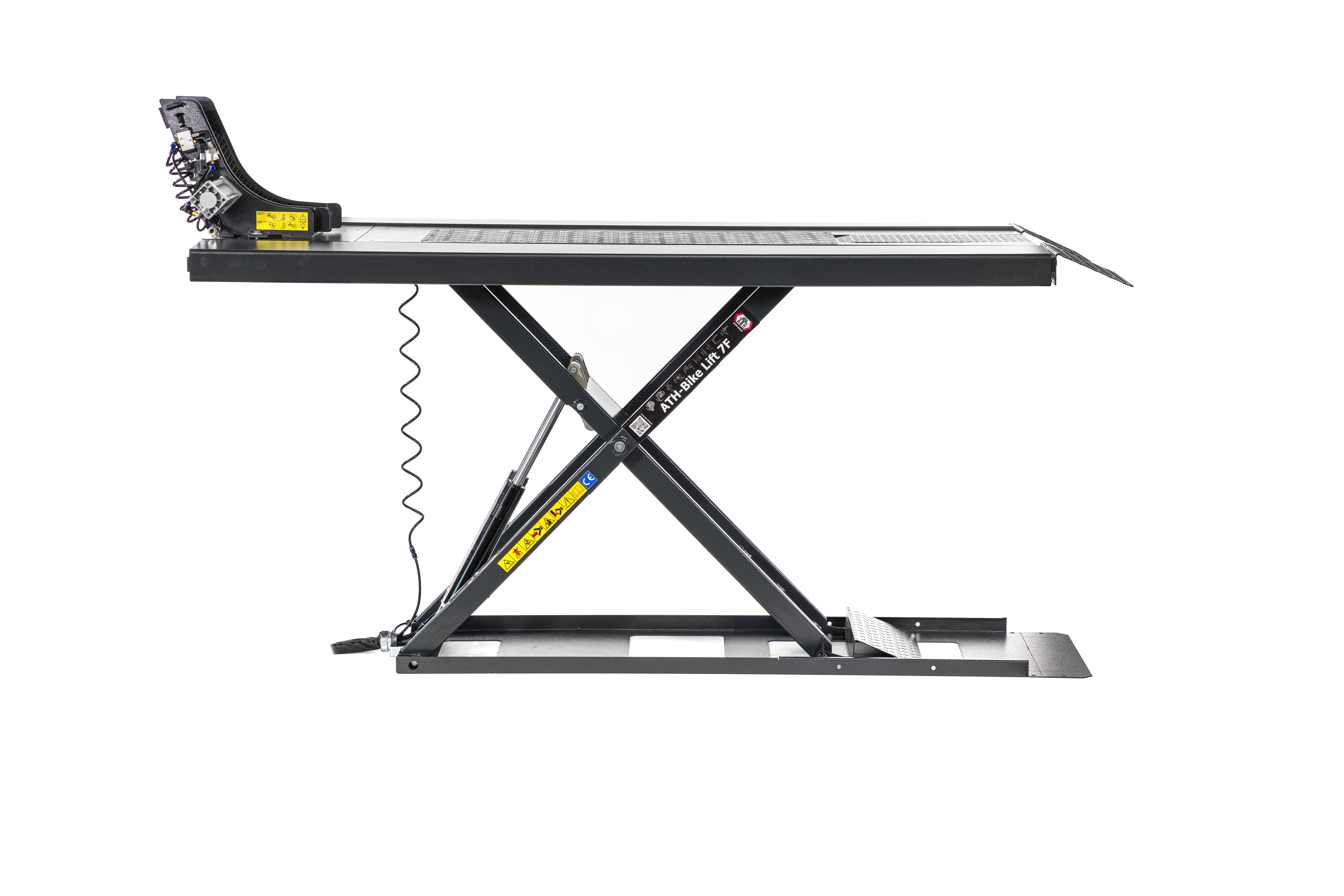

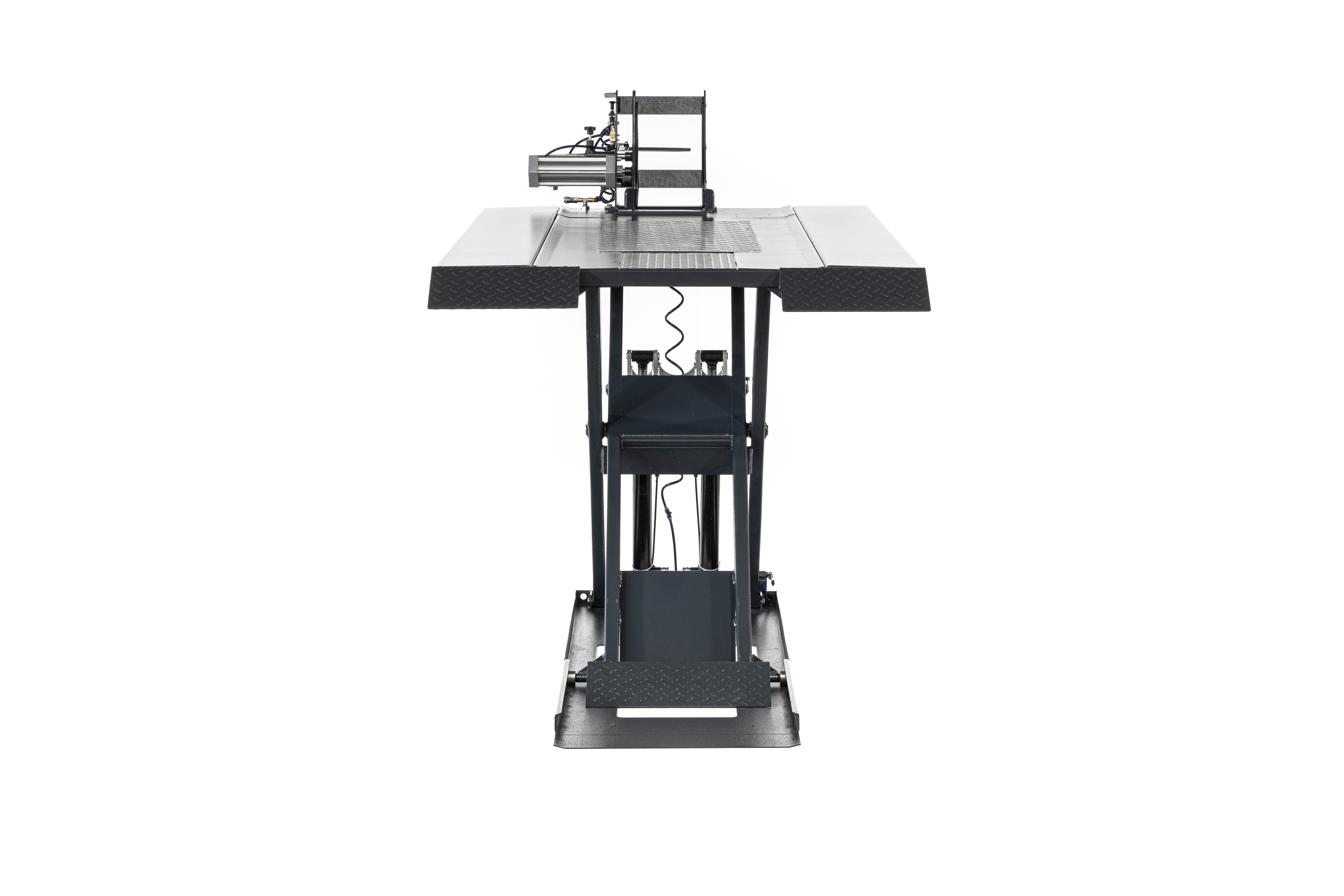

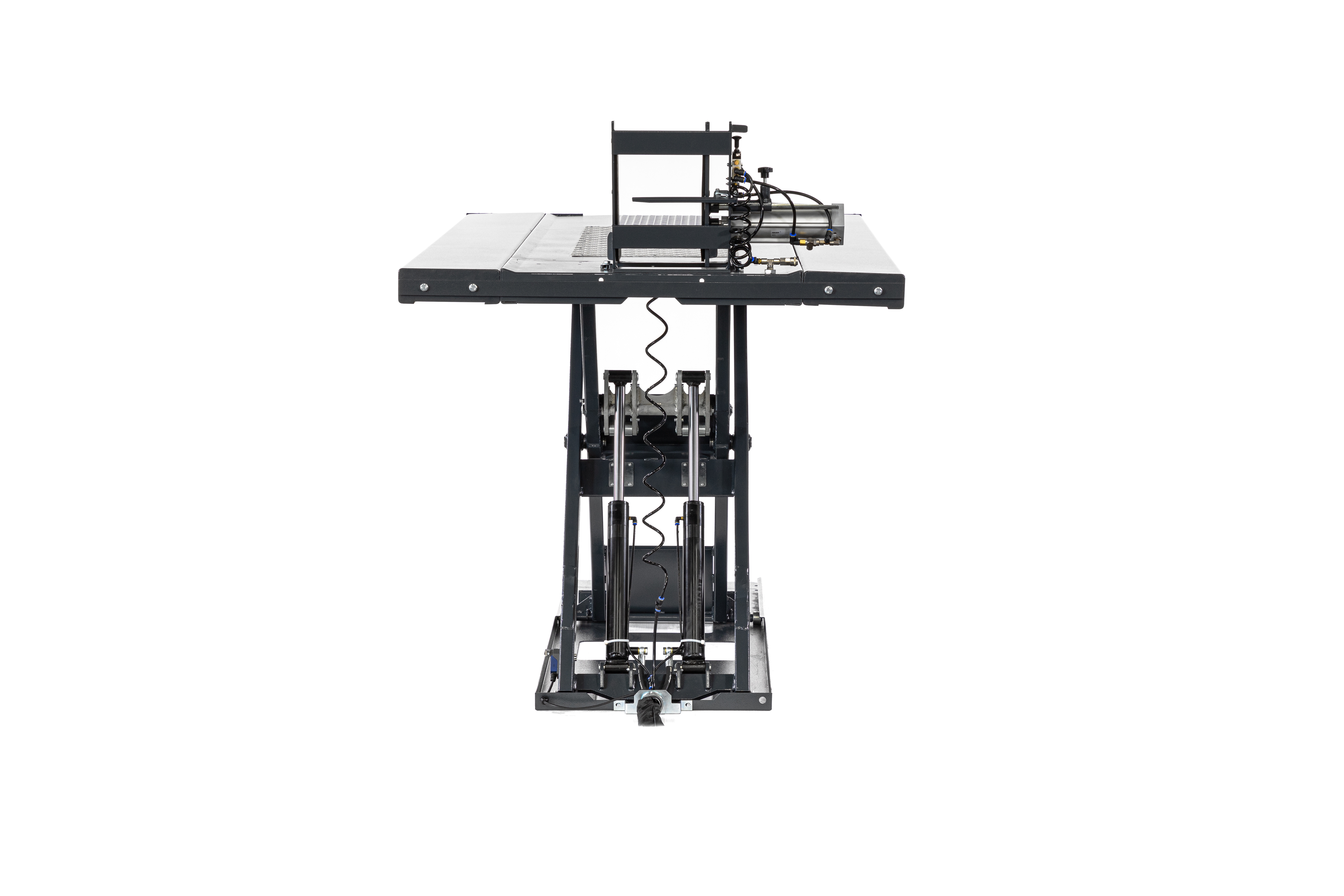

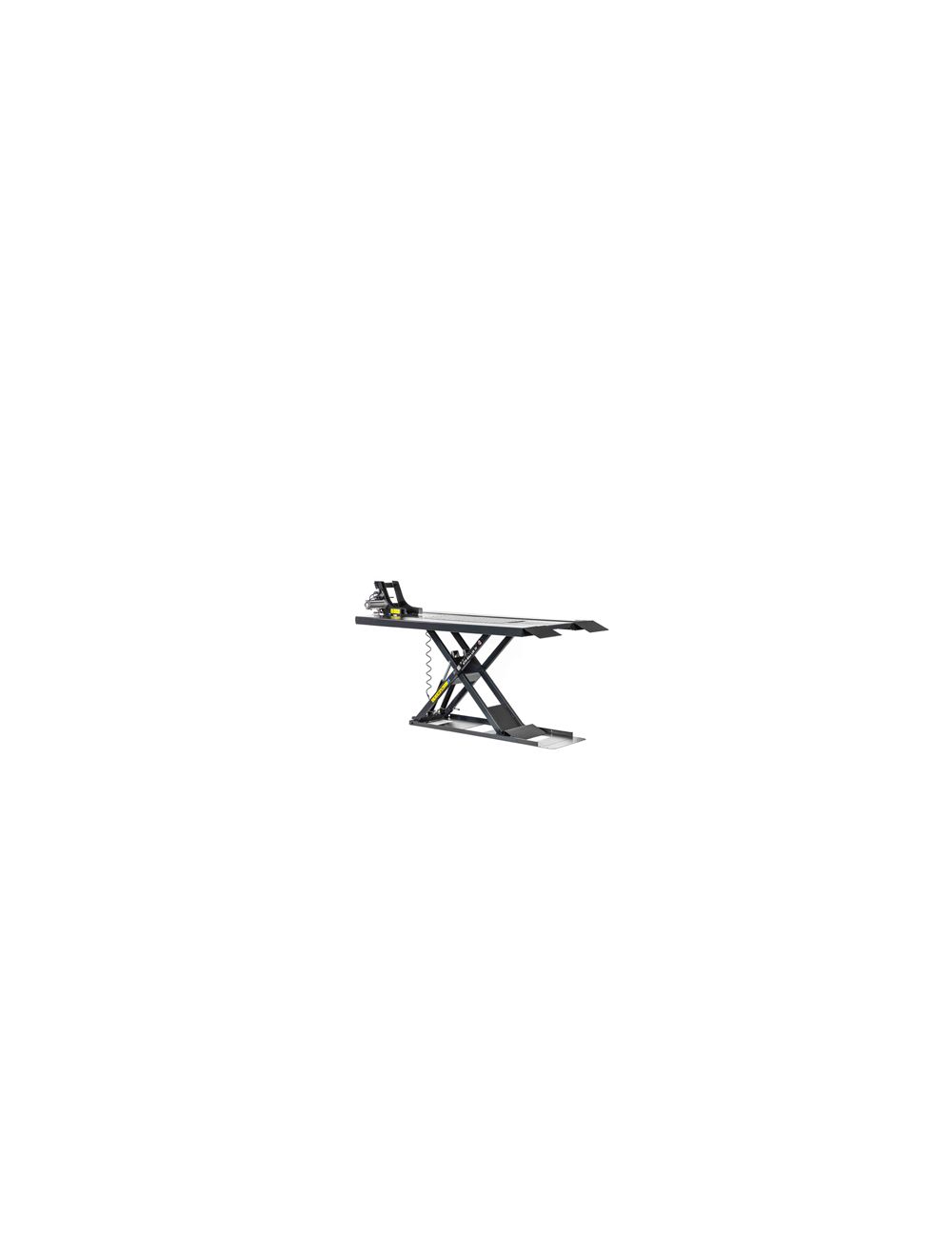

ATH Bike Lift 7Q

ATH Bike Lift 7Q

ATH Bike Lift 7F

ATH Bike Lift 7F

ATH Bike Lift 7QF

inklusive Quad Adapter Set und mit Radhalter pneumatisch
€3,357.14 plus assembly and freight
€3,995.00
Availability: In stock
item number
670044
Share on
  • High-quality and robust motorcycle lift with hydraulic drive, almost maintenance-free
  • Powerful hydraulic unit (230V / C16A)
  • Removable plate for free work on the rear and front tires
  • Protective hose over the hydraulic lines
  • Tripping hazards avoided with access ramp automatic retracting when lifting
  • Fixed aluminium plate specially designed to hold mini motorcycle stands
  • Emergency lowering system for lowering in the event of a power failure
  • Pneumatic wheel holder included for ATH-Bike Lift 7F and 7QF
  • Optional mini motorcycle stand: Item no.: 670025
More Information
Rated load capacity 700 kg
Lifting height max. 1.200 mm
Drive-on-height 90 mm
Total platform length 2.300 mm
Total platform width 1.350 mm
Driving power 1 kW
Lifting/Lowering time ca. 15 s
Power supply voltage 230V / C16A
Concrete strength min. C20/25 2.500 x 1.000 x 100 mm
