ATH Frame Lift 35FZ

€7,054.62 plus assembly and freight
€8,395.00
Availability: In stock
item number
630312
Share on

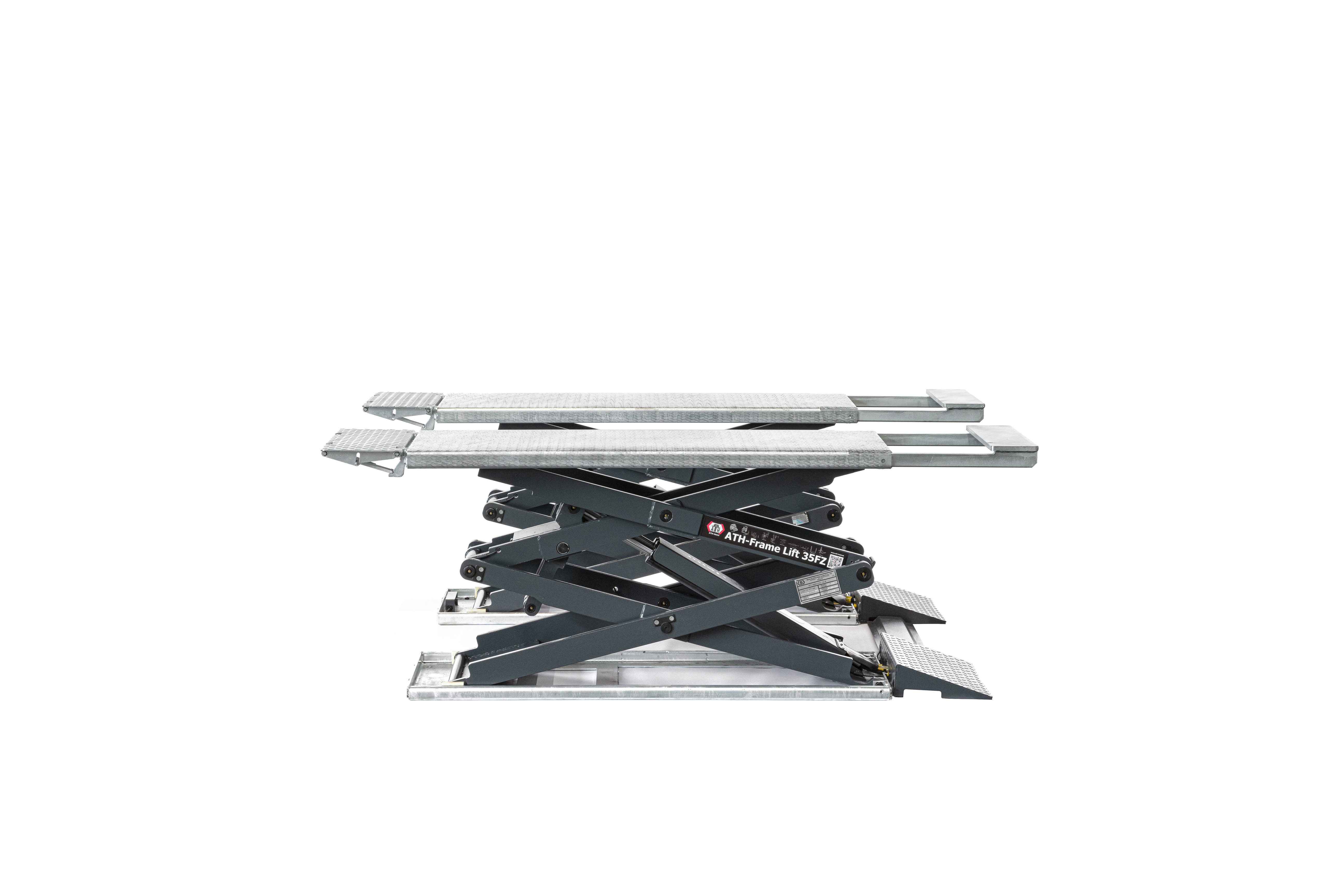

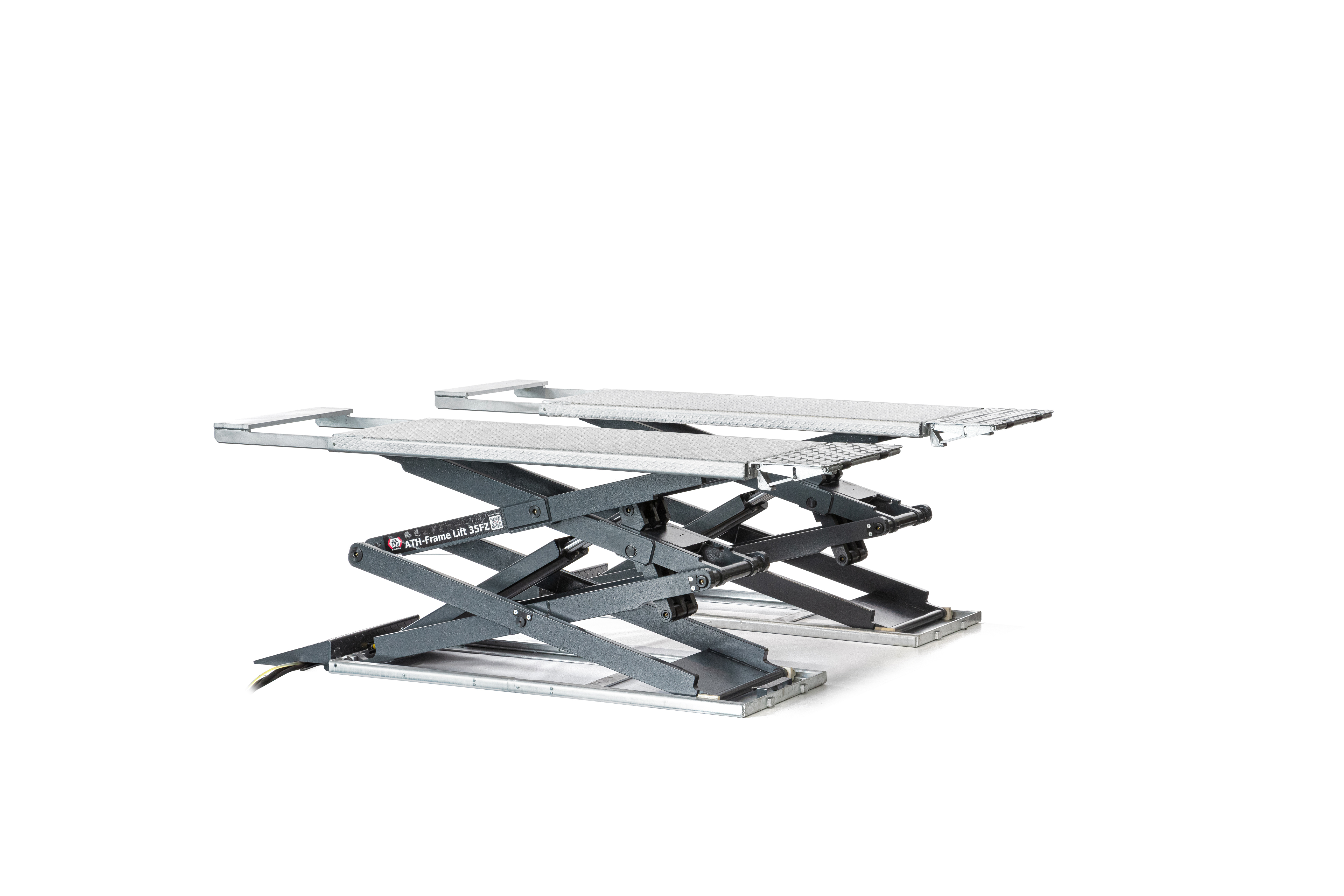

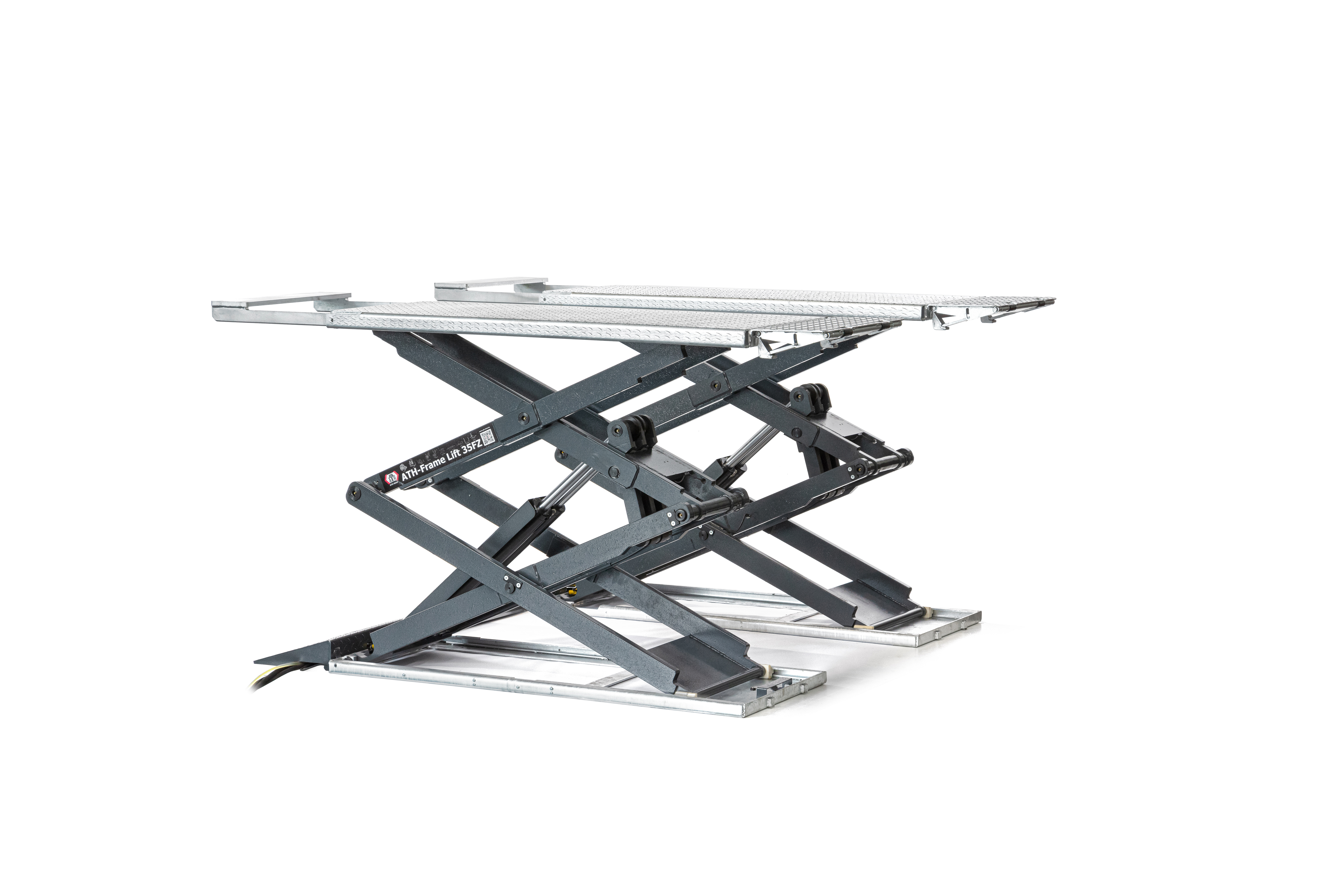

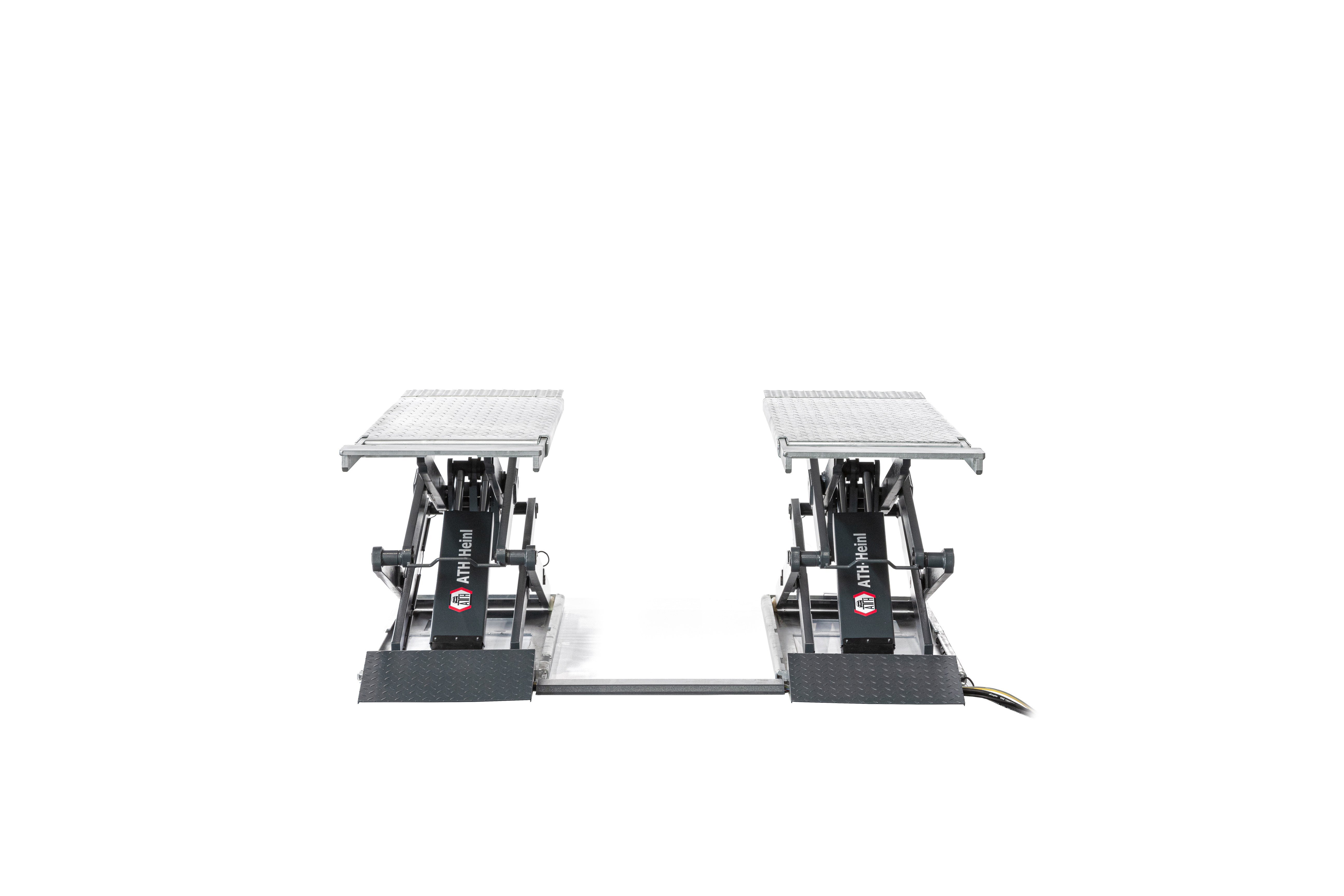

  • High-quality and robust double scissor lift with hydraulic drive, almost maintenance-free
  • Powerful hydraulic unit with load-dependent lowering valve

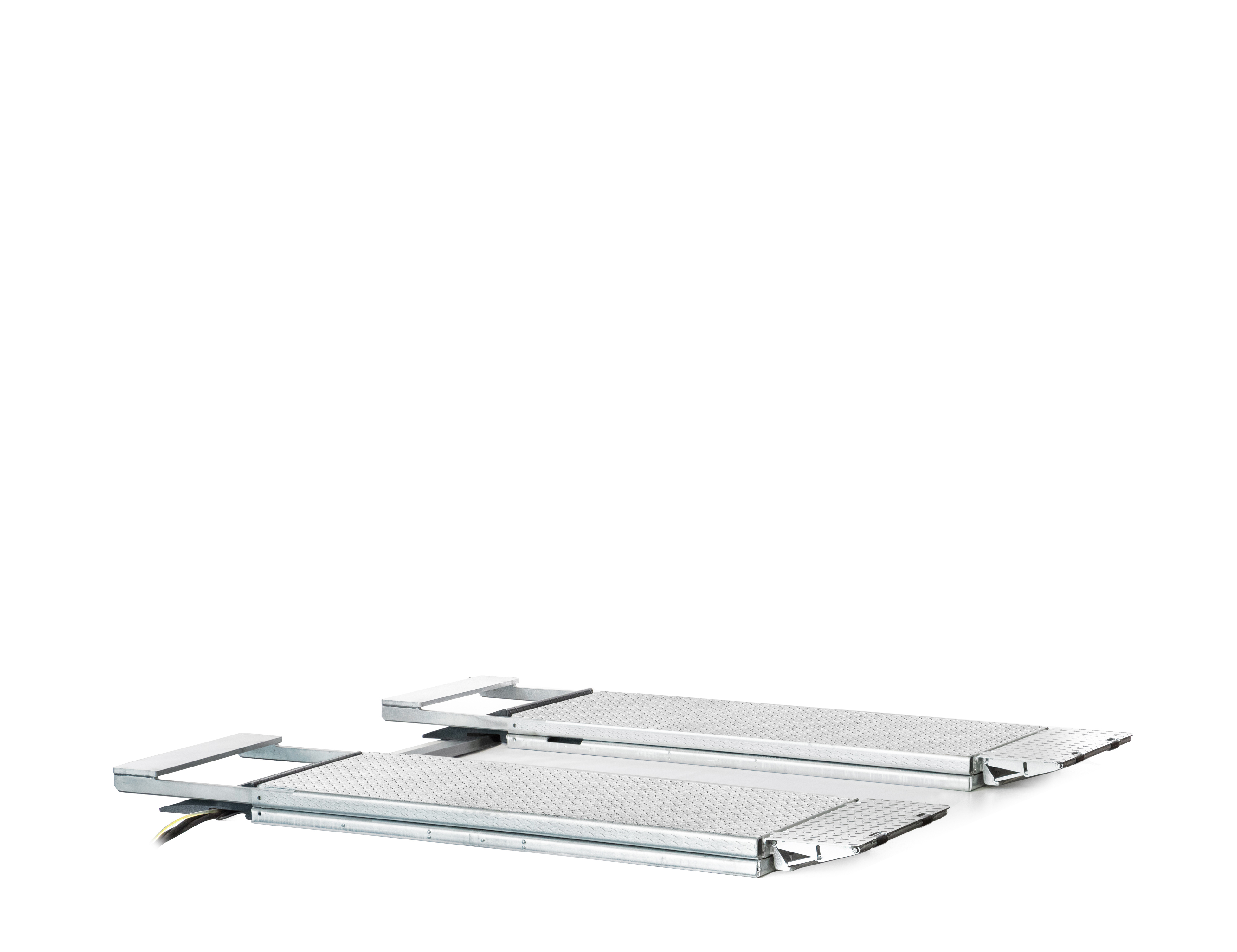

  • Very low drive-over height of only approx. 105 mm
  • Corrosion protection through hot-dip galvanizing
  • Suitable for installation and use on the floor and optional floor-level installation (in ground kit)
  • Synchronization control via double master and slave systems, light barriers and double hydraulic lines
  • Full lifting power from the lowest point due to mechanical swivel system
  • Extendable lanes
  • Emergency lowering system for lowering in the event of a power failure, CE-Stop and acoustic lowering signal
  • Ideally suited for paint and body shops, repairs, brake and tire services
More Information
Rated load capacity 3.500 kg
Lifting height max. 1.900 mm
Drive-on-height 105 mm
Total platform length 1.547 – 2.270 mm
Total platform width 625 mm
Driving power 2,6 kW
Lifting/Lowering time ca. 50 s
Power supply voltage 3x 400V / C16A
Concrete strength min. C20/25 2.500 x 2.500 x 180 mm
