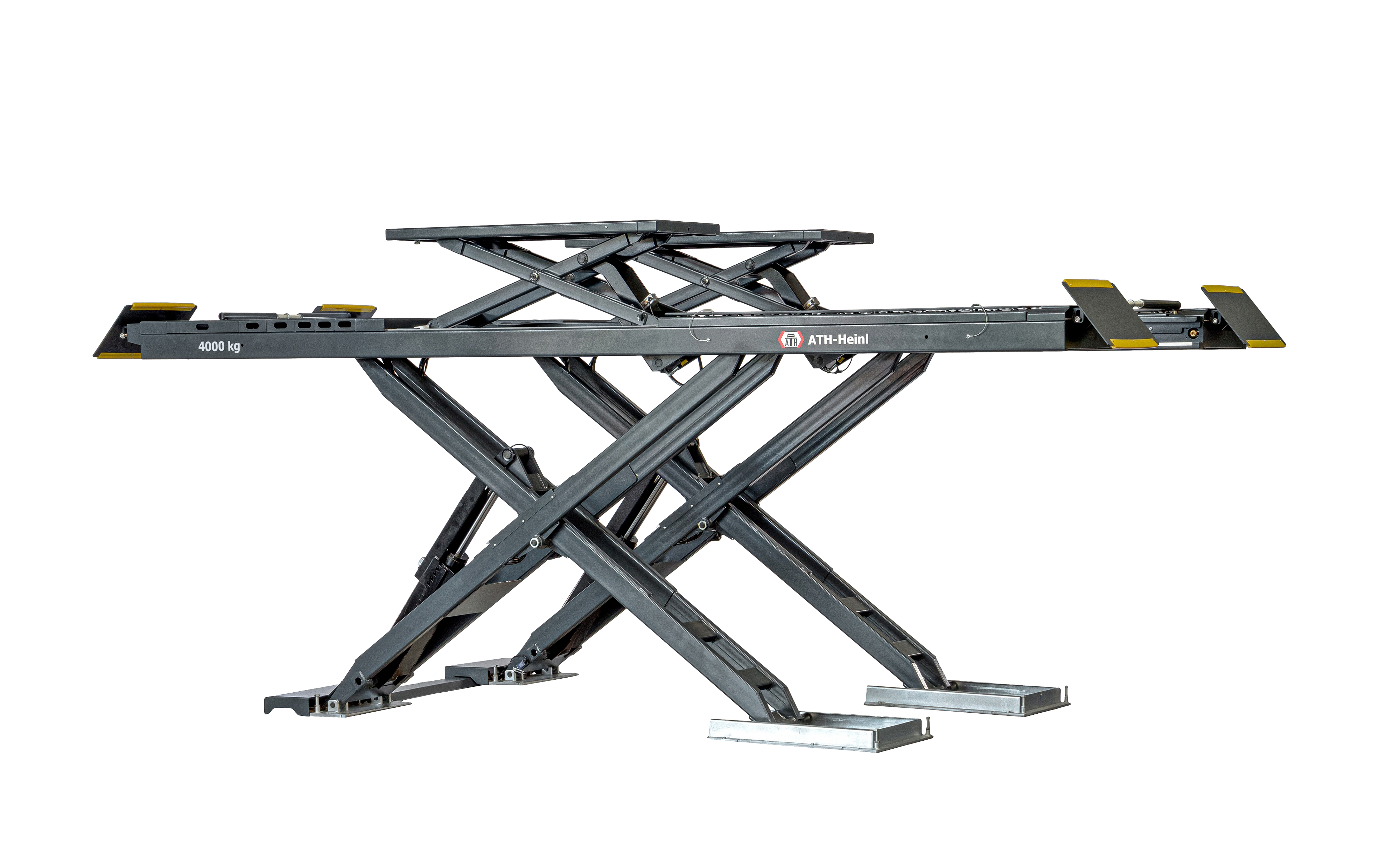

ATH Cross Lift 40 UGA

€14,281.51 plus assembly and freight
€16,995.00
Availability: In stock
item number
631025
Share on
  • High quality and robust hydraulic drive platforms scissor lift who require minimal maintenance
  • Powerful hydraulic unit with load-dependent lowering speed controller

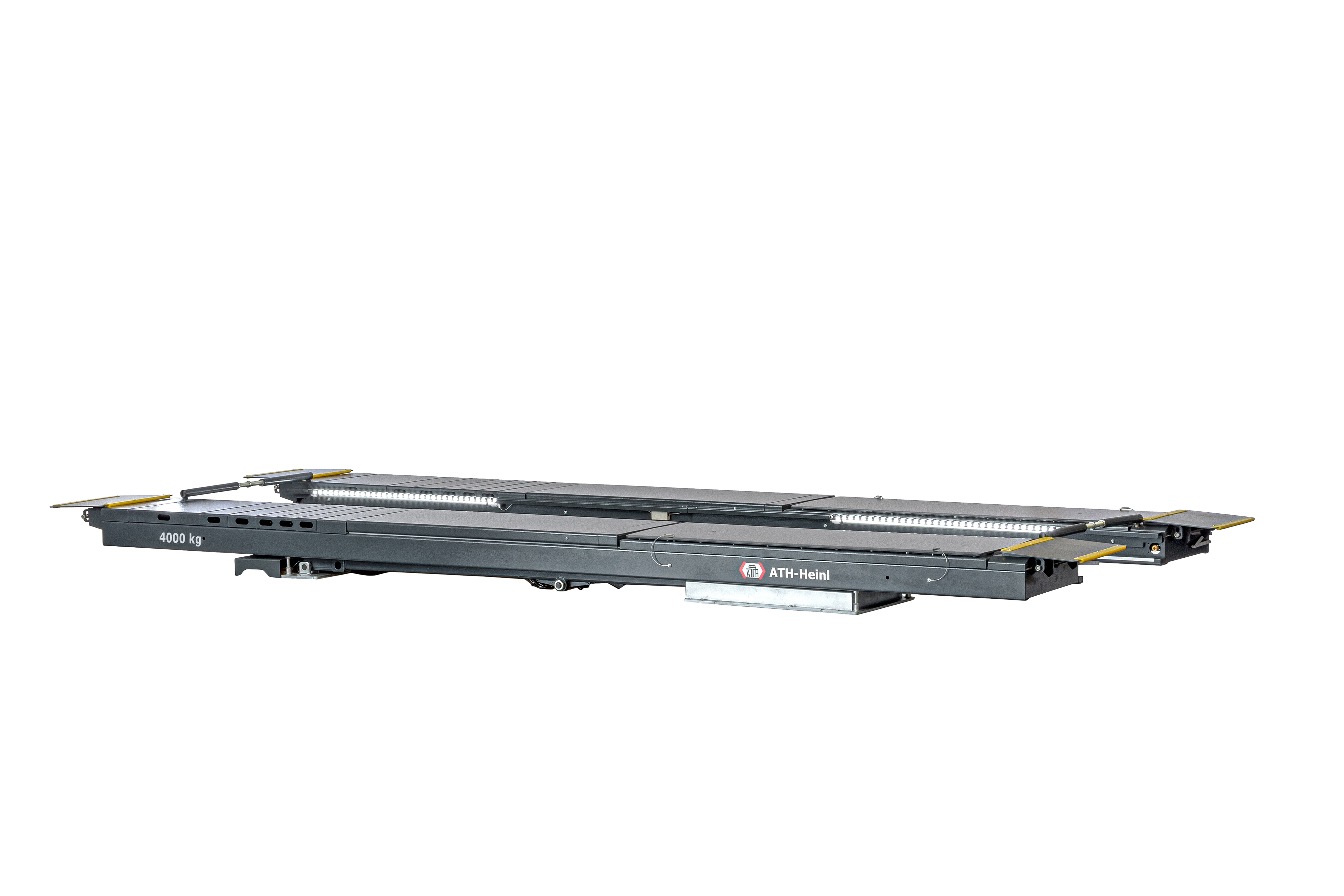

  • Suitable for pit installation
  • With recesses for turning plates in the front and mechanically lockable sliding plates in the back, free-wheel lift (loading capacity: 4 t, lifting height: 450 mm), including rails for the optional rolling bridge jack, pluggable platforms-connections beams, incl. metal protections covers and switch for the optional 24V LED Lighting.
  • Pneumatic unlocking of the safety locks, CE-Stop and acoustic signal through lowering
  • Emergency lowering device for lowering in case of power failure, monitoring of safety synchronization by light barrier.
  • Ideally suited for inspection, wheel alignment, repairing jobs and testing stations for driver assistance systems
More Information
Color anthracite-grey / black

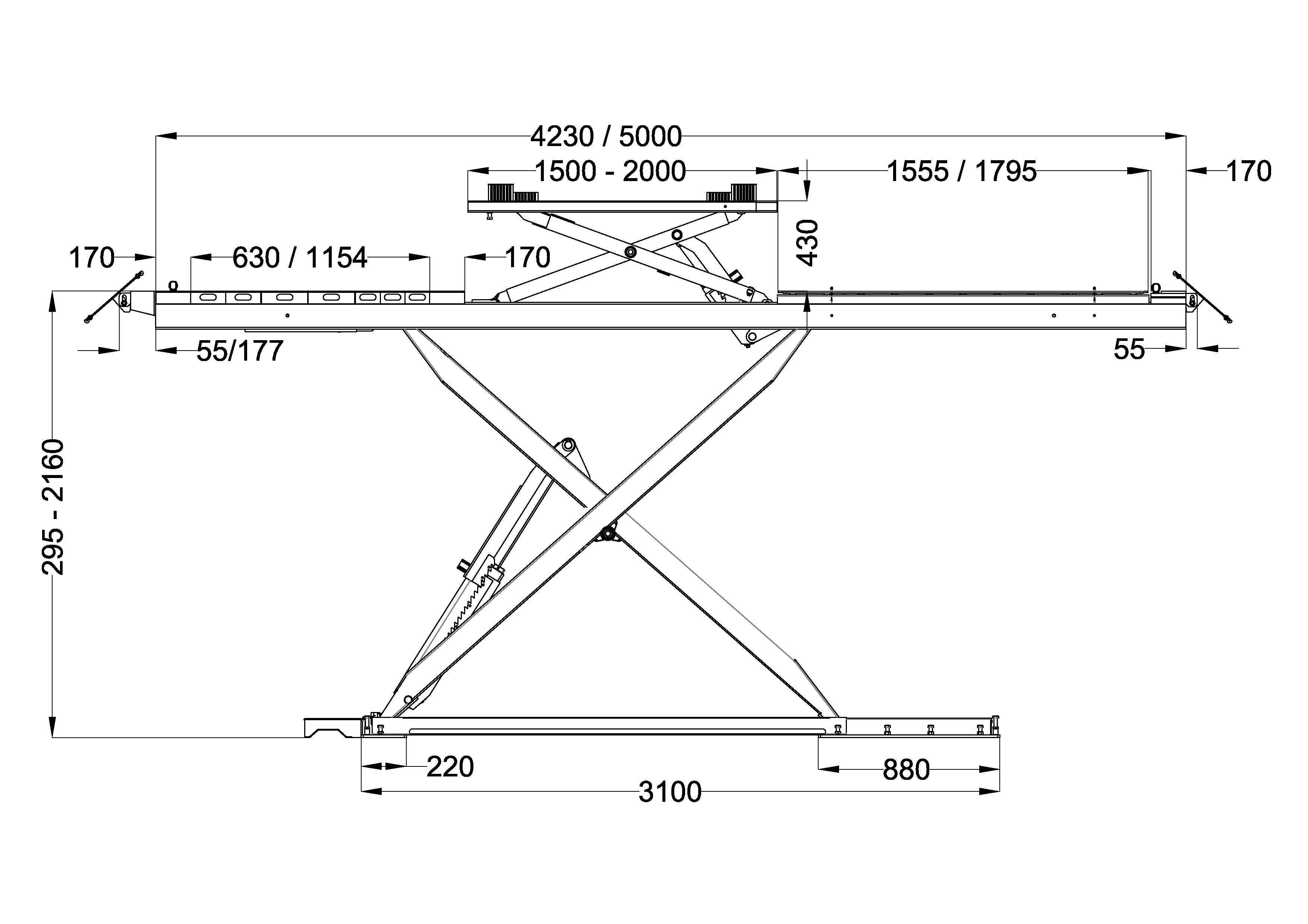

Rated load capacity 4.000 kg
Lifting height max. 2.160 mm
Total platform length 4.230 mm
Total platform width 600 mm
Driving power 3,5 kW
Lifting/Lowering time ca. 70 s
Power supply voltage 3x 400V / C16A
Concrete strength min. C20/25 4.430 x 2.240 x 310 mm
Installation depth 295 mm
