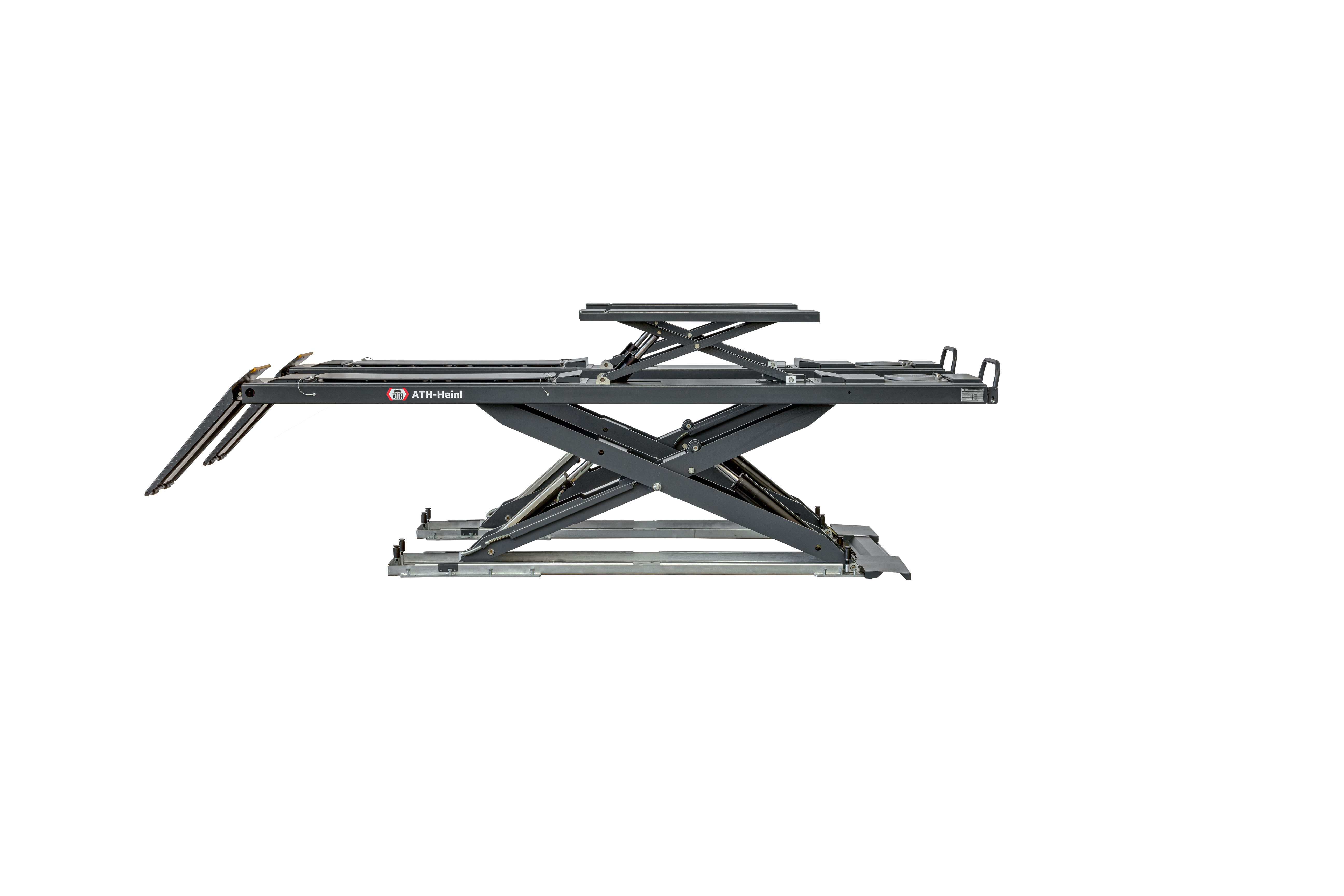

ATH Cross Lift 35 OGA
€12,936.97
plus assembly and freight
€15,394.99
Availability:
In stock
item number
631020
- High quality and robust hydraulic drive platforms scissor lift who require minimal maintenance
- Powerful hydraulic unit with load-dependent lowering speed controller
- With free-wheel lift (loading capacity: 3.5 t, lifting height: 430 mm), optional wheel alignment kit with recesses for turning plates in the front and mechanically lockable sliding plates in the back (incl. at ATH-Cross Lift 35 OGA / UGA)
- Pneumatic unlocking of the safety locks, CE-Stop and acoustic signal through lowering
- Emergency lowering device for lowering in case of power failure, monitoring of safety synchronization by light barrier.
- Ideally suited for inspection, repairing jobs and testing stations for driver assistance systems, optionally for wheel alignment
| Color | anthracite-grey |
|---|---|
| Rated load capacity | 3.500 kg |
| Lifting height max. | 1.830 mm |
| Drive-on-height | 195 mm |
| Total platform length | 4.400 mm |
| Total platform width | 620 mm |
| Driving power | 2,6 kW |
| Lifting/Lowering time | ca. 60 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 6.100 x 3.000 x 200 mm |
