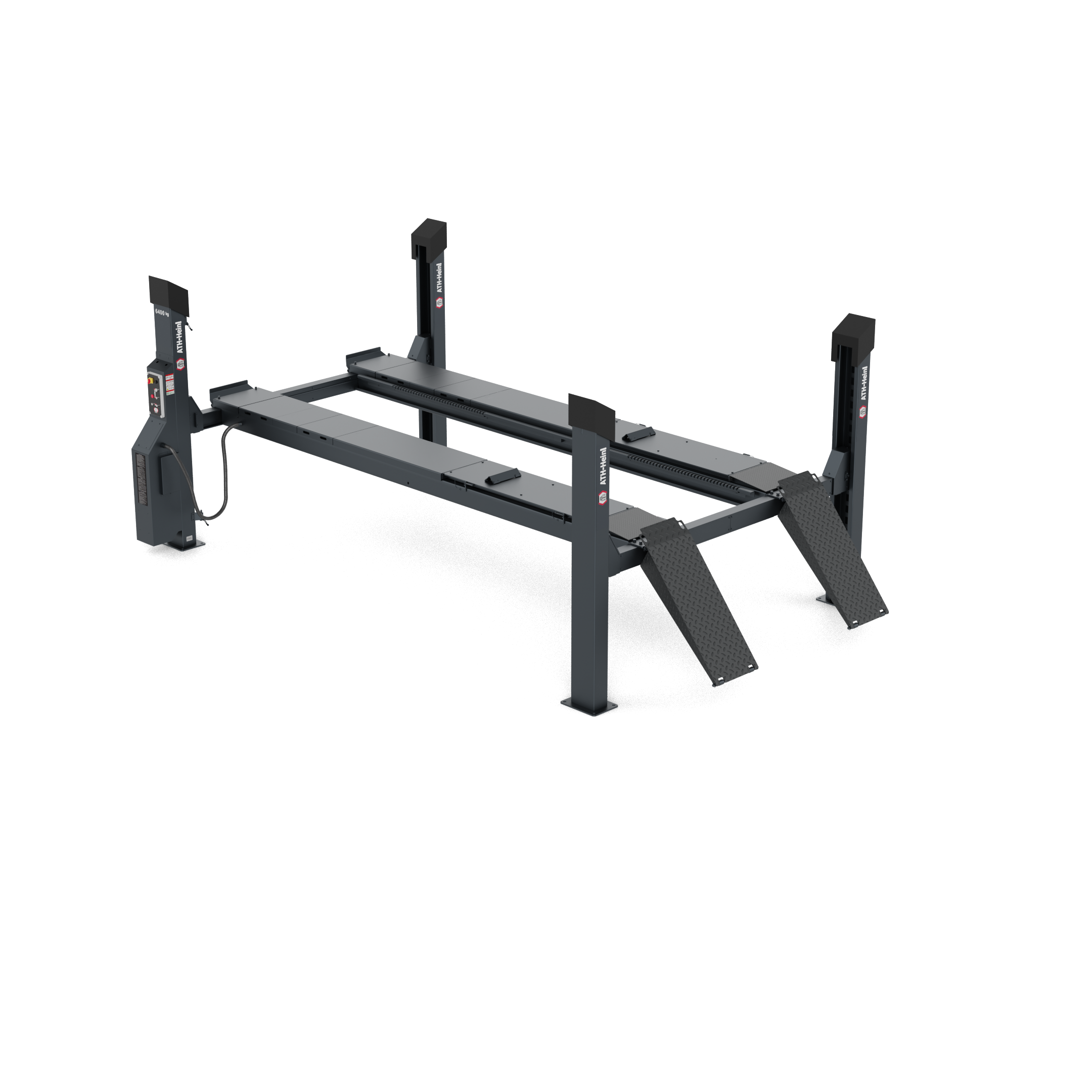

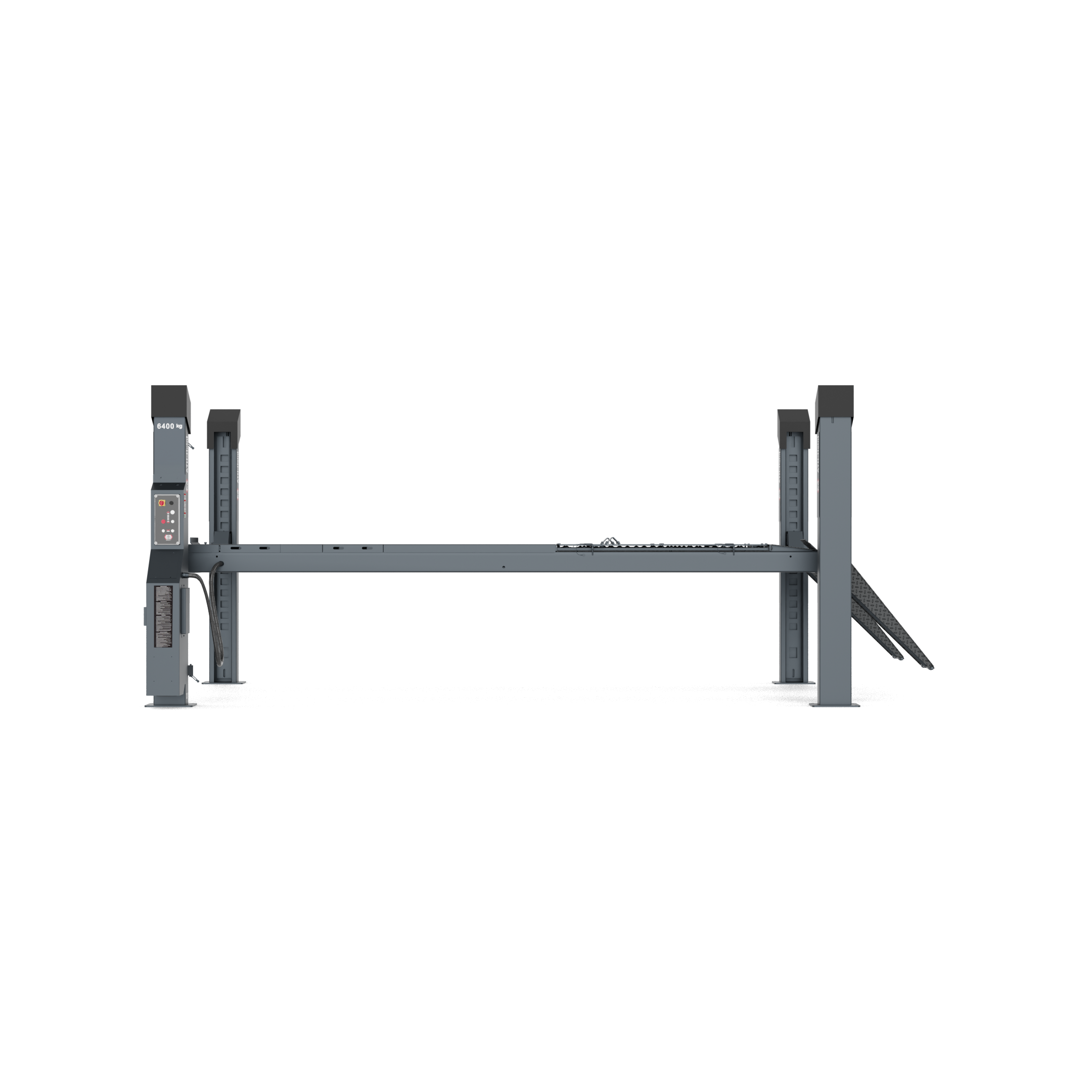

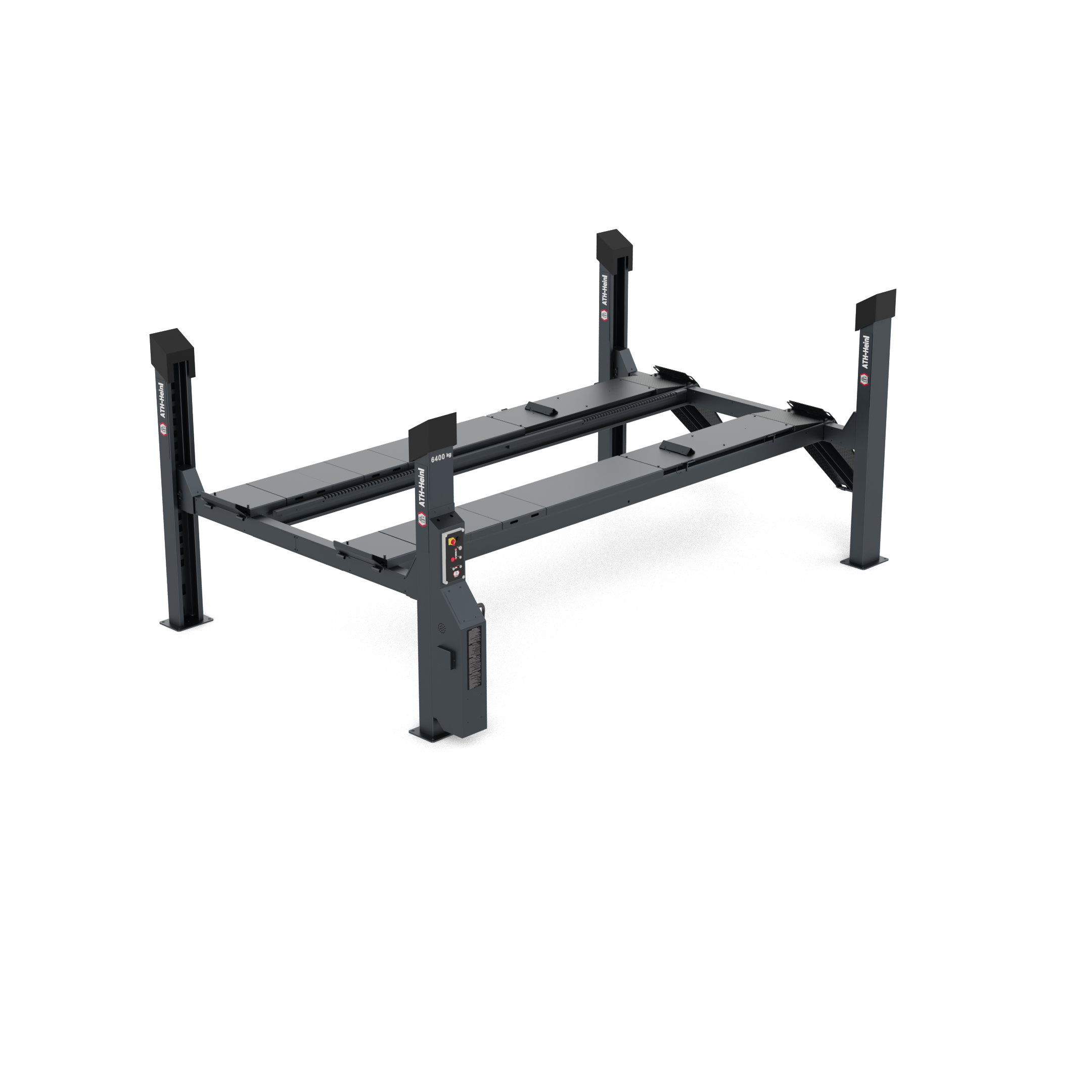

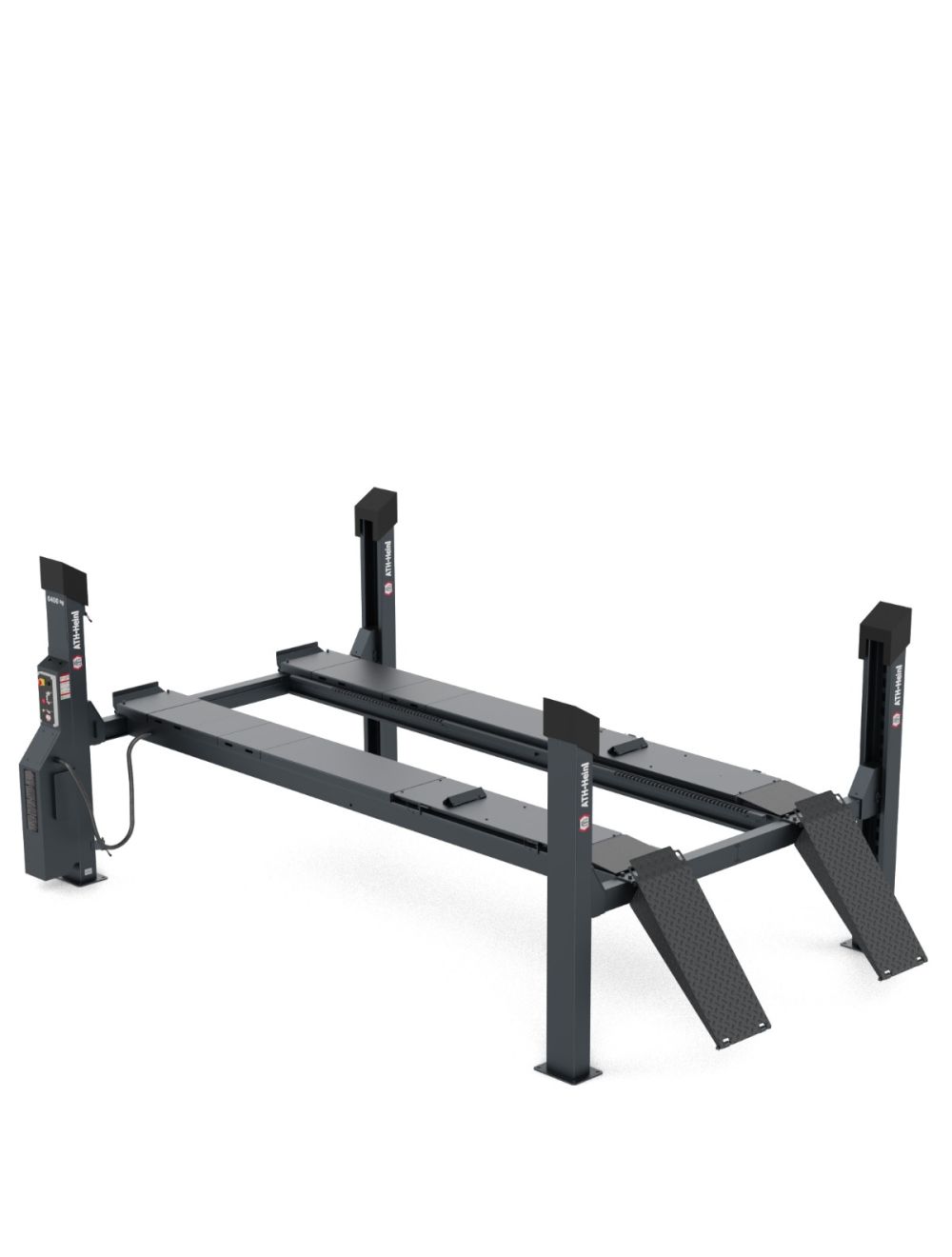

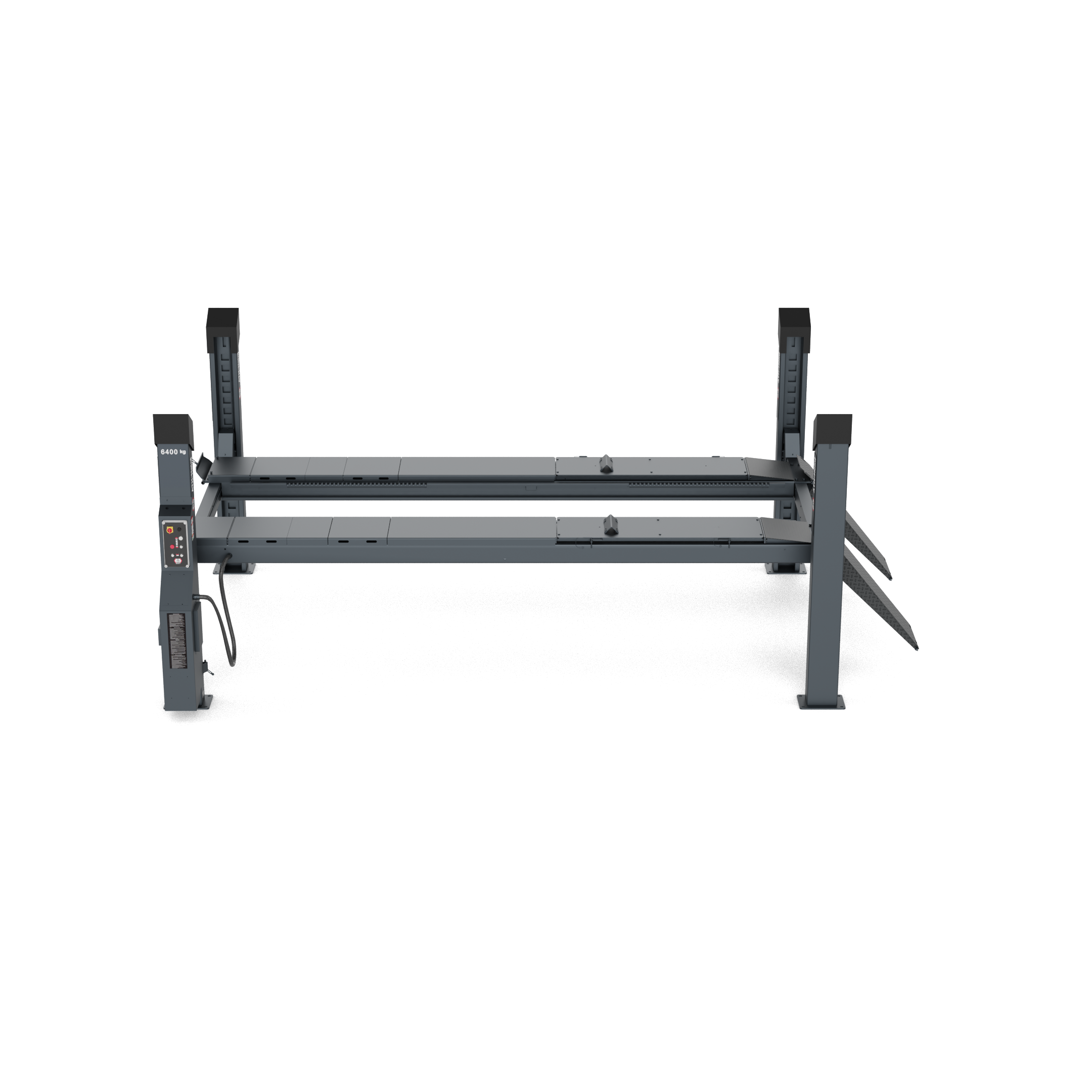

ATH-Four Lift 64P

ATH-Four Lift 64P

ATH-Four Lift 64AP

€11,995.00 plus assembly and freight
Availability: In stock
item number
  • Electro-hydraulic 4-post lift with quick lift unit and load-dependent lowering function
  • Central operating unit, including unit cover
  • ATH Four Lift 64AP: Level running rail with integrated wheel alignment kit
  • ATH Four Lift 64P: level runway, optional wheel alignment kit
  • Precisely levelable notch and rail system
  • Safety Control: Electropneumatic safety locks that automatically unlock with lifting and lowering
  • Safety Lock: ability to lock the load on to the safety mechanism
  • Multifunctional mounting via continuously adjustable rails
  • Perfect platform protection made of special polymer and double powder coating
More Information
Color anthracite-grey / black
Rated load capacity 6,4t
Lifting height max. 1.850 mm
Drive-on-height 235 mm
Total platform length 5.310 mm
Total platform width 512 mm
Driving power 4,0 kW
Lifting/Lowering time ca. 48 s
Power supply voltage 3x 400V / C16A
Concrete strength min. C20/25 7.400 x 3.900 x 200 mm

Product Catalog

We can also advise you by phone +49 (0) 9666 18801-00

Download Product-flyer Download Product-flyer
