ATH-Comfort Lift 2.40

ATH-Comfort Lift 2.40

ATH-Pure Lift 2.40 (400V)

ATH-Pure Lift 2.40 (400V)

ATH-Pure Lift 2.40 (230V)

€2,264.71 plus assembly and freight
€2,695.00
Availability: In stock
item number
622162

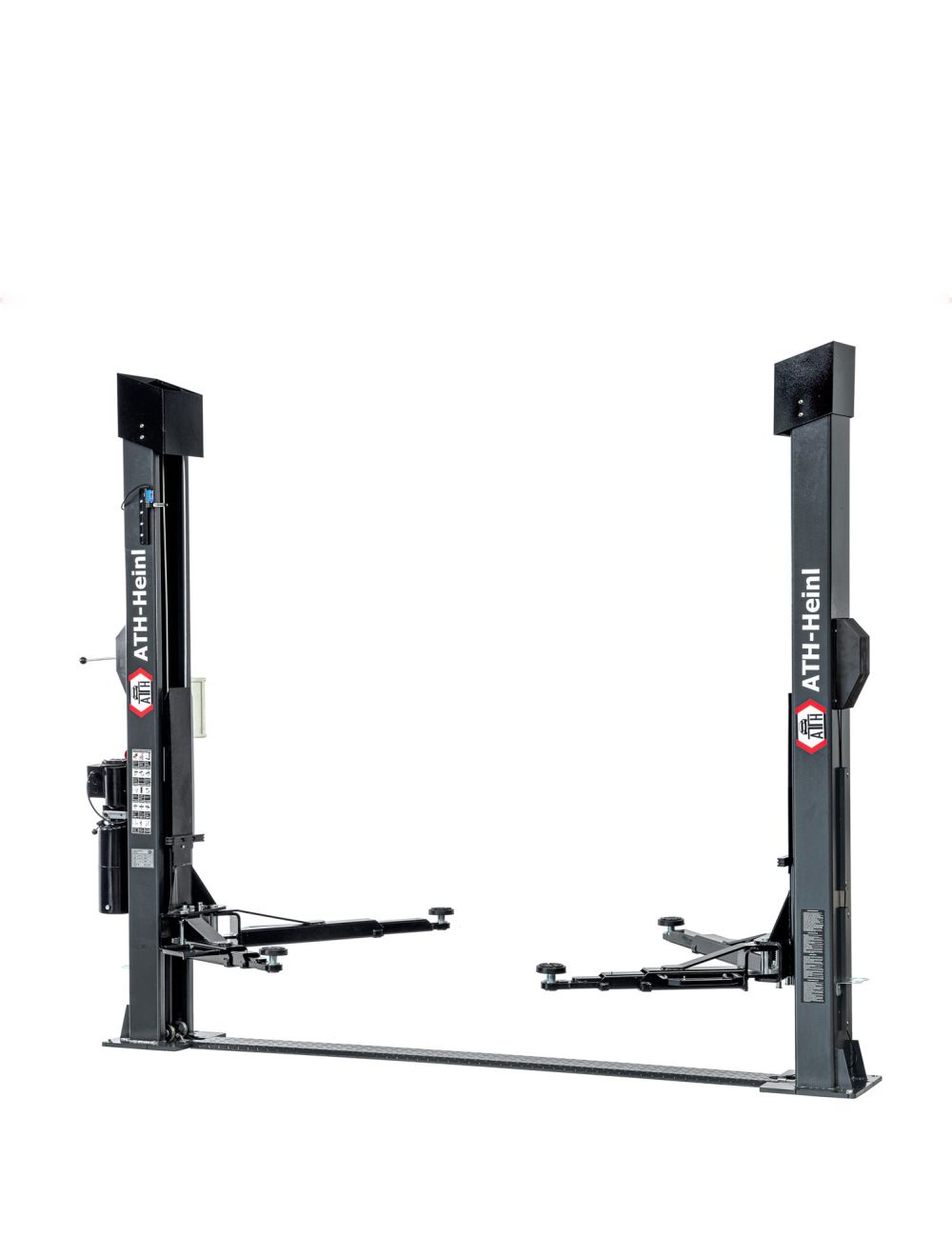

  • High quality and robust electro-hydraulic 2-post lift
  • Very low drive-over plate (height = approx. 20 mm) for comfortable work
  • Multifunctional mounting through telescopic support arms
  • Double telescopic support plate (90-180 mm) with anti-twist protection
  • Automatic and self-centering arm lock
  • Powder-coated lifting platform in modern anthracite gray
  • Mechanical unlocking of the safety locks with manual lowering valve (central one-hand unlocking)
More Information
Rated load capacity 4 t
Lifting height max. 1.900 mm
Drive-through width 2.600 mm
Overall width 3.455 mm
Gesamthöhe 3.320 mm
Support arms parts 3 | 2
Driving power 2,2 kW
Lifting/Lowering time ca. 45 s / 35 s
Power supply voltage 230V / C16A bzw. 3x 400V / C16A
Concrete strength min. C20/25 4.000 x 2.000 x 200 mm
