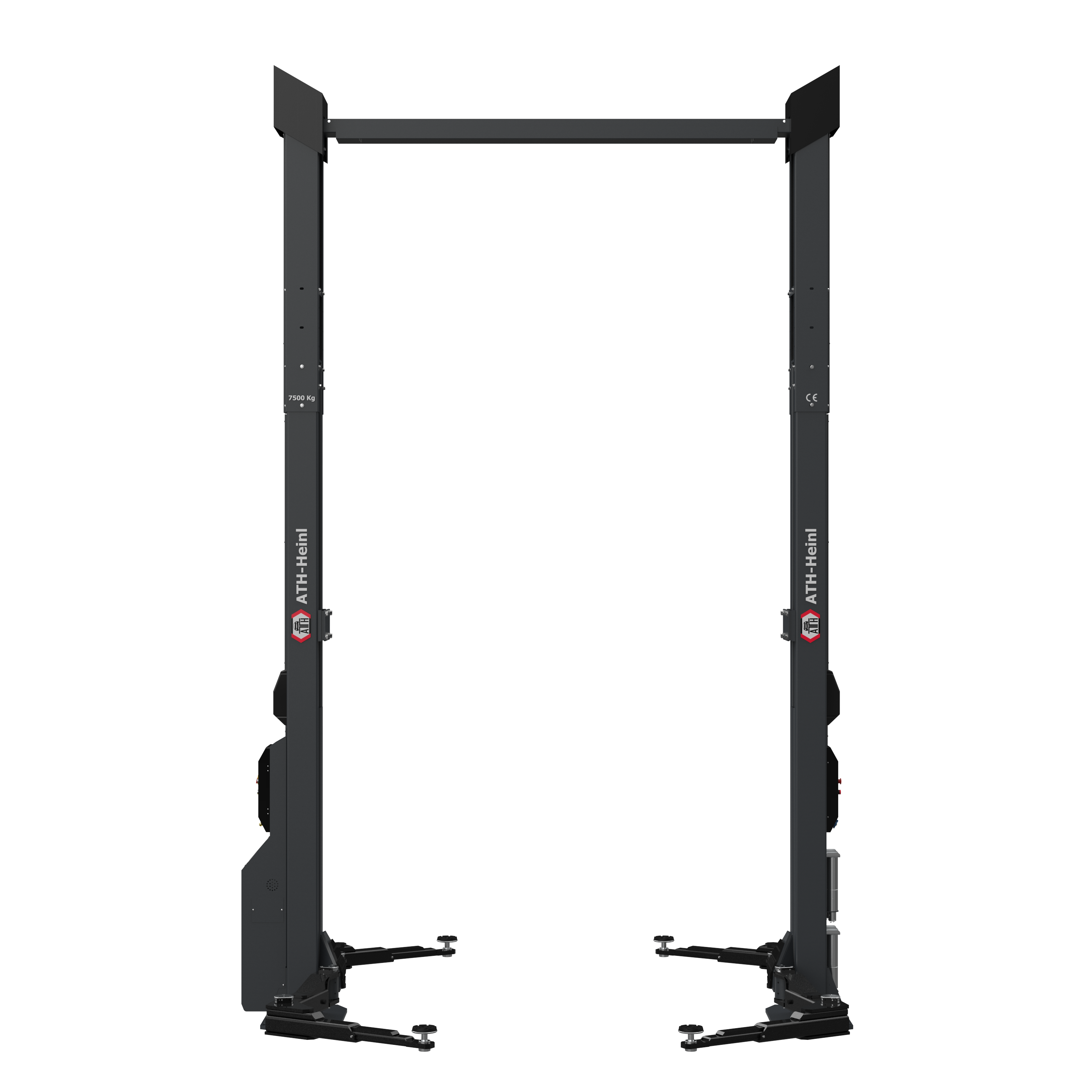

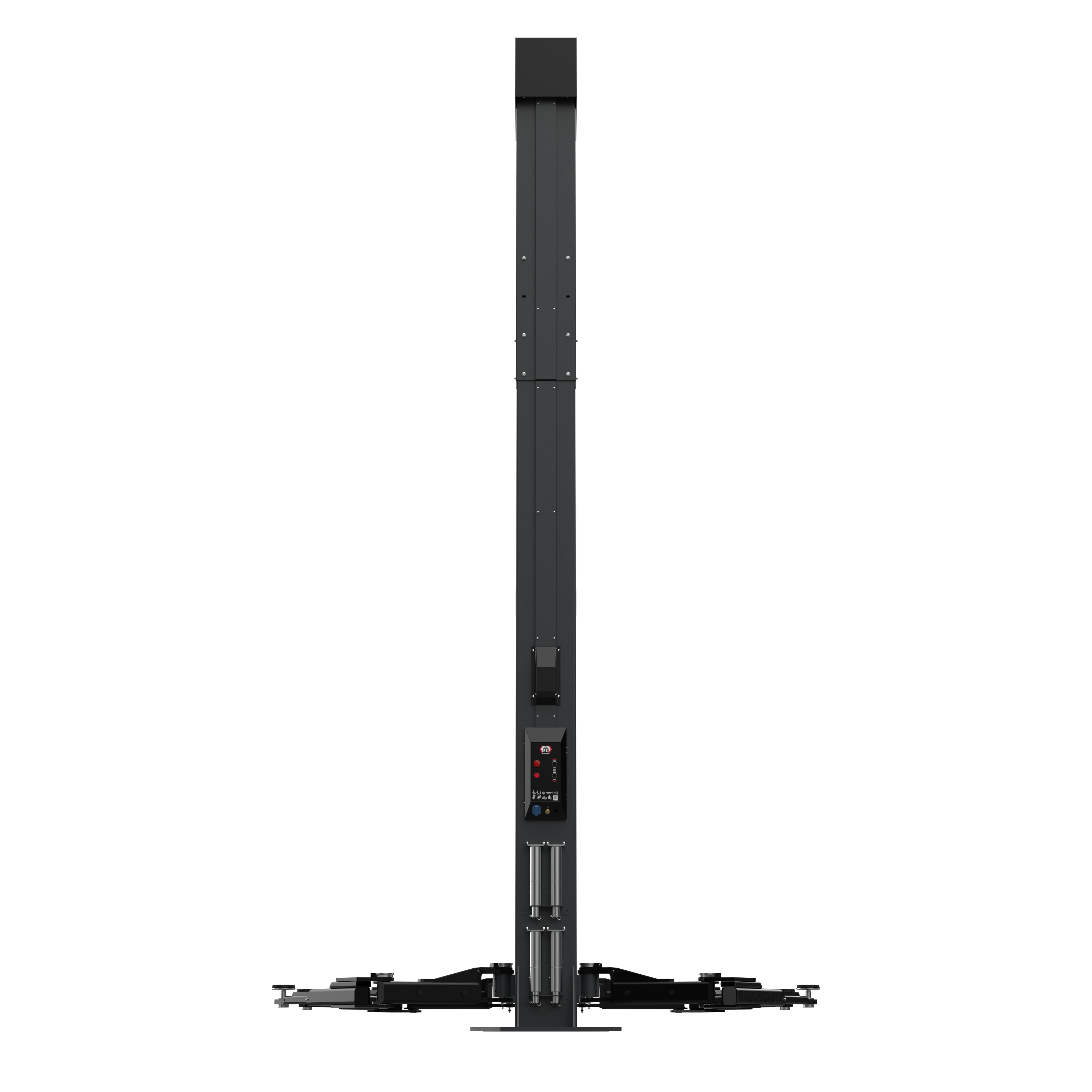

ATH Matrix Lift 2.75XL
€14,617.65
plus assembly and freight
€17,395.00
Availability:
Out of stock

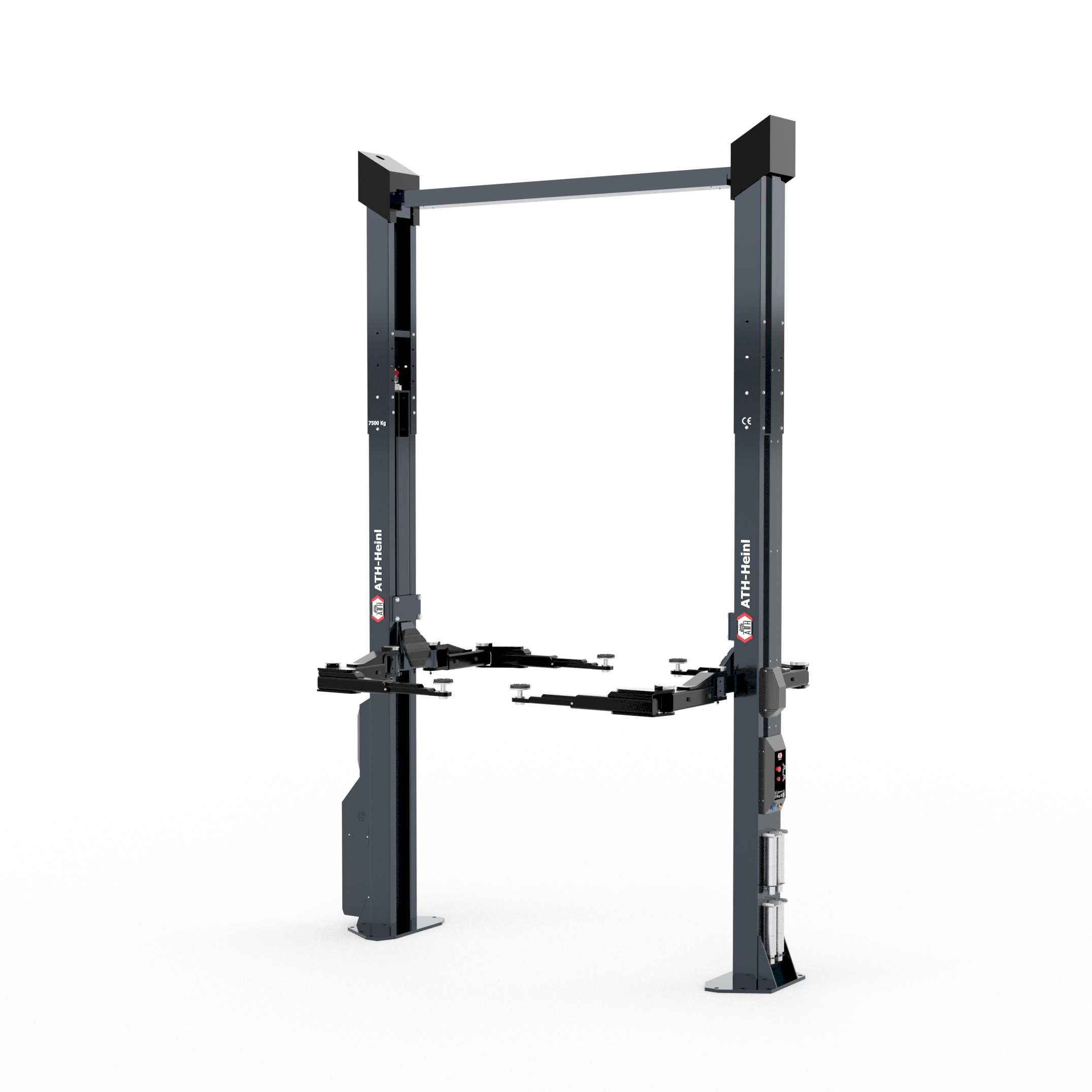

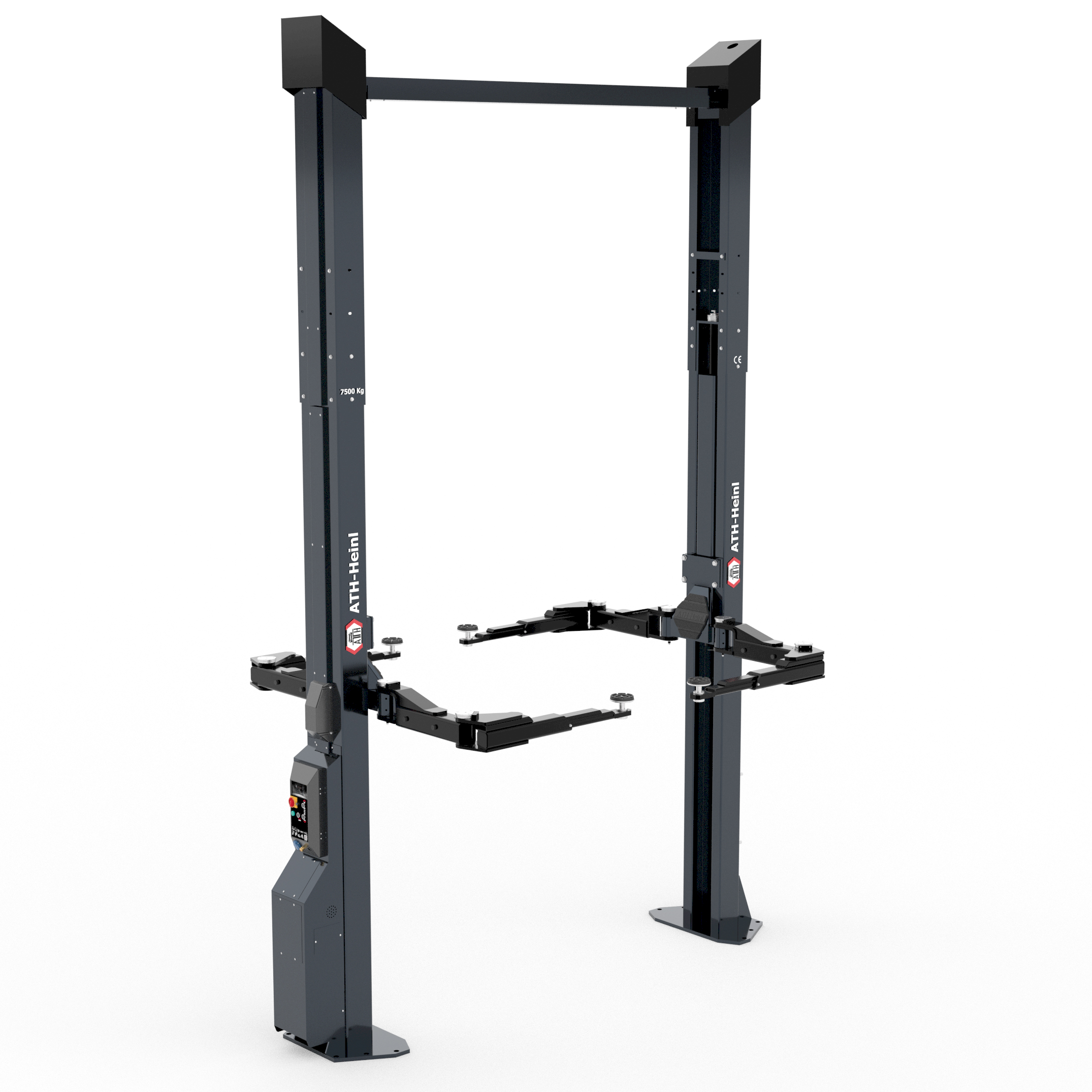

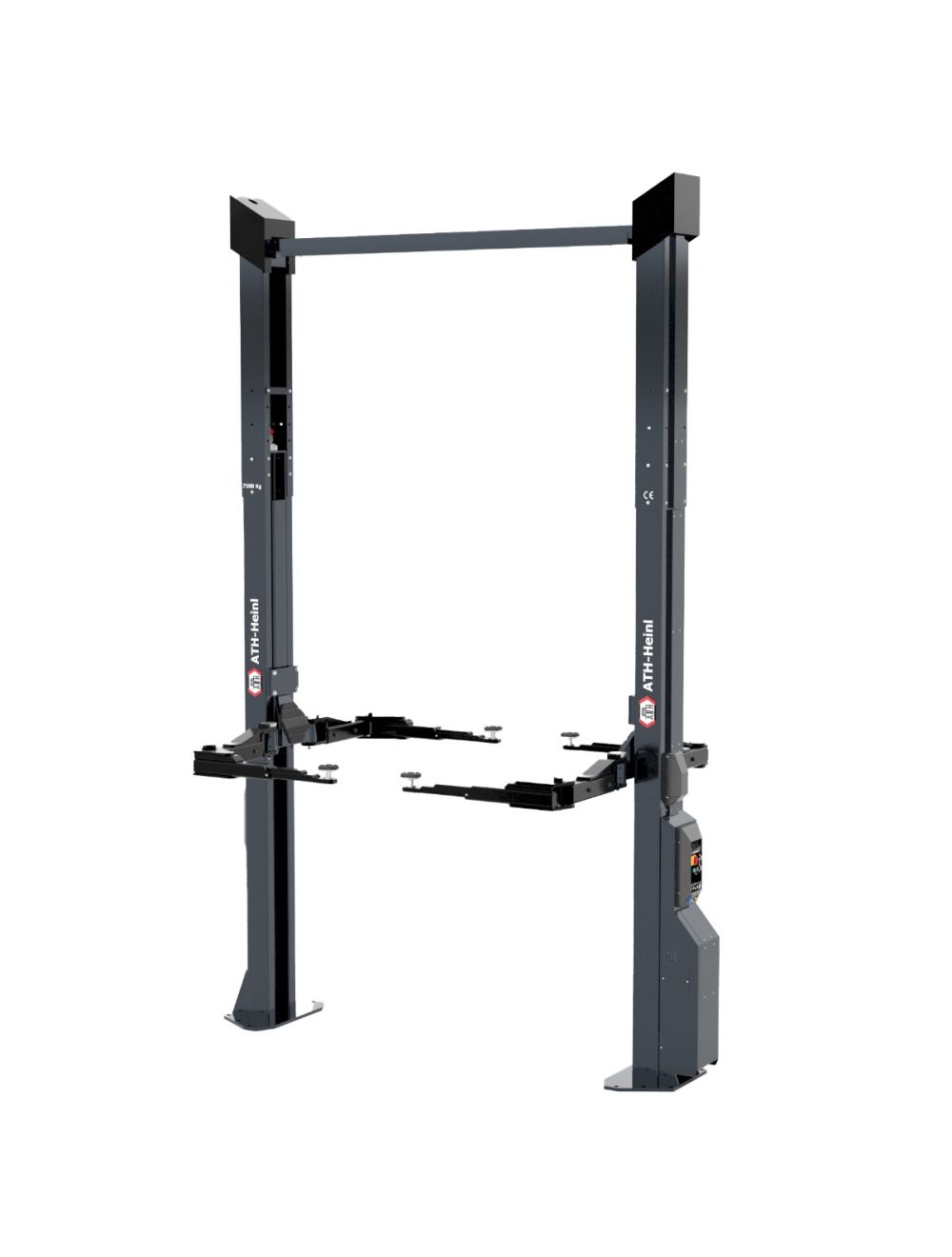

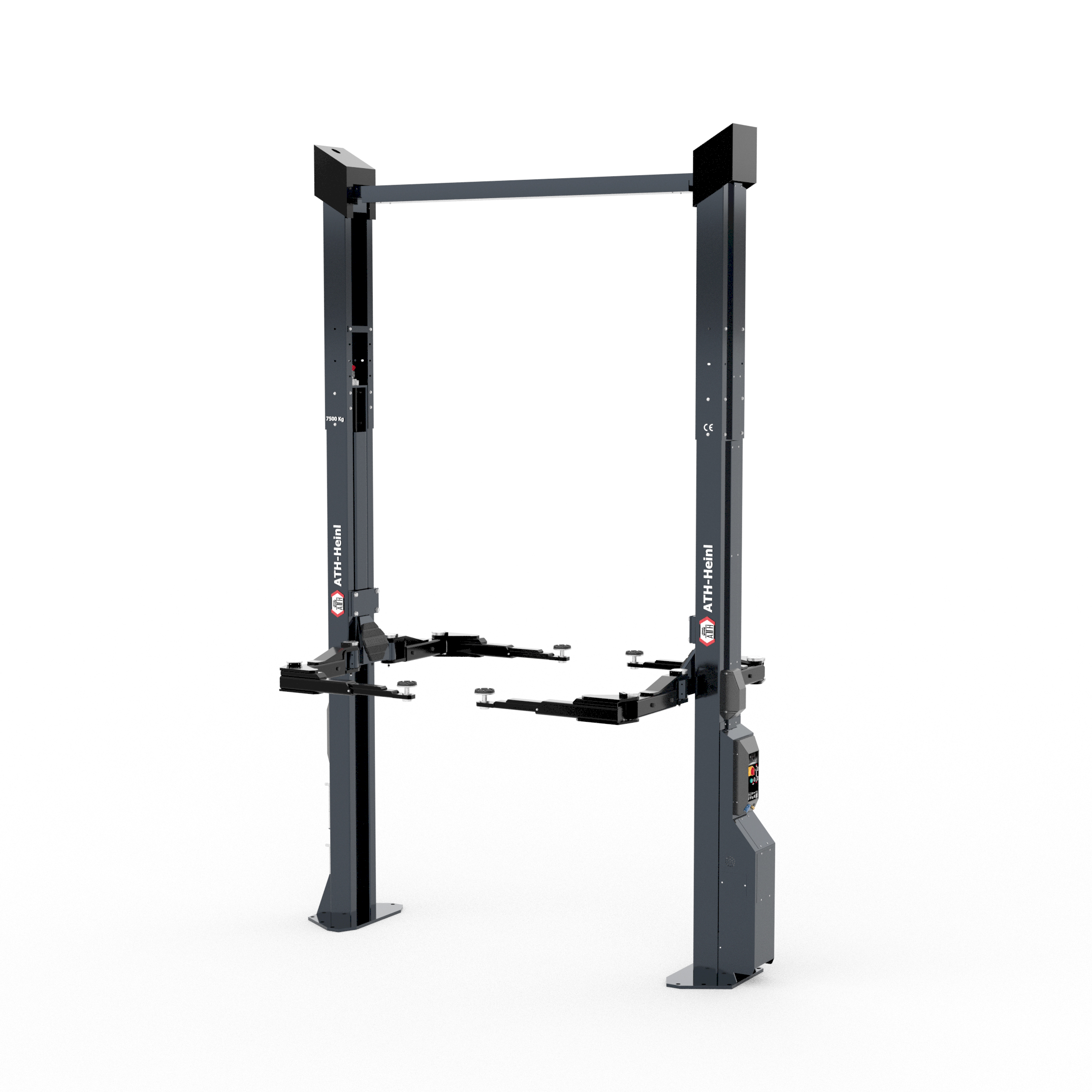

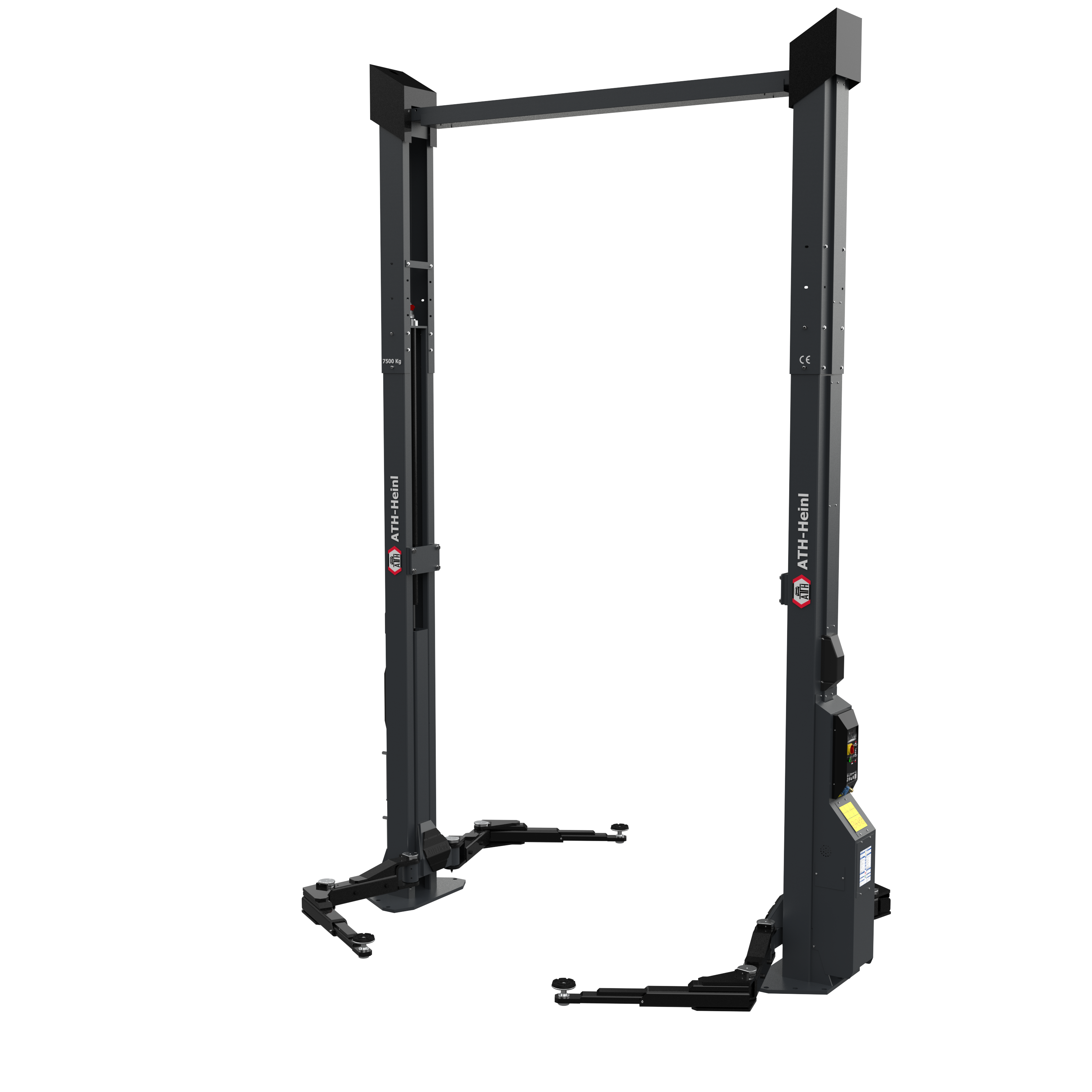

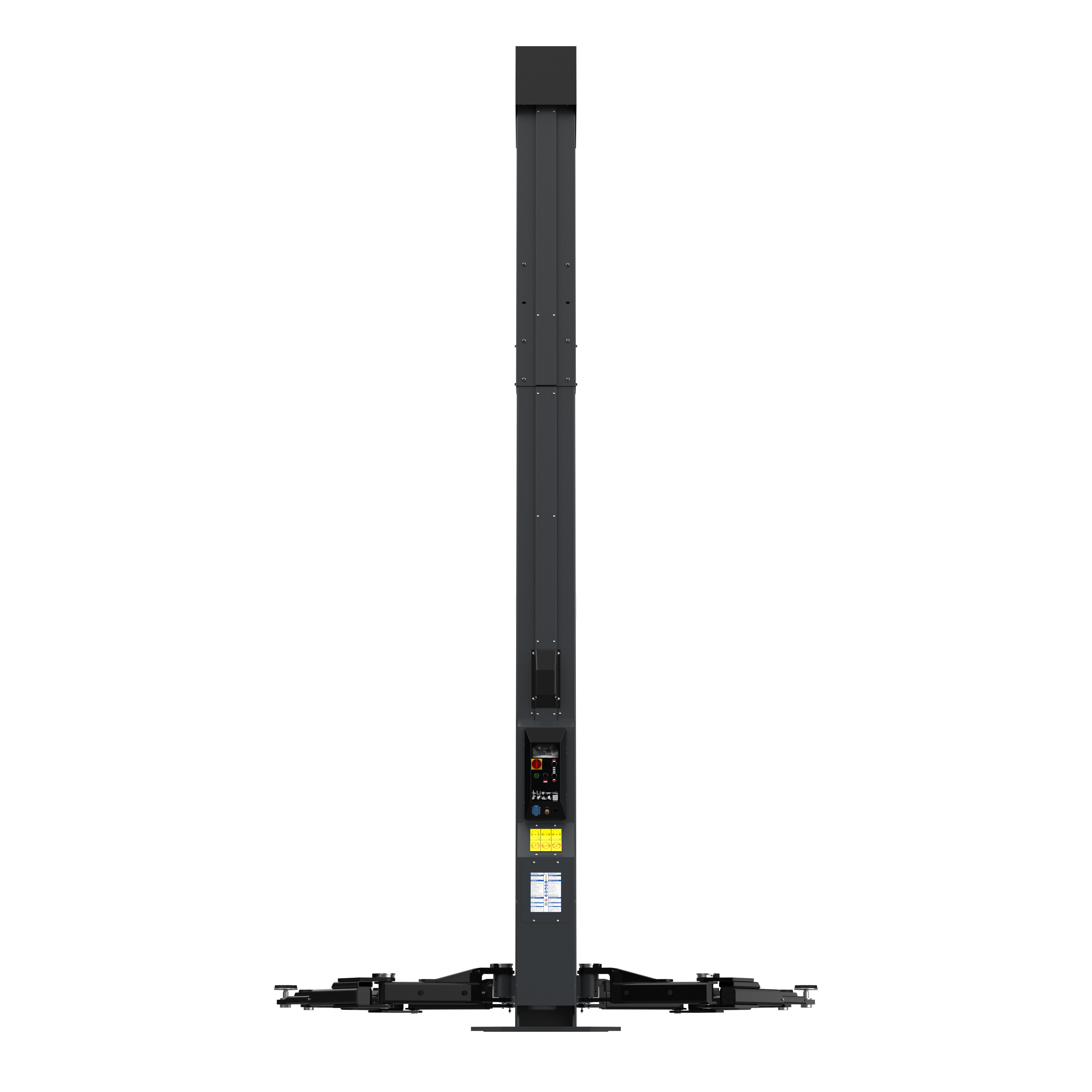

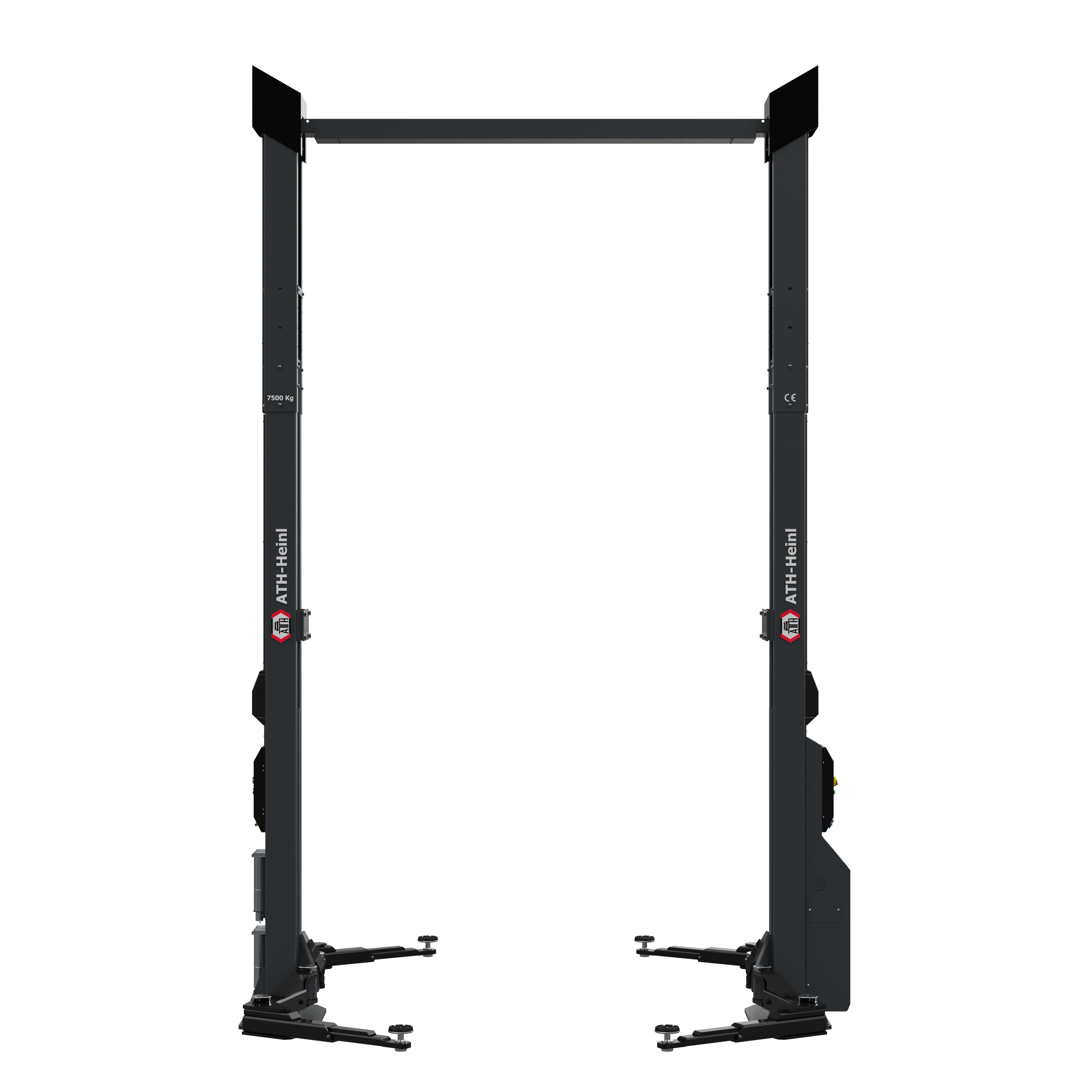

- Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function.
- Synchro Control: Special hydrosynchronous control for stepless synchronization without suspension ropes
- Safety Control: Electronically monitored synchronization and electromagnetic safety catches
- Safety Lock: Control for lowering the load into the safety catches
- 4-fold roller bearing lift carriage for optimal load transfer
- Multifunctional pick-up via double articulated arms and telescopic carrying plates
(from e.g. Smart to Sprinter/Crafter long wheel bases)
More Information

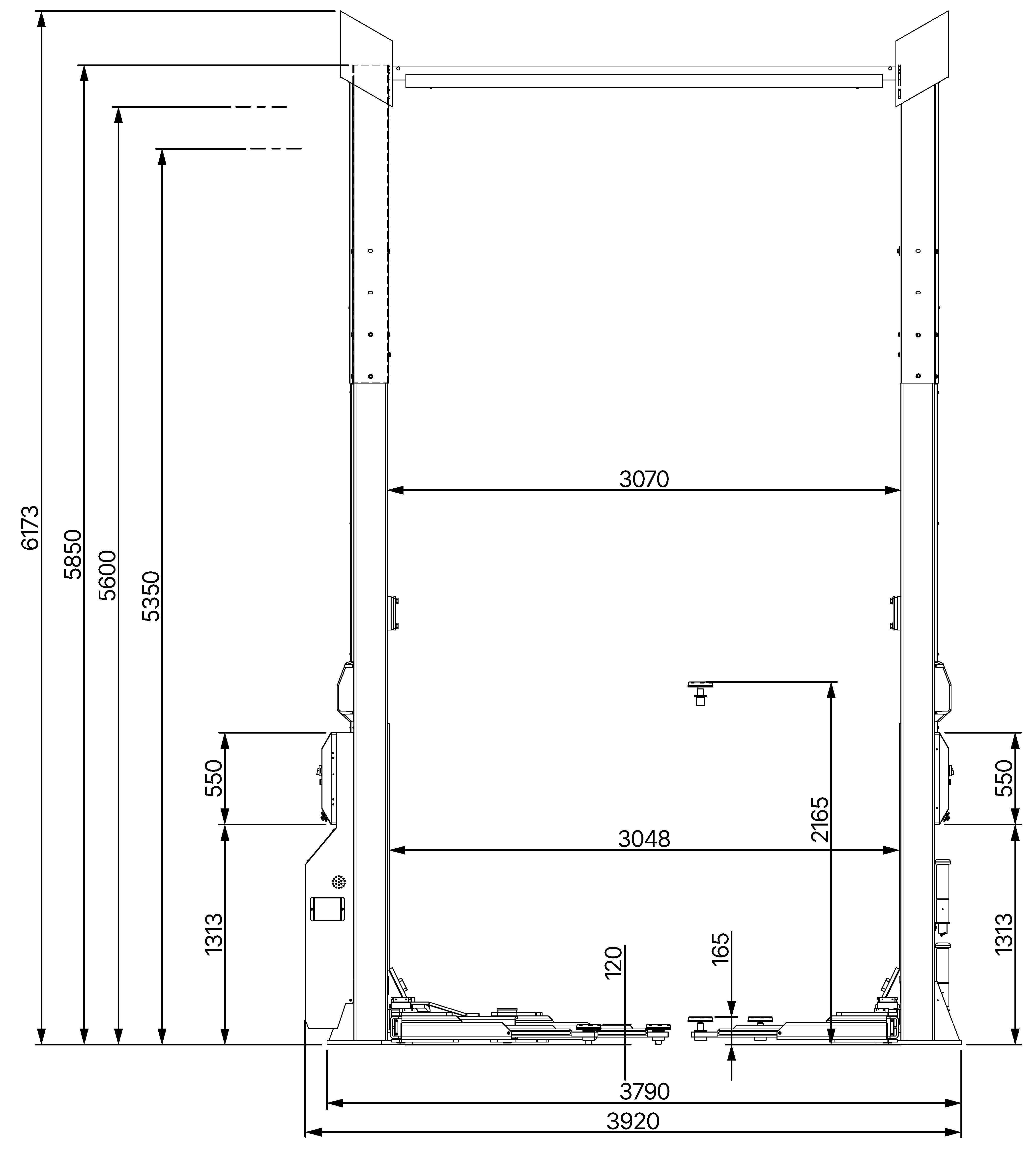

Rated load capacity |
7.500 kg |
Lifting height max. |
2.165 mm |
Drive-through width |
2.768 mm |
Overall width |
3.920 mm |
Overall height |
6.173 mm |
Support arms parts |
3 |
Driving power |
3 kW |
Lifting/Lowering time |
ca. 50 s |
Power supply voltage |
3x 400V / C16A |
Concrete strength |
min. C25/30 6.000 x 4.000 x 300 mm |
