ATH RG7.5-4

Mobile column lift for trucks with 4 mobile columns, rated load capacity per column 7500 kg

Availability: In stock

item number

710017

Share on

High-precision manufacturing by laser cutting and robotic welding
Robust and less sensitive hydraulic drive, almost maintenance-free
4 mobile columns can be flexibly positioned due to long connecting cables
With the hand hydraulic jack-lift, the columns can be moved in an easy and secure way
Control unit on every column, lifting and lowering with push button control
The control can be switched from one to all-column lifting
Lifting mechanism with wear-free trapezoidal screw drive, self-locking bronze lifting nut and low-maintenance geared motor
Safety nut if the support nut breaks
Powder-coated lift in attractive anthracite gray

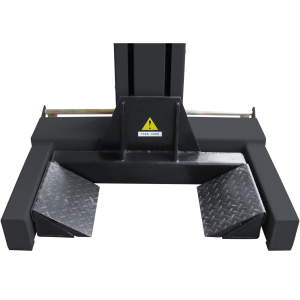

Optional: Adapter for smaller wheels (item number: 710020)
Optional: Mobil support frame (item number: 710050)

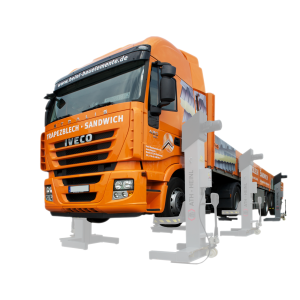

Perfect lift for trucks and busses
