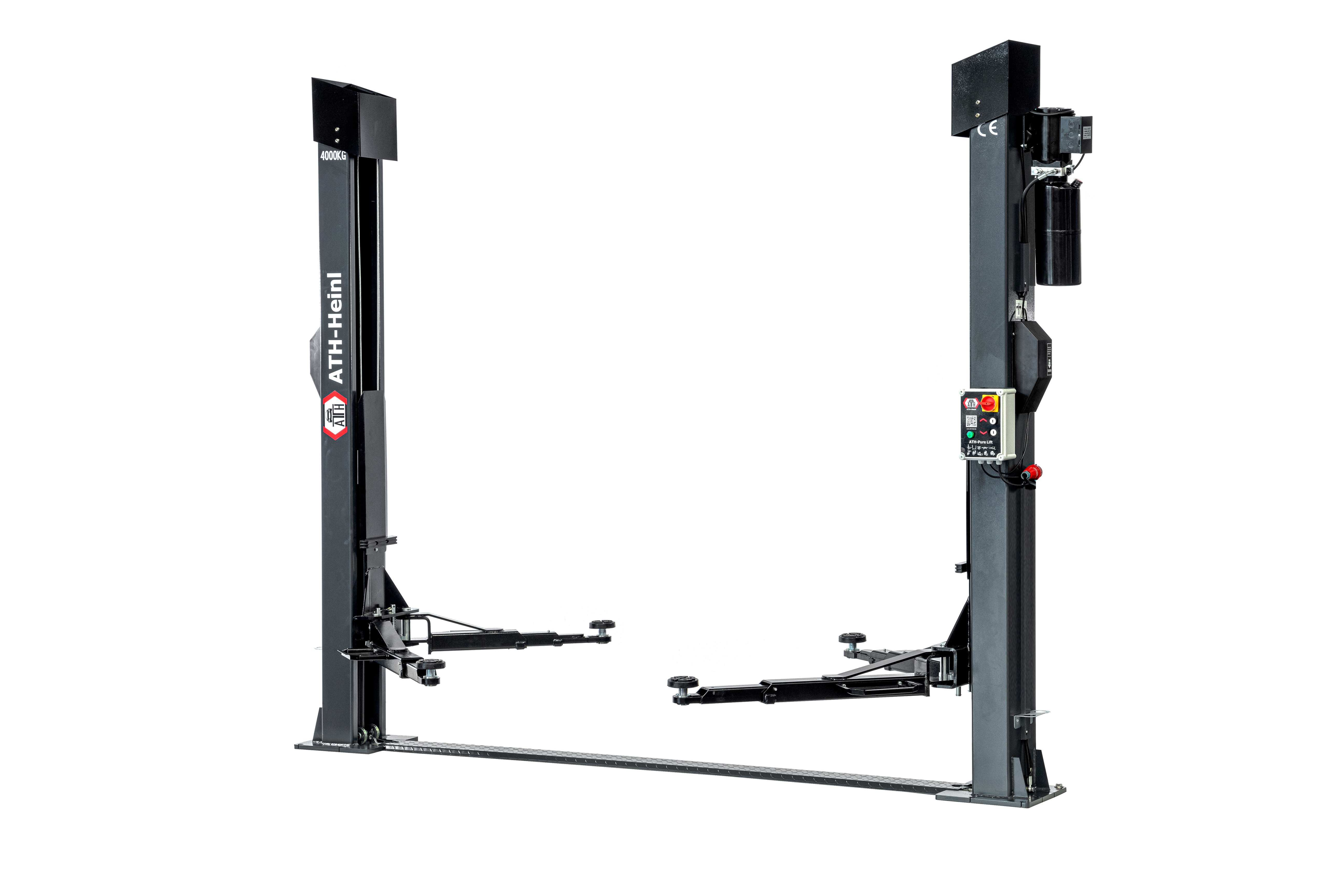

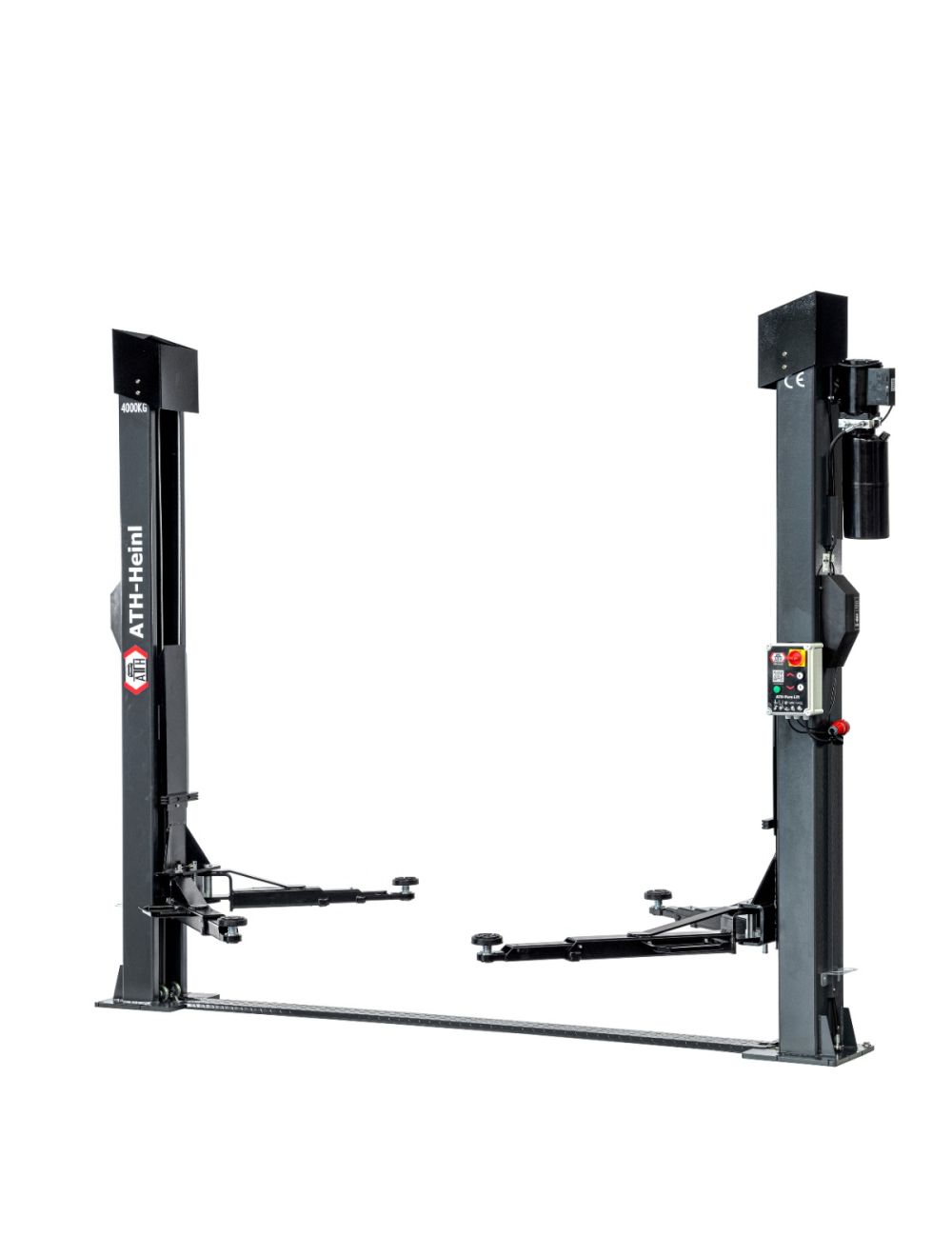

ATH Pure Lift 2.40A 400V

The ATH Comfort Lift 2.40XL: A sturdy 2-post lift by ATH-Heinl with an impressive 4,000 kg lifting capacity. Perfect for safely lifting and servicing heavy vehicles.

ATH Comfort Lift 2.40XL

ATH Pure Lift 2.40A 230V

ATH Pure Lift 2.40A 230V

Be the first to review this product

€2,752.10 plus assembly and freight

€3,275.00

Availability: In stock

item number

622400

Download Product-flyer

Download Product-flyer

Share on

Product information

Operating instructions

High quality and robust electro-hydraulic 2-post lift
Very low drive-over plate (height = approx. 20 mm) for comfortable work
Multifunctional mounting through telescopic support arms
Double telescopic support plate (90-180 mm) with anti-twist protection
Automatic and self-centering arm lock
Powder-coated lifting platform in modern anthracite gray
Automatic safety rates with automatic lowering valve

More Information
Rated load capacity	4.000 kg
Lifting height max.	1.900 mm
Drive-through width	2.600 mm
Overall width	3.455 mm
Overall height	3.320 mm
Support arms parts	3 \| 2
Driving power	2,2 kW
Lifting/Lowering time	ca. 45 s / 35 s
Power supply voltage	3x 400V / C16A
Concrete strength	min. C20/25 4.000 x 2.000 x 200 mm
