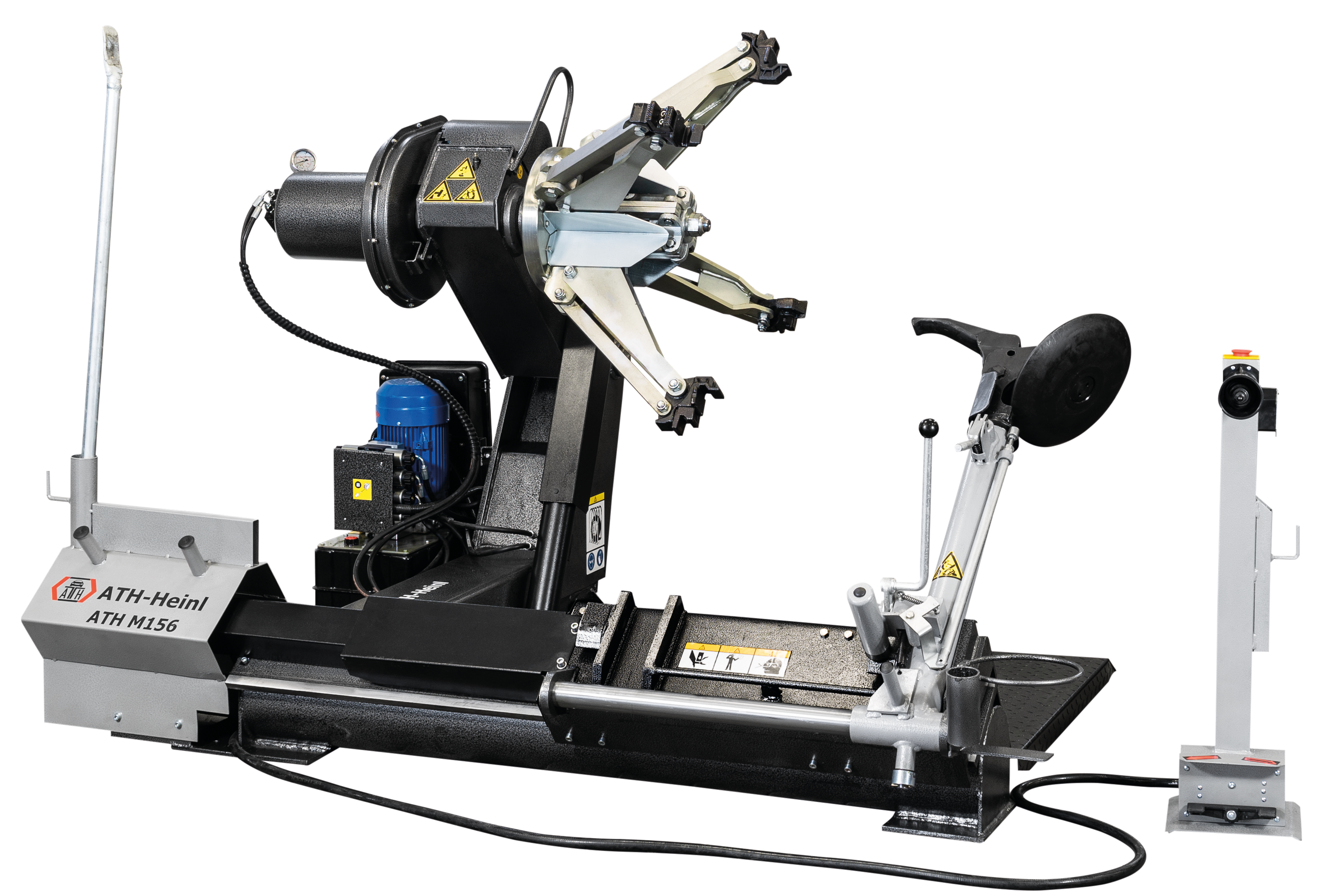

ATH M156 *AUSVERKAUFT*
Electrohydraulic tire changer for trucks and busess; clamping range up to 56"
Availability:
In stock
item number
721436.01
- Warp-resistant construction with high precise laser cut manufacturing and robotic welding

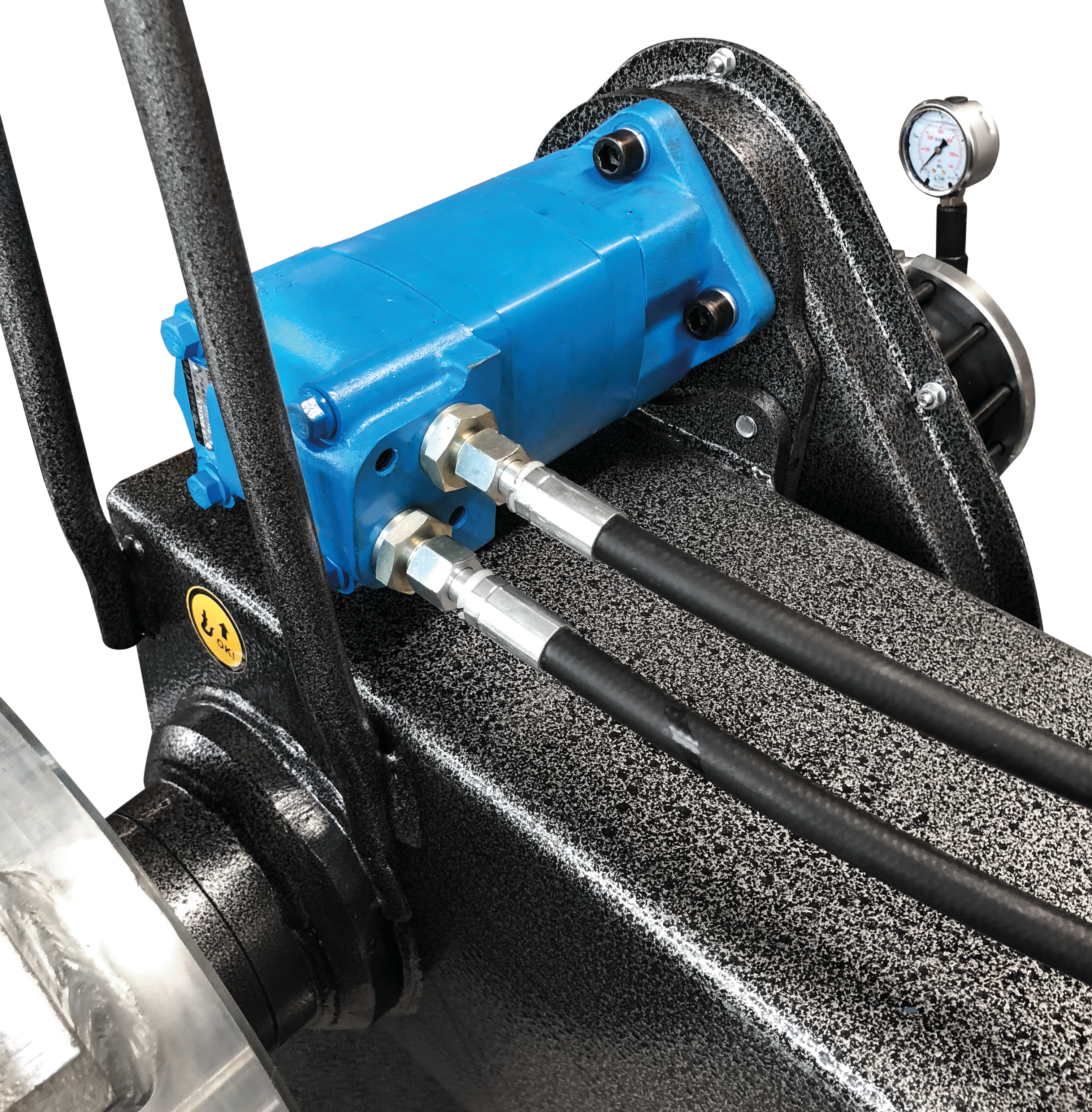

- Electrohydraulic lifting, lowering and clamping with four clamping claws; electric drive for turning the clamping arm
- The mounting arm on the slide is movable in both directions, manually turnable and expandable
- Two mounting speeds (4 and 8 rpm)

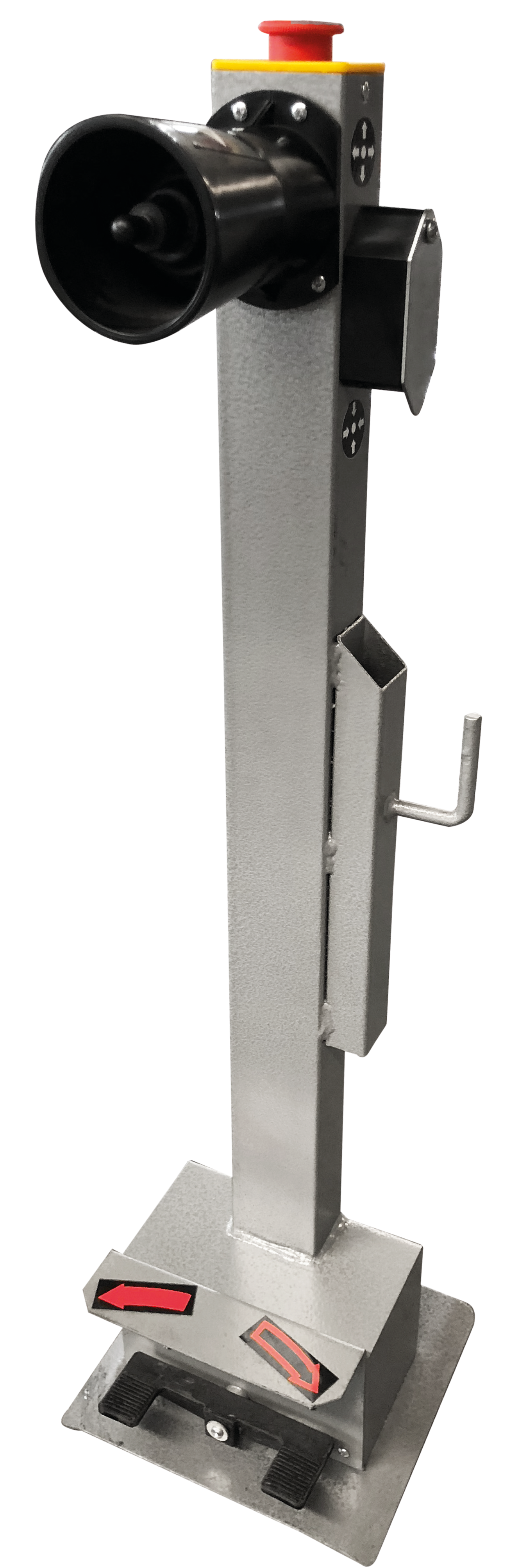

- Movable control unit with joysticks and foot pedals
- High resistant powder coating with attractive hammer scale painting design
- Scope of delivery: Tire lever and bead holder clamp for steel rims
- Perfect tire changer for trucks and buses with a clamping range up to 56“, with optional accessories also for aluminum rims
| Rim diameter max. | 135 – 1.155 mm |
|---|---|
| Clamping range extended | 710 – 1.550 mm |
| Rim diameter max. | 56" |
| Max. wheel diameter | 2.500 mm |
| Max. Wheel width | 1.100 mm |
| Wheel weight max. | 500 kg |
| Bead breaker force | 4.000 kg |
| Driving power | 3 kW |
| Power supply voltage | 3x 400V / C16A |
| Noise level | 55 – 80 dB(A) |
