ATH Hytron Lift 2.40 HB

ATH Concept Series

Availability: In stock

item number

622227

Share on

Modern design - pioneering technology - impressive appearance

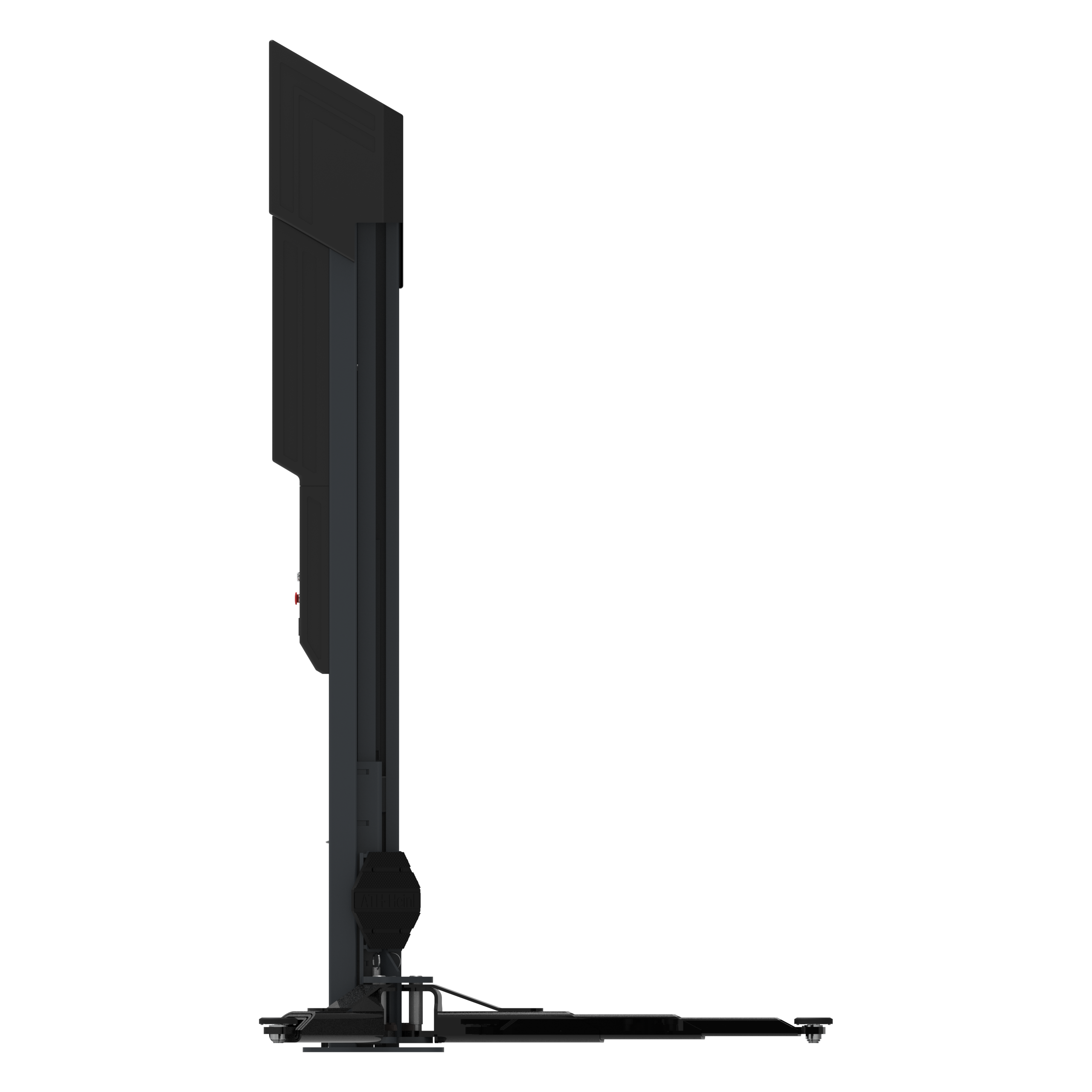

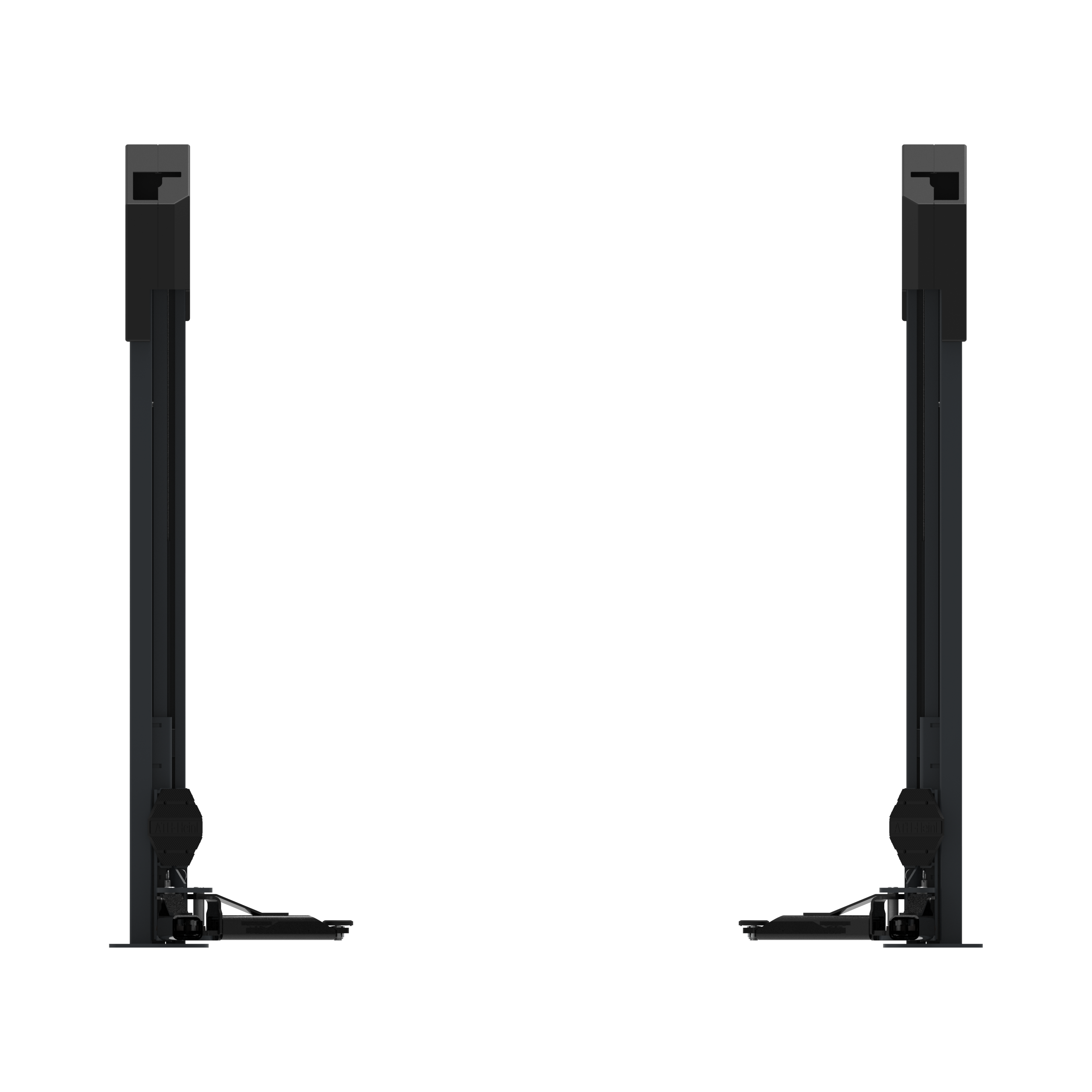

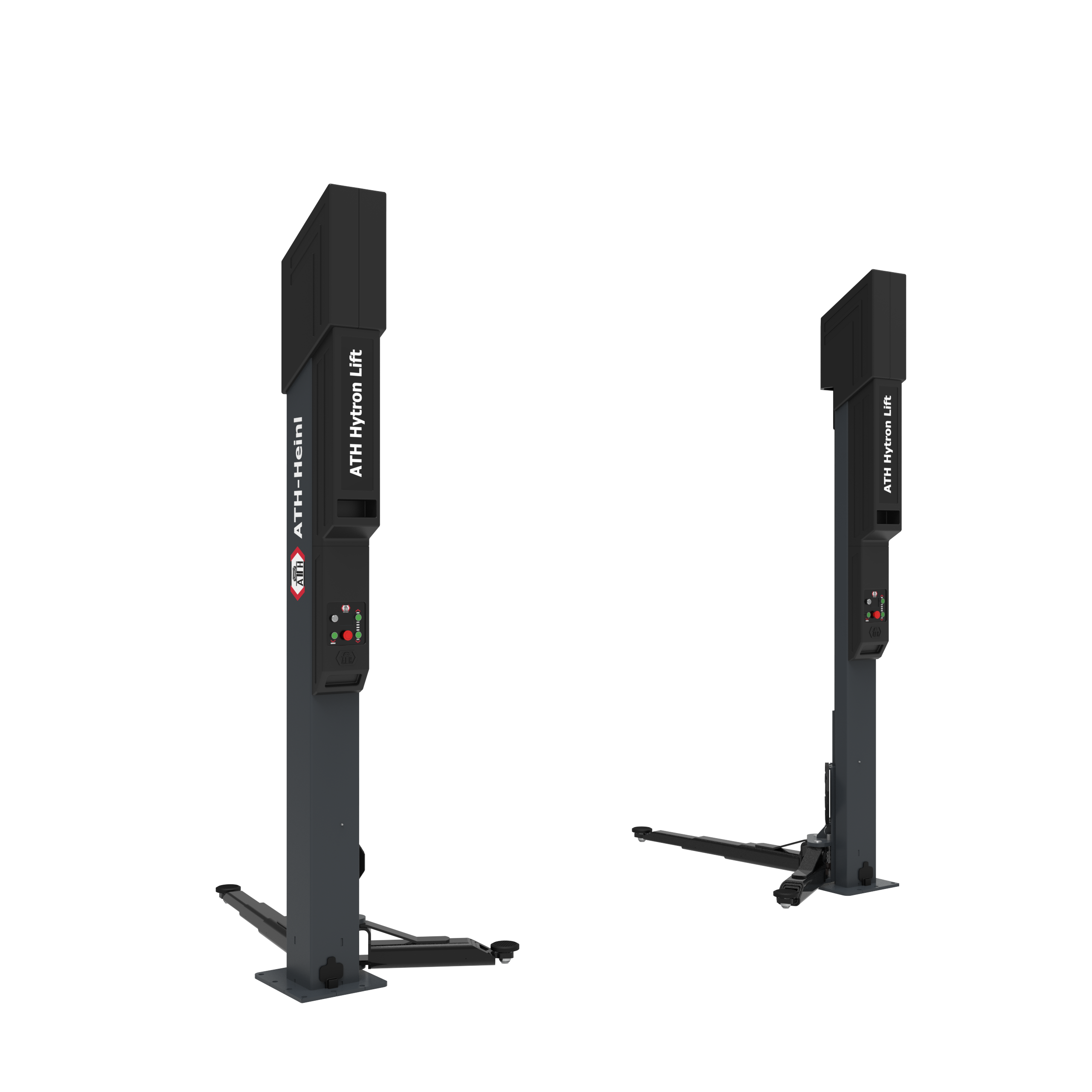

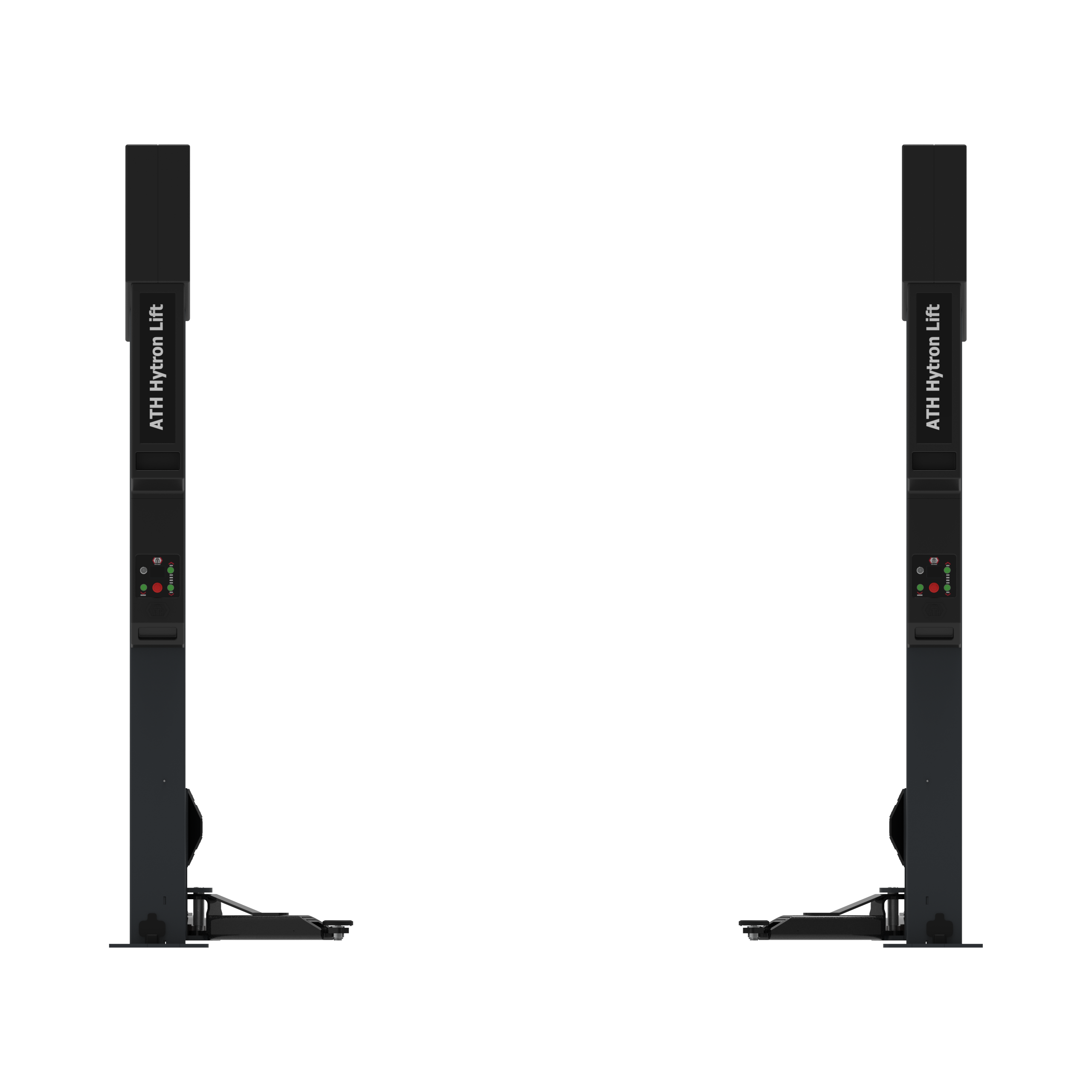

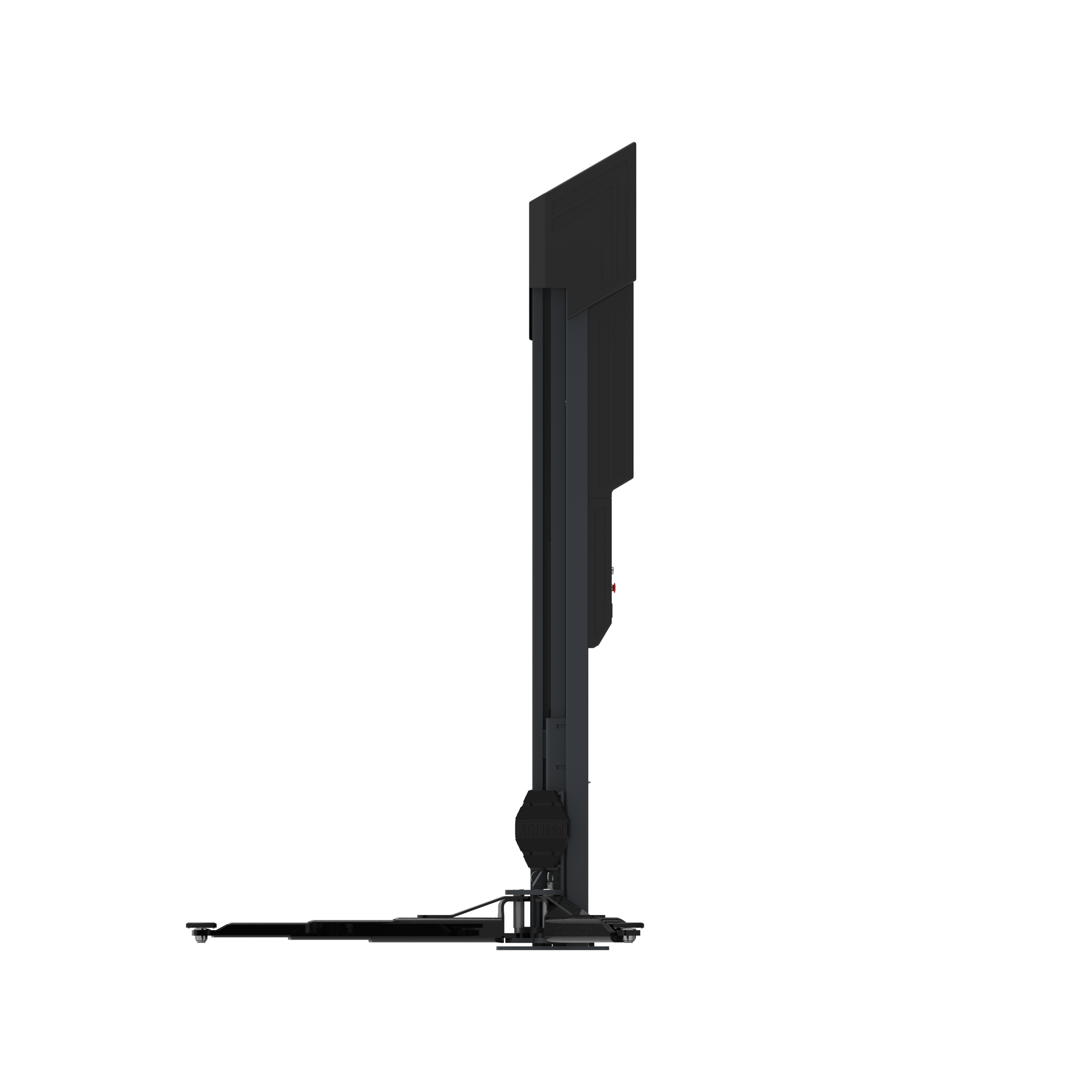

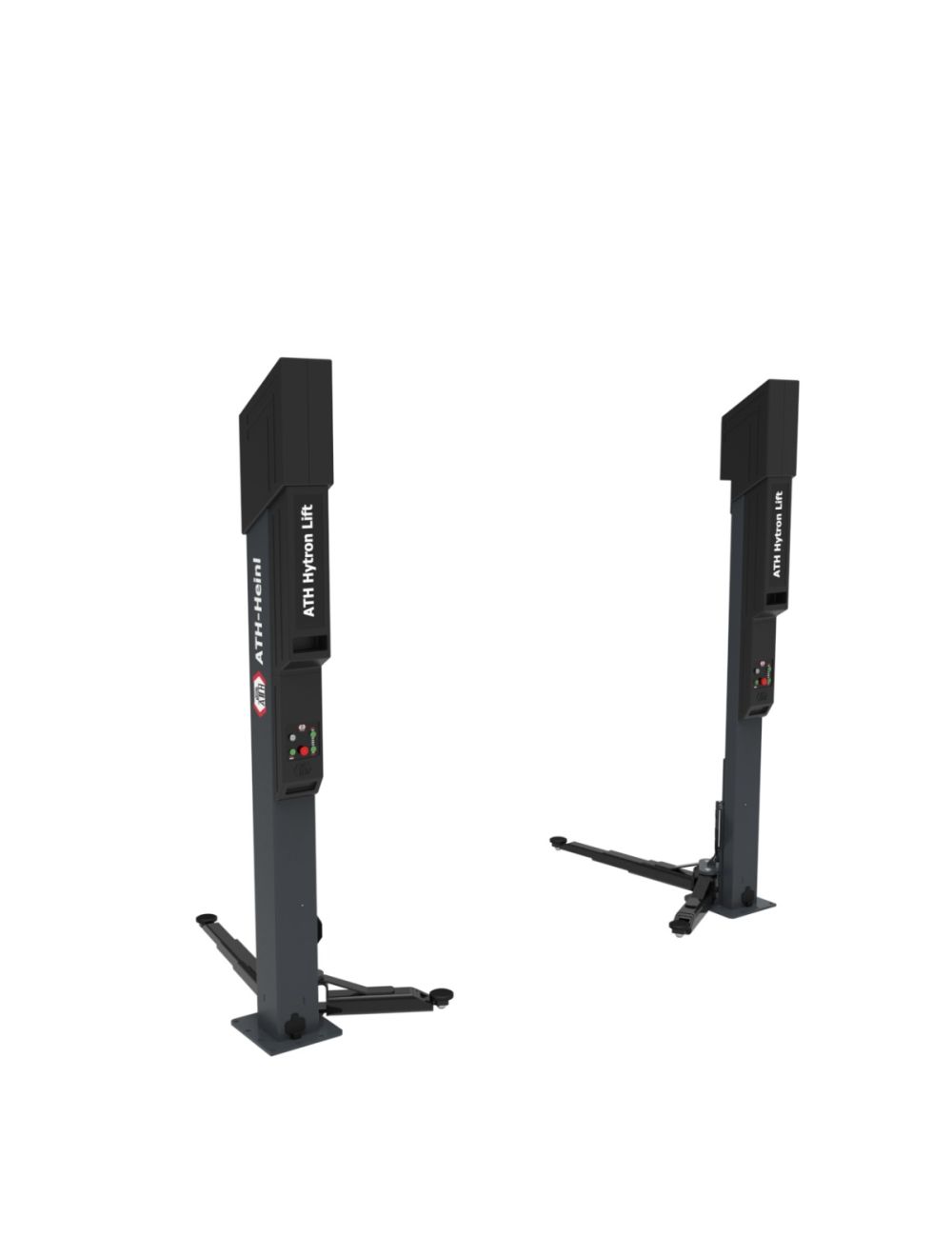

Electro-hydraulic 2-post lift with space-saving “triangular columns”, each of the two independent columns is wirelessly controlled by an industrial radio, without disturbing rigid top connection.
ATH Hytron concept

1) ASC control (ATH Safety Control) to synchronize two independent columns, each equipped with a hydraulic power unit

2) Speed and pressure control

3) ATH plunger cylinder system, very strong and long-lasting

4) Service-friendly hydraulic ATH-Hytron concept, all components in one place for easy maintenance

Columns with variable width, no connection required
Two control units for flexible use on both columns
Energy set (230V / compressed air / USB) on both columns
Safety Control: Electromagnetic MicroAnts tracked safety Latches that unlock automatically by lifting and lowering, as well as for setting down the load

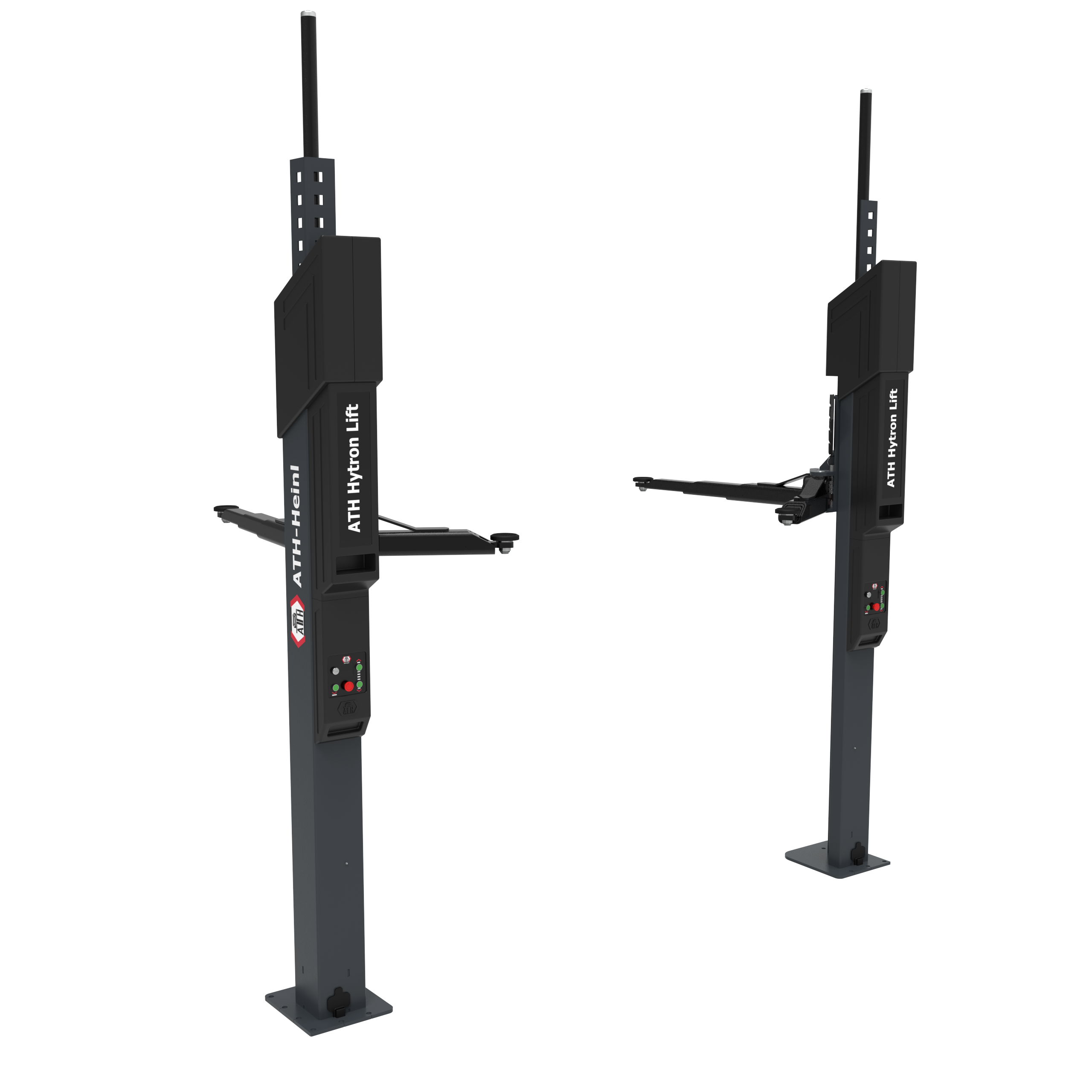

Multipurpose pick-up with 3-stages lifting arms and double telescopic lifting pads. Optionally with telescopic double jointed arm in the back.
“Plug and play” factory assembly, set up, plug in, fill with oil, done
Improve the quality of any workshop with a high-grade and attractive design, by covering all components
