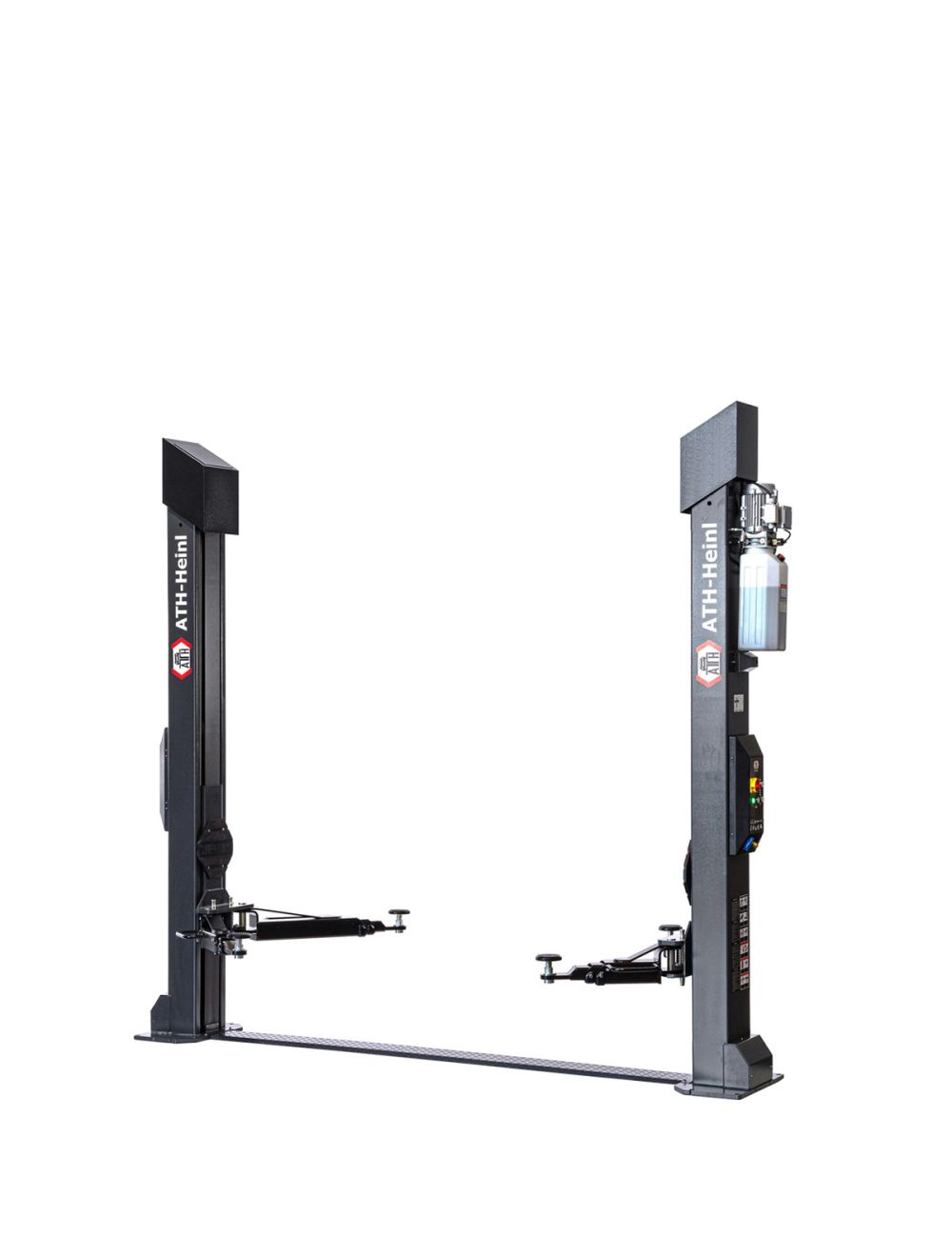

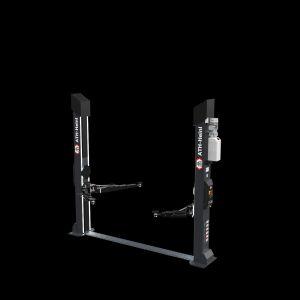

ATH Comfort Lift 2.35
€3,147.06
plus assembly and freight
€3,745.00
- Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function
- Two control units for flexible use on both columns
- Energy set (230V / compressed air / 12V) on the main post
- Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via 3-part support arms and double telescopic support plates
- Very low drive-over plate (height = 20mm) to protect hydraulic hose and synchronization cables
More Information
Rated load capacity |
3.500 kg |
Lifting height max. |
2.000 mm |
Drive-through width |
2.500 mm |
Overall width |
3.542 mm |
Overall height |
3.140 mm |
Support arms parts |
3 |
Driving power |
3 kW |
Lifting/Lowering time |
ca. 30 s |
Power supply voltage |
3x 400V / C16A |
Concrete strength |
min. C20/25 4.000 x 2.000 x 200 mm |
