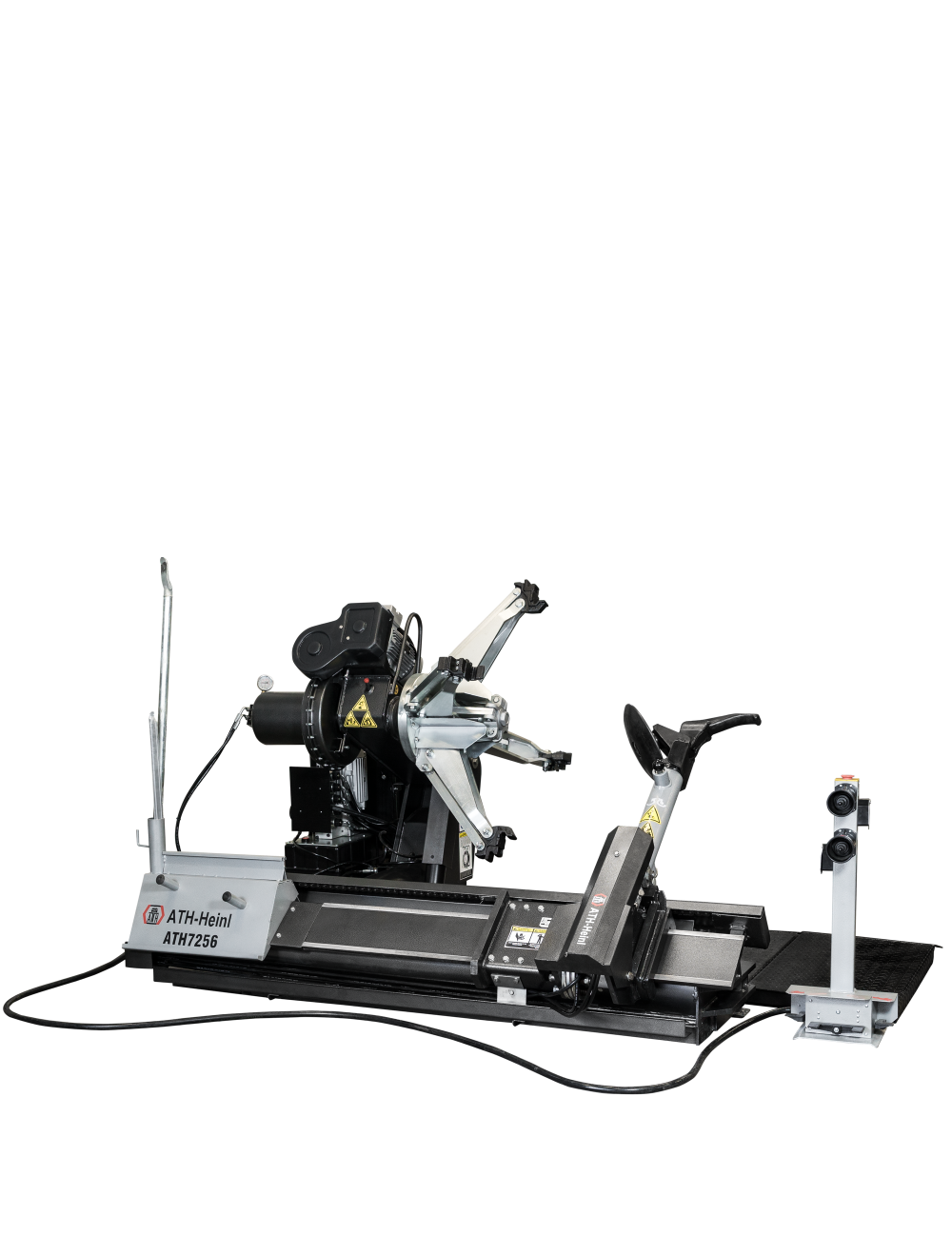

ATH 7226

ATH 7226

ATH 7256

€11,365.55 plus assembly and freight
€13,525.00
Availability: In stock
item number
721428.11
  • Electro-hydraulic drive for lifting, lowering and clamping with four clamping claws; electric rotation drive movement, hydraulic longitudinal movement of the slide
  • Assembly arm and complete clamping arm device can be moved lengthways hydraulically, with automatic rotation and fold option
  • Two working speeds (4 and 8 rpm)
  • Wheels capacity up to 2550 mm diameter
  • Movable control unit equipped with joysticks and foot pedals
  • Ideally suited for truck and bus wheels, agricultural equipment and large construction machines up to 56“ ,with optional accessories also for aluminium rims
More Information
Rim diameter max. 135 – 1.155 mm
Clamping range extended 710 – 1.550 mm
Rim diameter max. 14 - 56 "
Max. wheel diameter 2.550 mm
Max. Wheel width 1.250 mm
Wheel weight max. 2.000 kg
Bead breaker force 8.000 kg
Driving power 3,3 / 4,0 kW
Power supply voltage 3x 400V / C16A
Noise level 65 – 85 dB(A)
