ATH 7256

ATH 7256

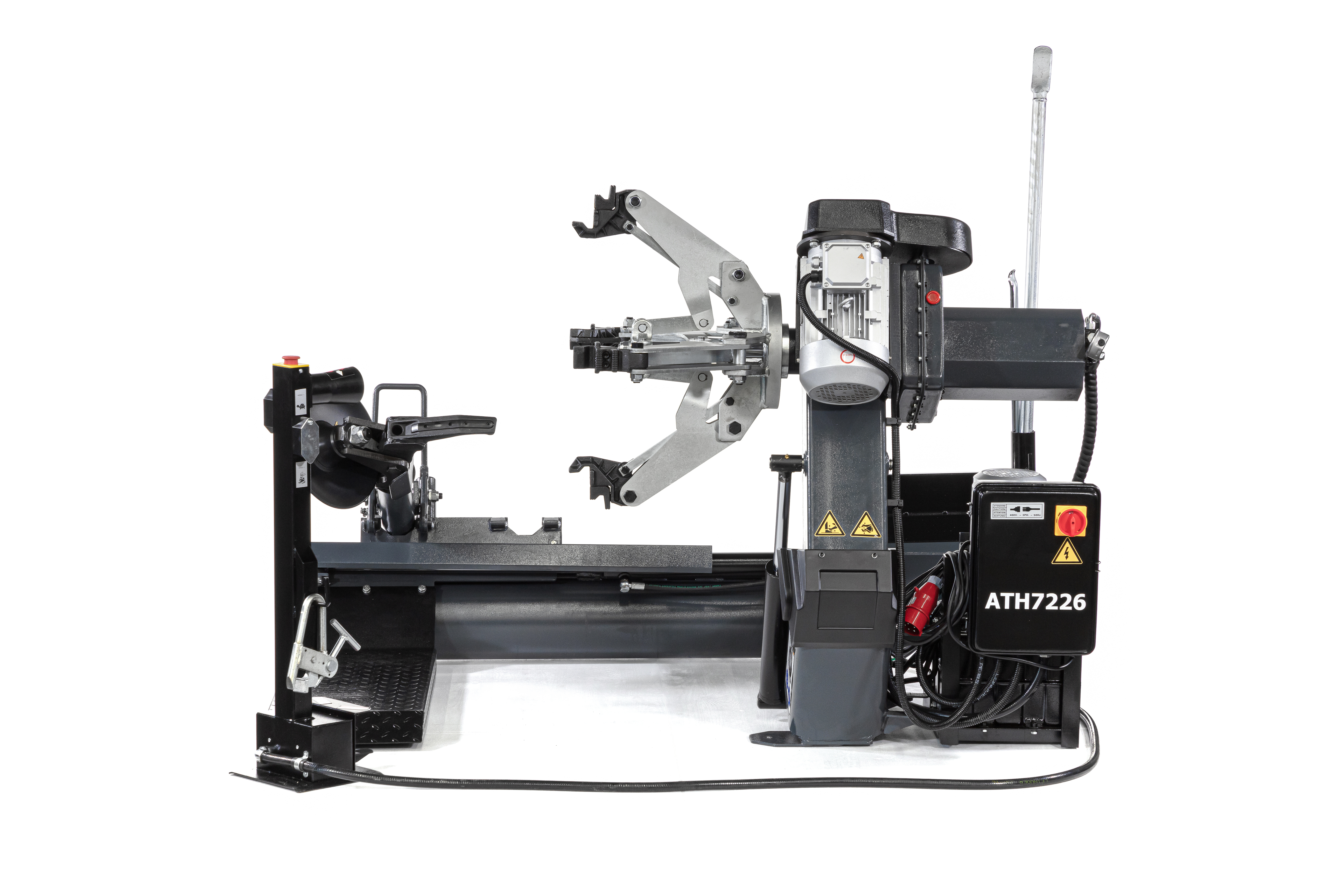

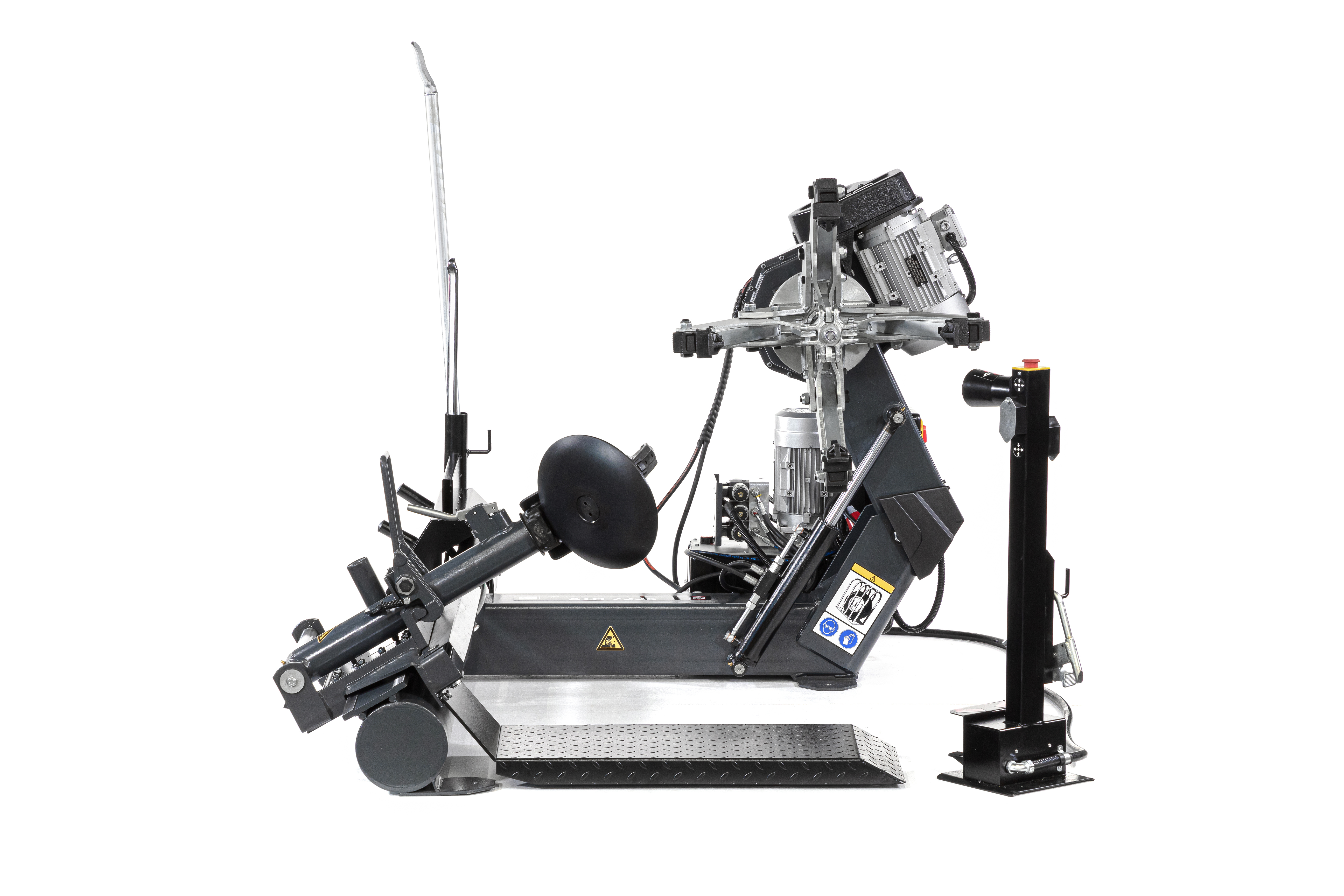

ATH 7226

€5,861.34 plus assembly and freight
€6,974.99
Availability: In stock
item number
721426.11

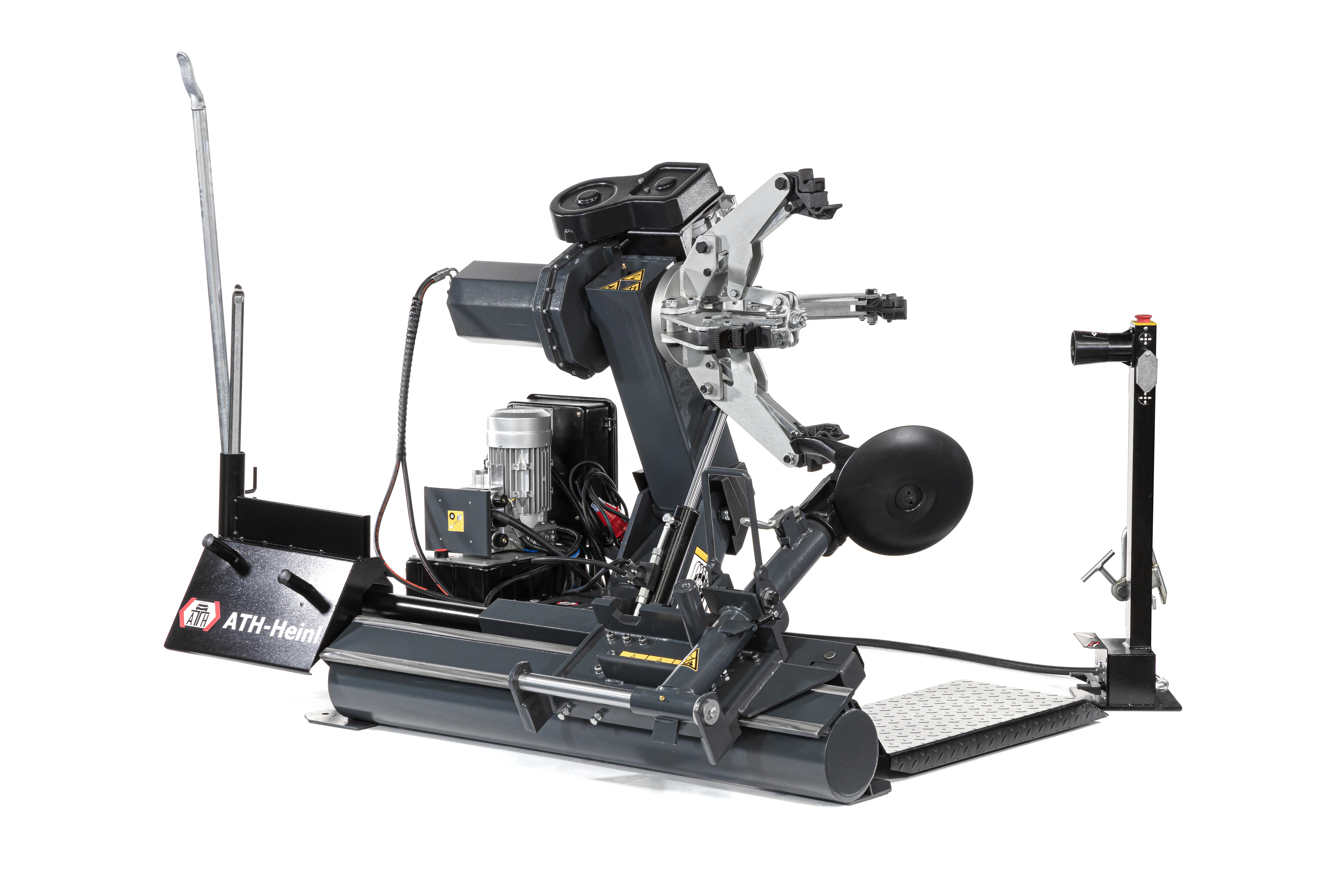

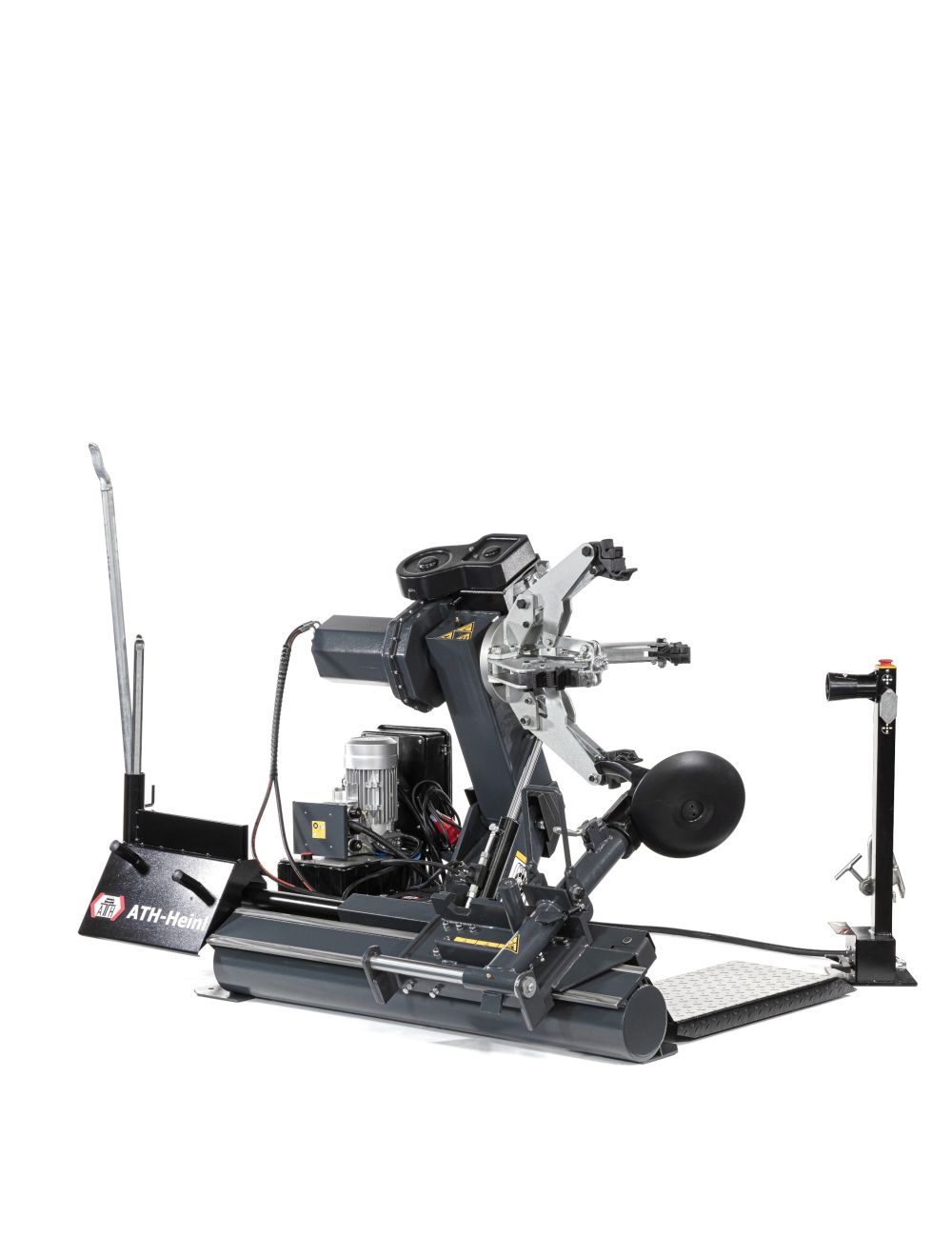

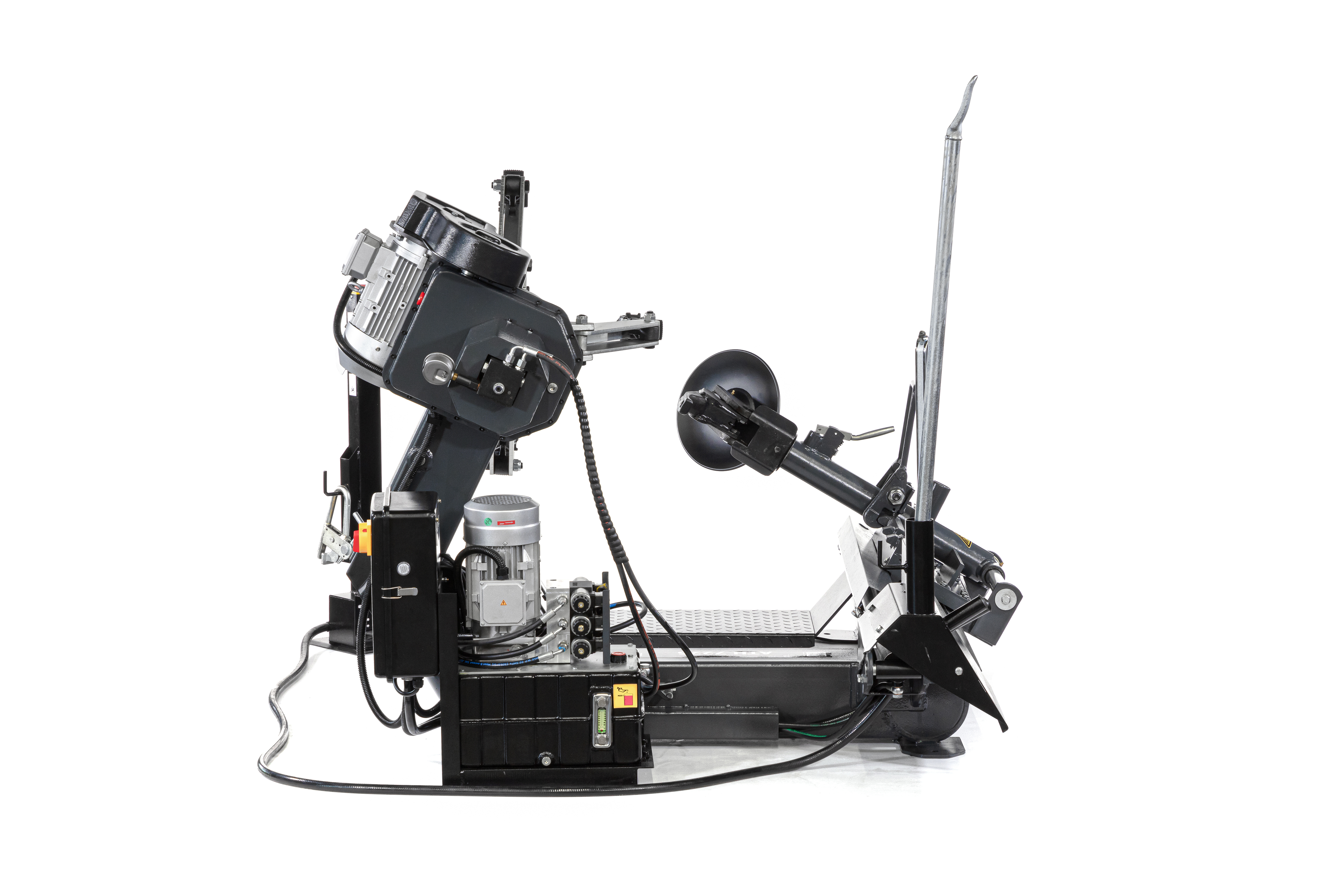

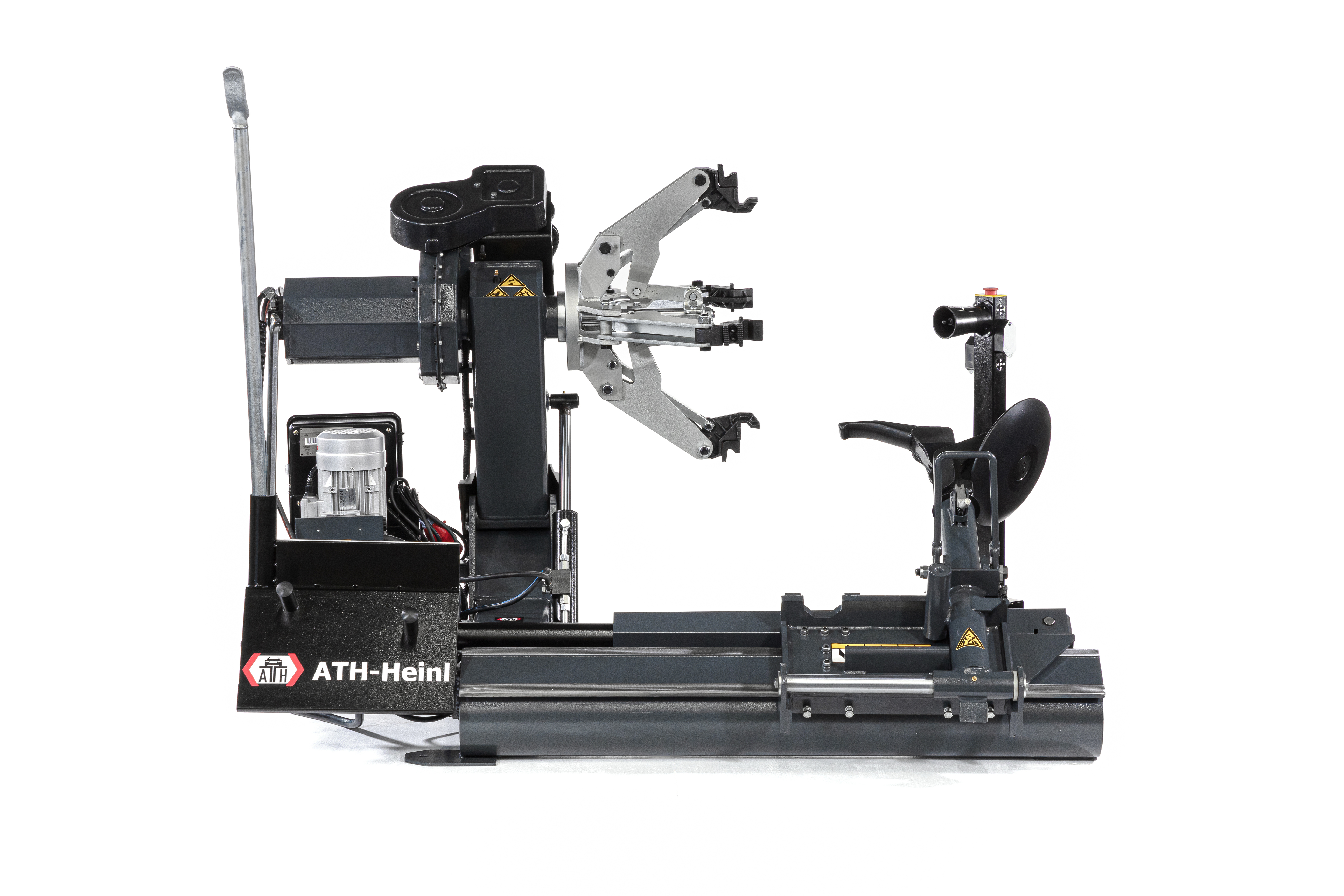

  • Electro-hydraulic lifting, lowering and clamping drive with four clamping claws; electric rotation drive movement, hydraulic longitudinal movement of the slide
  • Mounting arm can be moved manually, and can be rotated and folded out manually
  • Two working speeds (4 and 8 rpm)
  • Wheels diameter up to 1,550 mm
  • Movable control unit equipped with joystick and foot pedal

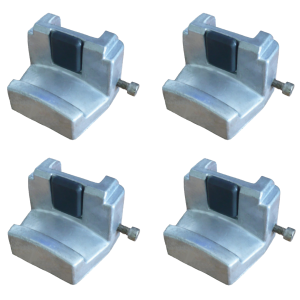

  • Ideally suited for truck and bus wheels up to 26 „, with optional accessories also for aluminium rims
More Information
Rim diameter max. 120 – 725 mm
Rim diameter max. 14 - 26 "
Max. wheel diameter 1.550 mm
Max. Wheel width 850 mm
Wheel weight max. 1.000 kg
Bead breaker force 3.000 kg
Mounting speeds 4 und 8 U/min
Driving power 2,4 / 3,0 kW
Power supply voltage 3x 400V / C16A
Noise level 55 – 80 dB(A)
